AEC AFC ANC dc one звуковой сигнал процессор android студийное
- Категория: Audio Sound Equipment >>>
- Поставщик: Shenzhen,S-Track,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.9 $* | 0.60 $* |
| Aug-19-2025 | 0.88 $* | 0.43 $* |
| Jul-19-2025 | 0.95 $* | 0.81 $* |
| Jun-19-2025 | 0.54 $* | 0.37 $* |
| May-19-2025 | 0.83 $* | 0.30 $* |
| Apr-19-2025 | 0.70 $* | 0.2 $* |
| Mar-19-2025 | 0.40 $* | 0.6 $* |
| Feb-19-2025 | 0.29 $* | 0.36 $* |
| Jan-19-2025 | 0.83 $* | 0.58 $* |
Характеристики
AEC AFC ANC dc one audio signal processor android studio equipment
Product Description
【Introduction】
Because most of the controls are handled by software, It looks much simpler. The operators only need to click the mouse gently, no longer like before, that adjust the complex large mixer in the field to complete the function conversion. The TIGER 88N simplify the operation difficulty greatly.
【Main Features】
2. Support mobile phone, tablet control and distributed cloud control
3. DSP audio processing, built-in automatic mixer, optional feedback elimination, echo elimination, noise
elimination module
4. Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter
4. Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter
equalization
5. Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
6. Full function matrix remix
7. Built-in automatic camera tracking function
8. Support for scenario presets
9. Automatic memory protection when power off
10. 1U Whole aluminum chassis
5. Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
6. Full function matrix remix
7. Built-in automatic camera tracking function
8. Support for scenario presets
9. Automatic memory protection when power off
10. 1U Whole aluminum chassis

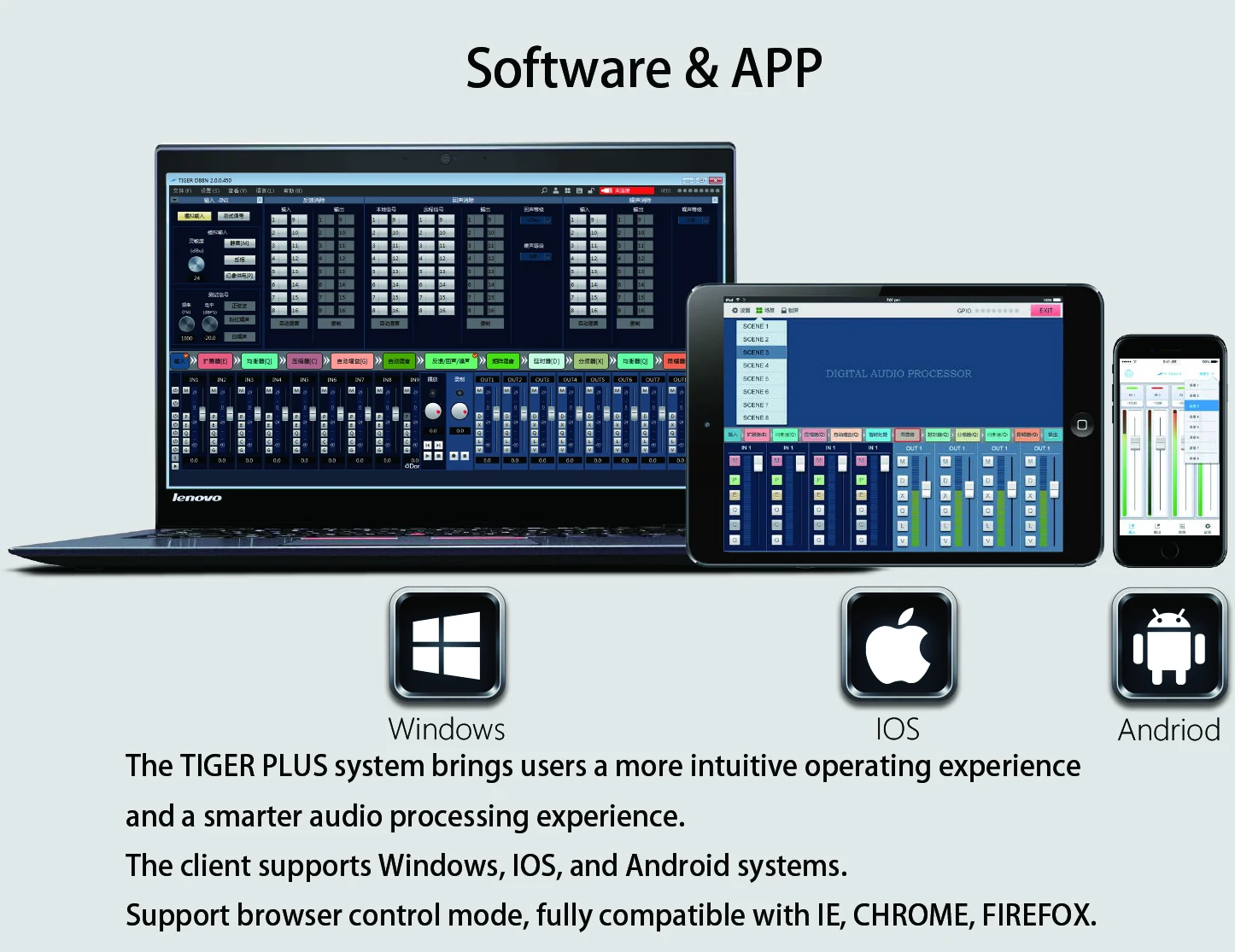

【The Software Experience】
Windows Platform client software
Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.\t
Browser interface
The digital audio processor comes with B/S architecture server, which is accessed through web browser, not only realizing channel control and scene selection, but also directly providing download links of PC client and platform components.
IOS Platform control software
Installed on tablet and mobile phone APP client, sedate and simple design style, panoramic function menu, with fast operation bar, It can be very convenient for the processor to carry out various operations. Everything just to give you a better user experience.
【Core algorithm】
* AUTOMIXER
* Automatic Echo Cancellation (AEC)
* Automatic feedback elimination (AFC)
* Automatic noise elimination (ANC)
* Automatic Echo Cancellation (AEC)
* Automatic feedback elimination (AFC)
* Automatic noise elimination (ANC)
Specification

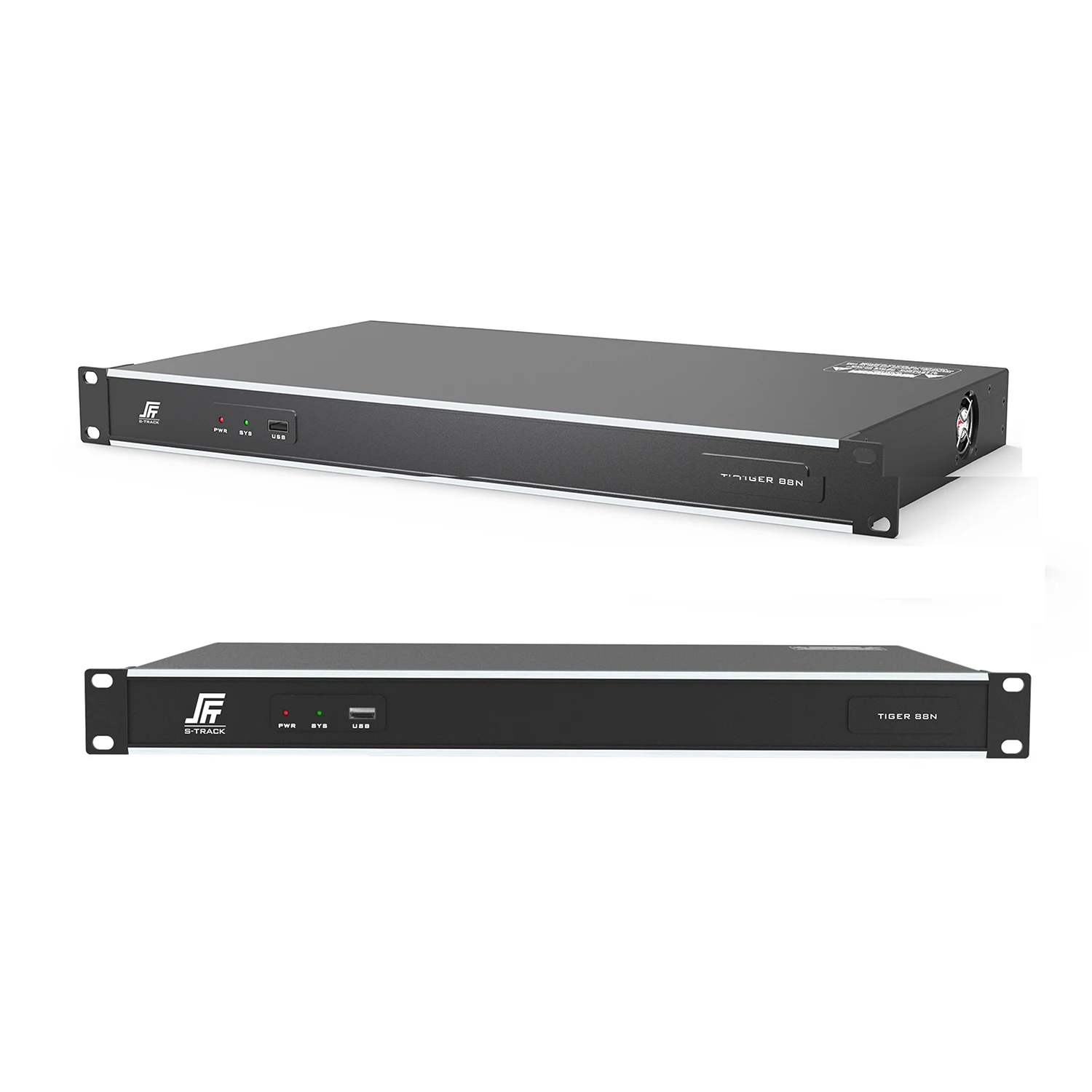

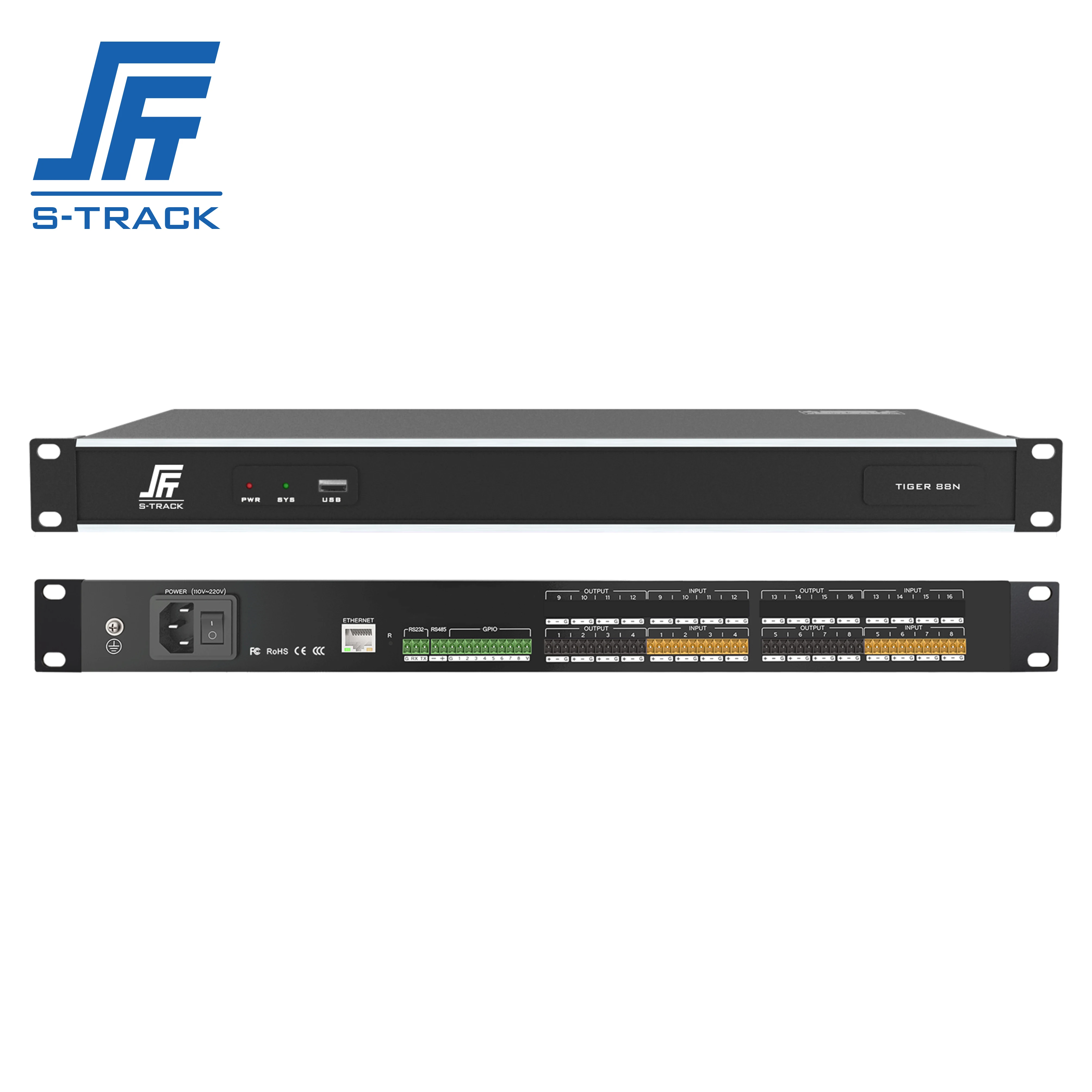

Model No. | Tiger 88N |
DSP Processing | Ti 456MHz FLOPS DSP |
Number of analog channels | 8 Input +8 Output |
Core Algorithm | Automatic mixing, feedback elimination, echo elimination, noise elimination |
GPIO | 8 ( Including input and output) |
RS232/RS485 | 1 |
RJ45 control interface | 1 |
USB Port | 1 |
RJ11 phone interface | 0 |
DANTE network interface | 0 |
Simulated maximum gain | 51dB |
Digitalizing bit | 24bit |
Sampling Rate | 48k |
Frequency Response(20~20KHz) | ±0.2dB |
Analog-to-digital dynamic range (A-weighted) | 114dB |
Digital-to-analog dynamic range (A-weighted) | 120dB |
Input to output dynamic range | 108dB |
Total harmonic distortion + noise | <0.003% @1KHz ,4dBu |
Floor noise (A- weighted) | -90dBu |
Delay storage | 2s |
Analog input to output system delay | 3ms |
Input impedance (balance -type) | 20Kohm |
Output impedance (balance -type) | 100ohm |
Maximum Input Level | +18dBu,balance |
Maximum Output Level | +18dBu,balance |
Equivalent input noise EIN(20-20kHz,A-weighted) | ≤-131dBU |
Phantom power (per input) | 48V |
Input common mode rejection,60Hz | 70dB |
Channel Isolation,1kHz | 104dB |
Dimensions (W*D*H) | 482*258*45(mm) |
Weight | 3Kg |
Power Consumption | <40W |
Operating Temperature | -10 - 50℃ |
Working Power Supply | AC110V-220V,50Hz/60Hz |
Application scenario
It is suitable for meeting room, interactive teaching, judicial system and court, video conference and other scenes.You can choose feedback cancellation, noise cancellation and echo cancellation, improve the quality of the meeting.
