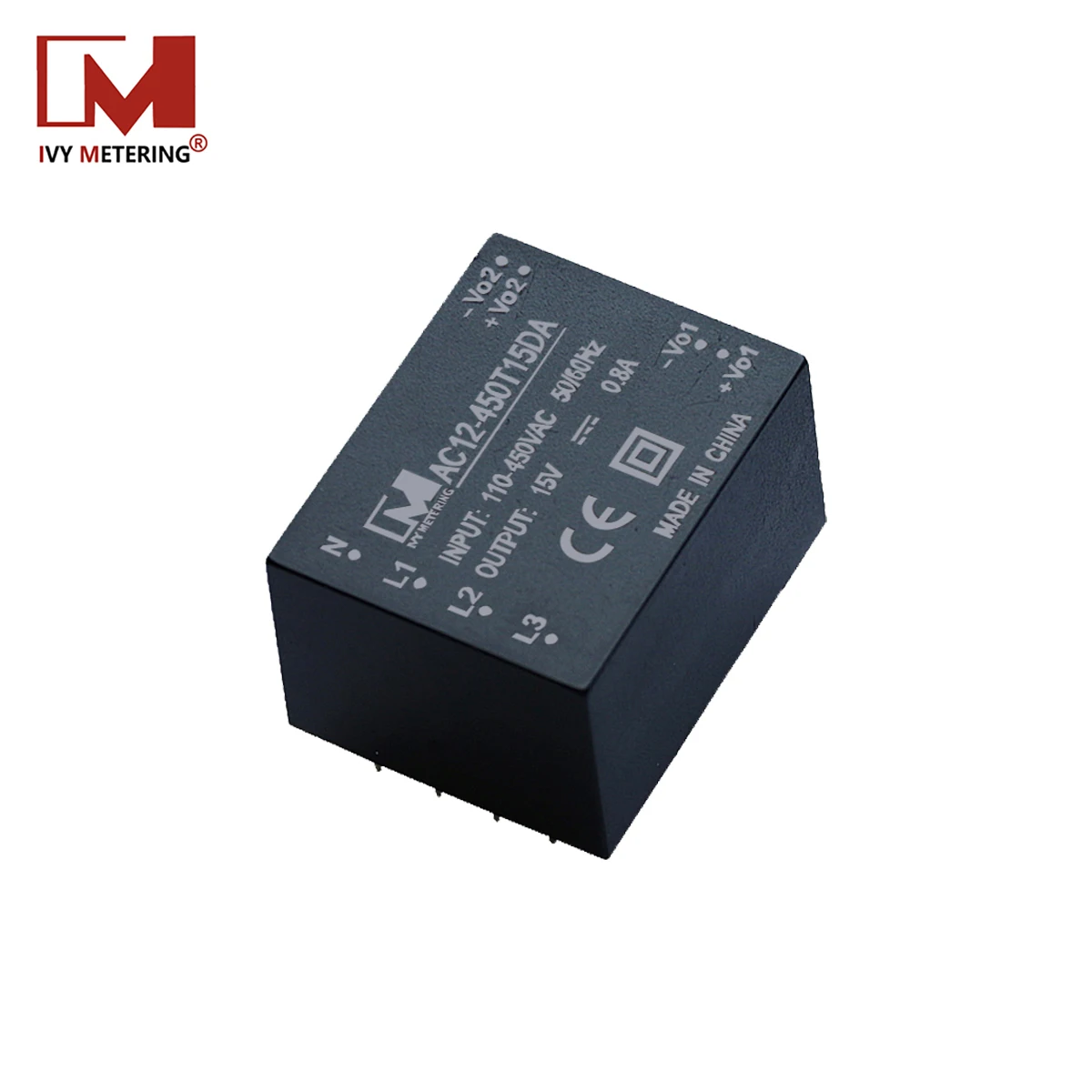

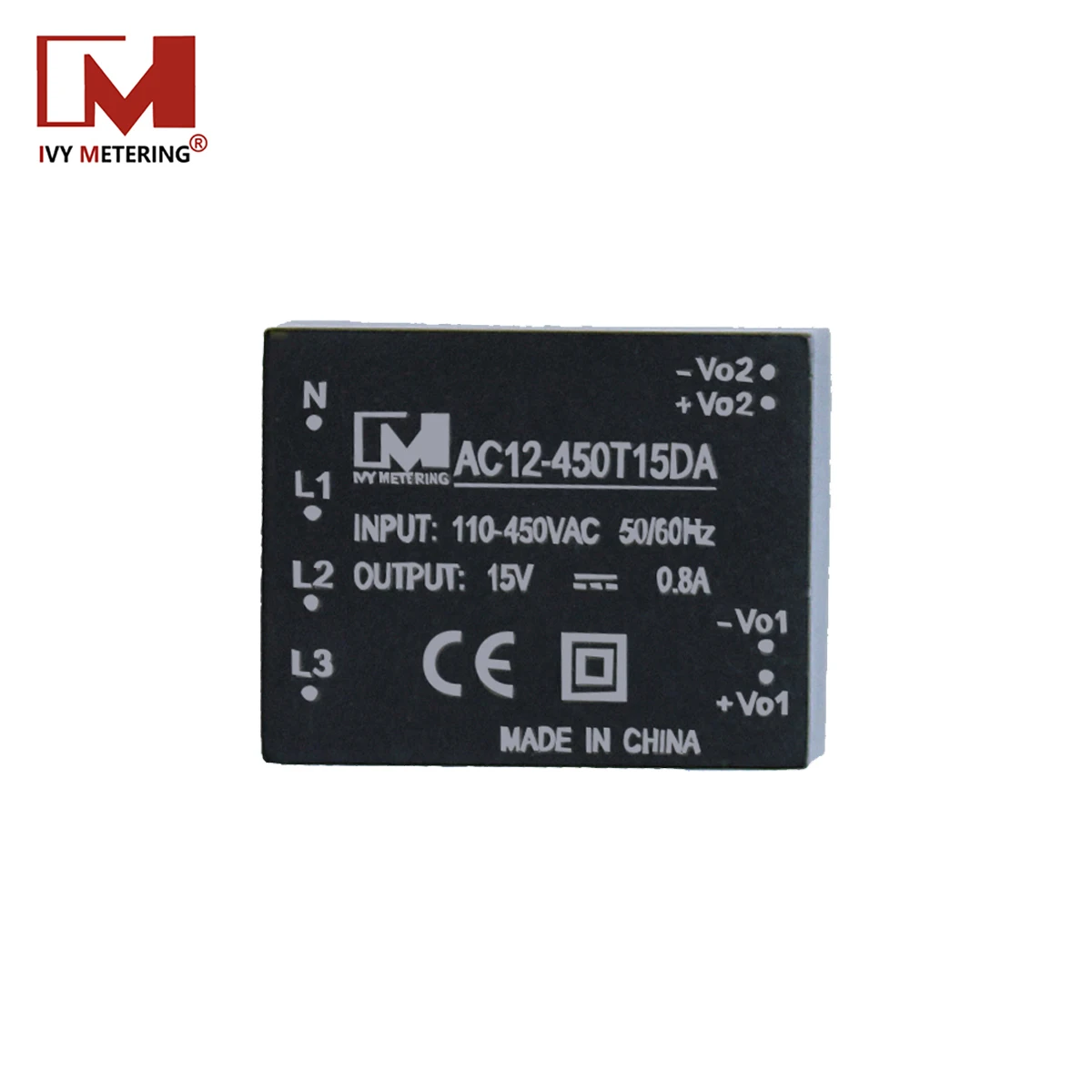

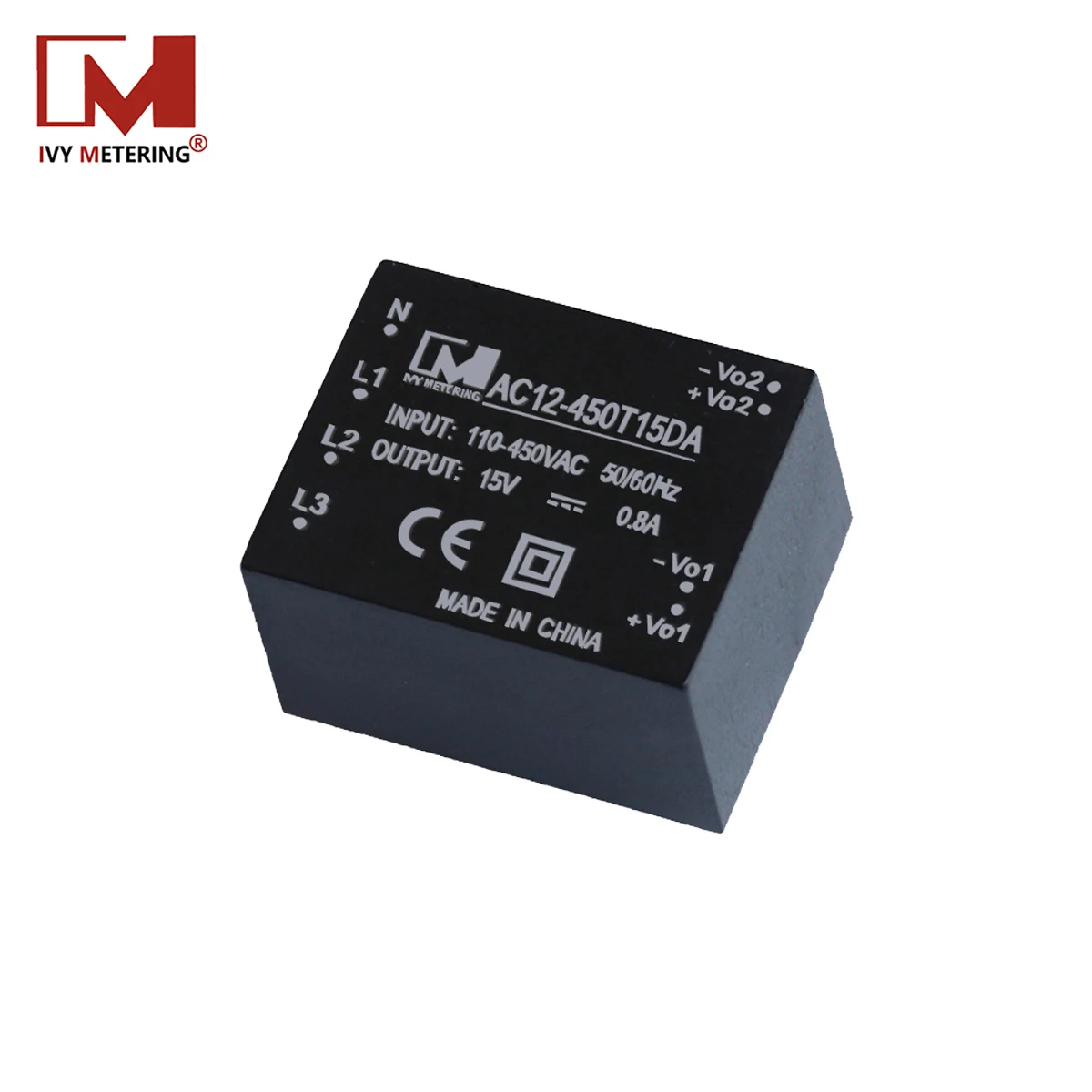

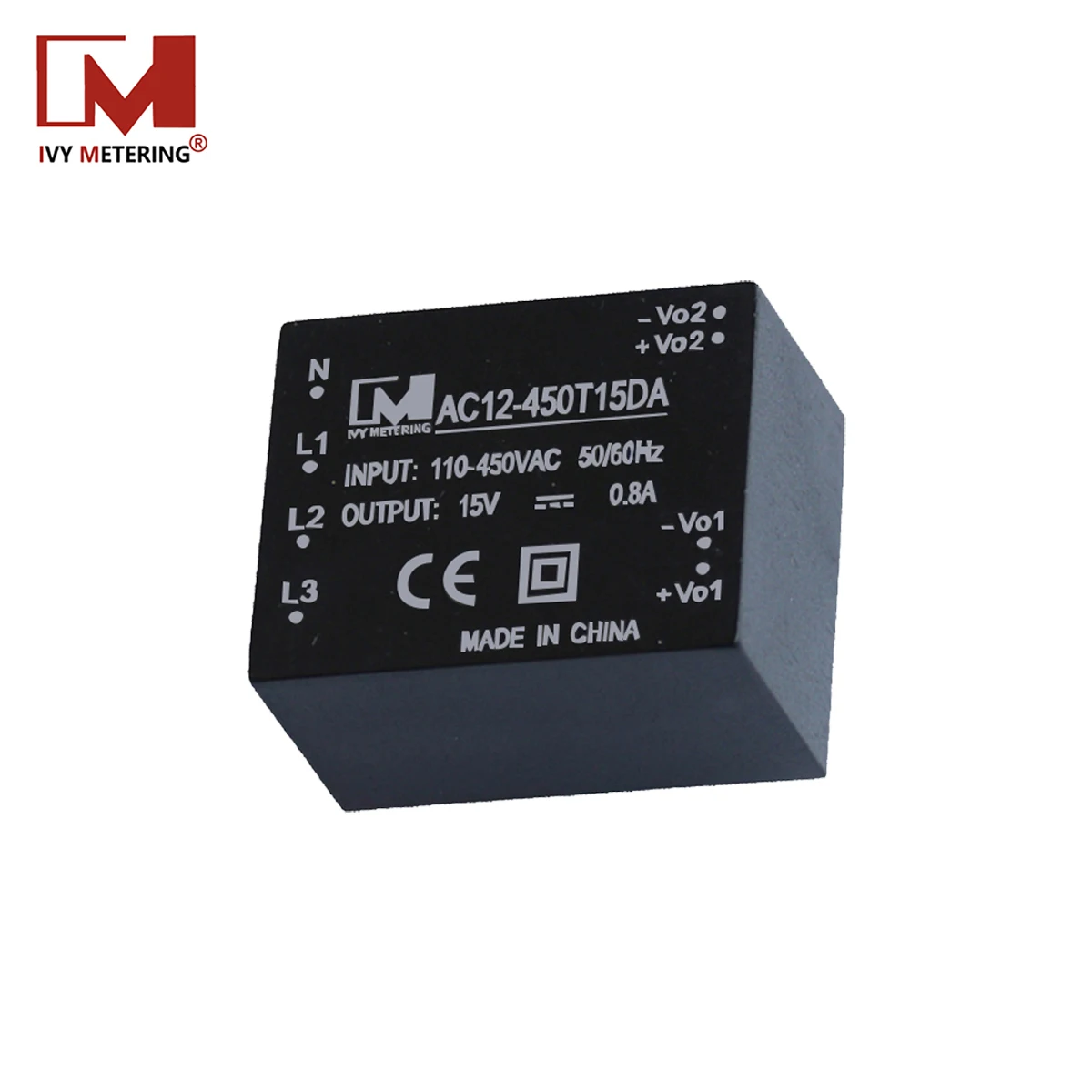

Стандартный преобразователь переменного/постоянного тока 80% КПД модуль преобразования
- Категория: Счетчики электроэнергии >>>
- Поставщик: Shanghai,Ivy-Metering,Electronic,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.6 $* | 0.30 $* |
| Aug-19-2025 | 0.92 $* | 0.82 $* |
| Jul-19-2025 | 0.24 $* | 0.0 $* |
| Jun-19-2025 | 0.41 $* | 0.82 $* |
| May-19-2025 | 0.28 $* | 0.3 $* |
| Apr-19-2025 | 0.33 $* | 0.44 $* |
| Mar-19-2025 | 0.78 $* | 0.50 $* |
| Feb-19-2025 | 0.19 $* | 0.77 $* |
| Jan-19-2025 | 0.8 $* | 0.70 $* |
Характеристики
P/N | AC12-450T15DA | AC12-450S12DA | AC6-450T15DA | AC6-450S5DA | |||||
Input Voltage Range | 110Vac～450Vac | 110Vac～450Vac | |||||||
Vo1（V） | 15V | 12 V | 15 V | 5V | |||||
Io1(mA) | 800mA | 1000mA | 1000mA | 1200mA | |||||
Vo2（V） | 15V | 15V | |||||||
Io2(mA) | 50mA | 50mA | |||||||
Maximum Capacitive Load | 1000 uF | ||||||||
Input Frequency Range | 120mVp-p | 120mVp-p | 120mVp-p | 80mVp-p | |||||
Ripple & Noise (20MHz,Full Load) | 70% | 70% | 76% | 78% | |||||
Standby Power Consumption | 0.15W | ||||||||
Short-circuit Power | 1.20W | ||||||||
Input Current | 2.3mA (Max) @Vin=110Vac | 2.2mA (Max) @Vin=220Vac | |||||||
Voltage Accuracy | Vo1±0.5%TYP,1.0%Max；Vo2±3.0%TYP,5.0%Max; | ||||||||
Efficiency | Basic voltage input,full load | ||||||||
Vo≤5.0V,73% typical | |||||||||
Vo>5.0V,80% typical | |||||||||
Switching Frequency | 60KHz (Typical) | ||||||||
Operating Temperature | -40℃～+85℃ | ||||||||
Temperature Effect | 0.02%/℃ (Main) | ||||||||
Storage Temperature | -40℃ ~ +105℃ | ||||||||
Max Case Temperature | +95℃ | ||||||||
Relative Humidity | 10%~90% | ||||||||
Case Material | Flame Retardant Material | ||||||||
Isolation Voltage | Input & Vo1 Input-output 4000Vac ≤ 1.5mA/1min； Input & Vo2 Input-output 1500Vac ≤ 1.5mA/1min | ||||||||
MTBF | >300,000H @25℃ | ||||||||
Cautions of Modules :
1.About the options of modules
(1) IVY focused on switching and metering solutions since 1994, we have power supply module, communication
(1) IVY focused on switching and metering solutions since 1994, we have power supply module, communication
module, power supply isolation module, communication isolation module etc. What's more we have smart module.
In this case plz decide what kind of module you are looking for.
(2)Then you have to confirm below main points:
Power supply module- we have AC DC power supply module, DC DC power supply module, power supply module with
Power supply module- we have AC DC power supply module, DC DC power supply module, power supply module with
isolation. For power supply module, the type(1 way, 3 ways etc) and voltage(5-18VDC) of input, output, withstand
voltage,seal and isolated or not are the main factors.
Communication module- we have RS485 communication module,PLC communication module,G3-PLC
Communication module- we have RS485 communication module,PLC communication module,G3-PLC
communication, LoRawan communication module, communication isolation module etc. For these communication
module, the communication method, the speed, the distance and stability etc shall not be ignored.
Smart module- traditional modules for energy meter or household appliances mainly have less functions, but
nowadays module was combined with high frequency transformer chip,isolation chip,current transformer,shunt etc,
for example RS485+ normal measuring module, it become smart measuring module which can realize the sensing of
electrical data.
2.More information
(1) All the components inside of energy meter can be purchased from us, but we prefer to offer the components
2.More information
(1) All the components inside of energy meter can be purchased from us, but we prefer to offer the components
together with energy meter or relay/CT, if small qty the price can not be competitive.
(2) If you have any questions about PCBA design like the layout & distance of these items, we can also help you and
(2) If you have any questions about PCBA design like the layout & distance of these items, we can also help you and
design for you with your BOM list and other requirements.
