Гусеничный Экскаватор Rhinoceros XN16 1 5 тонн рекламный экскаватор мини-экскаватор из Южной
- Категория: Excavators >>>
- Поставщик: Shandong,Kenstone,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10948.28 $* | 11495.31 $* |
| Aug-16-2025 | 10856.15 $* | 11399.46 $* |
| Jul-16-2025 | 9108.66 $* | 9563.97 $* |
| Jun-16-2025 | 10672.75 $* | 11206.76 $* |
| May-16-2025 | 9292.11 $* | 9757.93 $* |
| Apr-16-2025 | 10488.73 $* | 11012.60 $* |
| Mar-16-2025 | 10396.99 $* | 10916.95 $* |
| Feb-16-2025 | 10304.50 $* | 10819.58 $* |
| Jan-16-2025 | 10212.27 $* | 10723.33 $* |
Характеристики
Product Description
SPECIFICATION:
Machine Weight | 1550 Kg |
Bucket Capacity | 0.045 m³ |
Engine | Yanmr 3TNV70/3TNV74 |
Rotated power | 10 kw/11KW /2200r/min |
Track type | Rubber track |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 3160x1040x2377 mm |
Platform ground clearance | 437 mm |
Platform back turning radius | 740 mm |
Chassis width | 1040 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
OPERATING RANGE | |
Max. Digging depth | 2150 mm |
Max. Vertical digging depth | 1740 mm |
Max. Digging height | 3275 mm |
Max. Dumping height | 2310 mm |
Max. Digging radius on ground | 3470mm |
Min. Rotation radius | 1440 mm |
Loading: 10-12 units can fit in 40GP Delivery time: Within 10 days | |

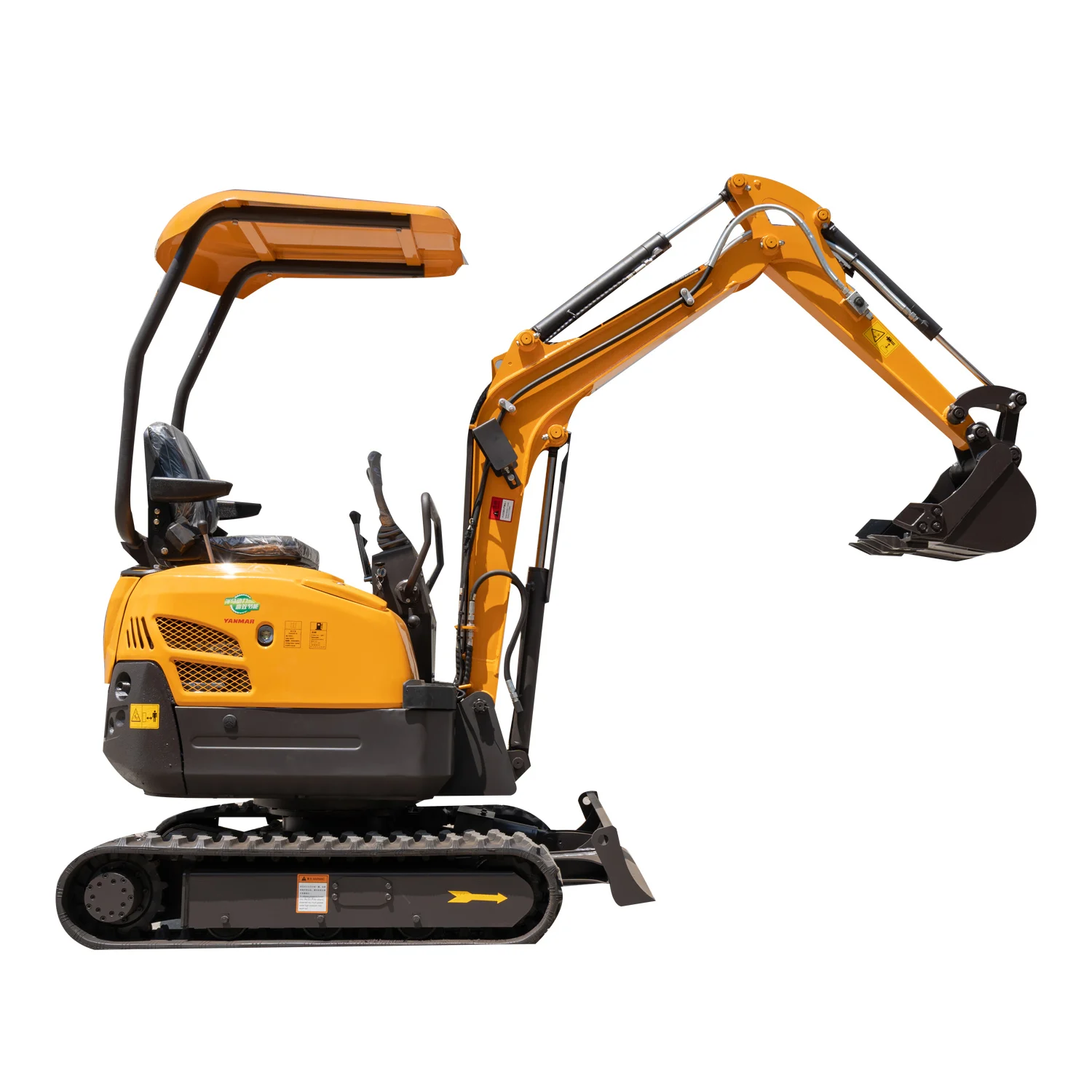

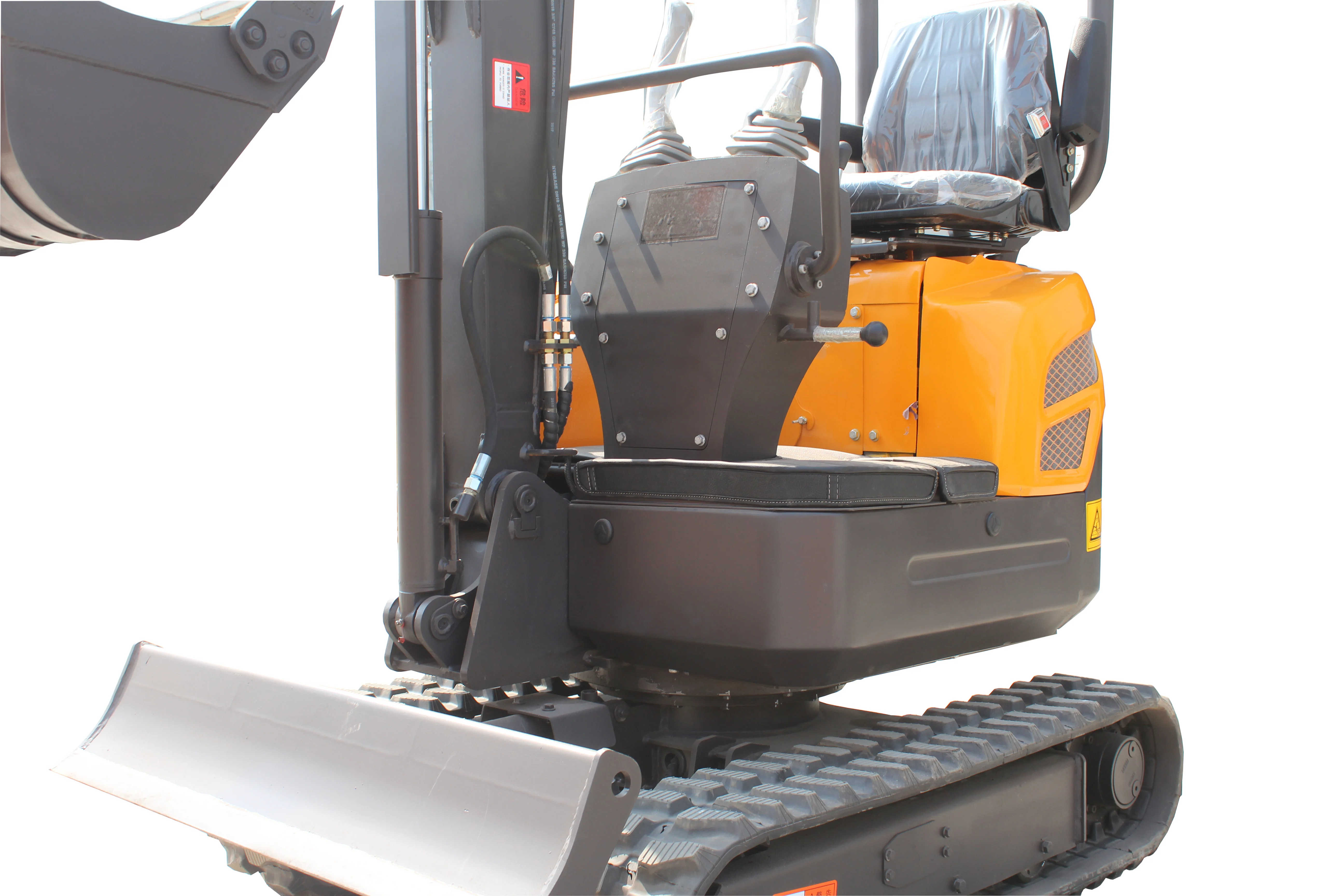

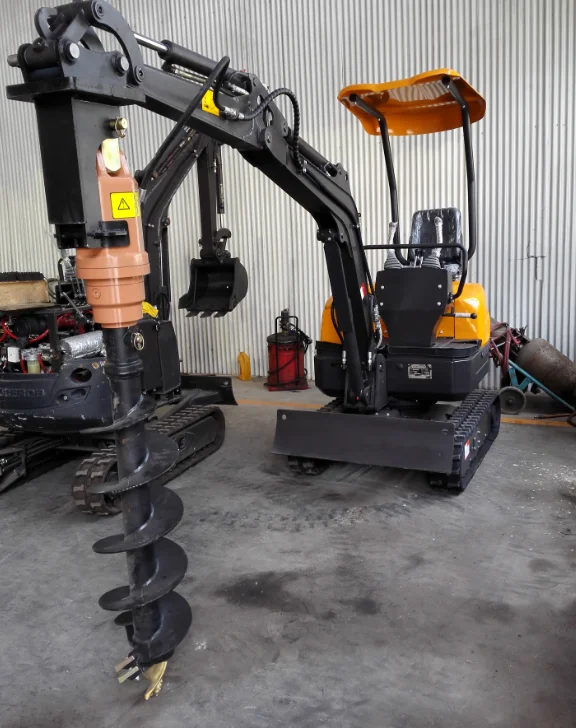

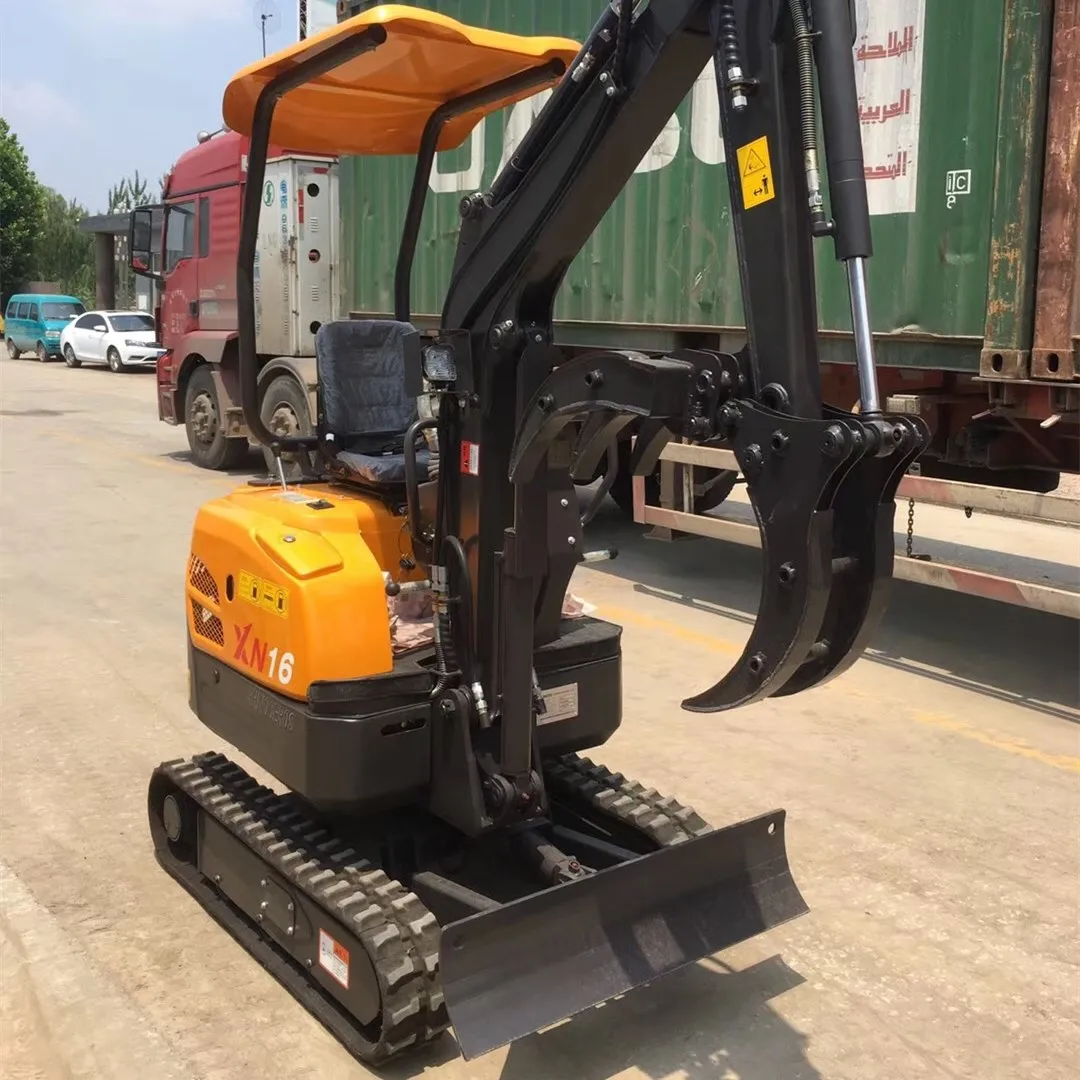

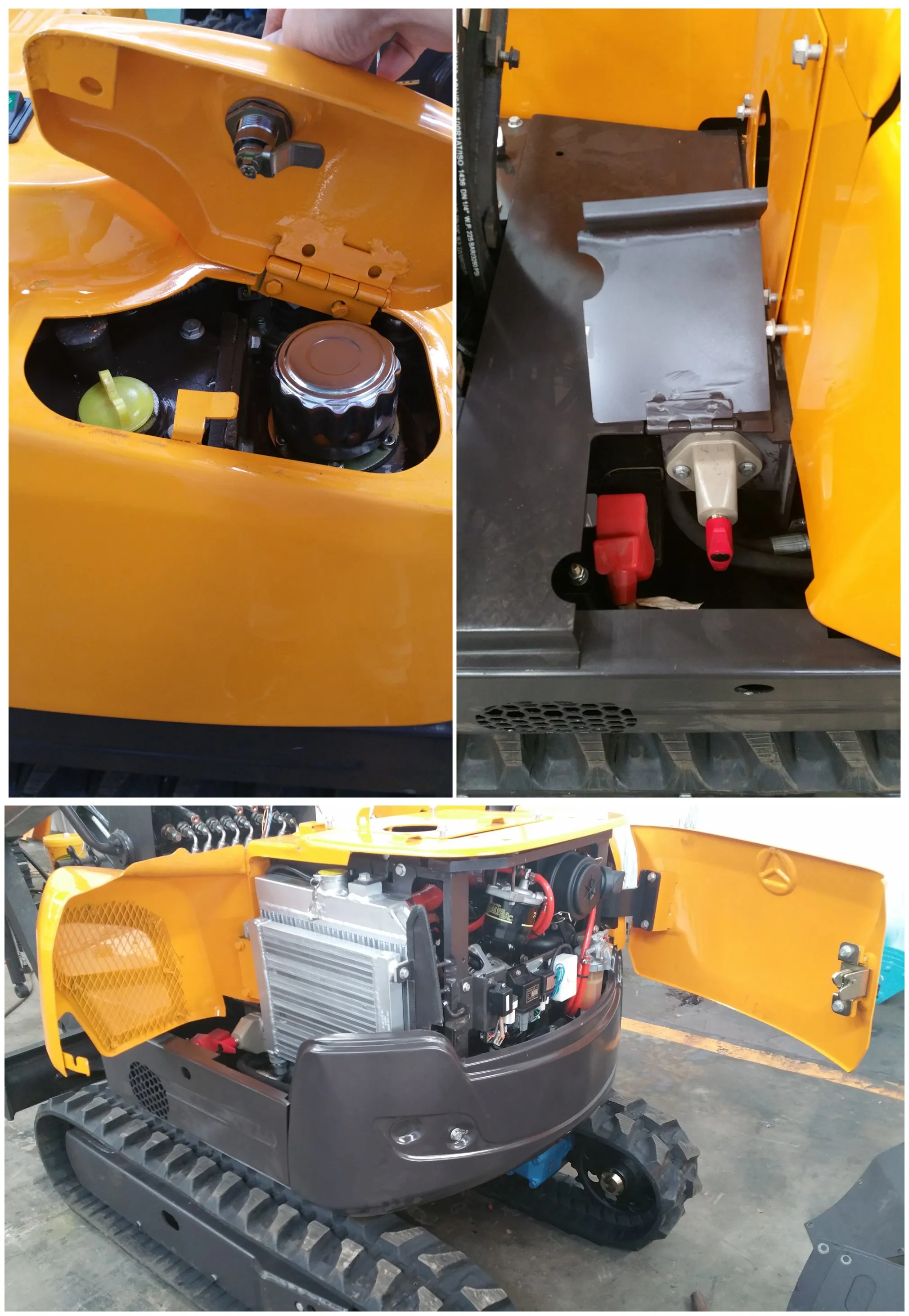

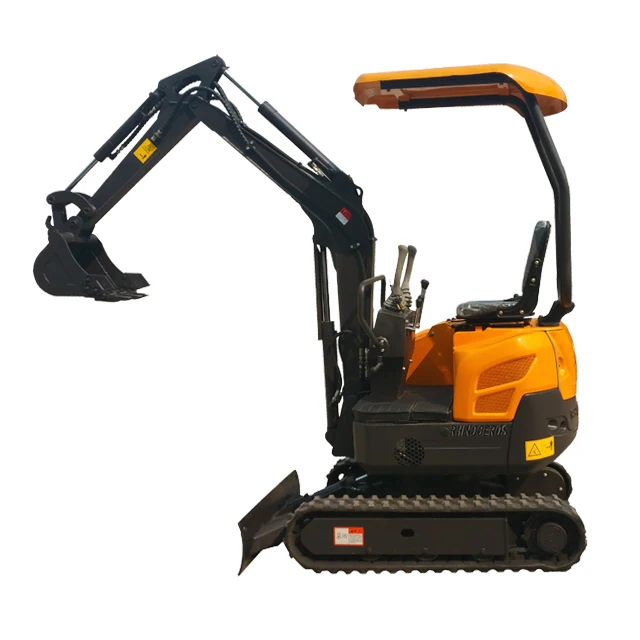

Appearance picture
XN16 mini crawler excavator, be driven by Japan YANMR engine, KDK Hydraulic main pump, USA EATON swing motor, with very good quality with our best factory price!
Company Information
FAQ
What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 6 units can be in a 20ft container, 12 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?
A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.
If do not have trailer,the wooden box dimension is 2.8x1.12x1.4m ,about 4.3m3;if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
