Запеченная эмалированная рамка цифровой измерительный прибор диаметра для удобного
- Категория: Micrometers >>>
- Поставщик: Koueisangyou,Co,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.23 $* | 0.99 $* |
| Aug-16-2025 | 0.50 $* | 0.53 $* |
| Jul-16-2025 | 0.86 $* | 0.0 $* |
| Jun-16-2025 | 0.91 $* | 0.29 $* |
| May-16-2025 | 0.36 $* | 0.76 $* |
| Apr-16-2025 | 0.15 $* | 0.50 $* |
| Mar-16-2025 | 0.49 $* | 0.38 $* |
| Feb-16-2025 | 0.43 $* | 0.76 $* |
| Jan-16-2025 | 0.62 $* | 0.70 $* |
Характеристики
Products Description
Outside Micrometer Series 103
• Baked-enamel-finished frame.
• Measuring faces: Carbide.
• Equipped with Ratchet Stop for constant measuring force.
• Baked-enamel-finished frame.
• Measuring faces: Carbide.
• Equipped with Ratchet Stop for constant measuring force.
Specification
Metric
Order No. | Range (mm) | Graduation (mm) | Accuracy |
103-129 | 0 - 25 | 0.001 | ±2 |
103-130 | 25 - 50 | 0.001 | |

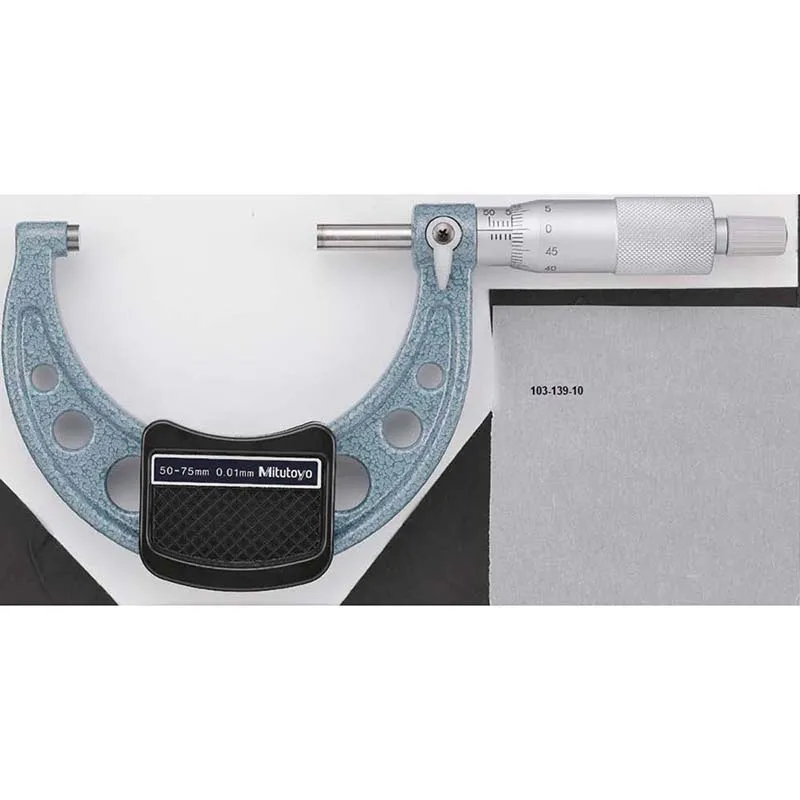

103-139-10 | 50 - 75 | 0.01 | |
103-140-10 | 75 - 100 | ±3 | |
103-141-10 | 100 - 125 | ||
103-142-10 | 125 -150 | ||
103-143-10 | 150 -175 | ±4 | |
103-144-10 | 175 - 200 | ||
103-145-10 | 200 - 225 | ||
103-146-10 | 225 - 250 | ±5 | |
103-147-10 | 250 - 275 | ||
103-148-10 | 275 - 300 | ||
103-149 | 300 - 325 | ±6 | |
103-150 | 325 - 350 | ||
103-151 | 350 - 375 | ||
103-152 | 375 - 400 | ±7 | |
103-153 | 400 - 425 | ||
103-154 | 425 - 450 | ||
103-155 | 450 - 475 | ±8 | |
103-156 | 475 - 500 | ||
103-157 | 500 - 525 | ||
103-158 | 525 - 550 | ±9 | |
103-159 | 550 - 575 | ||
103-160 | 575 - 600 | ||
103-161 | 600 - 625 | ±10 | |
103-162 | 625 - 650 | ||
103-163 | 650 - 675 | ||
103-164 | 675 - 700 | ±11 | |
103-165 | 700 - 725 | ||
103-166 | 725 - 750 | ||
103-167 | 750 - 775 | ±12 | |
103-168 | 775 - 800 | ||
103-169 | 800 - 825 | ||
103-170 | 825 - 850 | ±13 | |
103-171 | 850 - 875 | ||
103-172 | 875 - 900 | ||
103-173 | 900 - 925 | ±14 | |
103-174 | 925 - 950 | ||
103-175 | 950 - 975 | ||
103-176 | 975 - 1000 | ±15 |
Inch
Order No. | Range (in) | Graduation (in) | Accuracy (in) |
103-177 | 0 -1 | 0.001 | ±0.0001 |
103-131 | 0.0001 | ||
103-178 | 1 - 2 | 0.001 | |
103-132 | 0.0001 | ||
103-179 | 2 - 3 | 0.001 | |
103-180 | 3 - 4 | ±0.00015 | |
103-181 | 4 - 5 | ||
103-182 | 5 - 6 | ||
103-183 | 6 - 7 | ±0.0002 | |
103-184 | 7 - 8 | ||
103-185 | 8 - 9 | ||
103-186 | 9 - 10 | ±0.00025 | |
103-187 | 10 - 11 | ||
103-188 | 11 - 12 | ||
103-189 | 12 -13 | ±0.0003 | |
103-190 | 13 - 14 | ||
103-191 | 14 - 15 | ||
103-192 | 15 - 16 | ±0.00035 | |
103-193 | 16 - 17 | ||
103-194 | 17 - 18 | ||
103-195 | 18 - 19 | ±0.0004 | |
103-196 | 19 - 20 | ||
103-197 | 20 - 21 | ||
103-198 | 21 - 22 | ±0.00045 | |
103-199 | 22 - 23 | ||
103-200 | 23 - 24 | ||
103-201 | 24 - 25 | ±0.0005 | |
103-202 | 25 - 26 | ||
103-203 | 26 - 27 | ||
103-204 | 27 - 28 | ±0.00055 | |
103-205 | 28 - 29 | ||
103-206 | 29 - 30 | ||
103-207 | 30 - 31 | ±0.0006 | |
103-208 | 31 - 32 | ||
103-209 | 32 - 33 | ||
103-210 | 33 - 34 | ±0.00065 | |
103-211 | 34 - 35 | ||
103-212 | 35 - 36 | ||
103-213 | 36 - 37 | ±0.0007 | |
103-214 | 37 - 38 | ||
103-215 | 38 - 39 | ||
103-216 | 39 - 40 | ±0.00075 |
Metric
Order No. | Range (mm) | Graduation (mm) | Maximum permissible error J MPE* (µm) |

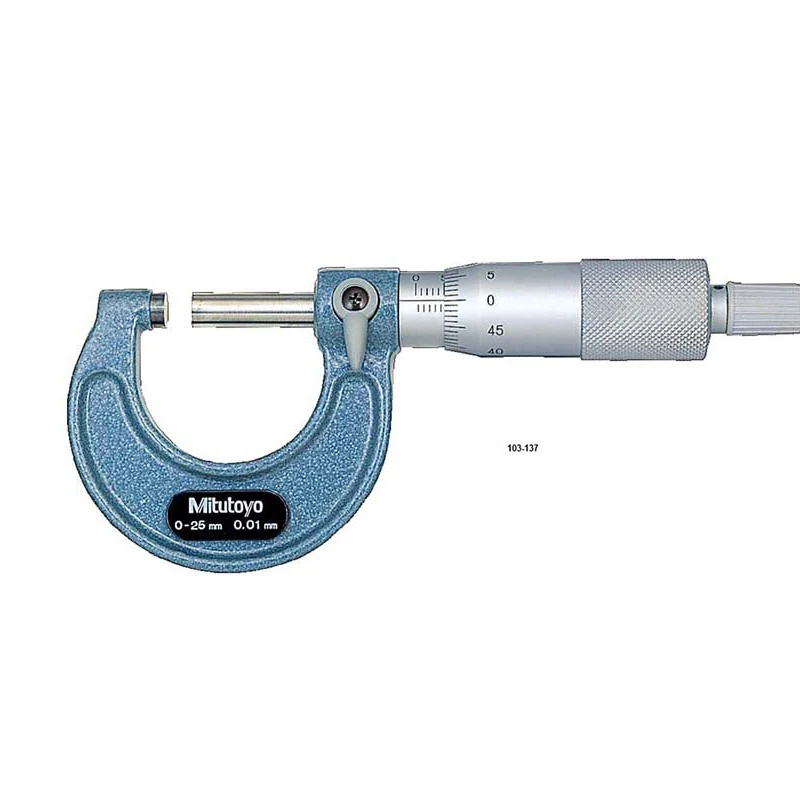

103-137 | 0 - 25 | 0.01 | ±2 |
103-138 | 25 - 50 | 0.01 |
Inch
Order No. | Range (in) | Graduation (in) | Accuracy (in) |
103-135 | 0 - 1 | 0.0001 | ±0.0001 |
103-136 | 1 - 2 |

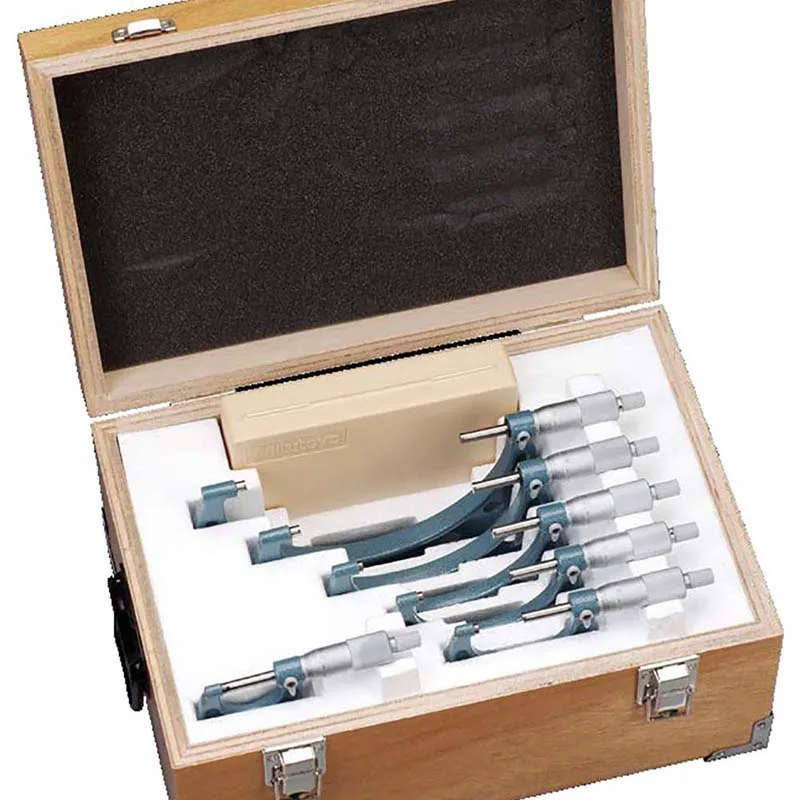

Metric Micrometer set / With ratchet thimble
Order No. | Range (mm) | Models included |
103-927-10 | 0 - 75 3pcs/set | 103-137, 103-138, 103-139-10 2 micrometer standards |
103-913-50 | 0 - 150 6pcs/set | 103-137, 103-138, 103-139-10, 103-140-10, 103-141-10, 103-142-10, 5 micrometer standards |
103-915-10 | 150 - 300 6pc/set | 103-143-10, 103-144-10, 103-145-10, 103-146-10, 103-147-10, 103-148-10, 6 micorometer standards |

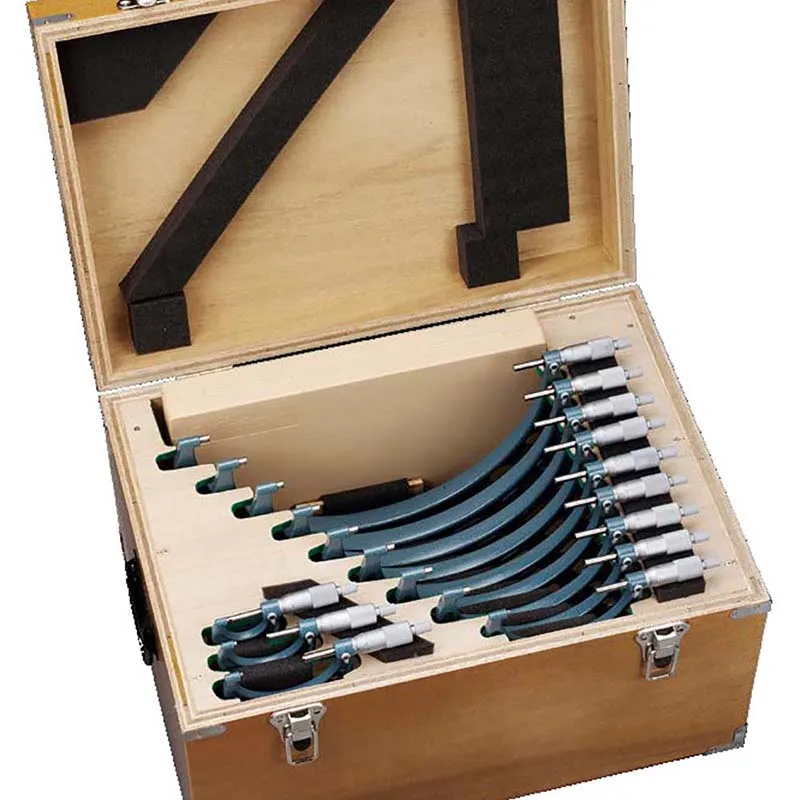

103-914-50 | 0-300 | All miicrometers of 103-913-50 and 103-915-10 in one set, 11 micrometer standards. |
Inch Micrometer set / With Rathcet thimble
Order No. | range (in) | Models included |
103-929 | 0-3 3pcs/set | 0 - 3 13-177, 103-178, 103-179, 2 micrometer standards |
103-930 | 0-4 4pcs/set | 103-177, 103-178, 103-179, 103-180 3 micrometer standards |
103-904-10 | 0-6 6pcs/set | 103-1777, 103-178, 103-179, 103-180, 103-181, 103-182, 5 micrometer standards |

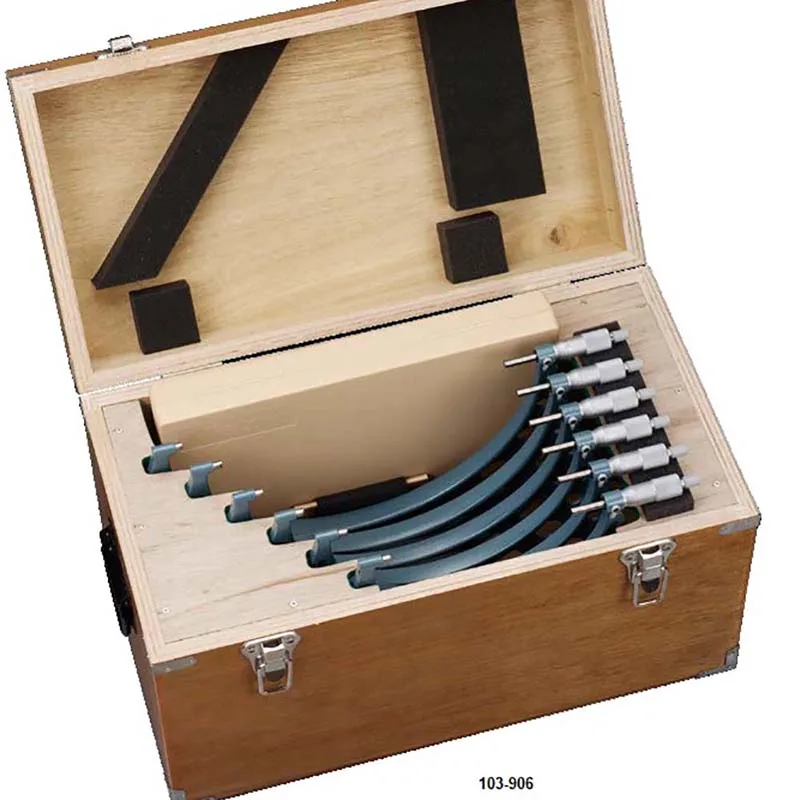

103-906 | 6-12 6pcs/set | 103-183, 103-184, 103-185, 103,186, 103-187, 103-188 6micrometre standards |
103-905-10 | 0-12 12pcs/set | All micrometers of 103-904-10 and 103-906 in one set, 11 micrometer standards. |
