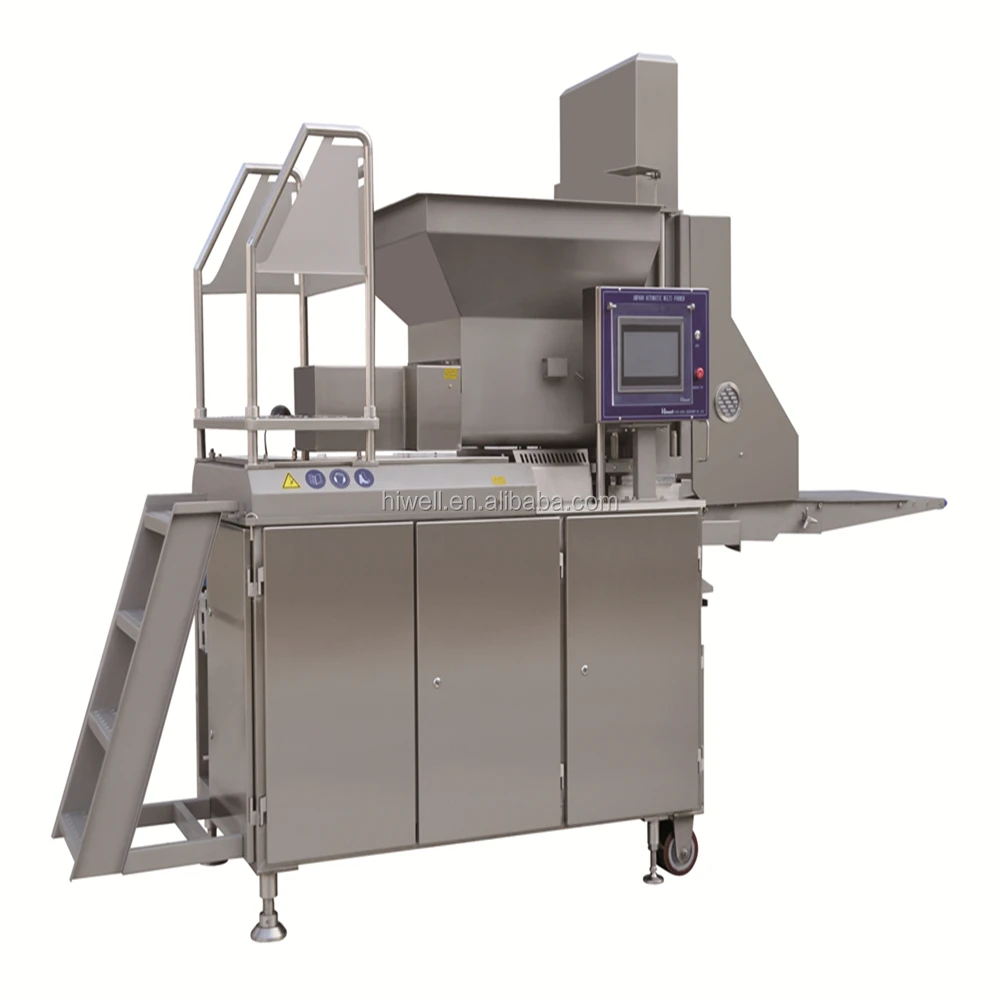

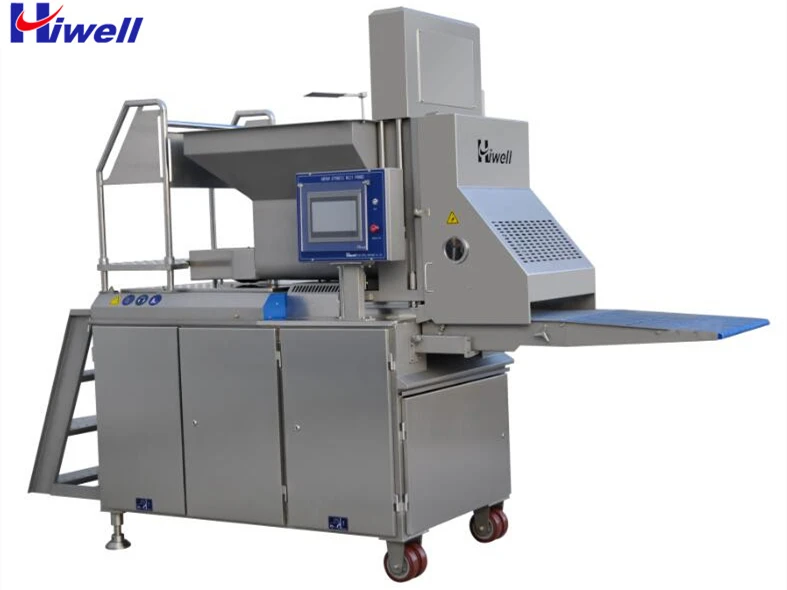

1.5 Ton per Hour Hiwell automatic meat pie making machine
AMF600-v Automatic meat pie making machine can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, pre-duster, fryer, cooker, instant freezer and packing machine.
Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.
Technical Parameter
Model
AMF600-V
Belt width
600mm
Air/water pressure
6Bar/2Bar
Power
28.12W
Production capacity
About 800-1600KG/H
Strokes
50~100 strokes per minute
The thickness of product
6~40mm
Weight error
≤1%
The maximum diameter
150mm (for round burger)
Filling pressure
3~15Mpa (adjustable)
Overall dimension
3170*1176*2430mm
Detailed Images
Screw convey
It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.
Hydraulic system
※Hydraulic parts: Adopting the VICKERS, STAUFF, PARKER, INTEGRATED HYDRAULICS original parts to guarantee the stable running of the whole machine.
Filling system
Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And it can be applied in the fields of all kind of minced/sliced products for premier meat texture taste.
Touch screen operation system
※Electric apparatus parts: Using original Germany SIEMENS PLC processor with touch screen operation, Chinese/English operating system and automatic failure alarm system.
Electric apparatus parts
※Stainless steel made and portion non-metal material, safe and reliable, in conformity with the standard of HACCP, and got the CE authorization.
※Safe device: Magnetic protection switch (safe cover).
Pneumatically parts
※Pneumatically system: Adopting the completely Germany FESTO original system.
Forming products with endless innovation
※ square, round, heart...large variety of shapes make the customer more choices to produce foods with great profit. Hiwell can design not only the 2D products but also the 3D product. ※High quality imported nonmetal material guarantee a long service life. You can also choose alloy material. ※Accurate CAD simulation design. ※Advanced manufacturing equipment can ensure gap between metal spacer and forming plate, minimize the material leakage during forming processing.
Burger patty & chicken nuggets sample pictures
Packing & Delivery
Packing: Plywood case (Based on the customers' need etc.)
Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
FAQ
Q: 1. How many free mold following with hamburger patty & chicken nuggets forming machine? A: There are two sets with machine. The extra mold you have to pay.
Q: 2. How long is the warranty period? A: 1 year
Q: 3. Can you offer the customized machine? A: Yes. We can offer comprehensive solution to help you after you offer your details requirements.
Q: 4. What is the payment method? A: TT 30% as downpayment, TT 70% balance before shipment.
