Низкое энергопотребление воздухоохладитель потолочного
- Категория: Industrial Air Conditioners >>>
- Поставщик: Shanghai,Snowdream,Refrigeration,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 595.3 $* | 625.38 $* |
| Aug-19-2025 | 590.31 $* | 620.96 $* |
| Jul-19-2025 | 495.74 $* | 520.17 $* |
| Jun-19-2025 | 580.89 $* | 609.24 $* |
| May-19-2025 | 505.30 $* | 530.21 $* |
| Apr-19-2025 | 570.83 $* | 599.24 $* |
| Mar-19-2025 | 565.55 $* | 593.98 $* |
| Feb-19-2025 | 560.63 $* | 588.26 $* |
| Jan-19-2025 | 555.22 $* | 583.57 $* |
Характеристики

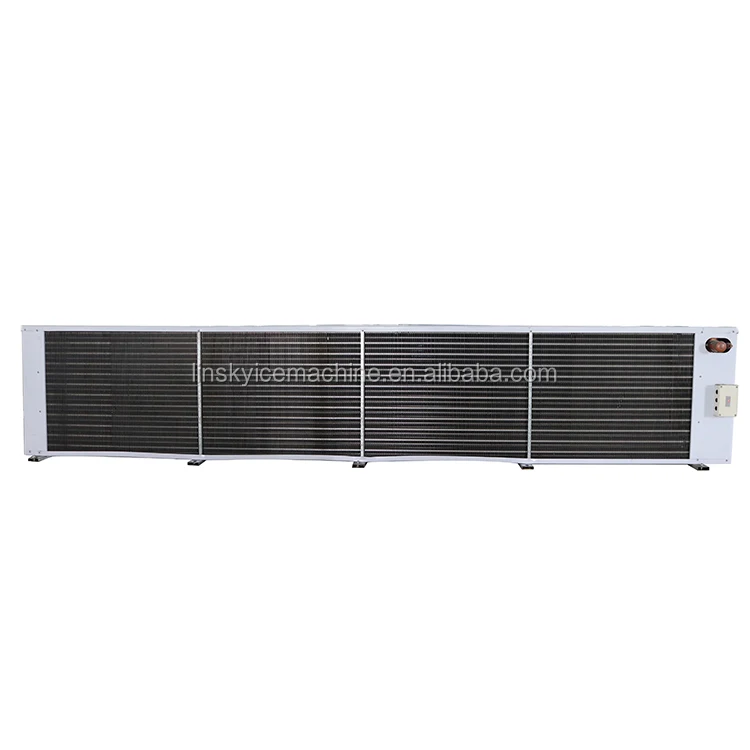

Air Cooler Description
LINSKY unit coolers/evaporators can be widely used in various kinds of fresh-keeping and refrigeration cold-rooms, food processing workshops and logistics centers. Our compact and reliable design can help customers make use of space maximally. When equip with low noise axial fan, you can rapidly reduce noise level of working space and highly increase comfort level. Refrigeration capacity of this series covers from 1.2KW to 114KW, fitting fir different refrigerant such as R134a·R404A·R507A·R407C·R22.
Low power consumption air cooler ceiling type air cooler | ||
Model | DD160 | |
Heat exchange area | 160㎡ | |
Heat exchange capacity | 28.5KW | |
Number of fans | 4 pieces fans | |
Power supply | 380V/50Hz | |
Dimension | 1510mm*500mm*590mm | |
Power | 16.8KW | |
Main Features-Low power consumption air cooler ceiling type air cooler
1) Type D series air cooler shell adopts plastic spraying process, corrosion resistance and is generous appearance.
2) The coils are arranged in a novel way to reduce the resistance of the wind side. After the coils are coated, the aluminum sheets are attached to the copper tubes by machanical expansion tubes, which has high heat transfer efficiency.
3) The fan motor is selected specially with low noise, large air volume and smooth operation.
4) All wiring is placed in a junction box for easy installation and maintenance.
5) High efficiency defrosting.
1) Type D series air cooler shell adopts plastic spraying process, corrosion resistance and is generous appearance.
2) The coils are arranged in a novel way to reduce the resistance of the wind side. After the coils are coated, the aluminum sheets are attached to the copper tubes by machanical expansion tubes, which has high heat transfer efficiency.
3) The fan motor is selected specially with low noise, large air volume and smooth operation.
4) All wiring is placed in a junction box for easy installation and maintenance.
5) High efficiency defrosting.

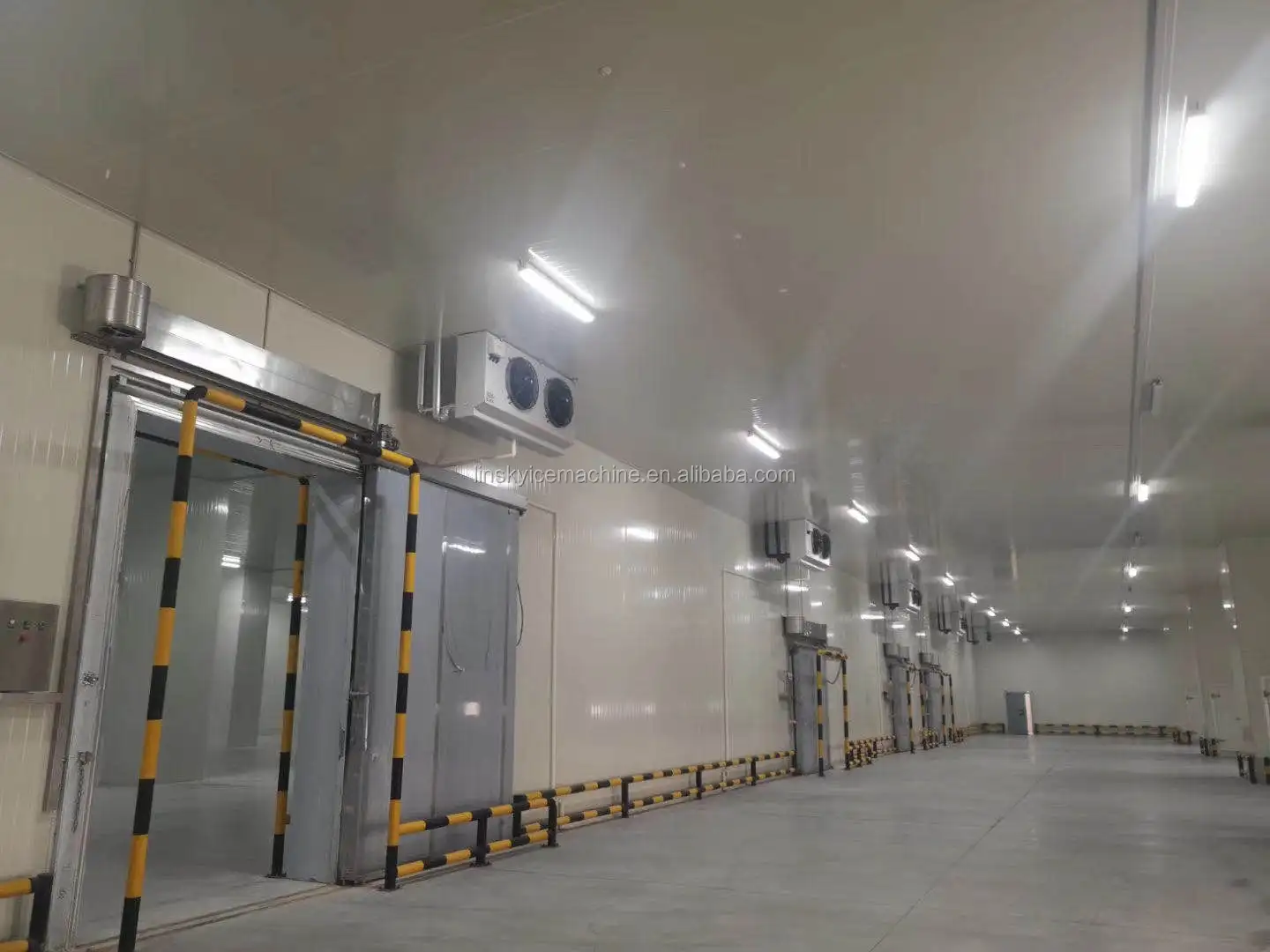

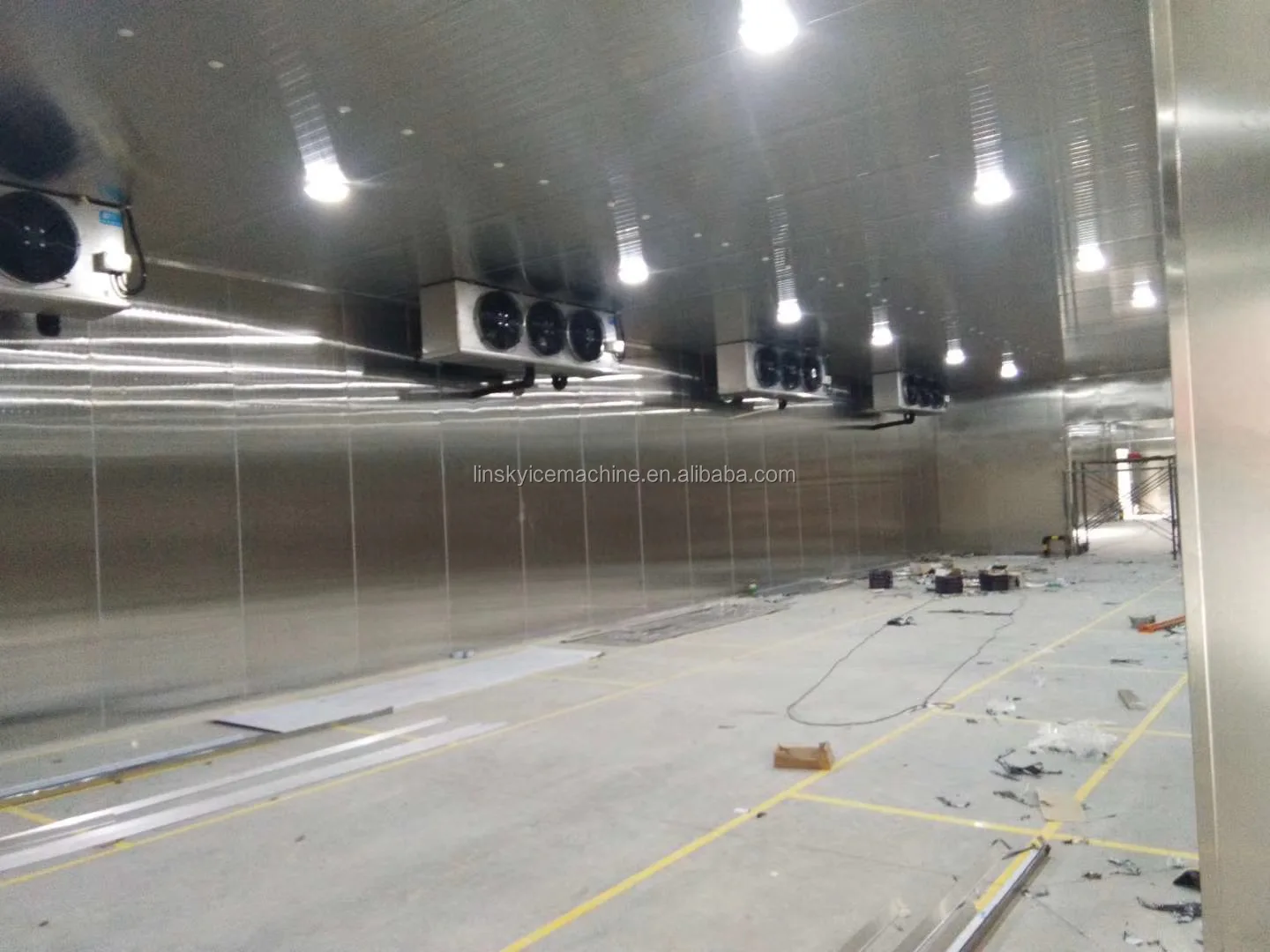

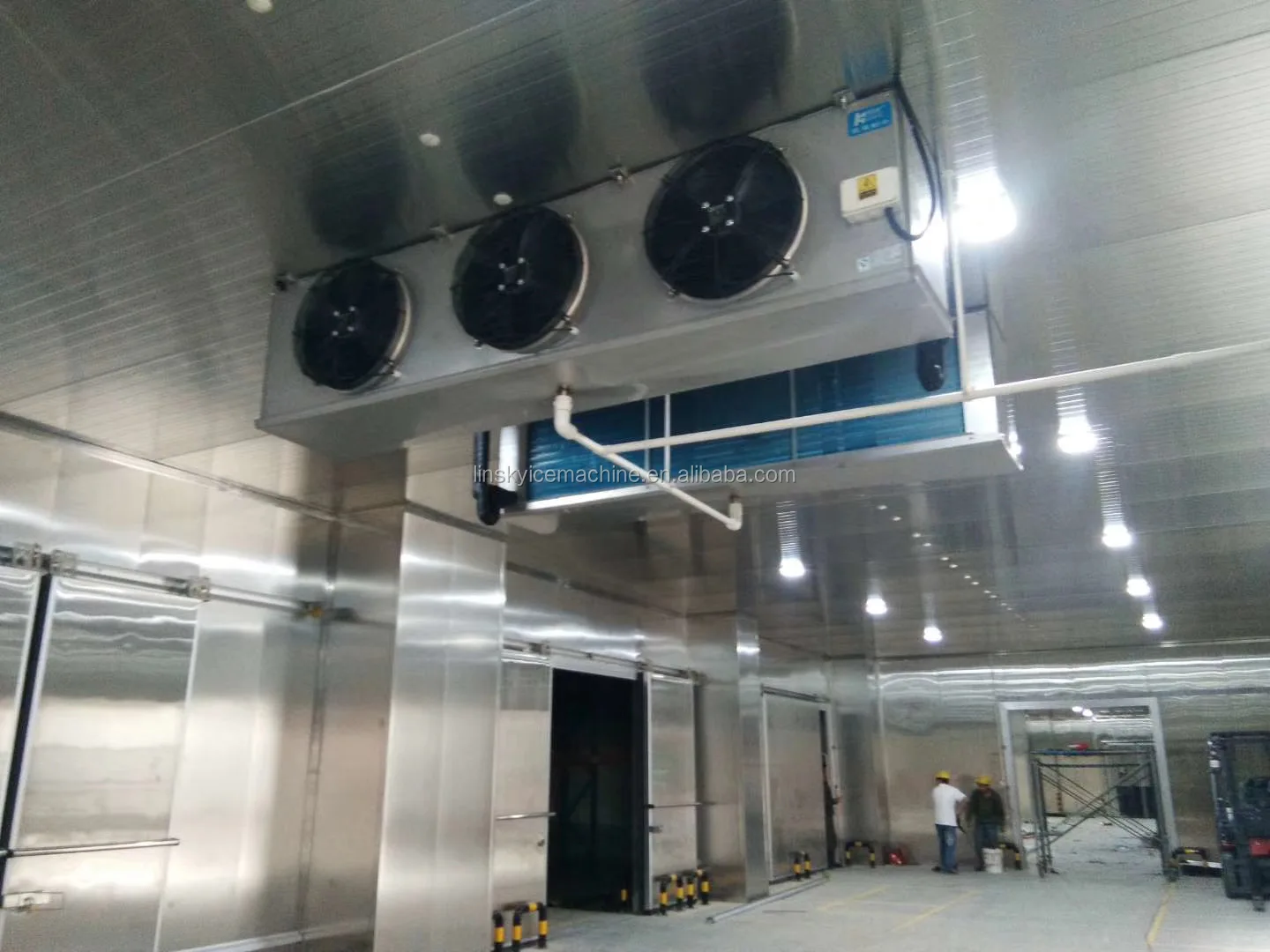

Air cooler application
Sphere of application-Low power consumption air cooler ceiling type air cooler
* High temperature type: （cold room temperature 12～－2℃）fin space：5mm;
* Medium temperature type: (cold room temperature－2～－10℃) fin space：0mm;
* Low temperature type: (cold room temperature－10～－31℃)fin space：0mm;
* High temperature type: （cold room temperature 12～－2℃）fin space：5mm;
* Medium temperature type: (cold room temperature－2～－10℃) fin space：0mm;
* Low temperature type: (cold room temperature－10～－31℃)fin space：0mm;
Application (high quality evaporative air cooler)-Low power consumption air cooler ceiling type air cooler
Air cooler is the refrigeration equipment by forcing air circulation through axial flow fan to greatly enhance heat convection effect outside the evaporator tube. The air cooler provided by our company can be widely used for various food quick-freezers, freezing storage, cold storage, cold drying storage, workshop air-conditioners and all kinds of food mono-instant freezers.
Air cooler is the refrigeration equipment by forcing air circulation through axial flow fan to greatly enhance heat convection effect outside the evaporator tube. The air cooler provided by our company can be widely used for various food quick-freezers, freezing storage, cold storage, cold drying storage, workshop air-conditioners and all kinds of food mono-instant freezers.
Air Cooler Features
Characteristics-Low power consumption air cooler ceiling type air cooler
◆\tScientific structure, high efficient, frost steadily, save power and low running cost;
◆\tEquip with axial fan quiet models that offer strong air flow in long shot rang; save power, long service life;
◆\tCopper pipe thickness can reach to 0.6mm, which lead to perfect tightness between pipe and fin after expansion processing;
◆\tEquip with stainless electric heater in high insulating property, defrost efficiently in shot time;
◆\tThe heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.
◆\tAluminum and painted stain board，to meet your different needs.
◆\tScientific structure, high efficient, frost steadily, save power and low running cost;
◆\tEquip with axial fan quiet models that offer strong air flow in long shot rang; save power, long service life;
◆\tCopper pipe thickness can reach to 0.6mm, which lead to perfect tightness between pipe and fin after expansion processing;
◆\tEquip with stainless electric heater in high insulating property, defrost efficiently in shot time;
◆\tThe heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.
◆\tAluminum and painted stain board，to meet your different needs.
Air Cooler Paramenters
ATTENTION OF MODEL SELECTION-Vegetable Warehouse Ceiling Type Air Cooled Unit Cooler
※ How to select right compressor evaporating temperature and refrigerating capacity Q0
1>\tWhen the cold-room temperature is around 0℃, select 8℃ to be the difference between compressor evaporating temperature and cold-room temperature;
2>\tWhen the cold-room temperature is around -18℃, select 7℃ to be the difference between compressor evaporating temperature and cold-room temperature;
3>\tWhen the cold-room temperature is around -25℃, select 6℃ to be the difference between compressor evaporating temperature and cold-room temperature;
4> According to selected evaporating temperature, compressor’s capacity = the cold-room loading×1.15.
※ How to select fin space of unit cooler
1> When the cold-room temperature is around 0℃，select 4.5㎜ as fin space;
2> When the cold-room temperature is around -18℃,select 6㎜as fin space;
3> When the cold-room temperature is around -25℃,select 9㎜as fin space;
※ How to select right unit cooler model according to selected compressor designed working condition refrigerating capacity Q0
※ How to select right compressor evaporating temperature and refrigerating capacity Q0
1>\tWhen the cold-room temperature is around 0℃, select 8℃ to be the difference between compressor evaporating temperature and cold-room temperature;
2>\tWhen the cold-room temperature is around -18℃, select 7℃ to be the difference between compressor evaporating temperature and cold-room temperature;
3>\tWhen the cold-room temperature is around -25℃, select 6℃ to be the difference between compressor evaporating temperature and cold-room temperature;
4> According to selected evaporating temperature, compressor’s capacity = the cold-room loading×1.15.
※ How to select fin space of unit cooler
1> When the cold-room temperature is around 0℃，select 4.5㎜ as fin space;
2> When the cold-room temperature is around -18℃,select 6㎜as fin space;
3> When the cold-room temperature is around -25℃,select 9㎜as fin space;
※ How to select right unit cooler model according to selected compressor designed working condition refrigerating capacity Q0
1> When the cold room temperature is around 0℃, select unit cooler as Q 0×1.0;
2> When the cold room temperature is around -18℃, select unit cooler as Q 0×1.1;
3> When the cold room temperature is lower than -25℃, select unit cooler as Q 0×1.27
※ When using R134a as refrigerant, please enlarge Q0 (refrigerant capacity) 10％～15％ when you selecting unit cooler.
2> When the cold room temperature is around -18℃, select unit cooler as Q 0×1.1;
3> When the cold room temperature is lower than -25℃, select unit cooler as Q 0×1.27
※ When using R134a as refrigerant, please enlarge Q0 (refrigerant capacity) 10％～15％ when you selecting unit cooler.
Linsky Ice Machine Factory Introduction
Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
FAQ
Q:1. What is the Payment Terms?
A:T/T: 30% in advance as deposit, 70% balance should be paid before shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during 15-30 days
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit, three years for the compressor.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
A:T/T: 30% in advance as deposit, 70% balance should be paid before shipment.
Q:2. What is the delivery time?
A:Sample machines delivery during 7-15 days; orders delivery during 15-30 days
Q:3. Can we put our own logo on the machine?
A:Yes, we can do OEM for you. ODM also is welcomed
Q:4. What is the warranty?
A:One year for the whole unit, three years for the compressor.
Q:5. Is sample order available?
A:Yes, it is. Sample order is acceptable.
