Seanro SUP2-PV 60ka DC солнечный защита от импульсного перенапряжения СПД-устройство перенапряжений цепи 2 pole
- Категория: Прочее электрическое оборудование >>>
- Поставщик: Shanghai,Seanro,Wire,And,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.13 $* | 0.16 $* |
| Aug-18-2025 | 0.37 $* | 0.1 $* |
| Jul-18-2025 | 0.74 $* | 0.22 $* |
| Jun-18-2025 | 0.16 $* | 0.83 $* |
| May-18-2025 | 0.54 $* | 0.64 $* |
| Apr-18-2025 | 0.66 $* | 0.42 $* |
| Mar-18-2025 | 0.57 $* | 0.56 $* |
| Feb-18-2025 | 0.57 $* | 0.17 $* |
| Jan-18-2025 | 0.60 $* | 0.98 $* |
Характеристики
Products Description
SeanRo YG20-40ka DC Solar Surge Protective Device SPD Surge Arrestors 2 Pole1000V
Surge protective device, protect against lightning surge voltage in solar system(photovoltaic power supply system). These units must be installed in parallel on the dc networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the dc power supply line(solar panel side and inverter/converter side), especially if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators. This product accoring to IEC66143-1/EN61643-11
Detailed Data
Pole | 2P | ||
Classified test | II | ||
Uoc max (V) | 1000Vdc | ||
Uc (V) | 1000Vdc | ||
In (8/20)us (kA) | 20 | ||
Imax (8/20)us (kA) | 40 | ||
Up(kV) | 3.8 | ||
Installation | ||||||
Wiring capacity(mm2) | Hard wire | 4-25 | 4-25 | |||
Flexible wire | 4-16 | 4-16 | ||||
Stripping length(mm) | 10 | 10 | ||||
Terminals screw | M5 | M5 | ||||
Torque (Nm) | Main circuit | 3.5 | 3.5 | |||
Remote signal contact | 0.25 | 0.25 | ||||
Protection class | All profile | IP40 | IP40 | |||
Connection port | IP20 | IP20 | ||||
Installation environment | No obvious shock and vibration | |||||
Altitude(m) | ≤2000 | ≤2000 | ||||
Working temperature | "-30℃-+70℃ | "-30℃-+70℃ | ||||
Relative humidity | 30%-90% | 30%-90% | ||||
How to install | Installed with H 35-7.5/DIN 35 Steel mounting rail | |||||

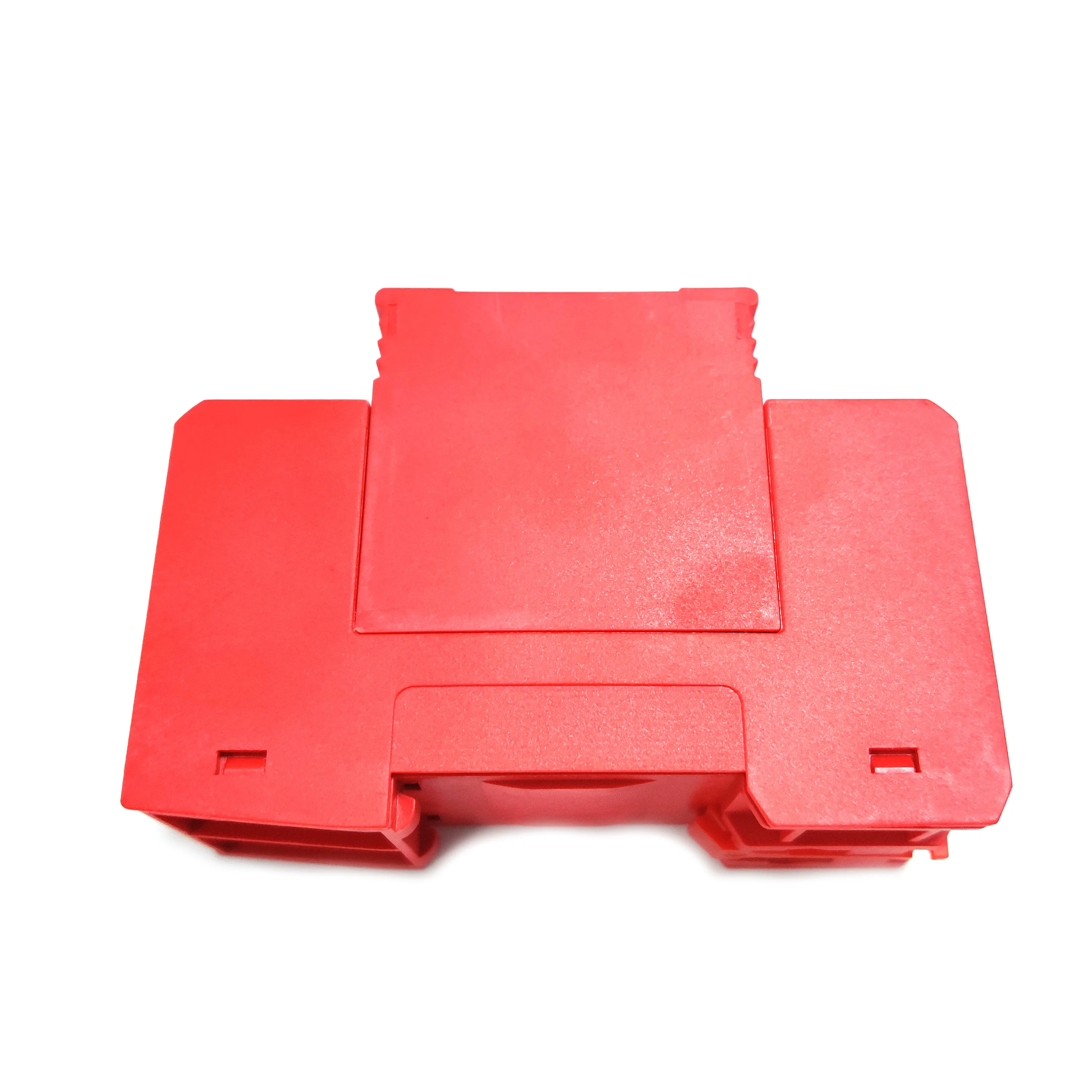

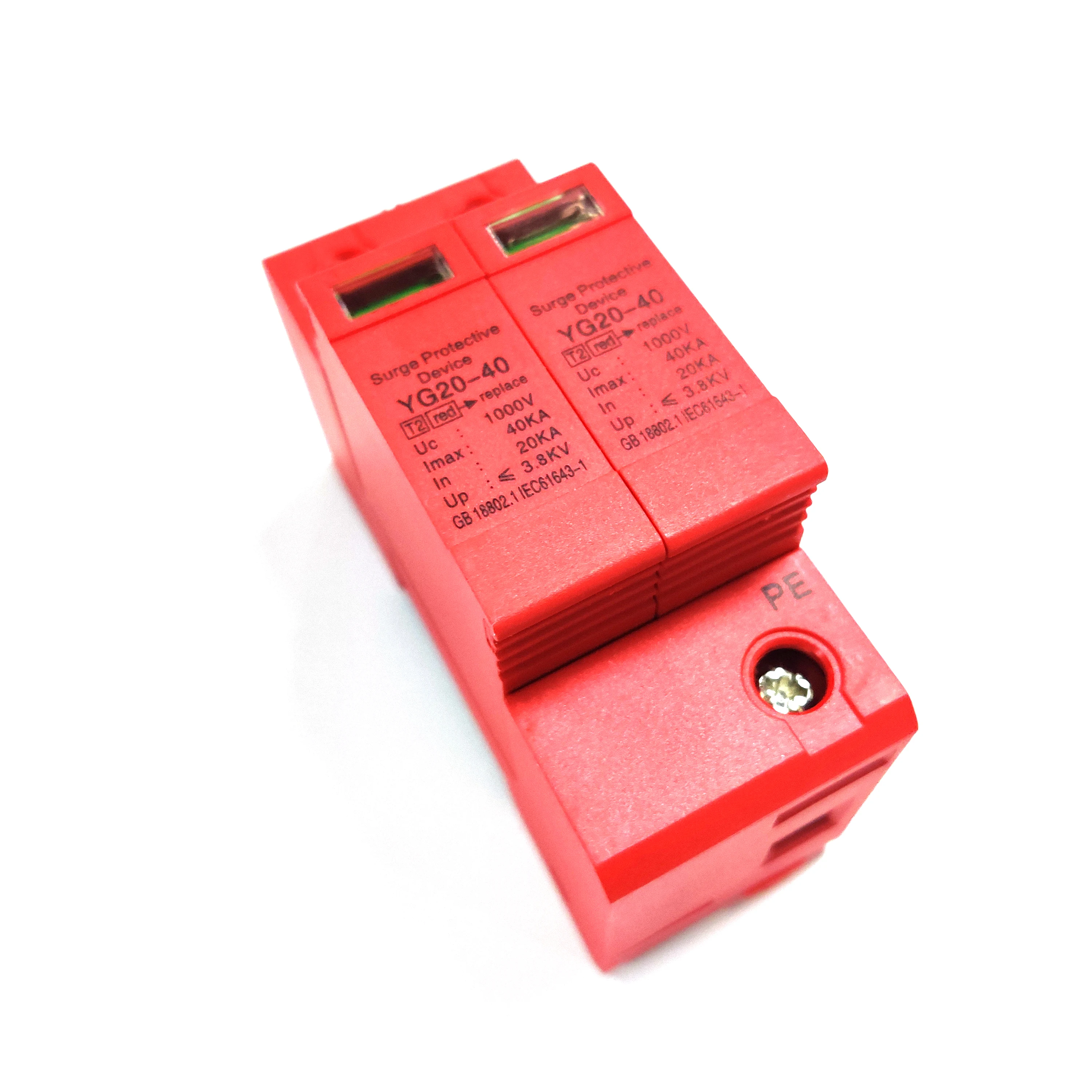

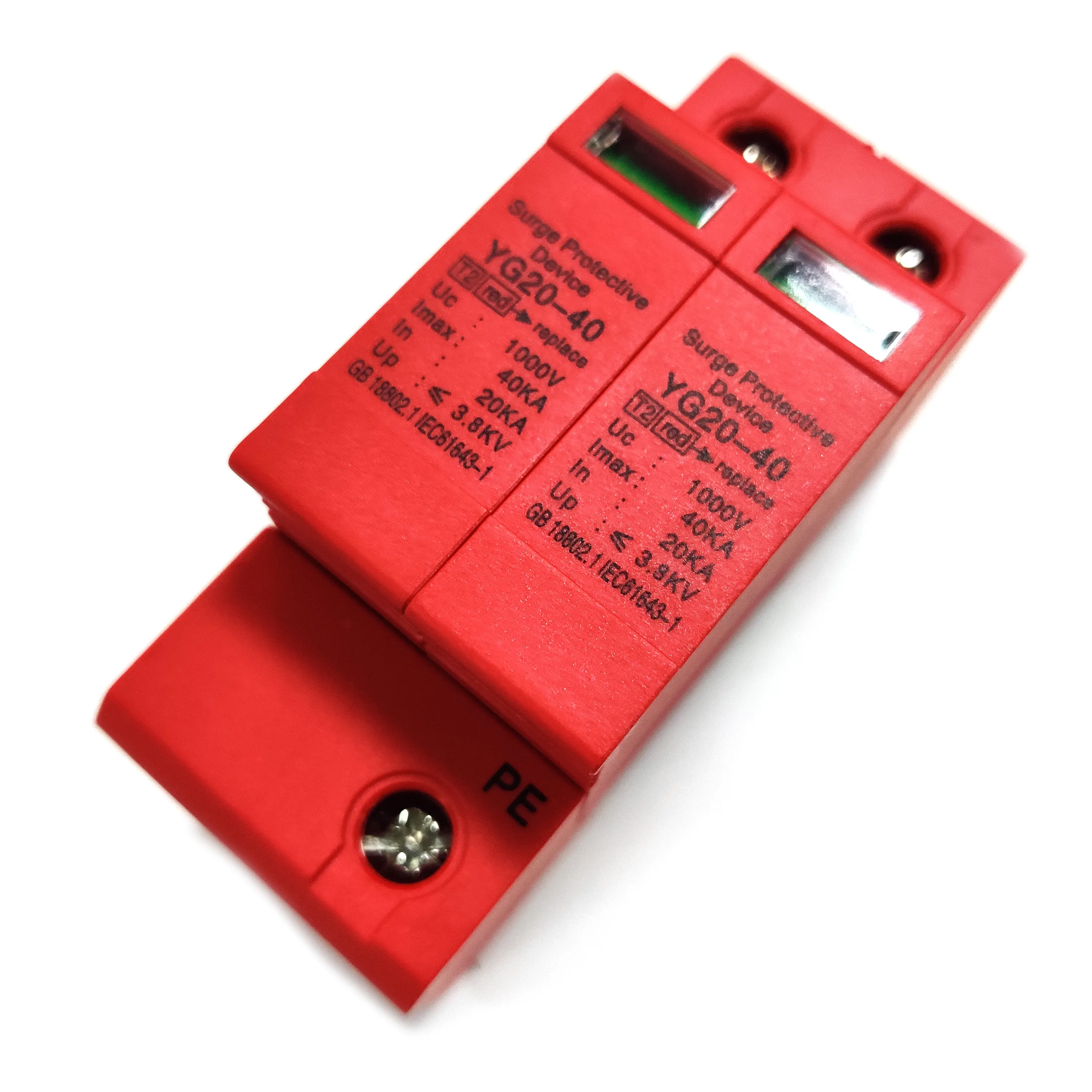

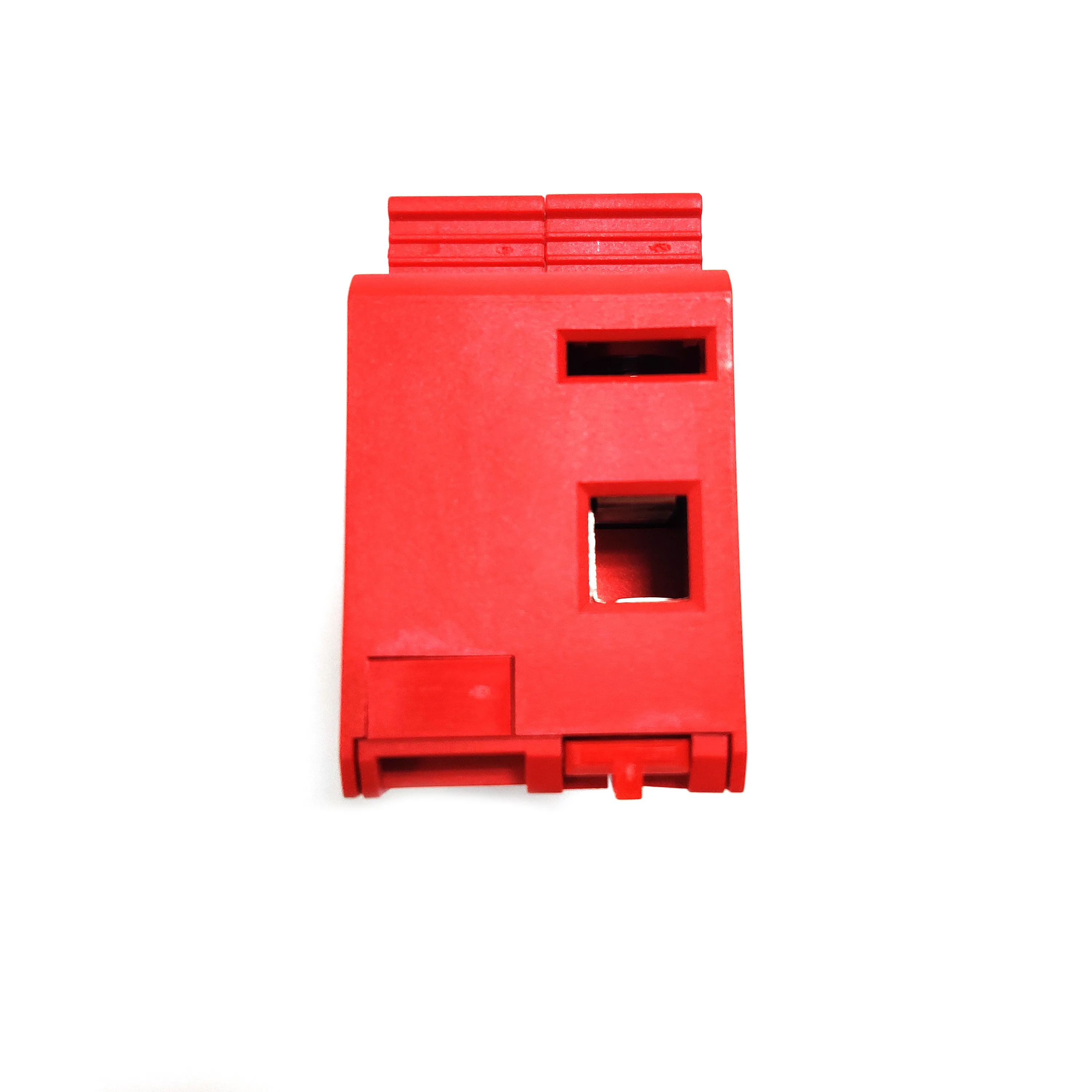

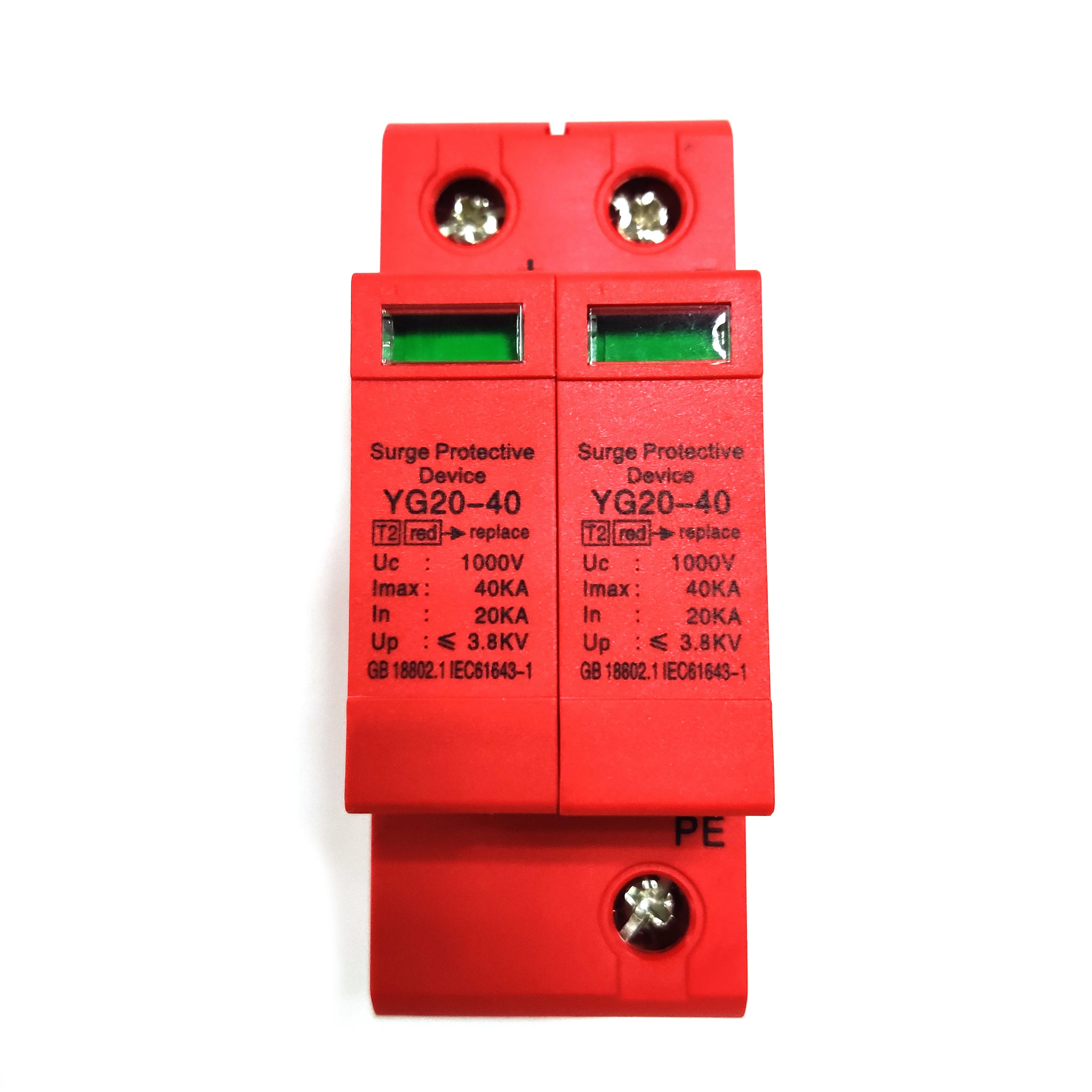

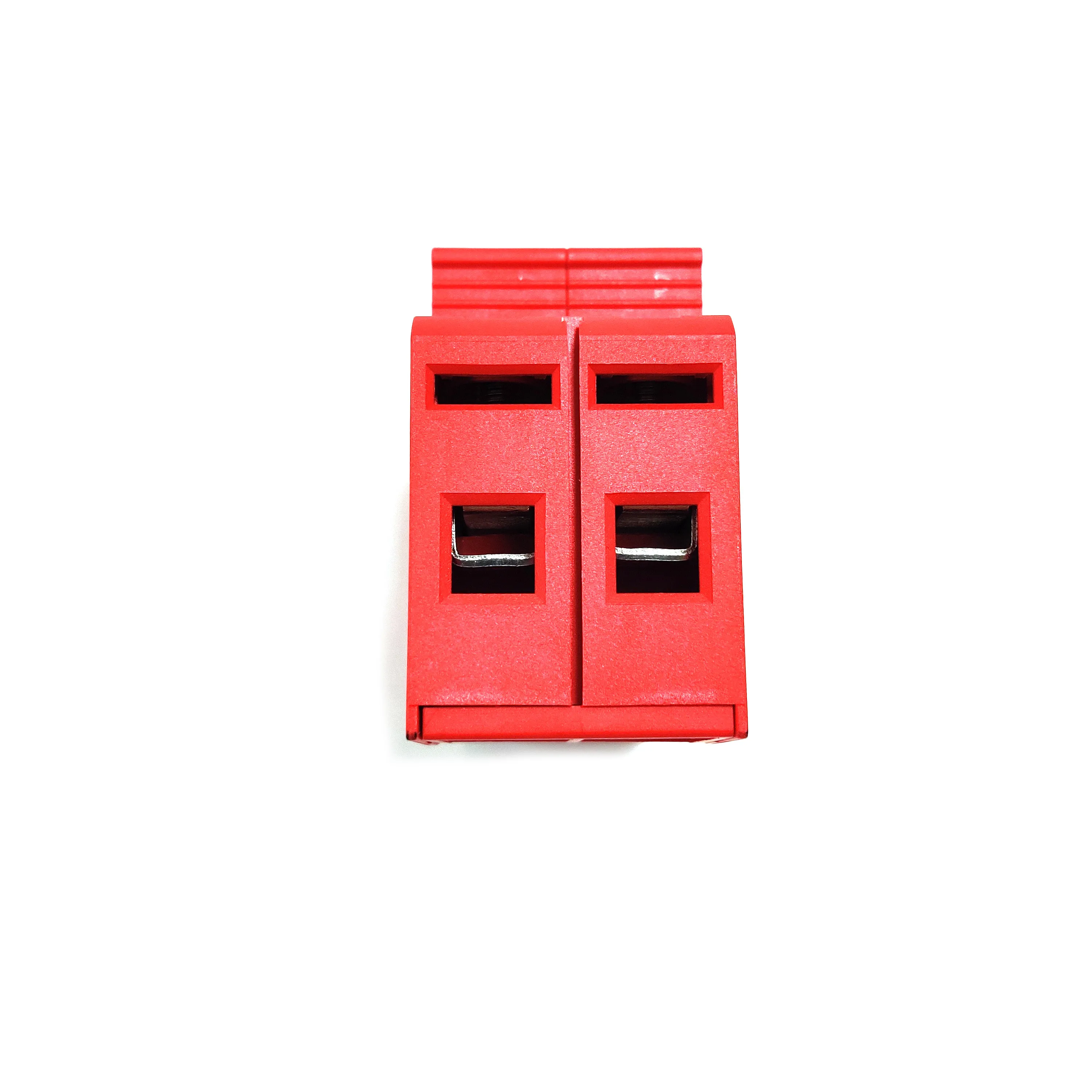

Product image
packing＆shipping
Certifications
