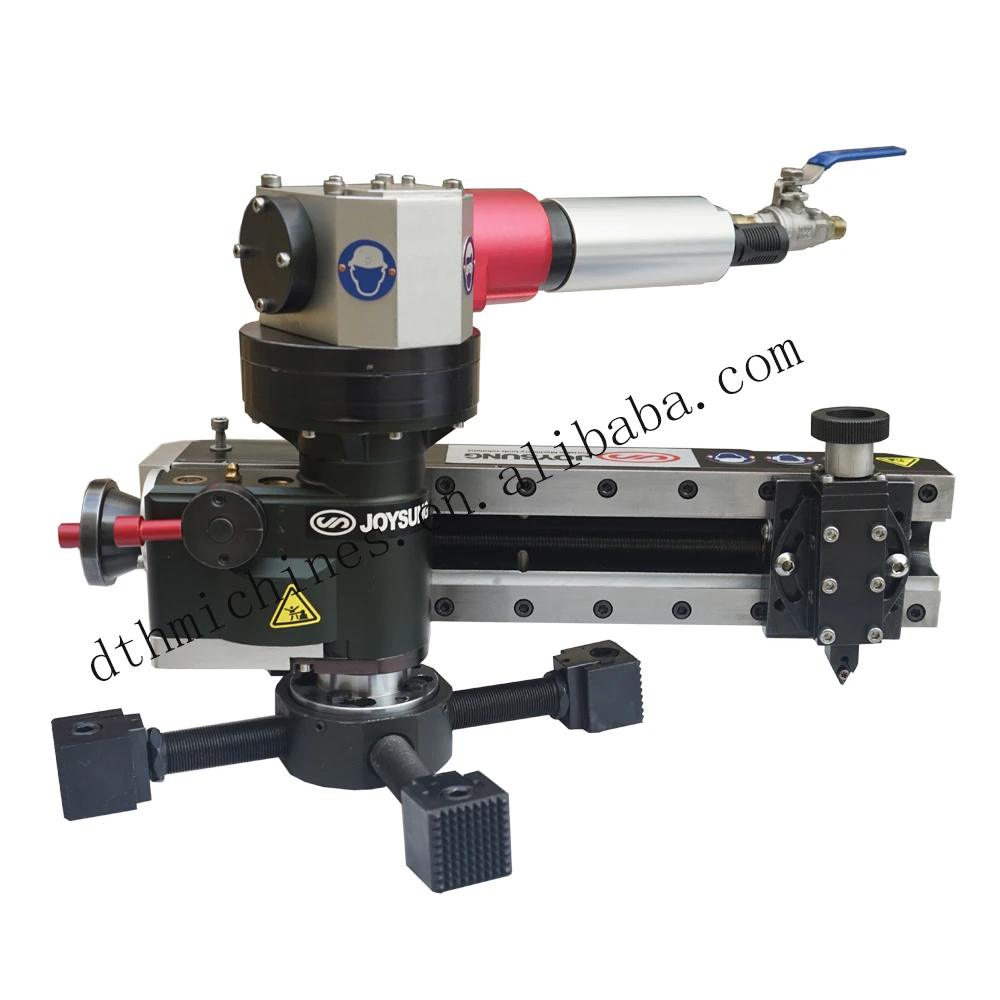

FDG610 Portable flange facing for on site machining



Product Description







FDG610 Flange Facer is a versatile flange facing machine that allows you to face, bevel, and turn pipe, valve, and pump flanges with easy, and can give machine shop accuracy. The three-piece mounting system makes setup and alignment of this machine quick and easy. It allows one operator to easily set up the machine and begin machining in just a few minutes.


Superior Machining


It can face the flat face, Continuous groove facing feeds, RTJ groove etc.


Lightweight & Precise Body


Modular design, high-intensity of material with processing technology, which makes sure the accuracy of processing.


Base assembly


Equipped three pieces high strength alloy structural steel mounting bases with steel threaded inserts, and adjustable feet enable the machine to be installed perfectly level and central in any flange from 50mm (2") to 610mm (24") in diameter.


Quick Set Up


Flange facing machine adopt independent design of quick model parts, therefor , it’s fast to mount it and machining. A experienced operator will finish the mounting processing within an hour according the rightful operating process..


Drive Power Unit


The machine is driven by a 0.8KW(1.2HP ) Pneumatic motor or a 0.75KW Servo motor, It can achieve cuts up to a maximum depth of 2mm (0.079") on flanges without bolt holes or 0.5mm (0.02") with holes and can achieve a flatness better than 0.02mm at 558mm (22") diameter.


 Technical Detail









































Facing Diameter Range50-610mm
I.D Clamp Range50-610mm
Tool Post Stroke50mm
Tool Post Swivel Angle+/-30
R.P.M0-42
Drive Power Unit- Pneumatic0.8kw
Air Consumption / Supply Required1.2m³/min
Machine Weight45kg
Shipping Weight60kg

 FDG610
