Products Description
Electric mountain skateboard components kit
These components are the mechanical parts for the electric mountain skateboard conversion kit,
you also need the electric parts like the motor, controller, battery, etc, if you want the electric parts, please feel free to
contact me.
you also need the electric parts like the motor, controller, battery, etc, if you want the electric parts, please feel free to
contact me.
People use these components to make a big skateboard that good at off-road.
If you want the protection cover for the motor and belt pulley, please choose the "+ cover" option, thanks.
Any question just feel free to contact me.
Details Images

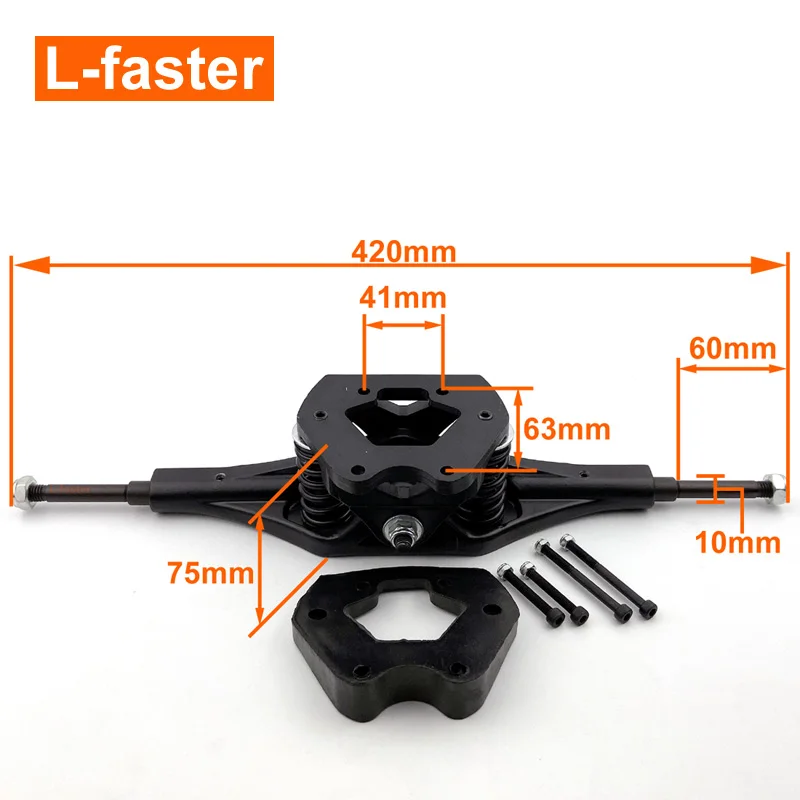

Product name | Skateboard truck |
Model | 11" truck |
Truck width | 420mm |
Truck height | 75mm |
Axle diameter | 10mm |
Truck material | Aluminium |
Mat material | Rubber |
Truck weight | 1.3kg |

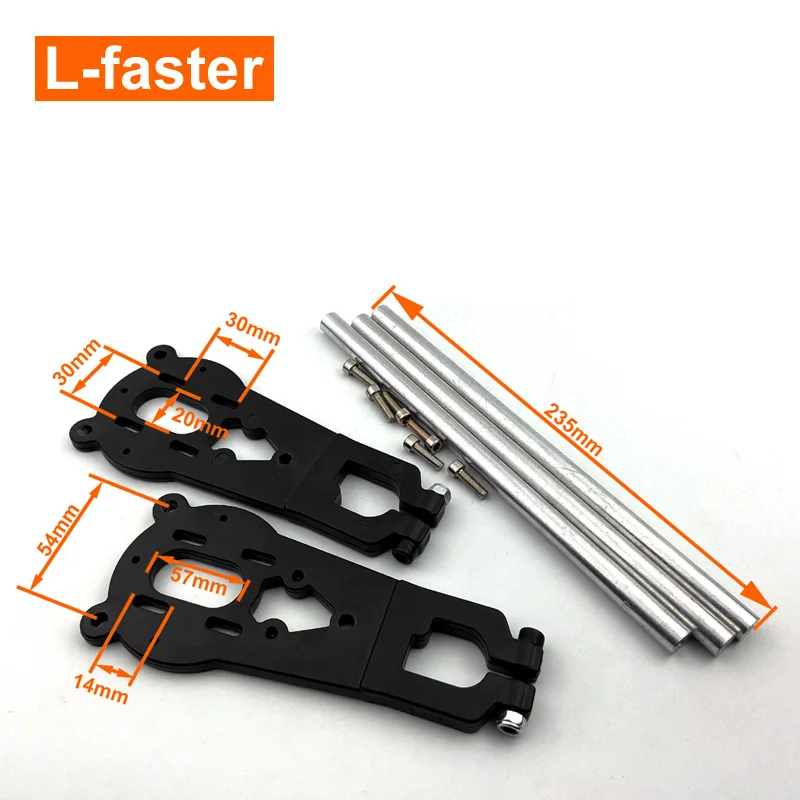

3-pole motor mounting bracket
This is for the electric motors that compatible with the drive truck.
Motor pulley
These pulleys are for the electric motor, the motor shaft diameter should 10mm (please tell me if you want 8mm), it has 16 teeth, fits the HTD-5M belt.
Belts
These belts link the motor pulley and wheel pulley, high quality.

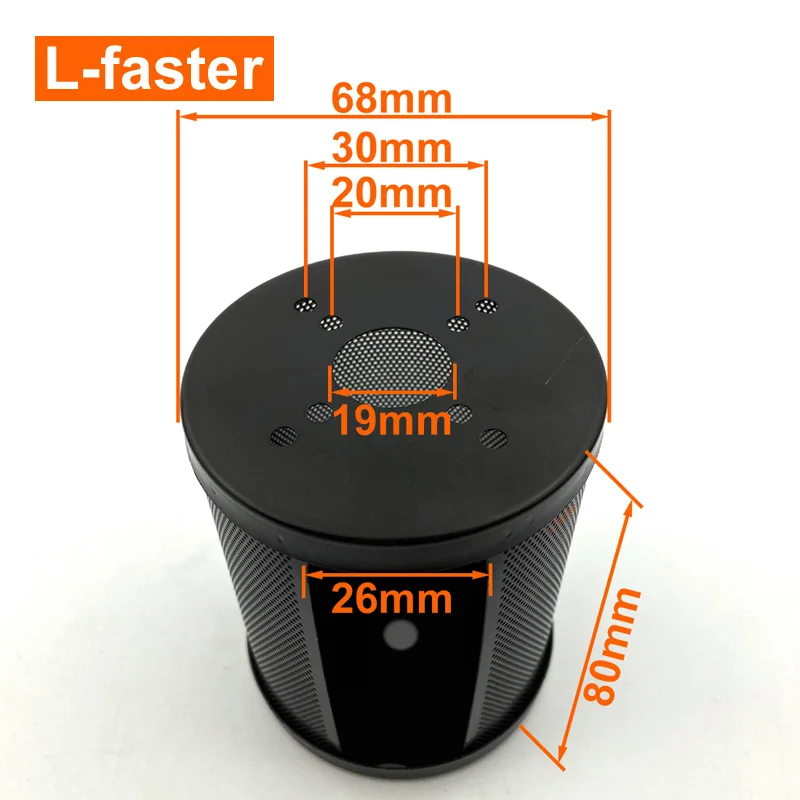

Motor protection cover (optional)
This cover is for protecting the motors, the motor body length should less than 80mm, and the motor body diameter should less than 65mm
8 inch wheel with pulley
This wheel is for the drive truck that needs to link to the motor pulley by the belt, the pulley has 72 teeth.

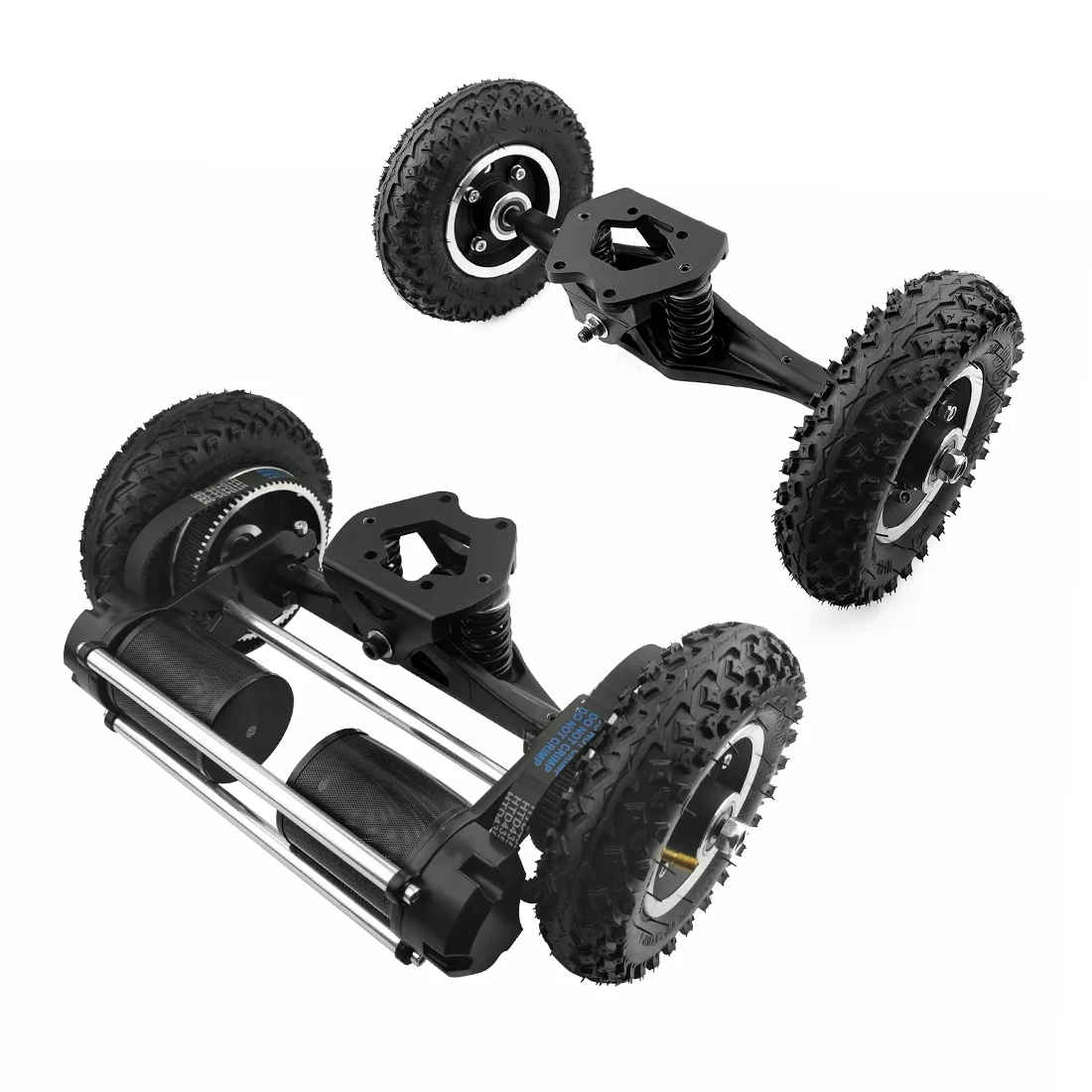

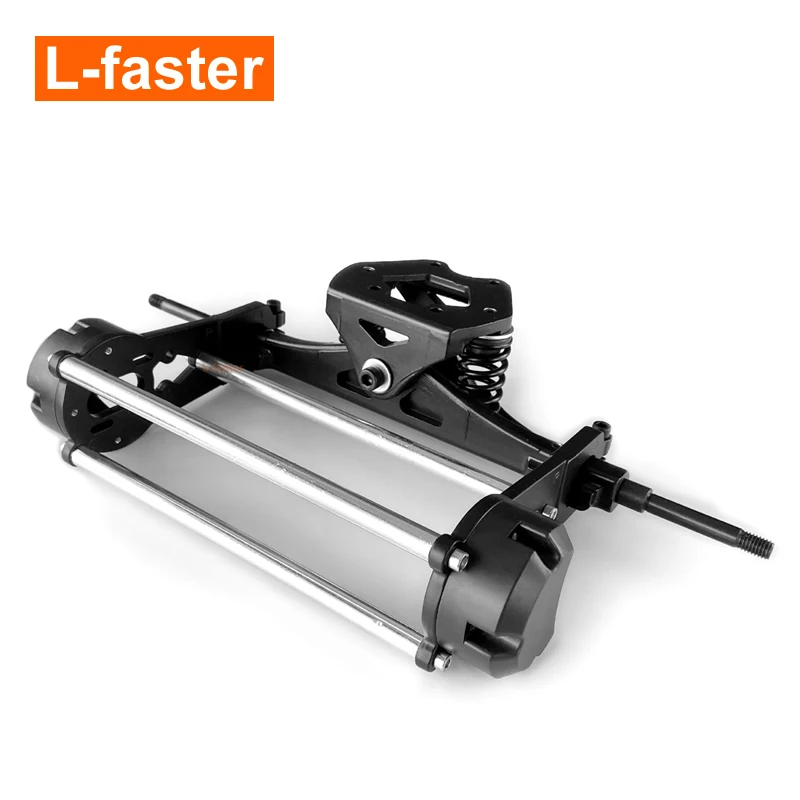

These components mounted
This picture is for your reference only, this item comes without the motors, please understand, if you want the motors, please contact me, thank you.

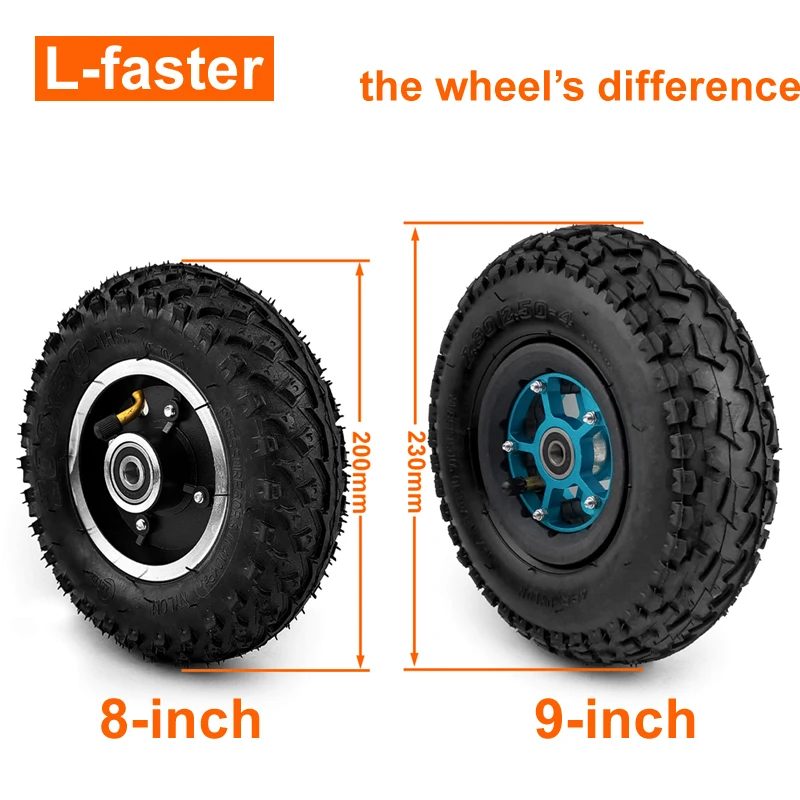

The 9 inch wheel
This wheel rim can be black or red color, please tell me if you want other colors, thanks.
The 9 inch wheel components mounted
This picture is for your reference only, this item comes without the motors, please understand, if you want the motors, please contact me, thank you.
