Характеристики
Products Description
Calipers
An industiral standard measuring tool
ABSOLUTED Digimatic Caliper 500 series with exclusive ABSOLUTE Encorder Technology.
An industiral standard measuring tool
ABSOLUTED Digimatic Caliper 500 series with exclusive ABSOLUTE Encorder Technology.
Features
• An ABSOLUTE electromagnetic induction linear encoder system is incorporated.
• New ergonomic design with finger rest.

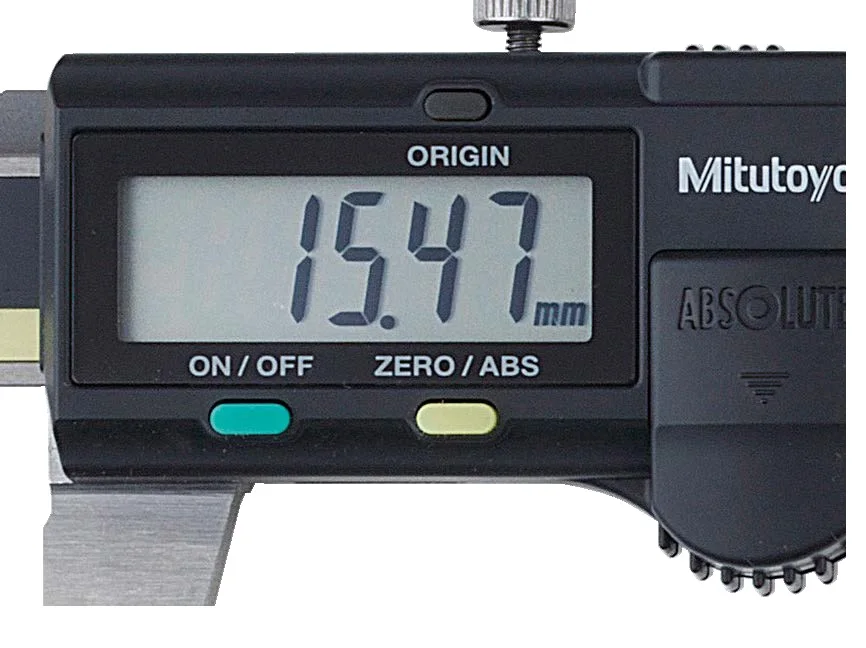

• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point).
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• Extended battery life of Approx. 5 years due to low current integrated circuit (except for 0 - 300 mm/0 - 12 inch models).
• Allows step measurement.
• Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc.
• Allows integration into statistical process control and measurement systems for models with measurement data output connector.
• An ABSOLUTE electromagnetic induction linear encoder system is incorporated.
• New ergonomic design with finger rest.
• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed point).
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• Extended battery life of Approx. 5 years due to low current integrated circuit (except for 0 - 300 mm/0 - 12 inch models).
• Allows step measurement.
• Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc.
• Allows integration into statistical process control and measurement systems for models with measurement data output connector.
Specification
Metric
Order No. | Range (mm) | Accuracy (mm) | Mass (g) | Depth bar | Fine adjustment | Remark |
500-150-30 500-180-30 | 0-100 | ±0.02 | 137 | ø1.9 mm rod | with thumb roller - | |
500-151-30 | 0-150 | 162 | Blade | with thumb roller | ||
500-154-30 | Carbide-tipped jaws for outside measurement | |||||
500-155-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500-158-30 500-181-30 | ø1.9 mm rod Blade | with thumb roller - | ||||
500-152-30 | 0-200 | 192 | Blade | with thumb roller | ||
500-156-30 | Carbide-tipped jaws for outside measurement | |||||
500-157-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500-182-30 | - | |||||
500-153-30 | 0-300 | ±0.03 | 350 | with thumb roller |
Order No. | Range (in) | Accuracy (mm) | Mass (g) | Depth bar | Fine adjustment | Remark |
500-170-30 500-195-30 | 0-4 | ±0.001 in/ ±0.02 mm | 137 | 0.075 inch rod | with thumb roller | - |
500-171-30 | 0-6 | 162 | Blade | |||
500-174-30 | Carbide-tipped jaws for outside measurement | |||||
500-175-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500178-30 500-196-30 | 0.075 inch rod | - - | ||||
500-159-30 | Blade | Carbide-tipped jaws for outside measurement | ||||
500-160-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500-172-30 | 0-8 | 192 | - | |||
500-176-30 | Carbide-tipped jaws for outside measurement | |||||
500-177-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500-197-30 | - | |||||
500-163-30 | Carbide-tipped jaws for outside measurement | |||||
500-164-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500-173-30 | 0-12 | ±0.0015 in/ ±0.03 mm | 350 | - | ||
500-167-30 | Carbide-tipped jaws for outside measurement | |||||
500-168-30 | Carbide-tipped jaws for outside and inside measurement | |||||
500-193-30 | - | |||||
500-165-30 | Carbide-tipped jaws for outside measurement | |||||
500-166-30 | Carbide-tipped jaws for outside and inside measurement |
