Машина для прокатки листового металла
US $10000
Высокая скорость губами Швеллеры Стальные проката C U обрешетки 0 Мега профиль стеклянная стена Алюминиевый Профиль рамки для изготовления формовки
- Категория: Tile Making Machinery >>>
- Поставщик: Bazhou,Chenglang,Keel,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1180901.67 $* | 1204519.98 $* |
| Jul-15-2025 | 957738.53 $* | 976893.95 $* |
| Jun-15-2025 | 1162304.23 $* | 1185550.82 $* |
| May-15-2025 | 1153005.41 $* | 1176065.70 $* |
| Apr-15-2025 | 920545.28 $* | 938956.69 $* |
| Mar-15-2025 | 1134408.68 $* | 1157096.40 $* |
| Feb-15-2025 | 1125110.4 $* | 1147612.89 $* |
| Jan-15-2025 | 1115812.63 $* | 1138128.73 $* |
Характеристики
Product Description
Product Application

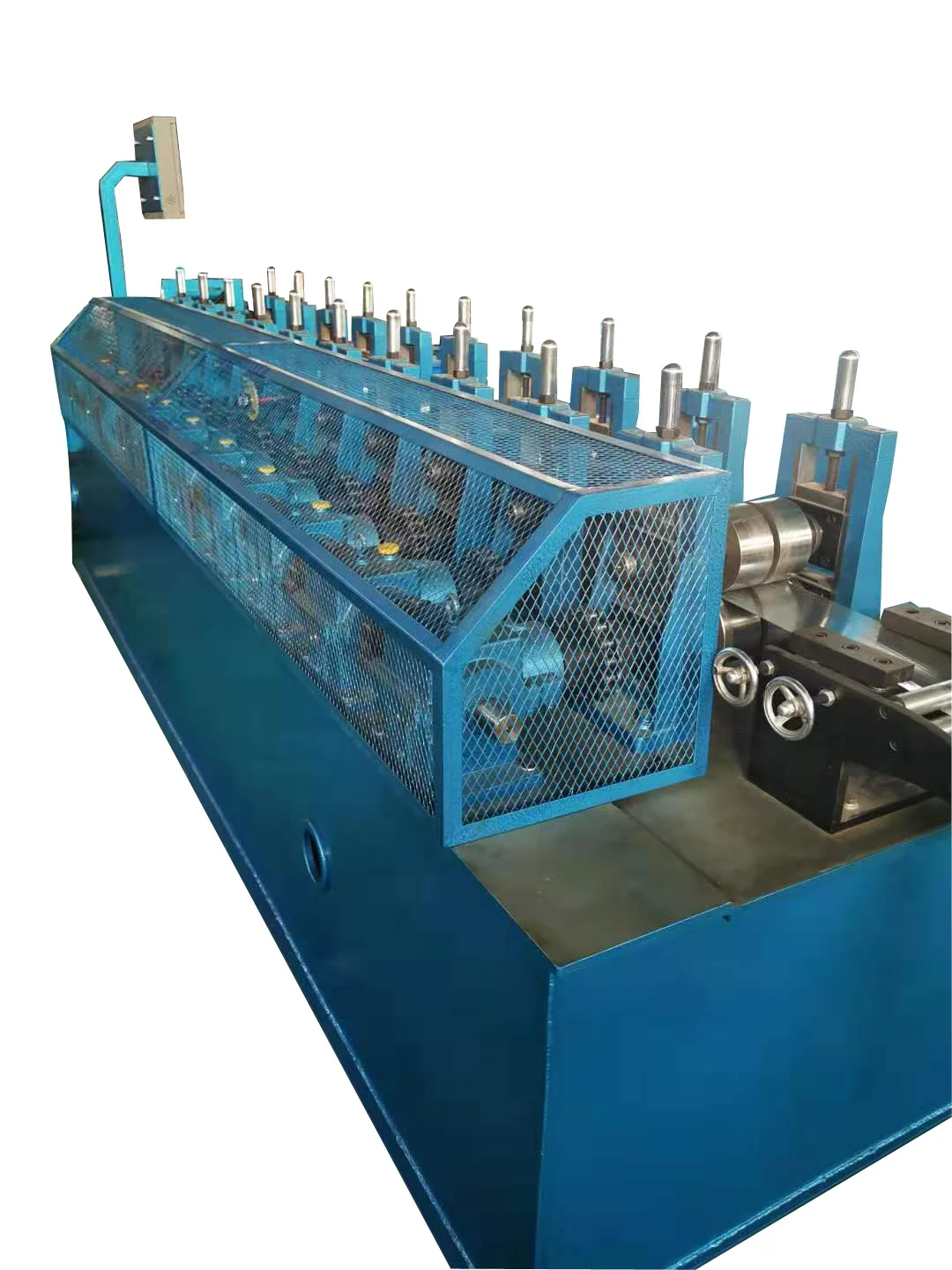

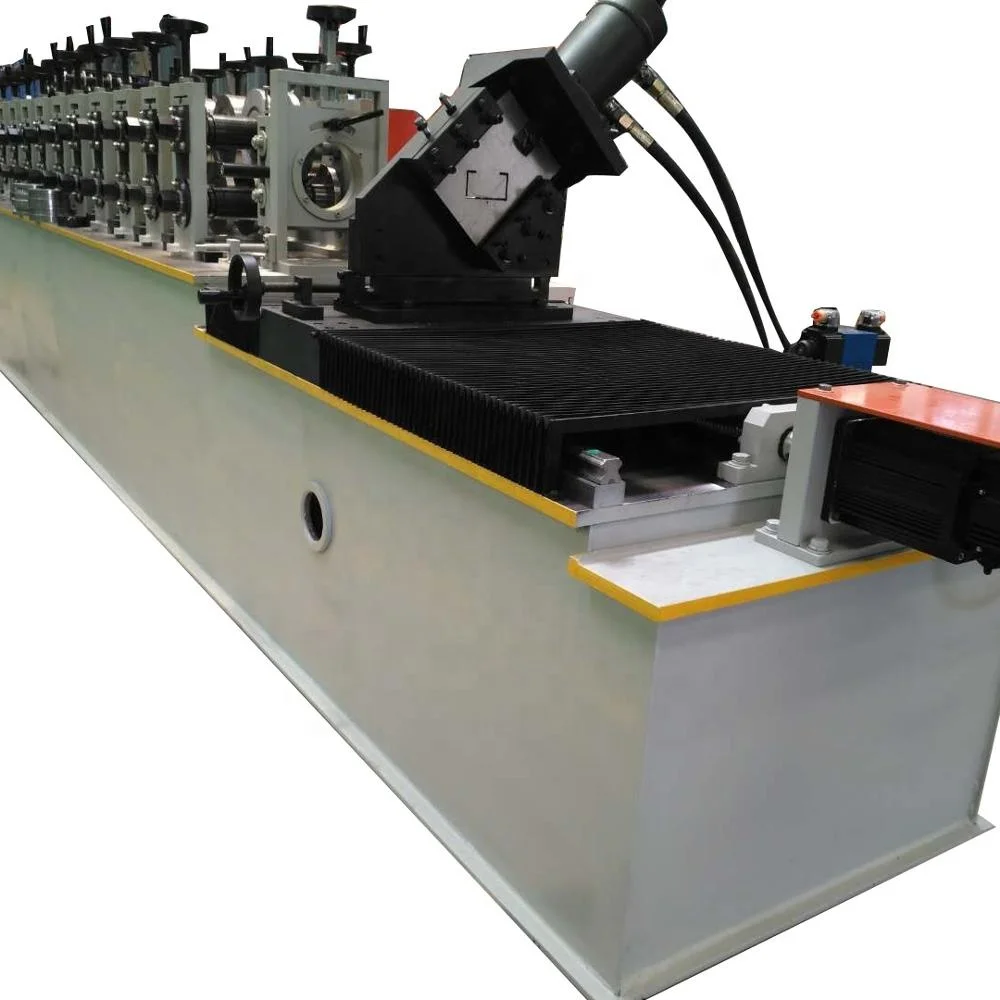

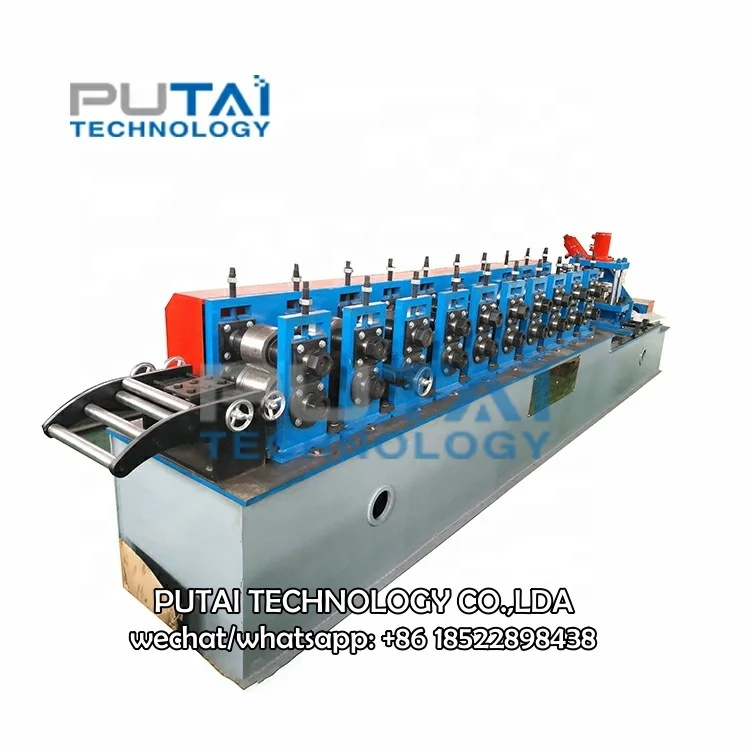

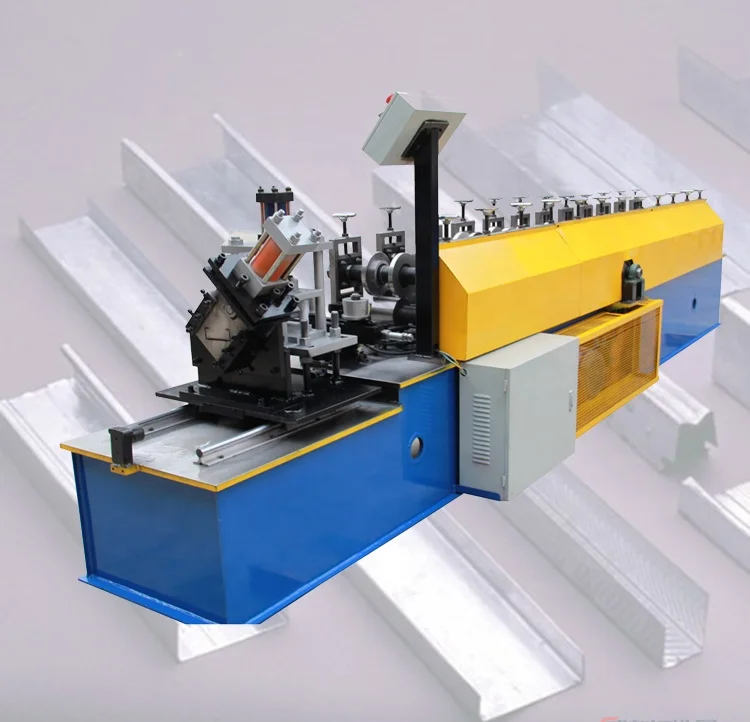

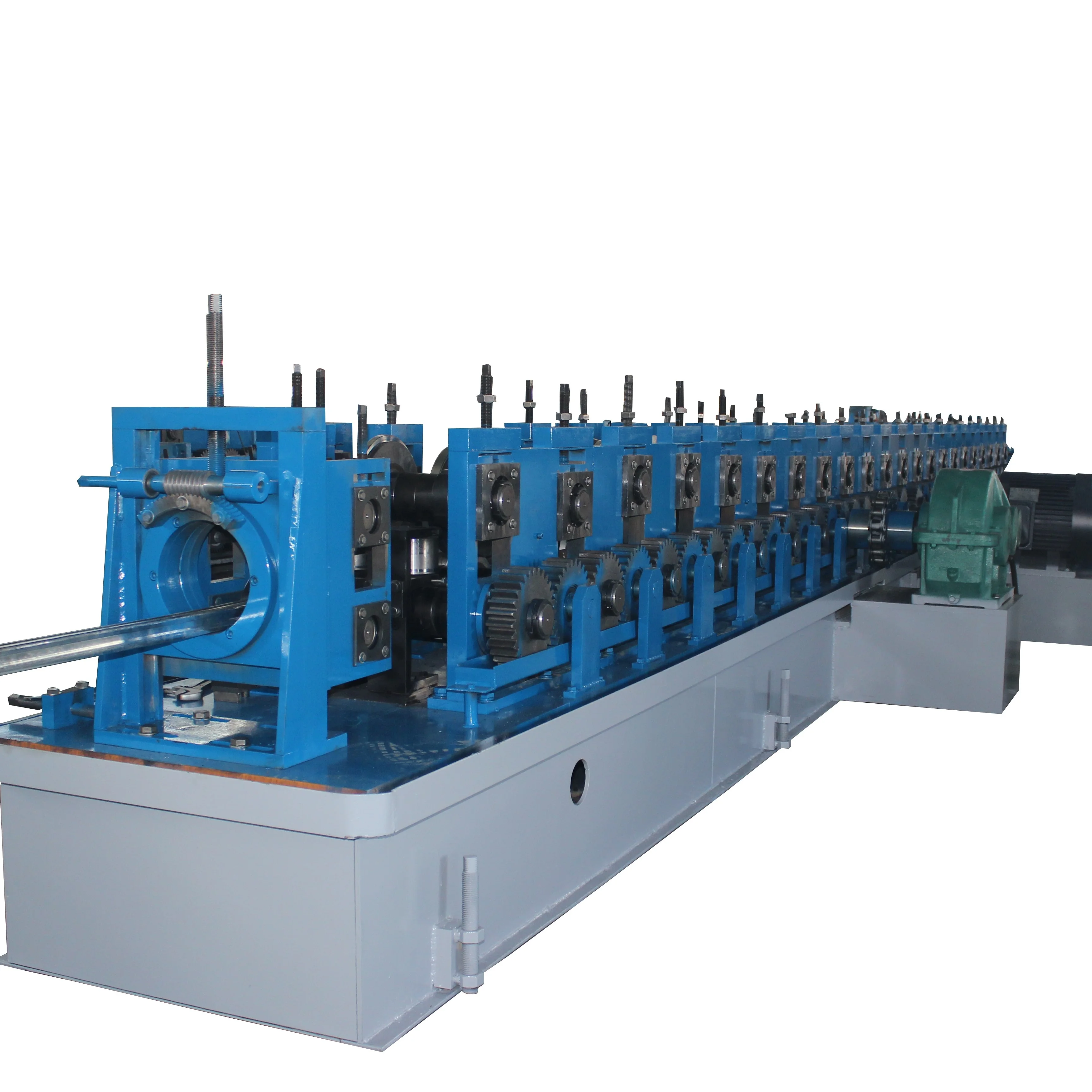

high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine's introduction
1.the main parts:
1) roll forming machine
2)molding press
3)cutting machine
4)PLC computer control
5)hydraulic system.
2.\tThe machine is stable,no noise,no shake.
3.\tControlling by computer, PLC display, operation is easy, running is steady and reliable,endurable
4.\tcutting machine is characterized by stable driving, easy operation.
5.\thydraulic system use hydraulic pump, long operating life,no noise.
6.\tmaterial: galvanized,colored steel or aluminum coil
7.\tWe can make and design the kinds of roll forming machine according to customer's request.
Specifications for high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine | ||||||
Manual Un-coiler | Max Capacity: 5000kgs | |||||
Inner diameter of coil:400-600mm | ||||||
Manual with brake | ||||||
Leveling Device | Ensure the material level and straight | |||||
The width can be adjusted | ||||||
Main Forming System | Width & Height & Thickness of sheet: According to Drawings | |||||
Material: GI sheet coil or Colored sheet coil | ||||||
Motor Power: 5.5 kw forming system | ||||||
Roller material:Cr12 | ||||||
Surface of Roller: Heat treatment HRC 58-60 | ||||||
Diameter of main shaft: 60mm #45 steel, heat treat modulation | ||||||
Forming station: 12 stations. | ||||||
Transmission: by chain and gear | ||||||
Measuring accuracy: +/- 0.5 mm/M. | ||||||
Arch middle plate: 30mm thickness. | ||||||
Output: 8-10 Tons per shift (8 hrs.). | ||||||
The machine base is assembled and welded by high quality steel. | ||||||
Cutting way: Tracking (Flying).. | ||||||
Oil pump station: 1set | ||||||
Motor power of Oil pump station: 7.5kw with cooling system | ||||||
Forced air cooling device available. | ||||||
Cutting mould: 1 sets | ||||||
Material of blade: CR12 with heat treatment HRC60-62. | ||||||
Electrical System | Control system: HMI & PLC control panel | |||||
Power: 380V 50Hz (as per local requirement) | ||||||
Run-out Table | Frame: 8# steel groove welded | |||||
Roller type | ||||||
Quantity: 1 pc | ||||||
main keel wall angle drywall steel frame light keel furring channel roll forming machine's Main Features
1.Professional: rich experience in product and export process!
2.Low price:Save your money from every part!
a.Low labor cost
b.Convenient transportation;
c. Complete supporting industries
3.PLC: Ensuring high accuracy and easy to operate!
4.Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine automatically produce the product you need!
Detailed Images
high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine's rollers
Machine rollers
Roller Material:Roller material:Cr12.
Surface of Roller: Heat treatment HRC58-60.
Forming station: 12 stations.

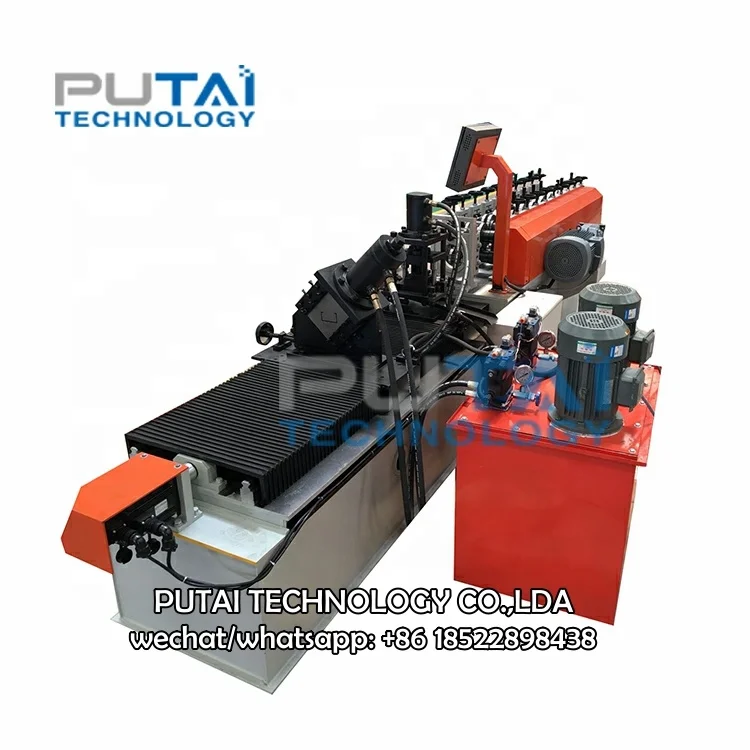

high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine's hydraulic pump
Name: hydraulic pump
Cutting way: Tracking (Flying)..
Oil pump station: 1set
Motor power of Oil pump station: 7.5kw with cooling system.
high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine's feeding and leveling device
Name: feeding and leveling device
It used for making the material flat before feeding into the roll forming machine
2 rollers(1 upper and 1 lower)
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
high quality servo cutting china professional facotry light gauge steel omega channel cold roll forming machine's computer control cabinet
PLC manufacturer: Siemens
Touch Screen monitor: Siemens
Encoder : Omron (Location: it is after profile formation)
Switch: Omron
Oil hydraulic cylinder: taiwei
Oil pipeline: parkers
Length variation: +/-2mm
Tolerance for hole to hole distance: +/-1mm
Our Service
Packing & Delivery
Packaging | ||
Size | 3.1m(L) * 0.7m (W) * 0.9m(H) | |
Weight | about 2 T | |
Packaging Details | 1). Tighten to container with steel wire rope and welded machine with container by angel iron 2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic) 3). PLC contral system and motor pump are packed in box with water proof paper coverage | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | ||
