Dongfeng chenglong крыло фургон легкий грузовик с крыльями открытый ящик для
- Категория: Cargo Trucks >>>
- Поставщик: Dongfeng,Liuzhou,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 17850.61 $* | 18743.80 $* |
| Aug-19-2025 | 17700.38 $* | 18585.61 $* |
| Jul-19-2025 | 14850.47 $* | 15593.68 $* |
| Jun-19-2025 | 17400.35 $* | 18270.64 $* |
| May-19-2025 | 15150.56 $* | 15908.15 $* |
| Apr-19-2025 | 17100.21 $* | 17955.74 $* |
| Mar-19-2025 | 16950.52 $* | 17798.13 $* |
| Feb-19-2025 | 16800.7 $* | 17640.56 $* |
| Jan-19-2025 | 16650.5 $* | 17483.12 $* |
Характеристики
Company Information

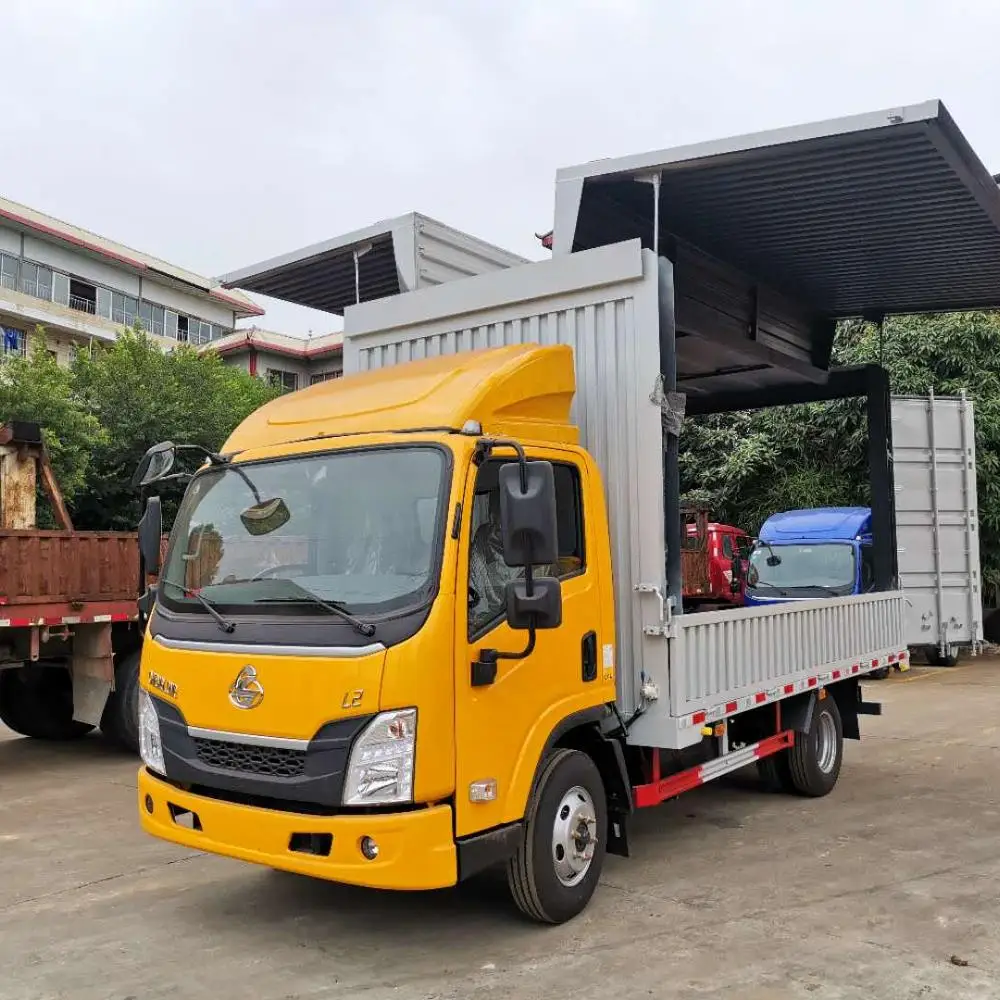

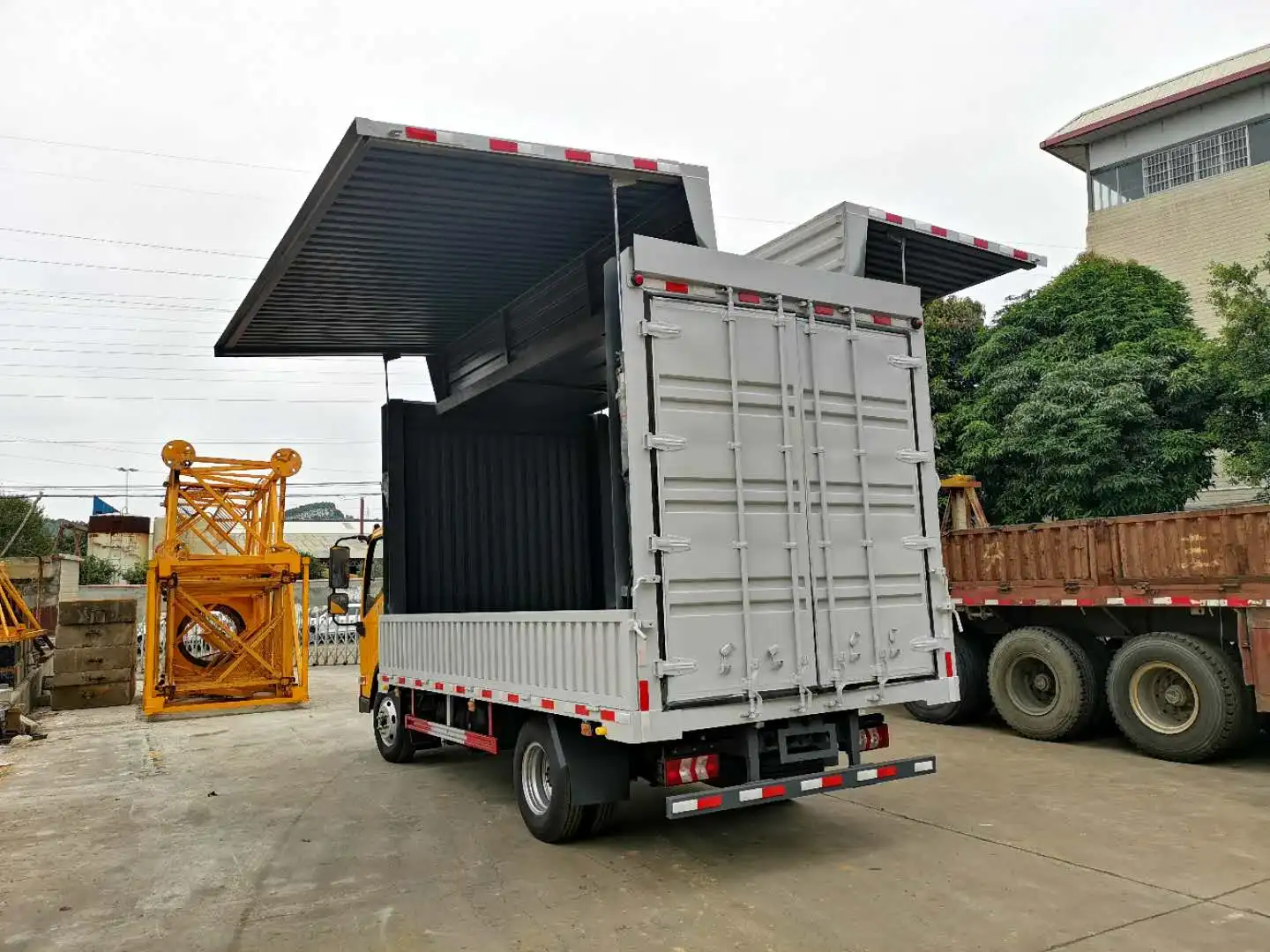

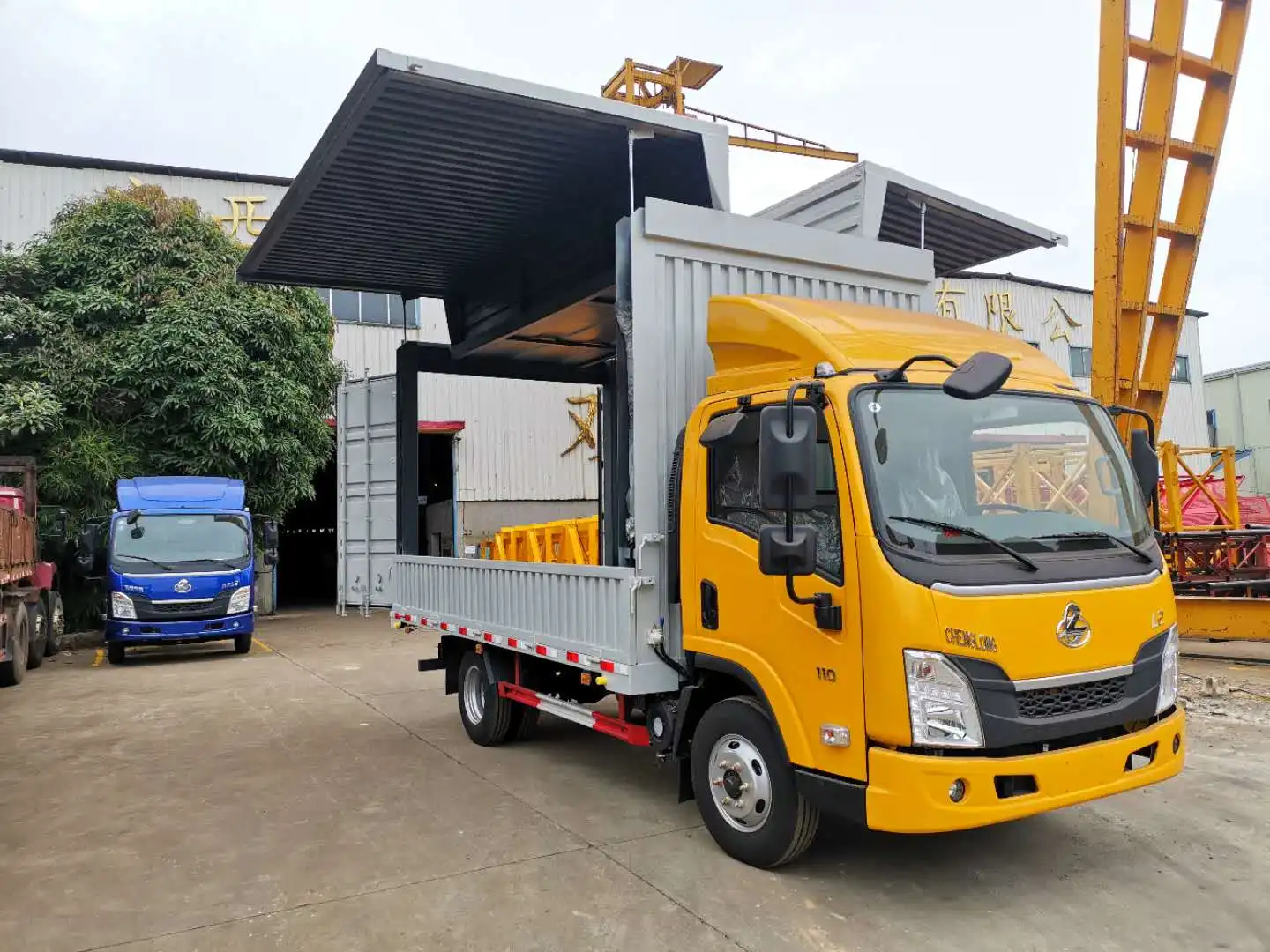

Dongfeng chenglong wing van light truck with wing open box truck for selling
| Model | LZ1090L3AB |
| Model code | ZC1331R1 |
| Max Payload | 6000kg |
| Chassis Dimensions | |
| Chassis Dimensions(L*W*H) | 5930mm*2108mm*2401mm |
| Wheel base | 3360 |
| Front/Rear wheel track | 1754mm/1621mm |
| Front/Rear overhang | 1200mm/1370mm |
| vehicle weights | |
| G.V.W | 10000kg |
| Curb weight | 2780kg |
| Frame profile Dimensions | |
| Frame width | 800mm |
| Section height | 190mm |
| Section thickness | 5mm |
| Engine | |
| Type | YC4D120-21 |
| Emission level | Euro 2 |
| Maximum power | 90Kw/2800rpm |
| Maximum torque | 350N.m/1600-1900rpm |
| Number of cylinders | 4 |
| Displacement | 4.212L |
| Cylinder bore×Stroke | 108mm×115mm |
| Clutch | |
| Plate's diameter | φ350mm |
| Operating system | Hydraulic control with air booster,pushing |
| Gear box | |
| Type | 6TS55F |
| Number of gears | 6 forward gears& 1 reverse |
| Gear ratios | 6.012;3.292;2.004;1.367;1.00;0.789; r1=5.395 |
| Axle | |
| Front Axle | Rigid stubaxle with double T-cross section,dram brake |
| 2.7t | |
| Rear Axle | Press welding shell, Single-stage reduction shaft, speed ratio:4.875. |
| 6t | |
| Suspension | |
| Front suspension | 3-Leaf spring with shock absorber |
| Rear suspension | 6+7-leaf spring 9+5 |
| Battery | |
| Voltage | 12V |
| Battery capacity | 100Ah |
| Fuel Tank | |
| Type | Plastic fuel tank |
| Capacity | 120L |
| Others | |
| Cab | L25 single-row cab,Fixed cab suspension, torsion bar flip, electric glass lifter, instrument cluster (with LCD screen), MP3 + radio, air conditioning, remote control central lock, silicone oil clutch fan. |
| Brake System | Full air brake system,split pneumatic circuit;parking spring brake acting on rear axles, exhaust brake. |
| Tyres | 7.00R16-12PR |
| Minimum turning circle | 6600mm |
| Minimum ground clearance | 194mm |
| Maximum driving speed | 103km/h |
| Maximum gradeability | ≥20% |
| Fuel consumption | 15L/100Km(10t) |
| Cargo Body | |
| Cargo size(L*W*H) | 4050*2100*1640 |
Q. Are you original manufacturer?
A. Yes, we’re a leading automobile enterprises in China, one of the biggest manufacturer for commercial vehicles and passenger vehicles.
Q. What kind of payment terms can be acceptable?
A. We’re flexible for payment terms, including T/T, L/C, D/P, O/A and of course Cash.
Q. What’s your minimum Order quantity?
A. 1 unit.
Q. What’s your supportive policy for distributors in overseas market?
A. We support in many aspects including marketing, promotion, product development/improvements, service training, advertising, etc.
Q. Do you have experience of CKD or IKD assembly project in overseas market?
A. Of course, we already have KD assembly plants in area of Southeast asia and South America.
