Technical  Parameter
model	outside diamete(mm)	screen surface diameter(mm)	effective screening area(m2)	maximum feeding size(mm)	screen mesh	layer	vibration time	power(kw)
XF-400	400	Φ360	0.09	<10	2-500	1-5	1500	0.22
XF-600	600	Φ560	0.22	<10	2-500	1-5	1500	0.25
XF-800	800	Φ760	0.4	<20	2-500	1-5	1500	0.55
XF-1000	1000	Φ930	0.63	<20	2-500	1-5	1500	0.75
XF-1200	1200	Φ1130	0.95	<20	2-500	1-5	1500	1.1
XF-1500	1500	Φ1430	1.5	<20	2-500	1-5	1500	2.2
XF-1800	1800	Φ1730	2.3	<30	2-500	1-3	1500	3.0
XF-2000	2000	Φ1930	2.86	<30	2-500	1-3	1500	4.5

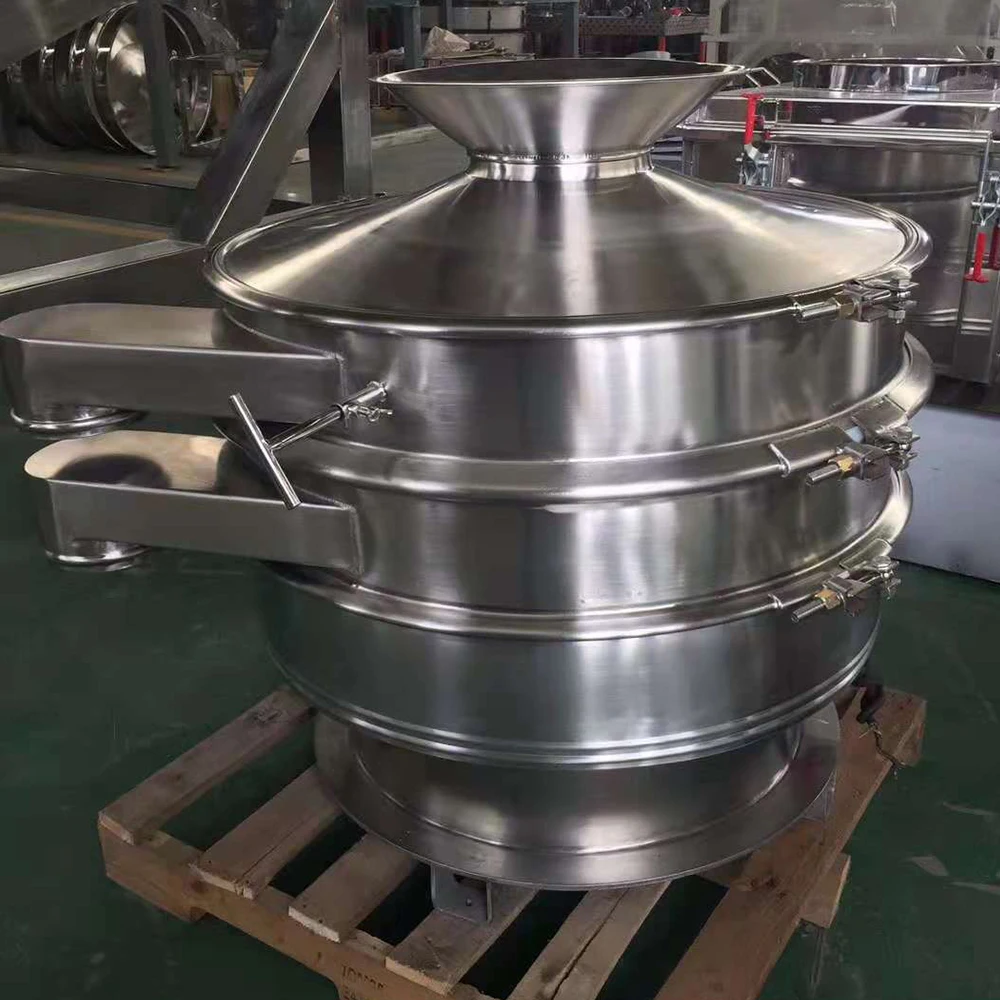

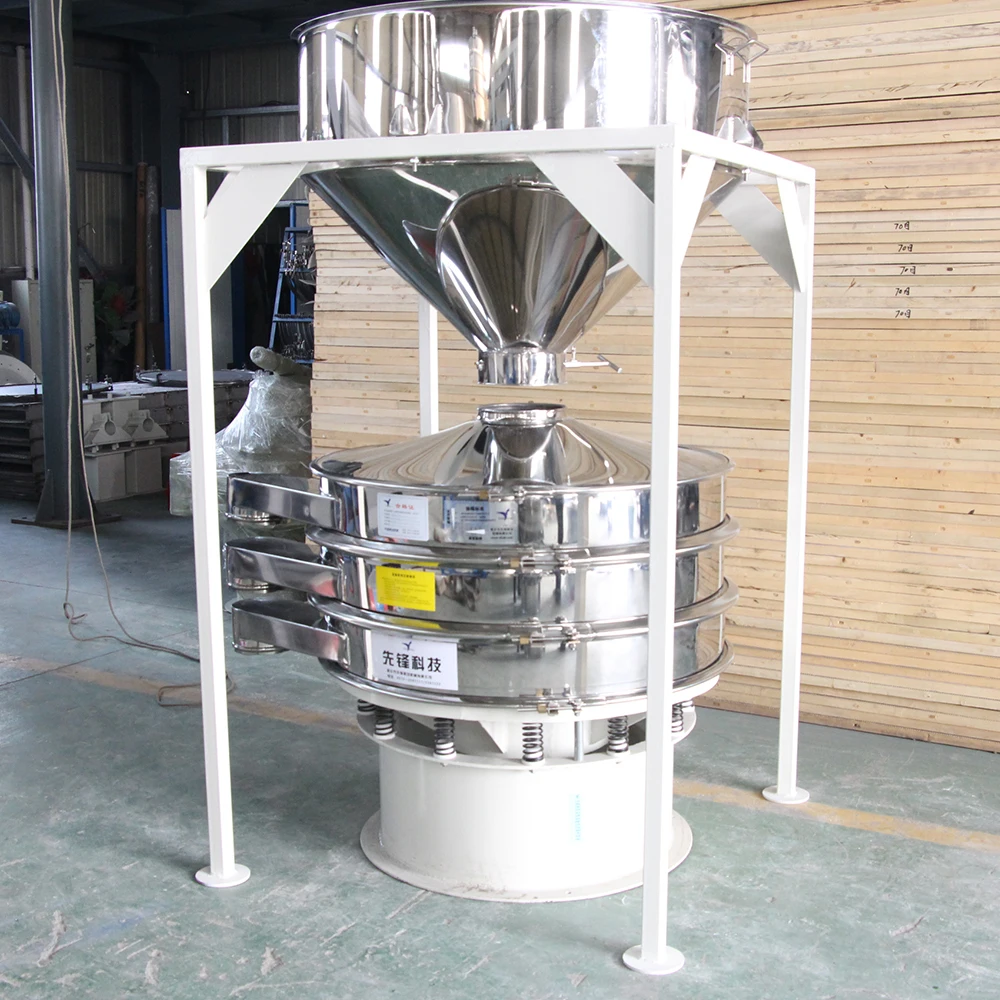

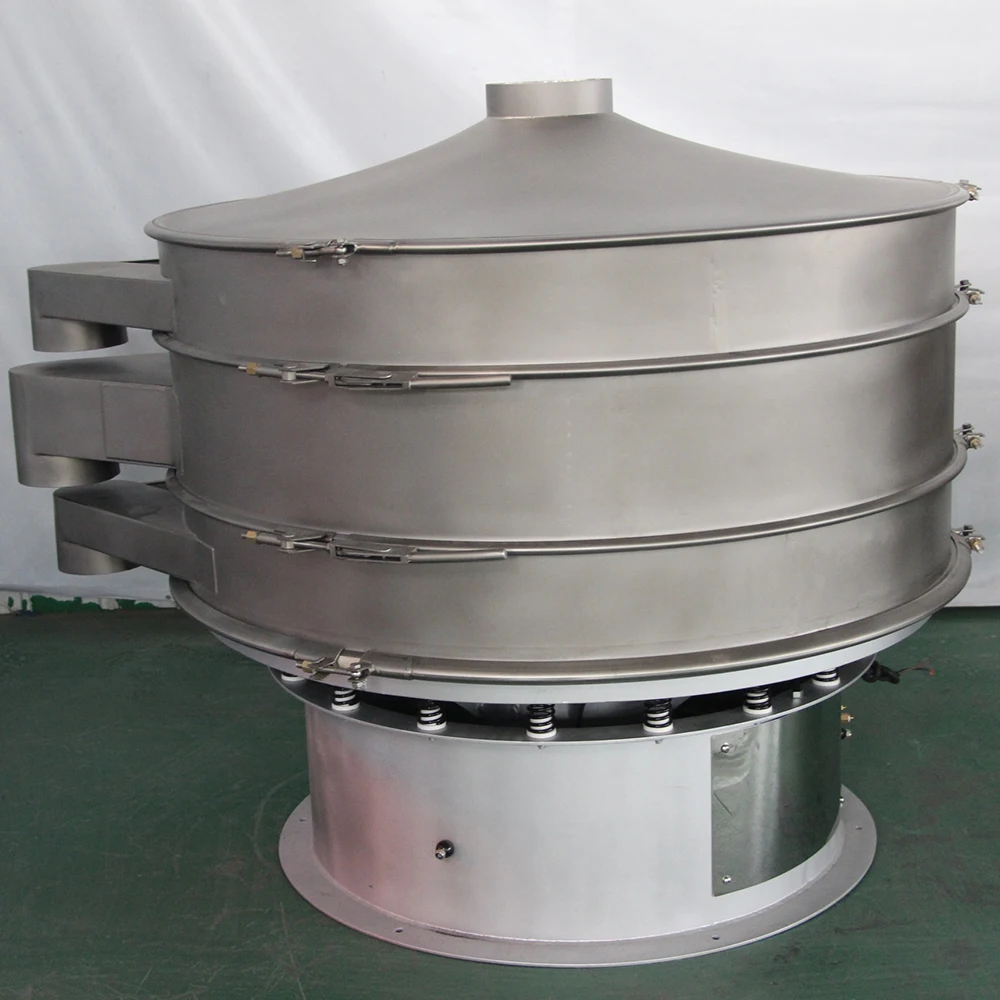

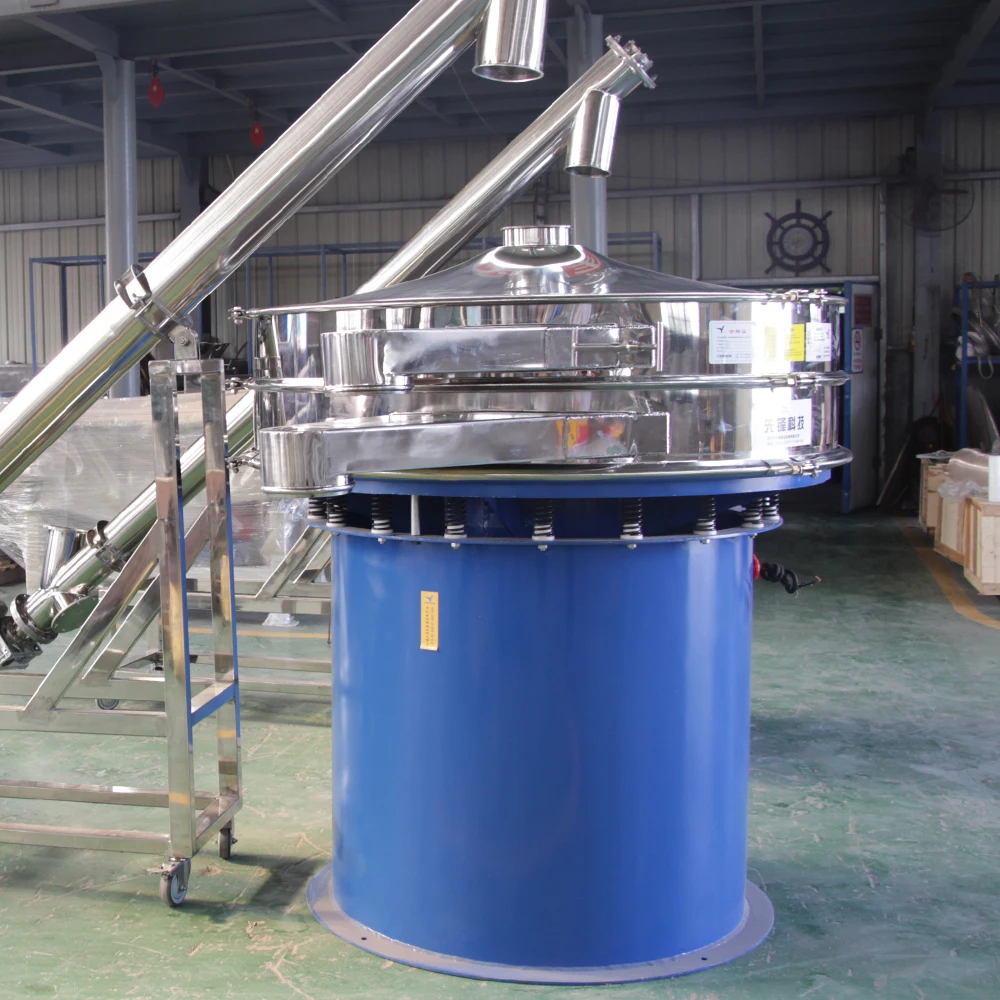

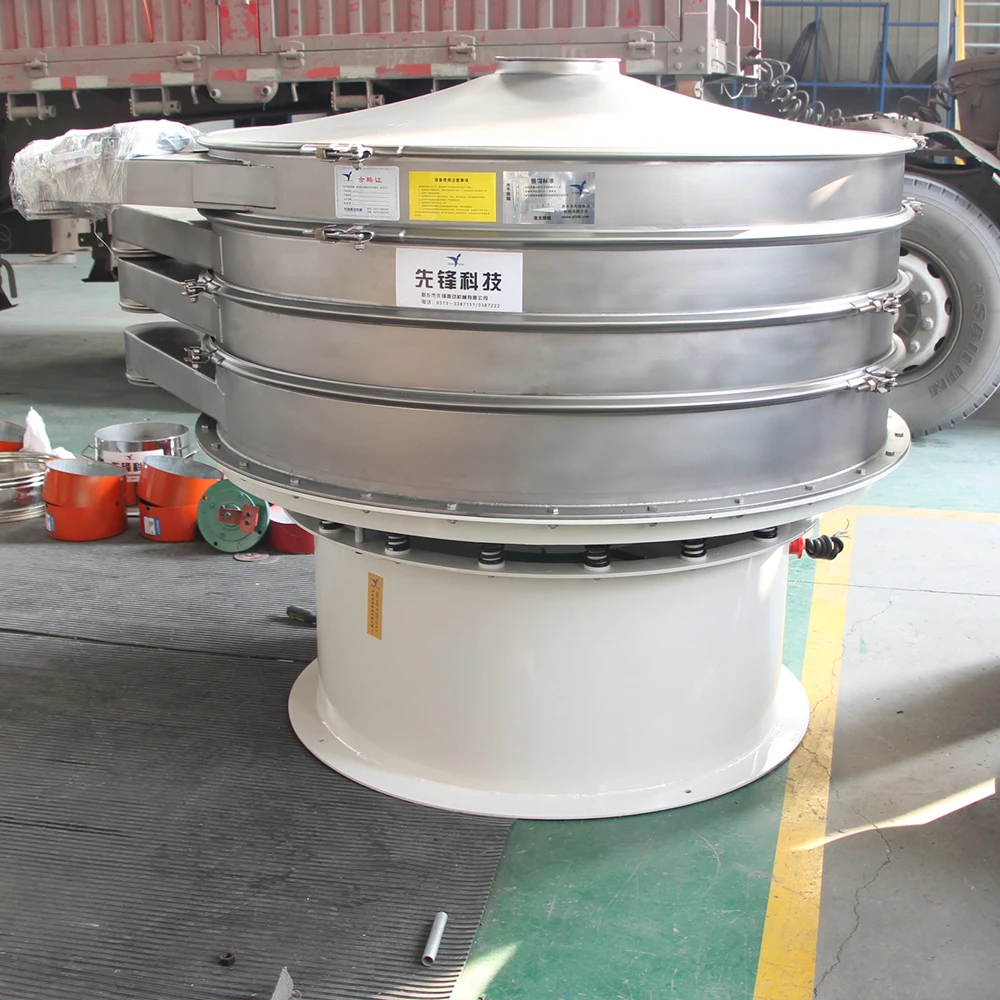

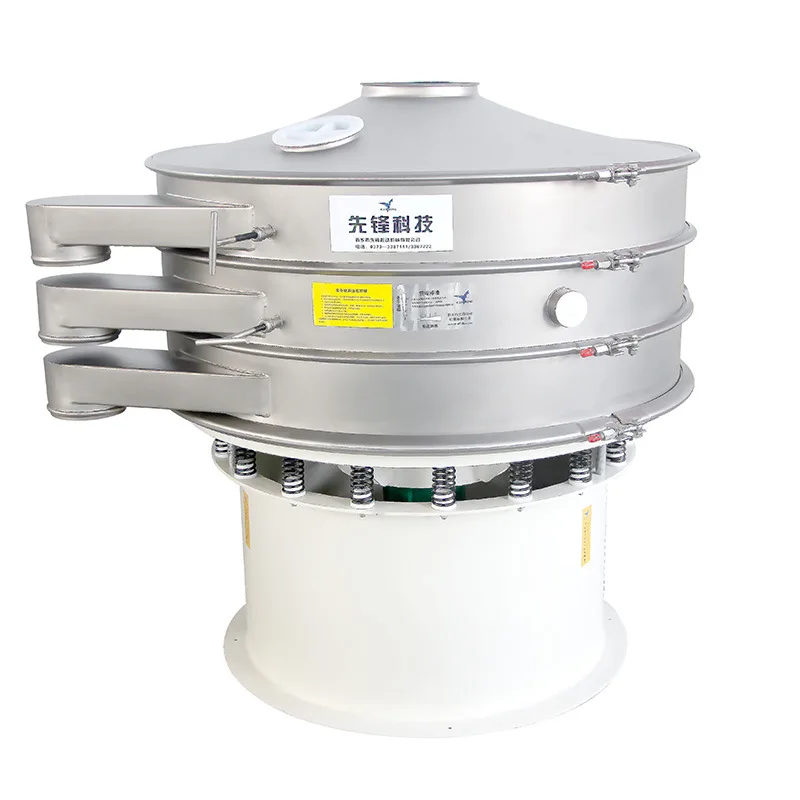

ROTRAY VIBRATION SCREEN is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly change the net.The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening, etc.

WHY CHOOSE XF CLEANING SYSTERM?XIANFENG cleaning systerm guaranty more than 2 Years stability. Further, we use expreienced design: Optional generator mode Hign efficient tranfer Special mesh frame structureMore than 70% rebound height................................



INSPECTIONXF make strict inspections before producing, during producing, before shipment. Inspection item include mesh size, mesh cloth tension, motor temprature, dimesion, noisy, vibration amplitude ect.Inspection reach ISO 2194 Wire screens and plate screens for industrial purposes Nominal sizes of apertures.
