Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12
Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12
Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12
Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12
Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12
Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12
Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12

Китайский поставщик мотор TT 37 мм 6 в редукторный двигатель постоянного тока электрический автомобильный Мотор 12


Поделиться:


Цена:6,35 $ - 8,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 7.61 $* 7.32 $*
Aug-19-2025 7.50 $* 7.38 $*
Jul-19-2025 6.65 $* 6.48 $*
Jun-19-2025 7.75 $* 7.96 $*
May-19-2025 6.54 $* 6.88 $*
Apr-19-2025 7.40 $* 7.34 $*
Mar-19-2025 7.57 $* 7.51 $*
Feb-19-2025 7.72 $* 7.46 $*
Jan-19-2025 7.42 $* 7.20 $*

Характеристики





Product Description

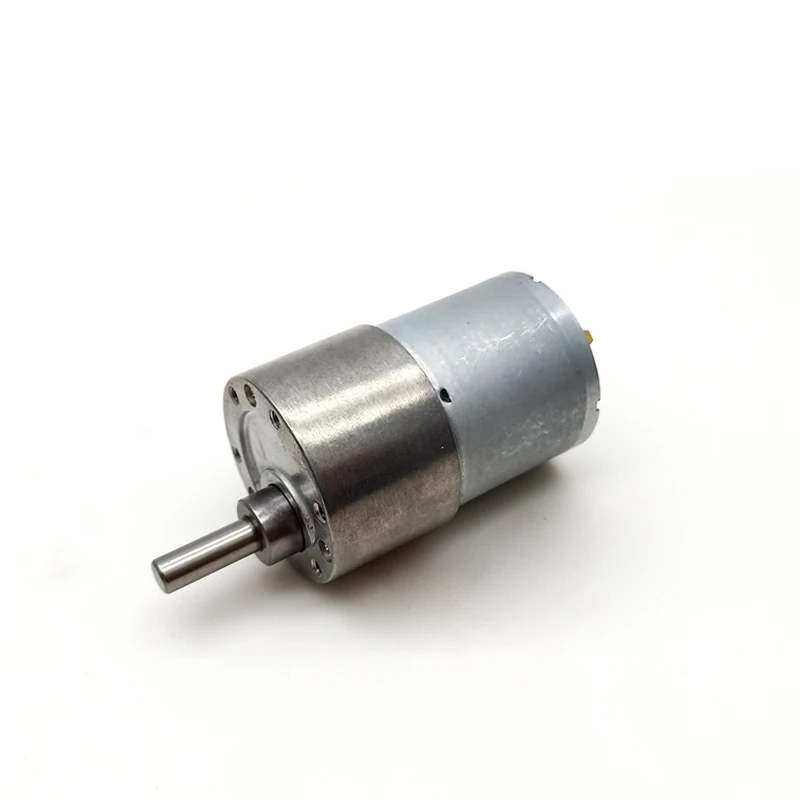

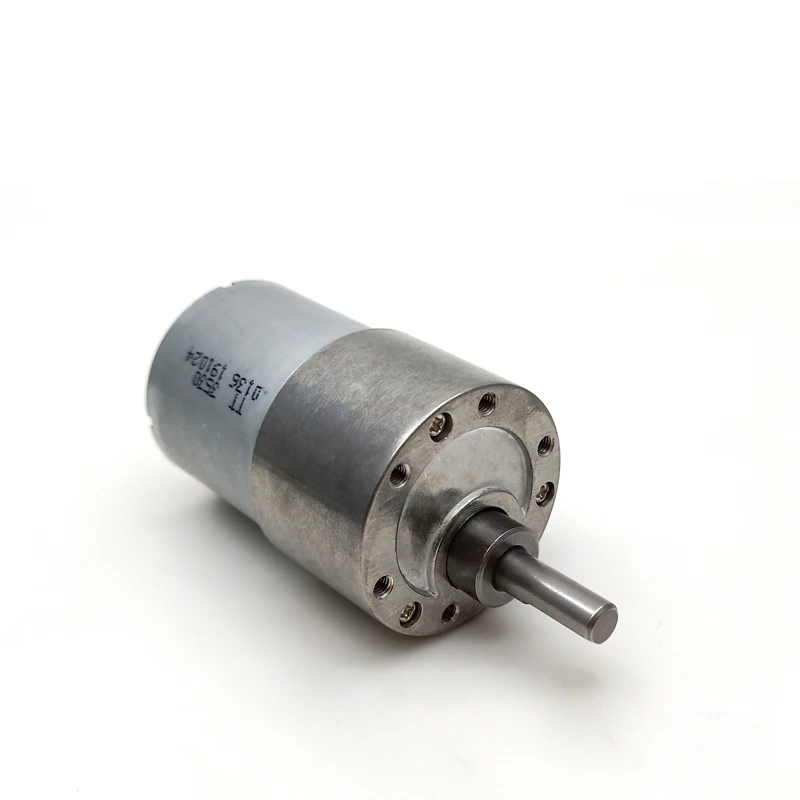

China supplier TT motor 37mm 6v geared dc motor electric car motor 12v


Main Features

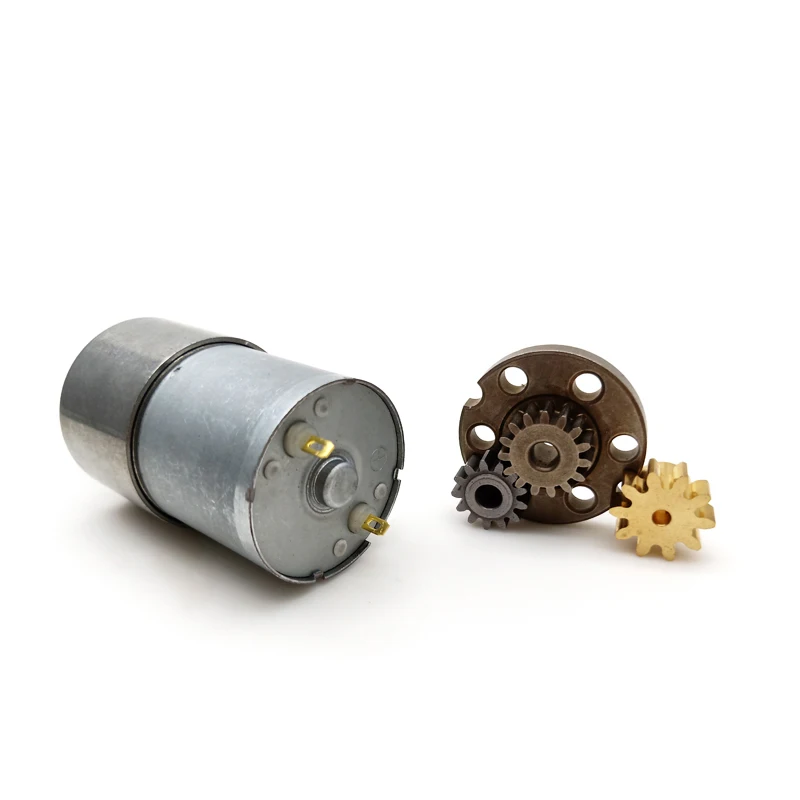

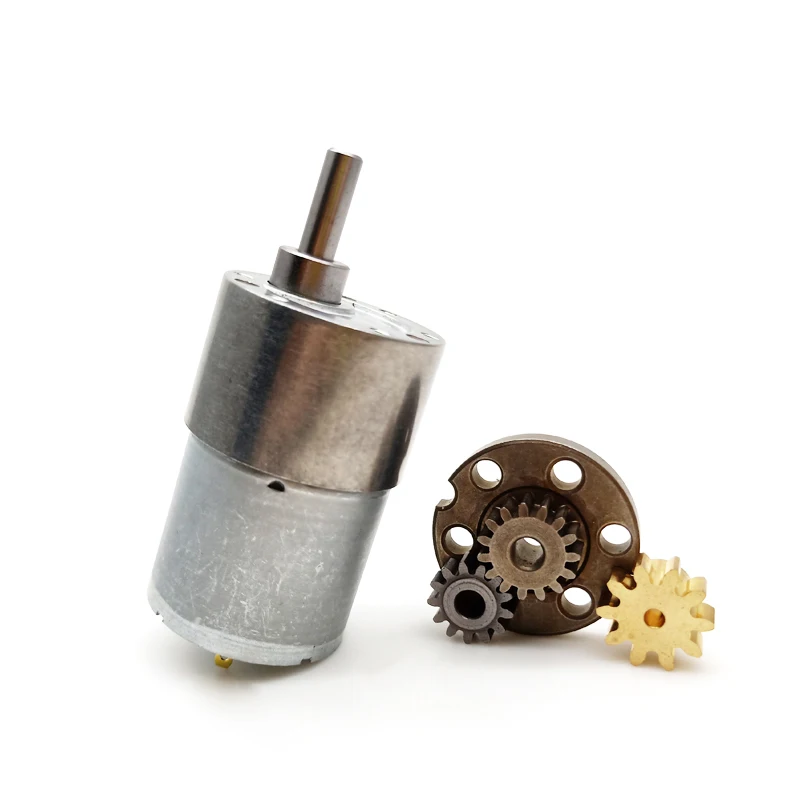

37mm Eccentric out shaft gearbox plus 520 & 3530 & 3527 and TEC3650 &3640 brushless motor
Small size dc gear motor with low speed and big torque
37mm gear motor provide 1.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

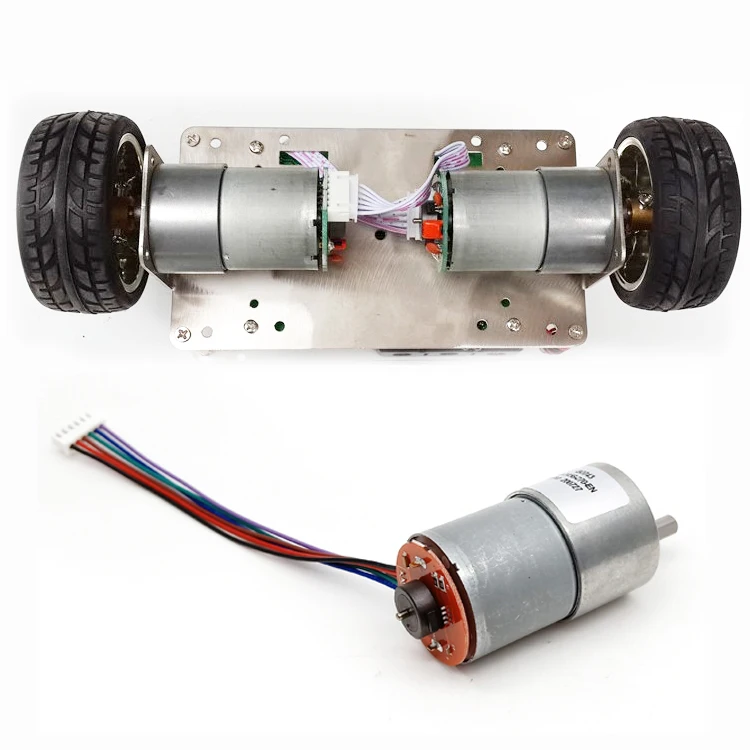

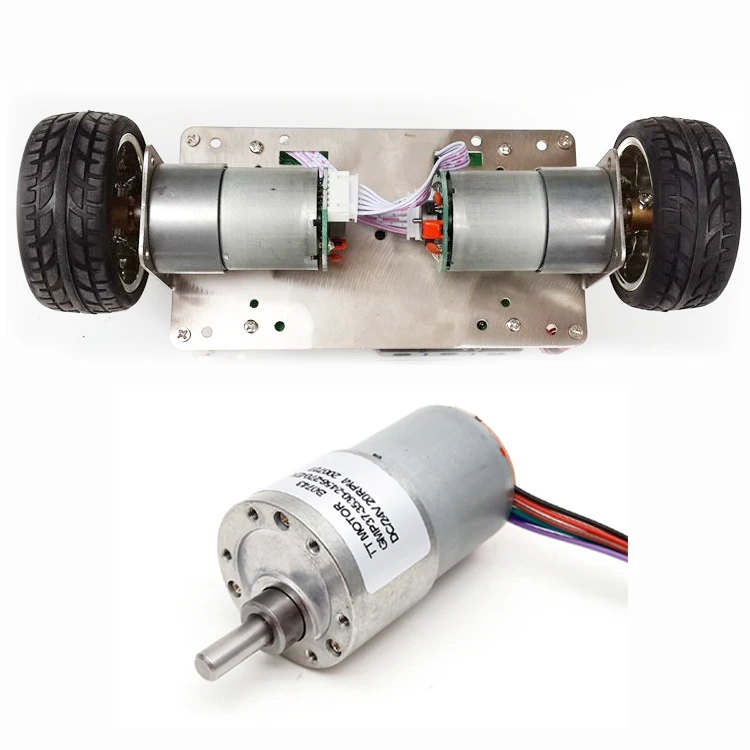

SC Gear motors can match encoder, 11ppr
Reduction ratio:6,11,19,30,44,56,90,131,169,270,506,810





Model:Motor GM37-3530


TRK-370CA-22170
Rated voltage: 12VDC
Rated speed:3300r/min
Output power:1.4W
No-load speed:4000r/min
Rated torque:40g.cm
Stall torque:220g.cm
No-load current:35mA
Rated current:180mA
Stall current:1.0A


TRK-370CA-15360
Rated voltage: 12VDC
Rated speed:4200r/min
Output power:1.8W
No-load speed:5000r/min
Rated torque:40g.cm
Stall torque:250g.cm
No-load current:45mA
Rated current:250mA
Stall current:1.2A


TRK-370CA-12560
Rated voltage: 24VDC
Rated speed:5300r/min
Output power:3.1W
No-load speed:6000r/min
Rated torque:50g.cm
Stall torque:400g.cm
No-load current:30mA
Rated current:180mA
Stall current:1.3A


GM37-3530-1240-xxx


Reduction ratio
6
10
19
30
56
90
169
270
506
Length mm
19
19
21.5
21.5
24
24
26.5
26.5
29
No-load speed rpm
600
360
120
85
65
45
24
15
8
Rated speed rpm
550
330
110
85
65
45
24
15
6
Rated torque kg.cm
0.2
0.3
0.8
1.1
1.3
2.2
3.7
5.4
10
Max.momentary tolerance torque kg.cm
1.1
1.8
4.6
5.8
7.4
10
15
15
15


GM37-3530-1250-xxx


Reduction ratio
6
10
19
30
56
90
169
270
506
Length mm
19
19
21.5
21.5
24
24
26.5
26.5
29
No-load speed rpm
800
490
165
110
88
55
30
18
10
Rated speed rpm
670
420
140
95
75
46
25
16
8
Rated torque kg.cm
0.2
0.3
0.8
1.1
1.3
2.2
3.7
5.4
10
Max.momentary tolerance torque kg.cm
1.1
1.8
4.6
5.8
7.4
10
15
15
15


GM37-3530-2460-xxx


Reduction ratio
6
10
19
30
56
90
169
270
506
Length mm
19
19
21.5
21.5
24
24
26.5
26.5
29
No-load speed rpm
950
570
190
130
100
65
35
26.5
29
Rated speed rpm
880
530
175
120
95
59
35
22
10
Rated torque kg.cm
0.24
0.4
1.1
1.3
1.7
2.7
4.6
6.7
10
Max.momentary tolerance torque kg.cm
1.9
3.2
8.4
10.6
13.4
15
15
15
15


Product Application.
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.




Others application
Business Machines
Vending Machines
Printers
ATM
Copiers and Scanners
Camera and Optical
Video
Cameras
Projectors

Lawn and Garden
Lawn Mowers
Snow Blowers
Trimmers
Leaf Blowers


Certifications.
ISO9001, SGS, National high-tech enterprises, etc.










Our Company
TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales
overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us.
We look forward to being able to work together with you in the near future.




Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.




Packing & Delivery
Standard packing




Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days; China
Post: Depends on ship to which country; Sea: Depends on ship to which country




Our Customer Feedback
Excellent quality, better price, good service, and on time delivery.










FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
