Автоматический деревообрабатывающий станок фанера ПВХ меламиновая кромка Автоматическая
- Категория: Техника для производства древесных плит >>>
- Поставщик: Shandong,Eterne,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4165.90 $* | 4373.10 $* |
| Aug-20-2025 | 4130.59 $* | 4337.98 $* |
| Jul-20-2025 | 3465.65 $* | 3638.99 $* |
| Jun-20-2025 | 4060.33 $* | 4263.72 $* |
| May-20-2025 | 3535.48 $* | 3712.6 $* |
| Apr-20-2025 | 3990.61 $* | 4190.91 $* |
| Mar-20-2025 | 3955.98 $* | 4153.1 $* |
| Feb-20-2025 | 3920.32 $* | 4116.38 $* |
| Jan-20-2025 | 3885.90 $* | 4079.52 $* |
Характеристики
This edge banding machine is suitable for straight edge banding of solid wood board, fiberboard, particleboard and other board workpieces, the edge sealing material can be solid wood strip, PVC, melamine, veneer, etc. Imported motor and high quality electrical components.Product serialization and diversified customer selection. High precision and efficiency.
Model | ET-360B |
Input Voltage | 380V(220V,400V,415V, 440V etc) |
Edge Thickness | 0.4-3 mm |
Edge Width | 10-60 mm |
Panel Length | Min.120 mm |
Panel Width | Min.60 mm |
Panel Thickness | 10-50 mm |
Transport Motor | 1.5 kw |
Panel Preheating power | 0.3 kW |
Glue Melting Power | 1.5 kw |
Gluing Motor | 0.55 kW |
End-trimming Motor Power | 0.37 kw*2 |
Rough-trimming motor power | 0.75 kw*2 |
Fine-trimming Motor Power | 0.75 kw*2 |
Polishing Motor | 0.18 kw*2 |
Total Power | 12.5 kw |
Scraping Blade model | R2*2 or R3*2 |

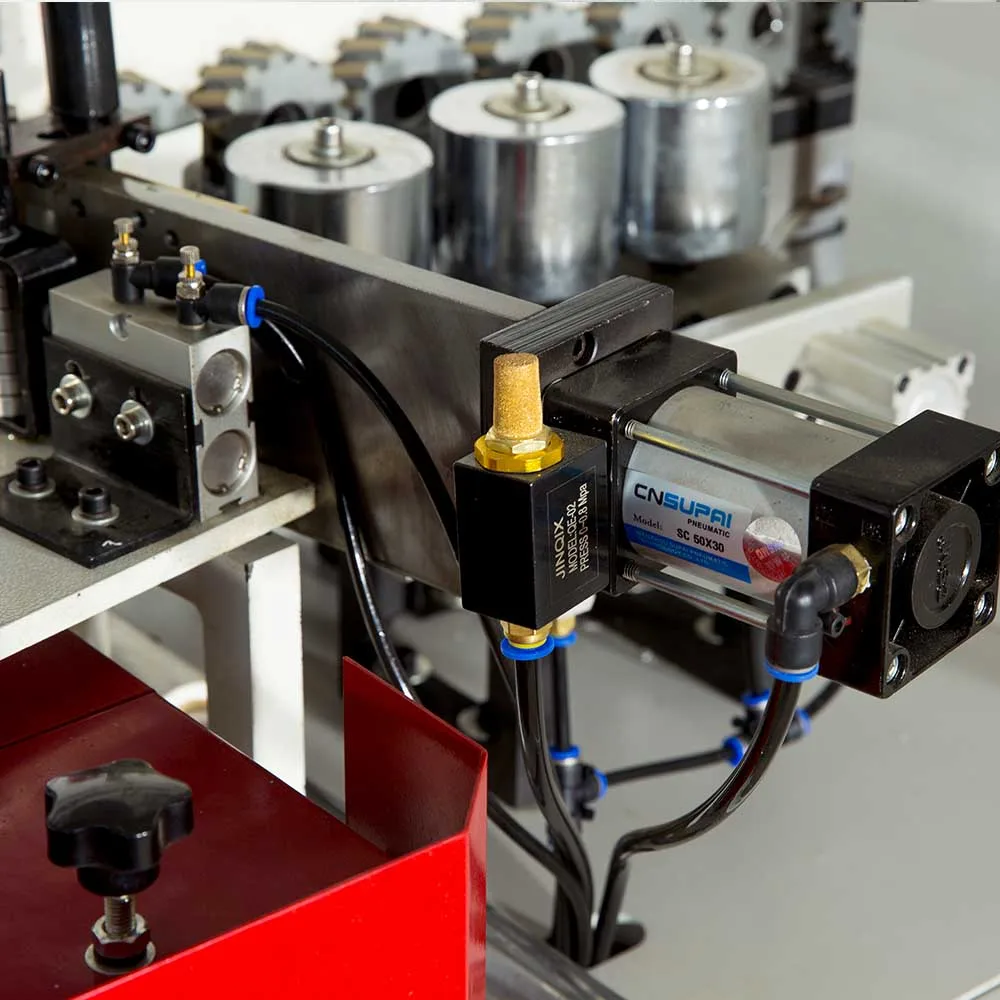

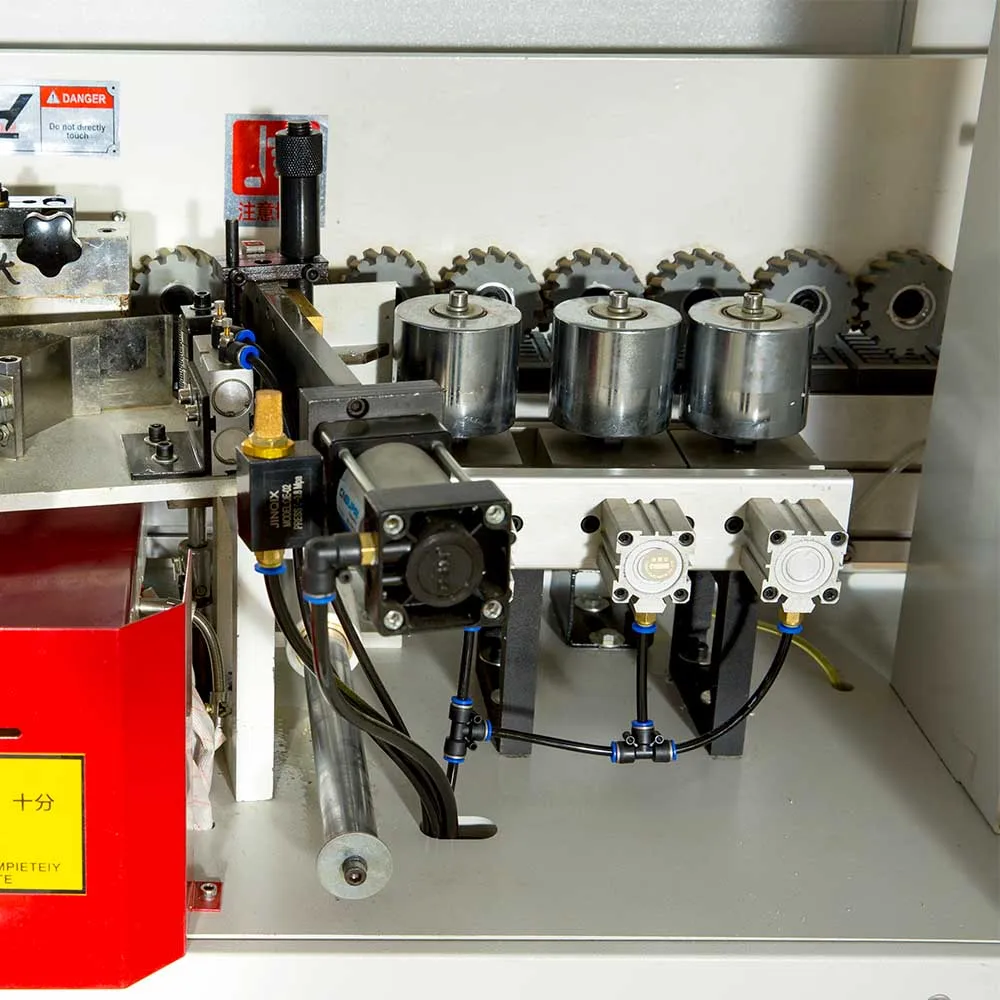

1.Gluing and press mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they can be conglutinated firmly.

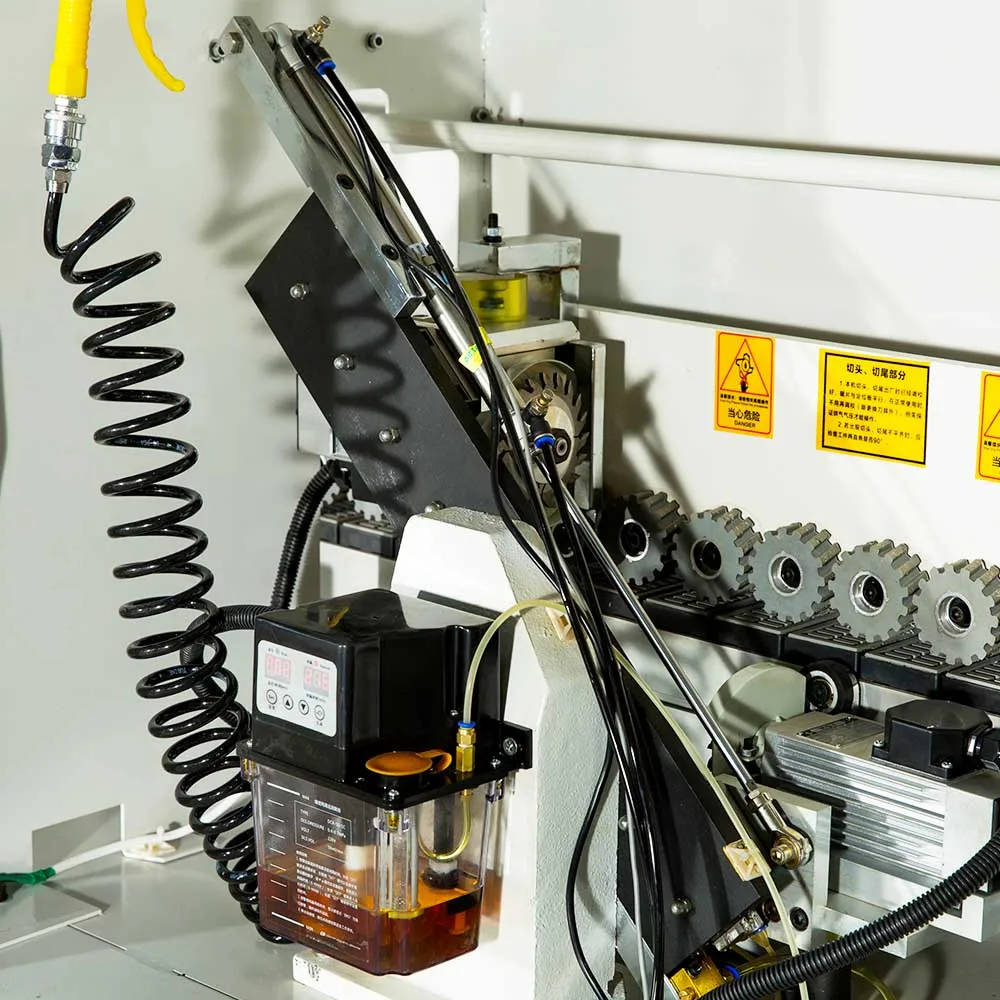

2.End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.

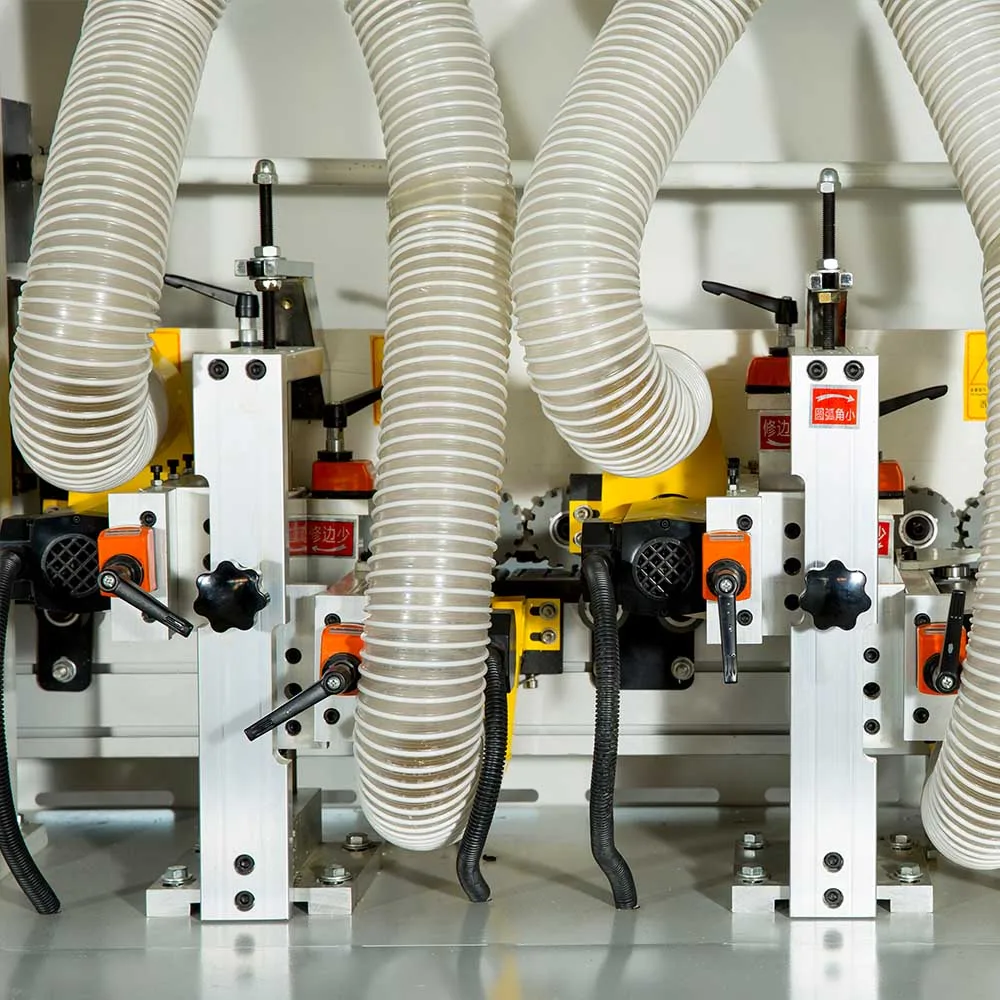

3.Rough &Fine Trimming unit, there are two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel to ensure both sides of the edge smooth and even.
4.Scraping unit for a perfect finishing of the applied edge.

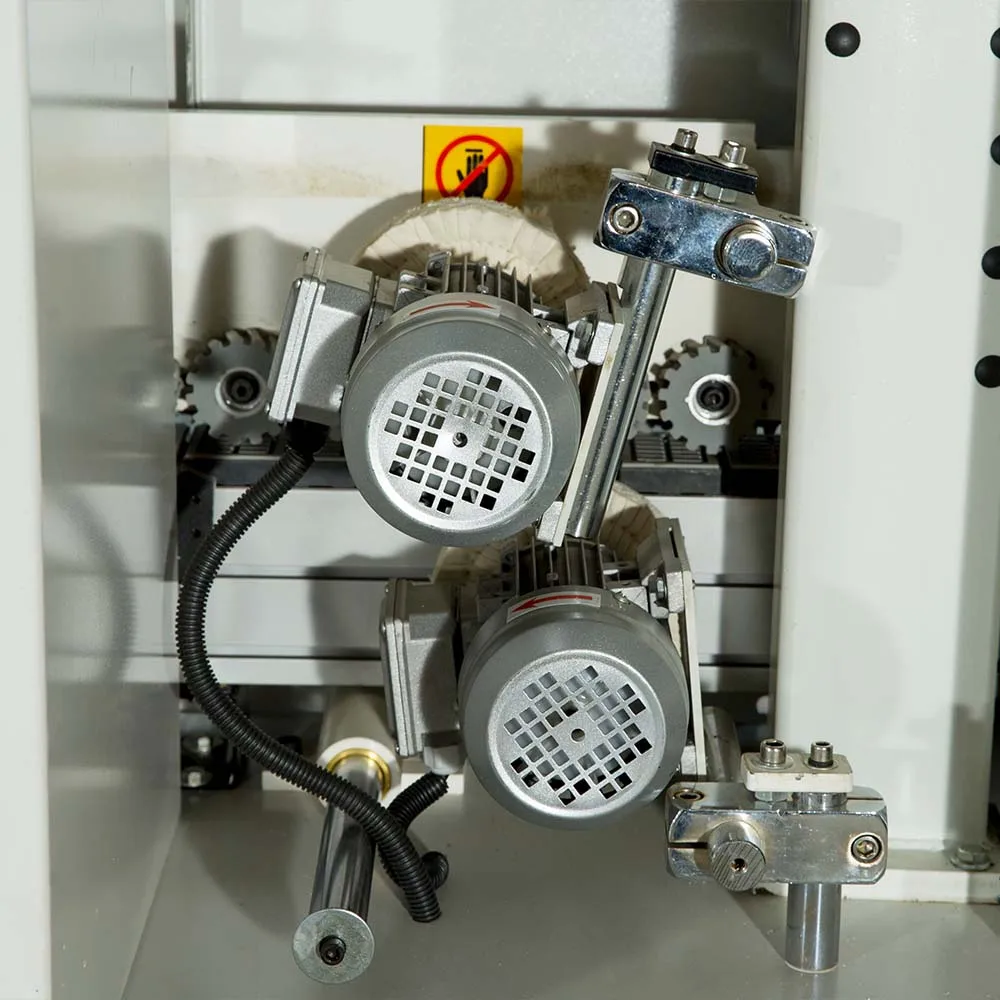

Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.
Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.
Model | ET-60E | ET-360A | ET-360B | ET-360C | ET-360YC | ET-360D | ET-360F | ||||||
Motor power | 4KW | 7.4KW | 9.4KW | 8.5KW | 11KW | 19KW | 15KW | ||||||
Panel width | ≥60mm | ||||||||||||
Panel thickness | 10~60mm | ||||||||||||
Edge band thickness | 0.4~3.0mm | ||||||||||||
Edge band width | 12~65mm | ||||||||||||
Feed speed | 0~13m/min | ||||||||||||
Working pressure | 0.7 Mpa | ||||||||||||
Size(LxWxH)mm | 2740*850*1480 | 3700*930*1600 | 4080*930*1600 | 4180*930*1600 | 5000*930*1600 | 5700*930*1600 | 5900*930*1600 | ||||||
ET-60E | gluing,trimming,scrapping and buffing,also with manual end cutting | ||||||||||||
ET-360A | gluing,end cutting,fine trimming,scrapping and buffing | ||||||||||||
ET-360B | gluing,end cutting,rough trimming,fine trimming,scrapping and buffing | ||||||||||||
ET-360C | gluing,end cutting,fine trimming,scrapping,vertical grooving,horizontal grooving and buffing | ||||||||||||
ET-360YC | pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping and buffing | ||||||||||||
ET-360F | pre-milling,gluing,end cutting,fine trimming,corner rounding,scrapping, and buffing | ||||||||||||
ET-360D | gluing,end cutting,rough trimming,fine trimming,corner rounding,scrapping and buffing | ||||||||||||
1.Chain block quality comparison
2.Inductive switch comparison
3.Chain comparison
Shandong Eterne Machinery Co.,Ltd. is a manufacturer based on woodworking machinery and equipment with high-tech products as direction. Our main products are edge banding machine, woodworking engraving machine, metal engraving machine, drill row and so on.
The head company“Wanfa Machinery” has more than 30 years of mechanical production experience, it covers 16,000 square meters, has a complete testing and experimental equipment, the application of leading software design and development products, has an excellent research and development environment.
The research and development capabilities of new products have always been in the leading position. The products have always maintained the market position of high technical grade, good quality performance and reasonable cost performance. ET machienry had been exported to many countries of the world such as America, Russia, Indonesia, Uzbekistan, Algeria, Mongolia etc more than 20 countries.
Eterne people make full use of technology and brand advantages, established a developed sales network throughout China, at the same time we established a good after-sales service network, can provide customers with quality technical advice and installation and maintenance services.
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer since 2003. We are dedicated to woodworking machinery manufacturing.
Q2: Where is the nearest airport and port from your factory?
A: The nearest airport and port is Qingdao/Jinan international airport.
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q7: If my machine is broken. Can you repair it for me?
Yes. Our machine is with top quality, if any problem, We have free traning and conduction online. If there is big trouble within warranty time, we will send you new parts and repair.
Q8: How is the quality of your machine?
Our machine adopts heavy machine body and famous parts such as SKF bearing, Hiwin guide rail, Delta Screen and system, top quality motor etc, well commissioning etc to make sure the whole machine quality is no problem, we have many reputation feedback from Clients.
Q9: What's your MOQ and delivery?
1 set by LCL. 3~9 sets by container
