Metal Forming Industry Clutch Pneumatic Air Tube Actuated Rubflex clutch

Metal Forming Industry Clutch Pneumatic Air Tube Actuated Rubflex clutch

Категория: Industrial Brake >>>
Поставщик: Henan,Dalin,Rubber,And,Telecommunications,Apparatus,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.95 $*	0.16 $*
Aug-15-2025	0.9 $*	0.51 $*
Jul-15-2025	0.32 $*	0.77 $*
Jun-15-2025	0.43 $*	0.47 $*
May-15-2025	0.9 $*	0.76 $*
Apr-15-2025	0.28 $*	0.85 $*
Mar-15-2025	0.25 $*	0.28 $*
Feb-15-2025	0.71 $*	0.32 $*
Jan-15-2025	0.46 $*	0.36 $*

Характеристики

Product Description

The WCB2 water-cooled tensioner is designed for constant tension applications. It is exceptionally well suited for high inertia stopping and rapid heat dissipation. The design of the WCB2 tensioner permits mid-shaft or end-shaft mounting. The rugged construction ensures long, trouble free service.

How it works

Air pressure is applied through the ports in the cylinder causing the piston an pressure plate assembly to move towards the mounting flange, compressing the release springs. As the applied pressure increases, the friction discs are clamped between the pressure plate and the mounting flange, stopping or controlling the shaft the discs are mounted on. Modulation of air pressure then controls applied torque of the tensioner. Multiple disc brakes utilize reaction plates between discs. The release springs assist in disengegement and retraction of the piston, pressure plate, and reaction plates, if applicable. High heat dissipation is accomplished by passing water through a special cavity behind the copper alloy wear plates.

Specification

8WCB2	14WCB2
18WCB2	24WCB2
36WCB2	48WCB2

Typical application

Forestry

Logging equipment

Anchor handling

Towing winches

Mooring winch systems

Petroleum drilling equipment

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Henan Dalin Rubber and Telecommunications Apparatus Co.,ltd specializes in designing and manufactuering of pneumatic clutches and brakes since 1975, our main products are CB CLUTCH, VC CLUTCH, DISC PNEUMATIC CLUTCH , also spare parts such as clutch air tube, clutch FSA, clutch male drum and female drum, friction disc, pressure plate, drive plate, water jacket, drive plate assembly, Seal, cyliner, pressure plate, wear plate etc. All of them can be 100% interchanged with international brand.

Certifications

Details Information

Parts	148WCB2	248WCB2	348WCB2	448WCB2
Description	Part No.	Part No.	Part No.	Part No.
Mounting Flange Sub Assy	514329-05	514329-05	514329-05	514329-05
Mounting Flange	514749	514749	514749	514749

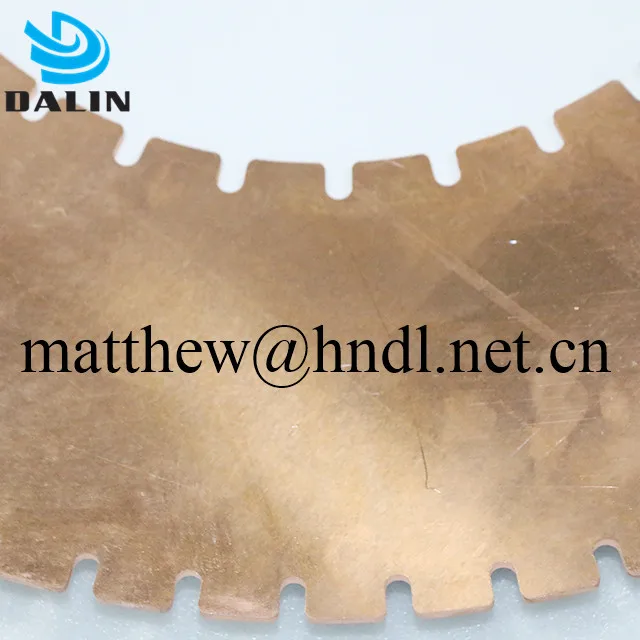

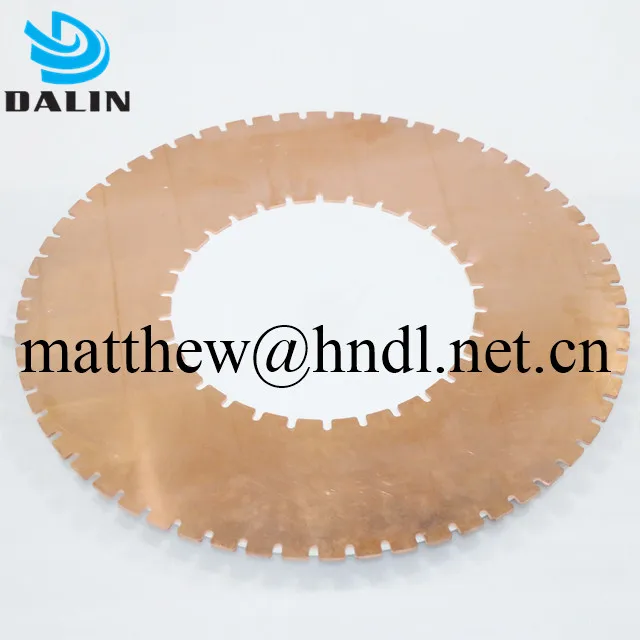

Wear Plate	416690	416690	416690	416690
Stud	307111*23	307111*22	307111*21	307111*20

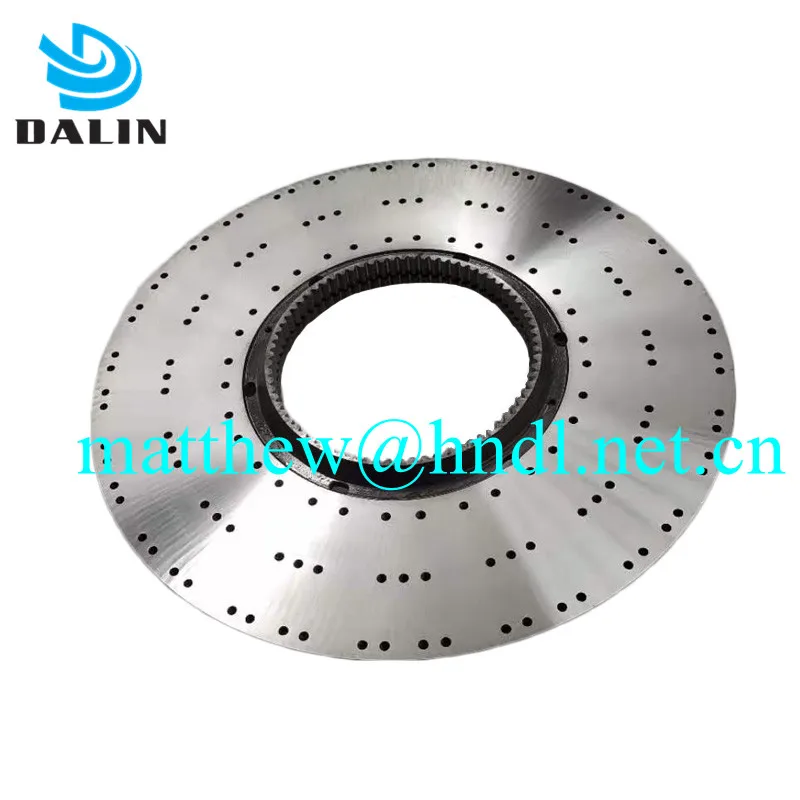

Friction Disc sub Assy	514325	514325	514325	514325
Friction Block	514286	514286	514286	514286
Friction Disc Core	514287	514287	514287	514287
Clamp Tube	308440-08	308440-07	308440-06	308440-05
Pressure Platesub Assy	514329-01	514329-01	514329-01	514329-01
Pressure Plate	514513	514513	514513	514513
Flat Washer	000067*0042	000067*0042	000067*0042	000067*0042
Locknut	000110*0075	000110*0075	000110*0075	000110*0075
Cylinder	514516	514516	514516	514516

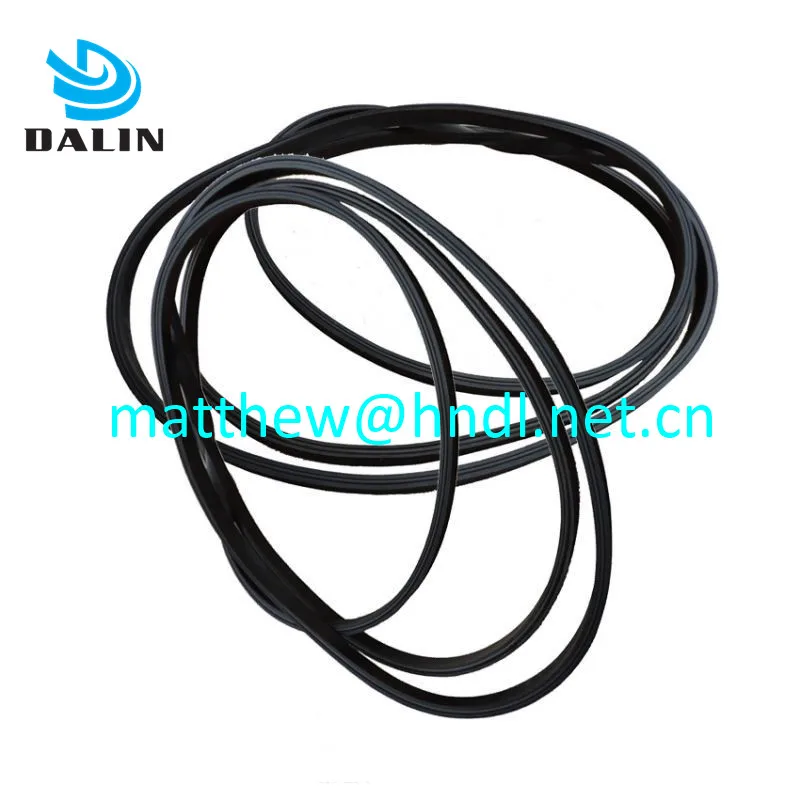

Polypak Seal	000402*0042	000402*0042	000402*0042	000402*0042
Polypak Seal	000402*0044	000402*0044	000402*0044	000402*0044
Gear (not included with assembly)	416794	416795	416688	416797
Wear Spacer		308398	308398	308398
Reaction Plate Sub Assy		514329-02	514329-02	514329-02
Reaction Plate		514514	514514	514514
Piston	514745	514745	514745	514745
Release Spring	416751-04	416751-04	416751-04	416751-04
Inner Support Ring	416618	416618	416618	416618
Outer Support Ring	416673	416673	416673	416673
Flat Head Screw	000294*0407	000294*0407	000294*0407	000294*0407
Pipe Plug	000077*0021	000077*0021	000077*0021	000077*0021
