MSK43 9*3 5 мм 3 Pin мини ползунковый переключатель ВКЛ-ВЫКЛ 2 Позиции микро слайд тумблер миниатюрный вертикальный

Описание и отзывы

Трекер стоимости

Характеристики

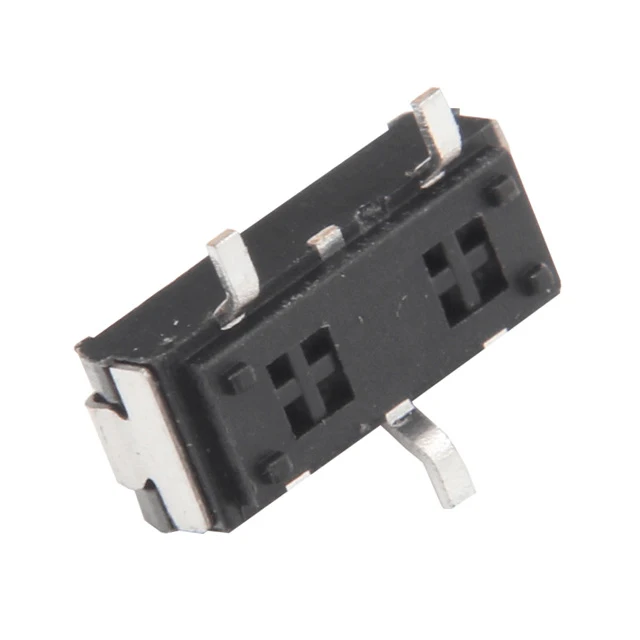

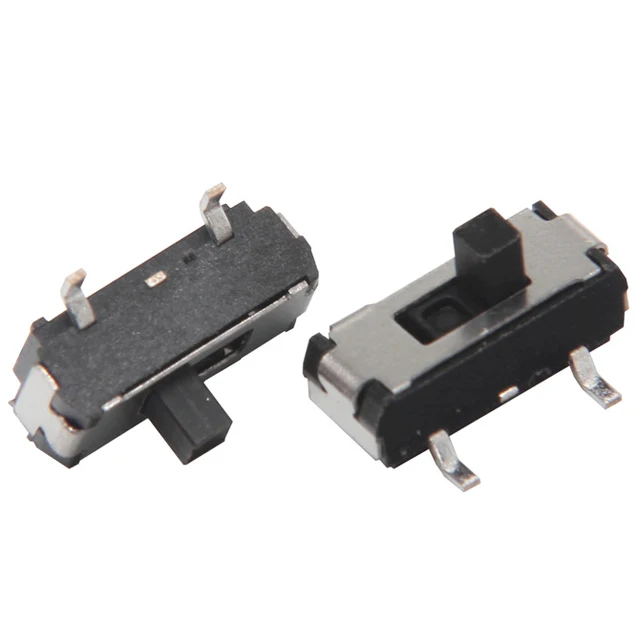

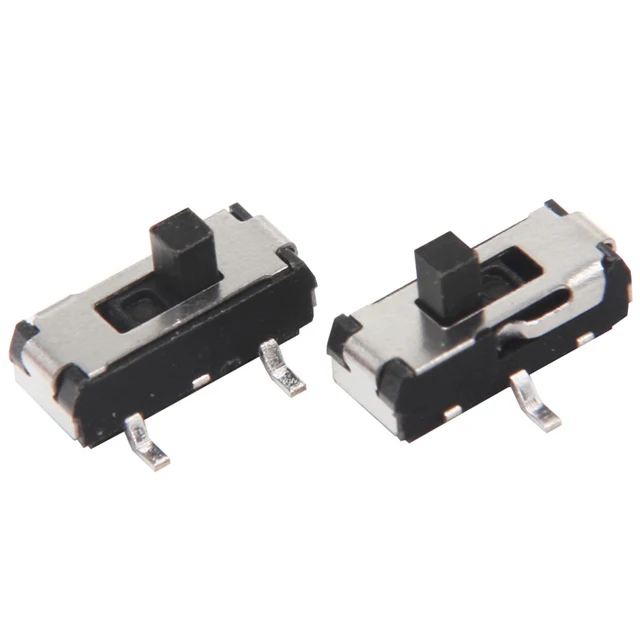

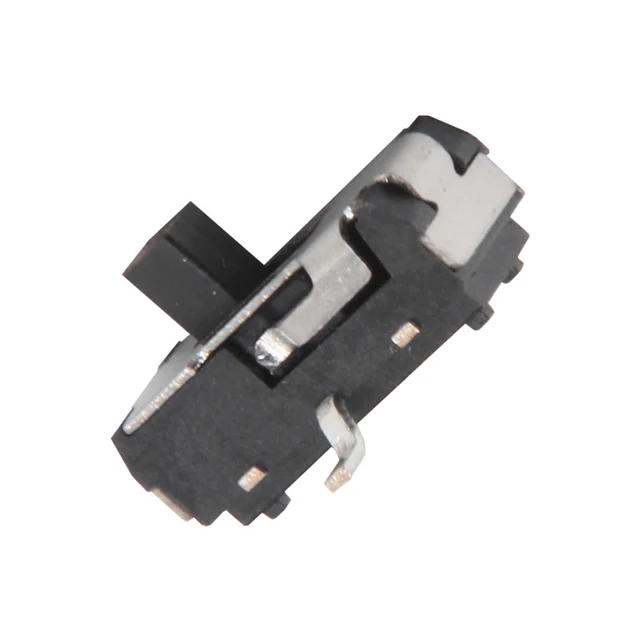

MSK43 9*3.5mm 3 Pin Mini Slide Switch On-OFF 2 Position Micro Slide Toggle Switch Miniature Vertical Slide Switch

Product Name	MSK43 9*3.5mm 3 Pin Mini Slide Switch On-OFF 2 Position Micro Slide Toggle Switch Miniature Vertical Slide Switch
Environment temperature	-25°C~85°C
Withstand Voltage	AC250V(50Hz)/min
Rated load	0.5A/12VDC
Insulation Resistance	>100 MΩ
Contact Resistance	≤50mΩ
Product Life	10,0000 Cycles
Operation Force	160gf;250gf;300gf;400gf; can customized as your request.
Tact Switch Height	The slide switch height can be 4.3/4.5/5/5.5/6/7/8/9/10mm;also can customized as your request.



Q1: May I get slide switch free samples?
A: Sure, 10-20 pcs slide switch free samples are available for normal models.

We need to confirm slide switch height, slide switch operation force and price before shipment.



Q2: When can I get the quotation ?
A: We will send you quotation within 24 hours.



Q3: When can I get the slide switch samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.



Q4: Can you accept small order, like 1000 pcs slide switch, 2000 pcs slide switch?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.



Q5: What's the lead time of slide switch bulk order ?
A: Normally, the slide switch lead time is 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.



Q6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by T/T.



Q7. Can you open mold for teminal order or uncommon mold ?
OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
