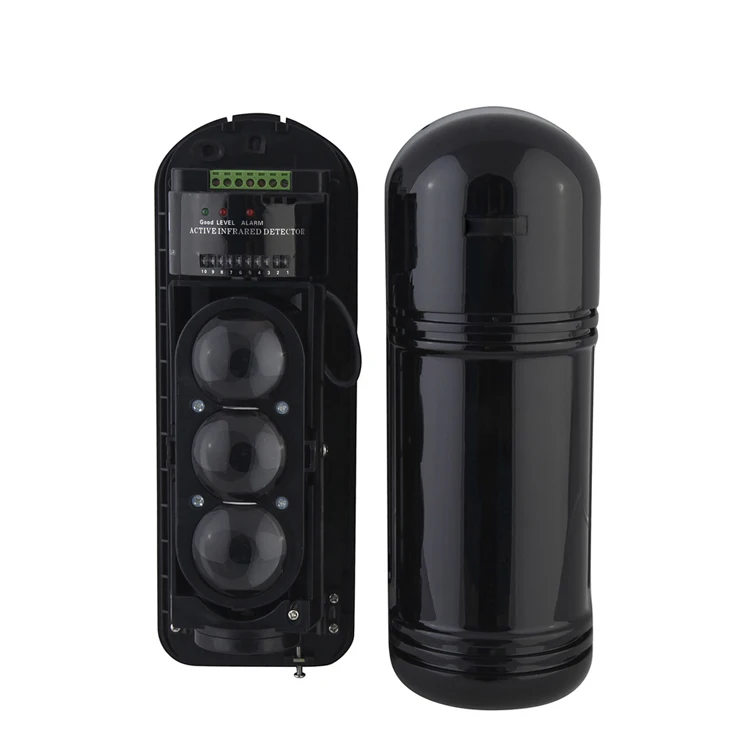

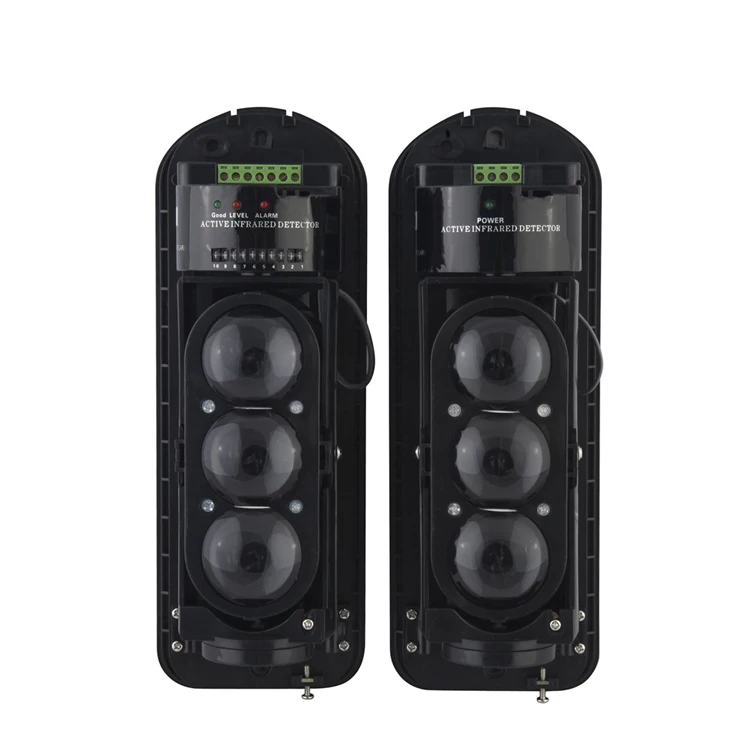

Периметр сигнализации вторжения водонепроницаемый тройной луч фотоэлектрический инфракрасный Барьерный
- Категория: Сигнализации >>>
- Поставщик: Shenzhen,Home,Warning,Security,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 21.6 $* | 22.83 $* |
| Aug-18-2025 | 21.38 $* | 22.14 $* |
| Jul-18-2025 | 18.28 $* | 19.24 $* |
| Jun-18-2025 | 21.45 $* | 22.21 $* |
| May-18-2025 | 18.98 $* | 19.45 $* |
| Apr-18-2025 | 21.53 $* | 22.87 $* |
| Mar-18-2025 | 20.94 $* | 21.64 $* |
| Feb-18-2025 | 20.32 $* | 21.92 $* |
| Jan-18-2025 | 20.36 $* | 21.45 $* |
Характеристики
Features and paramet
1. Unique displacing receiving, transmitting parts with big power, power surplus rate reaches 90%..
2. Aspherical lens which required high manufacturing process, thereby increasing the degree of aggregation of infrared light emission, which make the infrared emission distance guaranteed.
3. Waterproof design,can be used indoor and outdoor
4. Alarm output NC NO is compatible with various alarm panel;
5. Built-in tamper switch,case remove alarm,can prevent criminals destroy detector;
6. Detection Distance :50/100/150/200/250 Meters optional
| Specifications for waterproof triple beam alarm photoelectric infrared detector | |||||
| Model | ABE-50 | ABE-100 | ABE-150 | ABE-200 | ABE-250 |
| Detection Distance | 50m | 100m | 150m | 200m | 250m |
| Beam | 3 | ||||
| Working Voltage | DC 12-24V | ||||
| Working Current | 100mA max | ||||
| Application areas | Outdoor/Indoor | ||||
| Interruption Time | 50-700ms adjustable | ||||
| Detectio way | Infrared beam interruption alarm | ||||
| Alarm Period | 2s | ||||
| Alarm Output | NC/NO :AC/DC 30V 0.2A max | ||||
| Tamper Switch | NC,opens when cover is removed | ||||
| Waterproof Grade | IP55 | ||||
| Operating temperature | -25°C~+55°C | ||||
| Certificate | CE certificated | ||||
| Case Material | PC | ||||
| Dimensions | 270*100*95mm | ||||
Products
HOT Product
Company Show
Packaging & Shipping
| Packing Details for waterproof triple beam alarm photoelectric infrared detector | |
| PACKING | Neutral color box or customer's packing |
| PCS/CARTON | 16PCS |
| GW/CARTON | 20KG |
| CARTON SIZE | 61*41.5*44.5 cm |
Our Services
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your questions.
3.If there is defect products,we promise to provide spare ones together with your next order.
4.OEM&ODM is available .
