Цифровой Радиоуправляемый сервопривод K-power DHV150 с крутящим моментом 15 кг для радиоуправляемого
- Категория: Детали игрушек >>>
- Поставщик: Dongguan,K-Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.86 $* | 0.57 $* |
| Aug-20-2025 | 0.75 $* | 0.37 $* |
| Jul-20-2025 | 0.92 $* | 0.38 $* |
| Jun-20-2025 | 0.78 $* | 0.27 $* |
| May-20-2025 | 0.65 $* | 0.47 $* |
| Apr-20-2025 | 0.40 $* | 0.78 $* |
| Mar-20-2025 | 0.2 $* | 0.47 $* |
| Feb-20-2025 | 0.44 $* | 0.52 $* |
| Jan-20-2025 | 0.92 $* | 0.25 $* |
Характеристики
Product Description

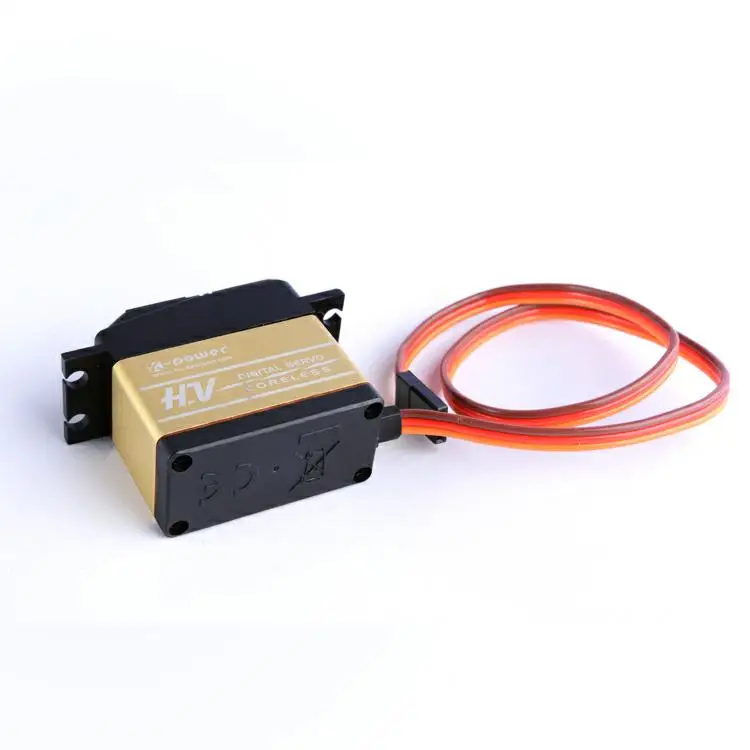

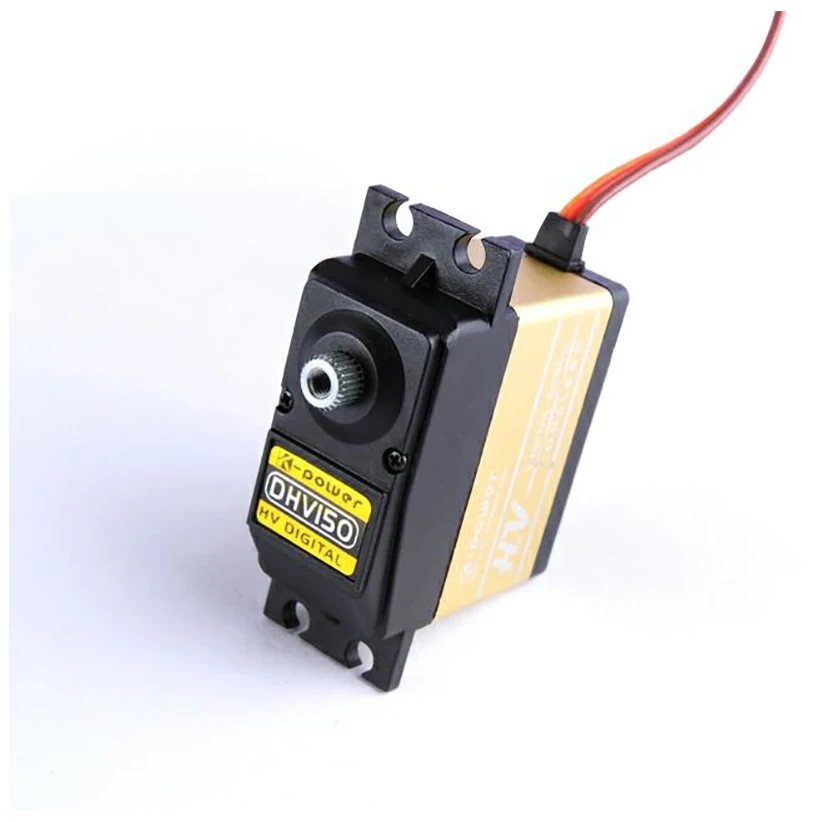

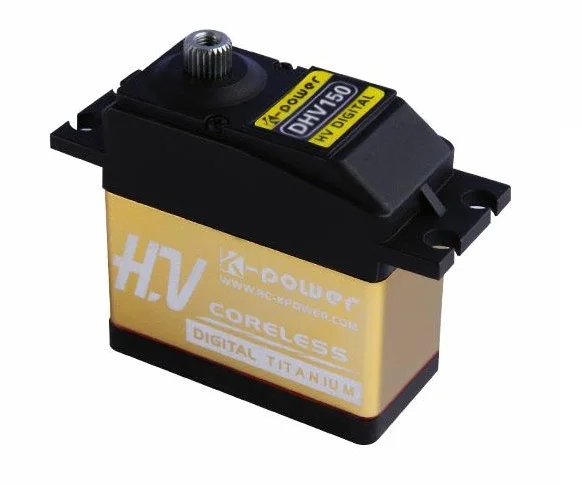

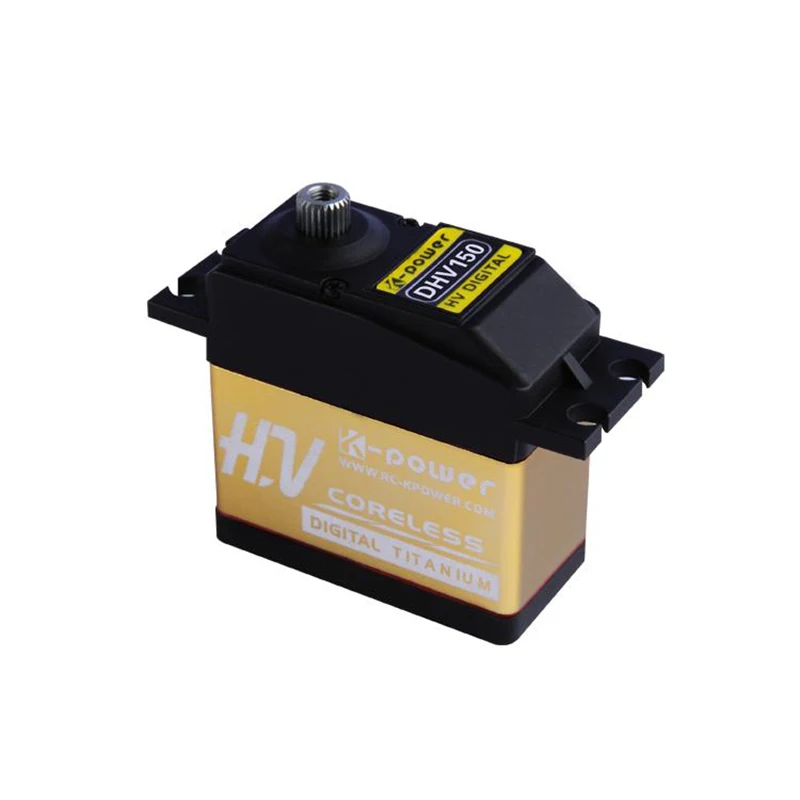

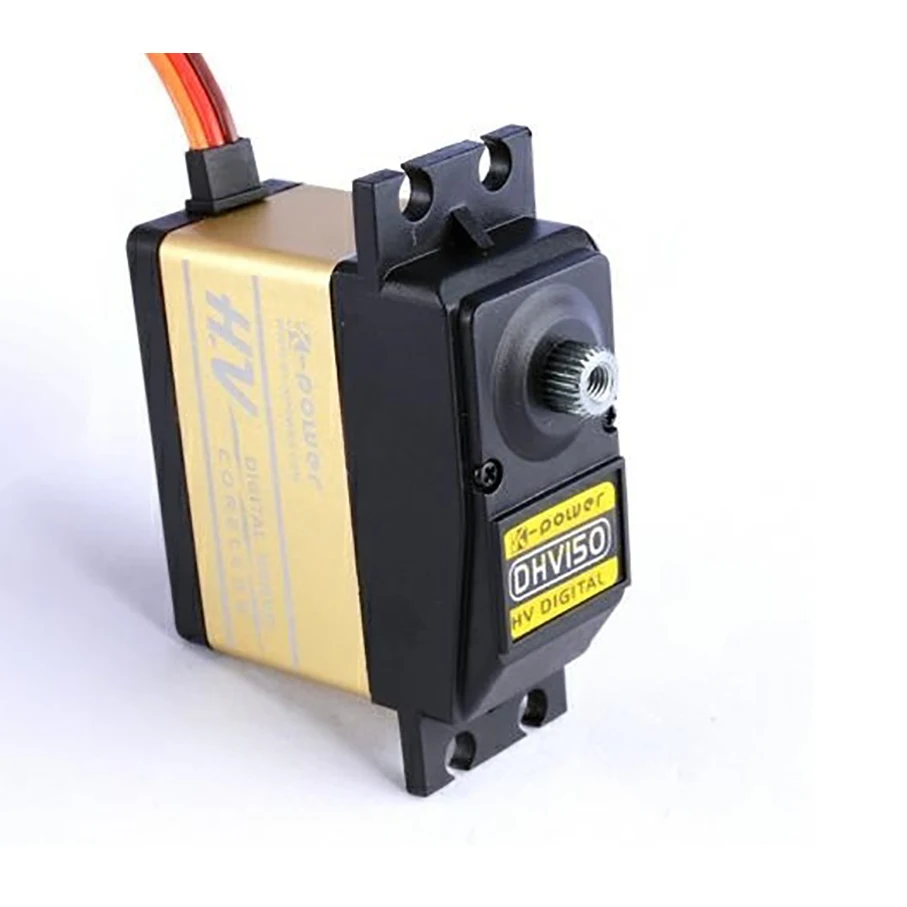

K-power DHV150 15kg torque coreless digital rc servo for rc car
Features:
--Extremely strong Titanium alloy gear, providing high level of durability.
--High speed, incredible efficiency, and low power consumption.
--High voltage 2s Lipo operation.
Application
RC Helicopter/ Aircraft/ UAV
Grade: 500-600 Class Swashplate
RC Electric Cars
Grade: 1:8; 1:10
Parameter
Model Type: | Digital Servo DHV150 | ||||
Motor Type: | Coreless | ||||
Case material: | Aluminum Mid Case | ||||
Gear material: | Titanium Alloy | ||||
Bearing Type: | 2BB | ||||
Weight: | 63g / 2.2oz | ||||
Dimension: | 40*20*39mm / 1.6*0.8*1.54in | ||||
Operation Voltage: | 6-7.4V | ||||
Torque: | 14.3kg-cm/6.0V; 16.5kg-cm/7.4V | ||||
197oz-in/6.0V; 227oz-in/7.4V | |||||
Speed: | 0.12sec/60°/6.0V; 0.1sec/60°/7.4V | ||||
Pulse Width: | 900-2100μs | ||||
Dead band width: | 2μs | ||||
Interface Type: | JR / FT / JST1.5 / JST2.0 / Other | ||||
Operating Temperature: | -20 to 60 centigrade | ||||
Splining: | 25T | ||||
Wire Length: | Based on your requirement | ||||
Certification: | CE;RoHS;FCC | ||||
Application: | RC robot/Plane/helicoper/car/boat/Retract Landing Gear | ||||
Service: | One year warranty. Customized and OEM are available. | ||||
Servo Certifications
K-Power servo has CE, FCC, ROHS certifications.
Our Company
KPower Technology Co., Ltd. established in 2005, is located in Hengli Town, Dongguan City, Guangdong Prov.. It is a smart modeling enterprise integrating R&D, production and sales of precision transmission systems, motor control systems and robot steering gears. The company has a R&D center in Nanshan, Shenzhen, with 12000㎡ manufacturing site in Dongguan. The square production site provides customers with customized solutions for transmission design and production assembly. It also cooperates with many well-known engineering college laboratories and research institutes at home and abroad in production & research and talent training exchanges.
As a High Tech Enterprise, we have strong and excellent R&D team, skilled and experienced workers in manufacture. After years of hard R&D and innovation, we have obtained more than 100 patents. By now, we have developed thousands of relevant servos for different industries, to meet the various application requirements of customers.
Our Departments
We have professional R&D team which guarantee us could give customer technical support in R&D phase and faster feedback.
We have own CNC department, gear processing department, welding department, assembly department, QC department and warehouse.
CNC Department
Gear Processing Department
Welding Department
Assembly Department
QC Department
Warehouse
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Customized servo, and offer sample testing support.
* View our Factory.
After-Sales Service
* Guarantee repair in one year.
* Engineers available to service operation.
FAQ
1.Are you a trading company or manufacturer?
-We are a manufacturer in China.
2. Can I OEM and print my own logo on the products?
-Yes, you can. Just provide us your design files, we will do all the rest for you.
3. How do I know if your products are of good quality?
-Sample order is acceptable for testing your market and checking our quality. And we have strict quality control systems from raw material incoming till finished product delivery out.
4. what is your mass production lead time?
Our production lead time is only around 7-15 days (according to the order QTY) .
Quality Control:
Rotation Degree Inspection
Life Inspection
Torque Inspection
Speed Inspection
Noise Inspection
Gear Test
