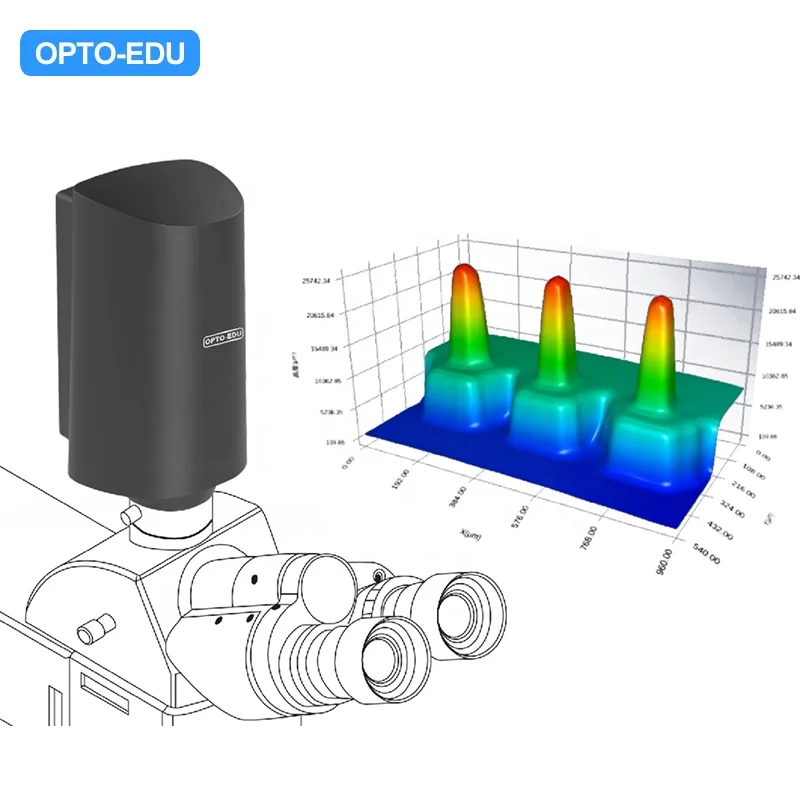

OPTO-EDU A59.3820 3D супер EDF Автофокус измерительный HD цифровой
- Категория: Microscopes >>>
- Поставщик: Opto-Edu,(Beijing),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5034.9 $* | 5286.60 $* |
| Aug-18-2025 | 4991.0 $* | 5241.60 $* |
| Jul-18-2025 | 4188.70 $* | 4397.85 $* |
| Jun-18-2025 | 4907.71 $* | 5152.57 $* |
| May-18-2025 | 4272.54 $* | 4486.3 $* |
| Apr-18-2025 | 4822.64 $* | 5063.6 $* |
| Mar-18-2025 | 4780.73 $* | 5019.16 $* |
| Feb-18-2025 | 4738.10 $* | 4975.93 $* |
| Jan-18-2025 | 4695.94 $* | 4930.52 $* |
Характеристики
Easy to Use

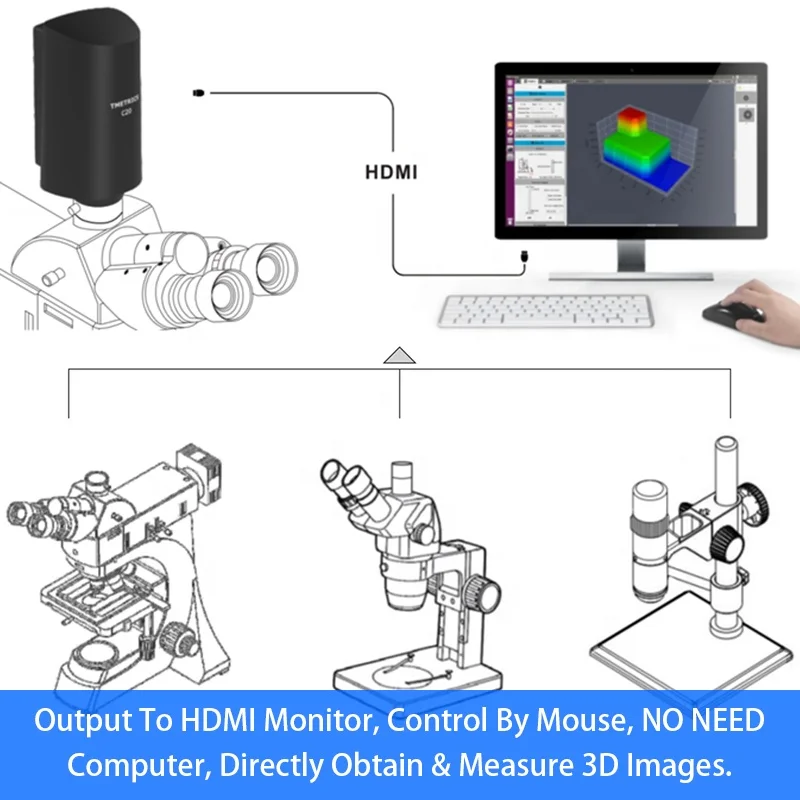

Output to HDMI monitor, control by mouse, NO NEED computer, directly obtain & measure 3D images.
Wide Usage
Standard C Mount, can be used with different microscopes such as metallurgical, stereo, mono tube, etc
Auto-Focus Measurement
Under the 10X objective lens, the accuracy of 2D and 3D measurement can reach 2 micrometers.
Output to HDMI monitor, control by mouse, NO NEED computer, directly obtain & measure 3D images.
Wide Usage
Standard C Mount, can be used with different microscopes such as metallurgical, stereo, mono tube, etc
Auto-Focus Measurement
Under the 10X objective lens, the accuracy of 2D and 3D measurement can reach 2 micrometers.
A58.3520 microscopic 3D imaging camera has the characteristics of high integration and flexible application,
no other modification is required, it can be directly used with a microscope. The operation is simple, all functions can be

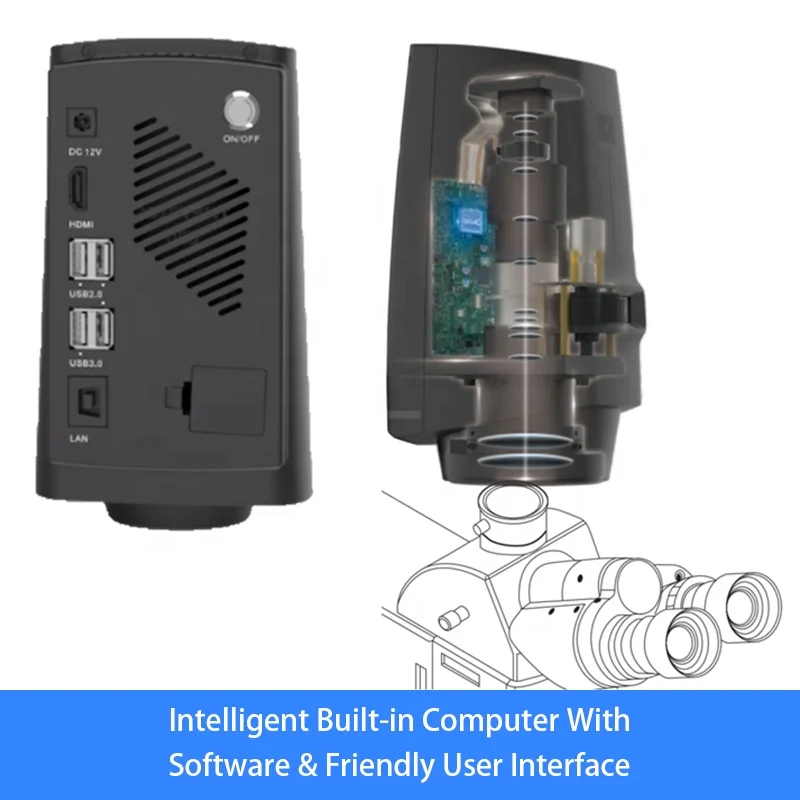

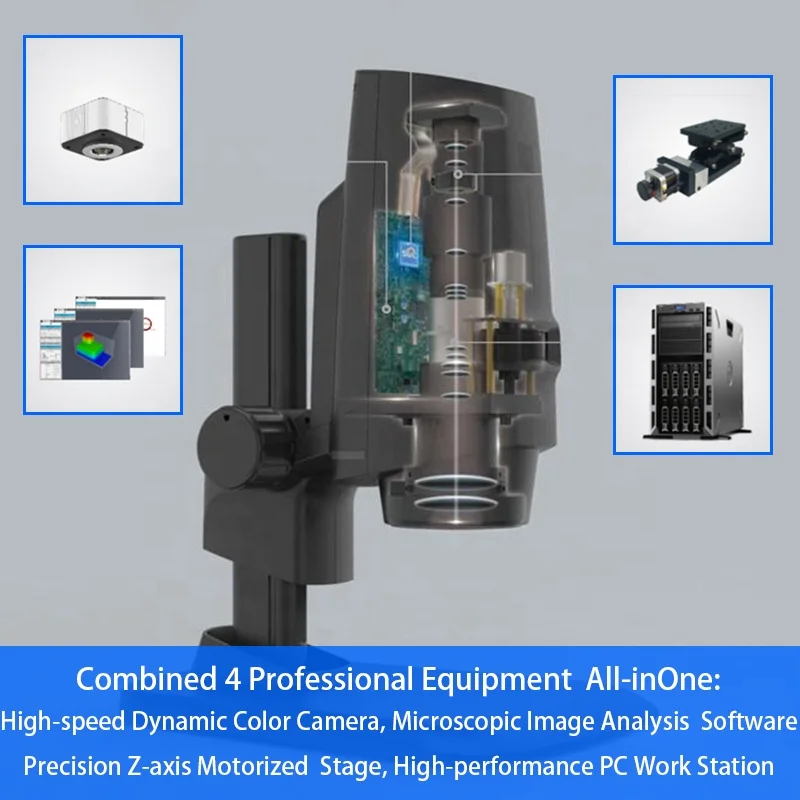

completed by the mouse. Performance guarantee for integrated linkage: The built-in intelligent heterogeneous computer host can directly perform a large number of calculations instead of a computer, with fast operation speed and stable operation; Real-time ultra-depth of field and 3D modeling algorithm can help the microscopy system to realize the three-dimensional observation and measurement analysis of the whole body; automatic edge recognition algorithmIt can also further improve the efficiency of microscopic observation and batch work.
no other modification is required, it can be directly used with a microscope. The operation is simple, all functions can be
completed by the mouse. Performance guarantee for integrated linkage: The built-in intelligent heterogeneous computer host can directly perform a large number of calculations instead of a computer, with fast operation speed and stable operation; Real-time ultra-depth of field and 3D modeling algorithm can help the microscopy system to realize the three-dimensional observation and measurement analysis of the whole body; automatic edge recognition algorithmIt can also further improve the efficiency of microscopic observation and batch work.
Ultra-depth observation, observe all feature points on the same plane
Open the software “Shooting-Advanced Imaging -EDF & 3D"function module, click to confirm the upper and lower
focal position to be observed in the image, click"EDF", A59.3820 can automatically Expand Depth of Field,
obtain a full-frame in-focus screen, and observe all the feature points on the same picture
focal position to be observed in the image, click"EDF", A59.3820 can automatically Expand Depth of Field,
obtain a full-frame in-focus screen, and observe all the feature points on the same picture

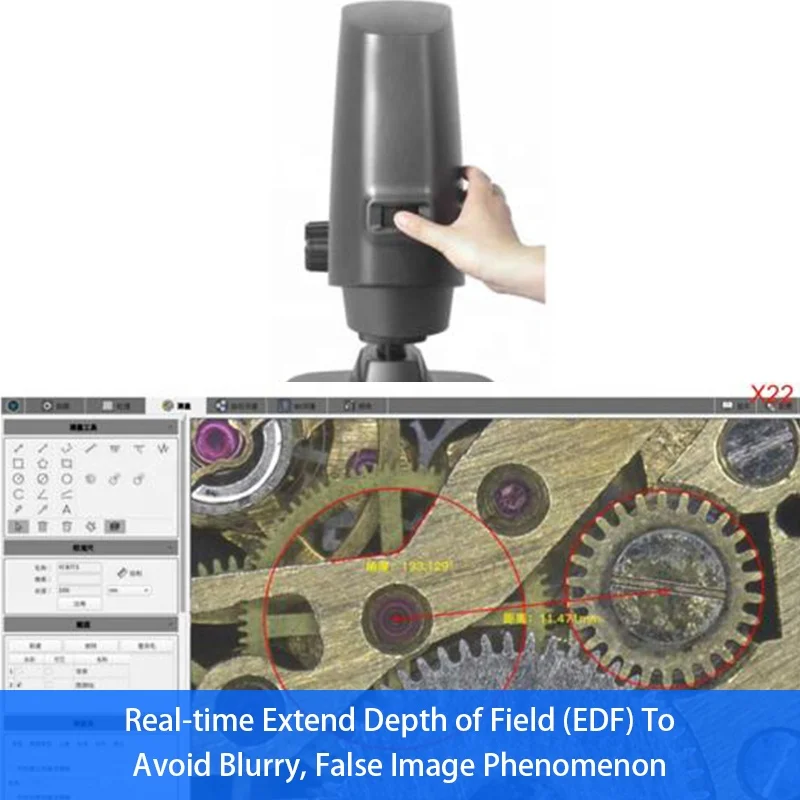

Real-time Extend Depth of Field (EDF) To Avoid Blurry, False Image Phenomenon
Based on the three-dimensional system carried on different platformsWhen the depth of field is expanded, it is easy to produce a degree deviationThe amount, rotation, and focus are unevenelephant. A59.3820 intelligent computing linkage performance canTo help solve the above problems, with a microscopeLens, you can also get a clear and correct full frameFocus screen.
Real-time Wide Dynamic Range (WDR) Effectively Eliminating Strong Reflection Light
The strong reflection light from the surface is easy to cause details loss of information and affects judgment. A59.3820 WDR mode calculates multiple differentLuminance map data, able to create exposurePerfect images with clear light and dark details

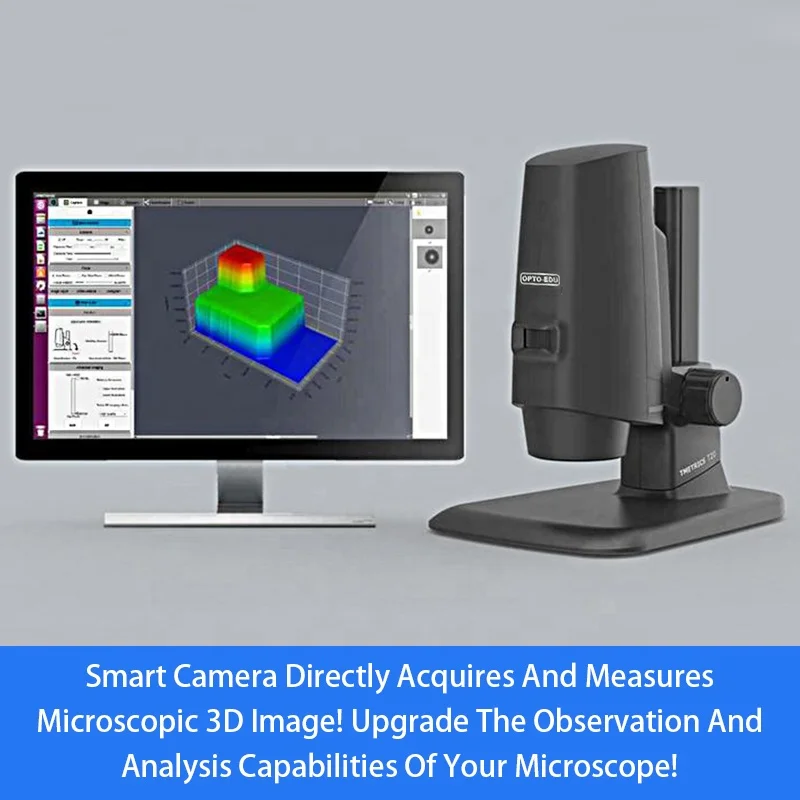

Sample Cases Upgrade Observation And Analysis Capabilities of Your Microscope
Open the software “Shooting-Advanced Imaging-EDF & 3D"function module, click to confirm the upper and lower focal position to be observed in the image, click"3D", A59.3820 can automatically complete the creation of 3D models, supports two display modes, real or false color, and can be rotated 360 degrees for observation.
Model | A59.3820 3D Super EDF Auto-Focus HDMI Digital Camera | ||
Camera Features | Sensor | Sony 1/2"color CMOS | |
Resolution | 1080P(1920×1080) | ||
Pixel size | 3.75μm×3.75μm | ||
Shutter mode | Rolling | ||
Scanning method | Progressive scanning | ||
Frame rate | 60fps(Normal),30fps(WDR) | ||
Gain | Automatic / Manual | ||
Exposure time | Automatic: 0.1ms-16.6ms, manual: 0.0001s-1s | ||
White balance | Automatic/manual/area | ||
Image storage | TIFF/JPEG | ||
Video format | AVI/MP4(1080P) | ||
Advanced Features (Embedded) | 3D noise reduction | Support | |
WDR | Support | ||
Real-time EDF | Support | ||
Edge enhancement | Support | ||
Gamma correction (contrast) | Support | ||
Color enhancement | Support | ||
Flat field correction | Support | ||
Effect mode | Normal/Negative/Relief/Grayscale | ||
3D display and measurement | Online calibration | Support | |
3D display | Pseudo-color/real scene display, grid lines, 360°rotation | ||
3D histogram | Support | ||
3D profile measurement | Height difference, curvature, area, roughness | ||
3D surface measurement | Step height, volume, surface roughness | ||
Z range (depth of field) | 23000μm | ||
3D measurement accuracy (10X) | ±2μm | ||
3D repeatability (10X) | ±1μm | ||
3D measurement report | Support, editable template | ||
2D measurement | 2D calibration ruler | Support | |
2D manual measurement | Point-point, point-line, line-line,Parallel, perpendicular, | ||
Counter | polygon, circle, arc, concentric circle, circle-circle, ang | ||
2D measurement accuracy (10X) | ±2μm | ||
2D repeatability (10X) | ±2μm | ||
2D measurement report | Support | ||
Input | Mouse input | USB mouse | |
Keyboard input | USB keyboard | ||
Interface | Optics | Standard C-Mount | |
Video | HDMI 2.0 | ||
Internet connection | Fast Ethernet | ||
USB | USB2.0 x 3, USB3.0 x1 | ||
Others | Storage capacity | Built-in 32G Emmc | |
Power supply | 12V 8A | ||
Weight | 2.5kg | ||
Appearance size (WxHxD) | 87cm*181cm*103cm | ||
Working environment | 5℃-40℃ (temperature), 45%-85% (humidity) | ||
