Заводская цена OEM электронная продукция инженерный дизайн сборка
- Категория: PCB & PCBA >>>
- Поставщик: Shenzhen,Ronghuahong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.36 $* | 0.47 $* |
| Aug-17-2025 | 0.26 $* | 0.51 $* |
| Jul-17-2025 | 0.80 $* | 0.39 $* |
| Jun-17-2025 | 0.85 $* | 0.96 $* |
| May-17-2025 | 0.71 $* | 0.37 $* |
| Apr-17-2025 | 0.82 $* | 0.73 $* |
| Mar-17-2025 | 0.19 $* | 0.52 $* |
| Feb-17-2025 | 0.31 $* | 0.88 $* |
| Jan-17-2025 | 0.26 $* | 0.67 $* |
Характеристики

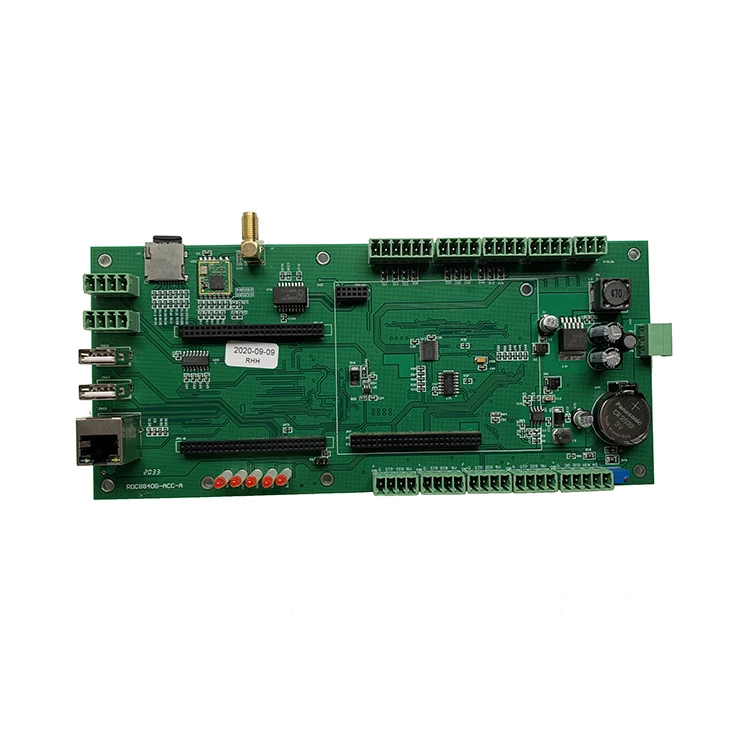

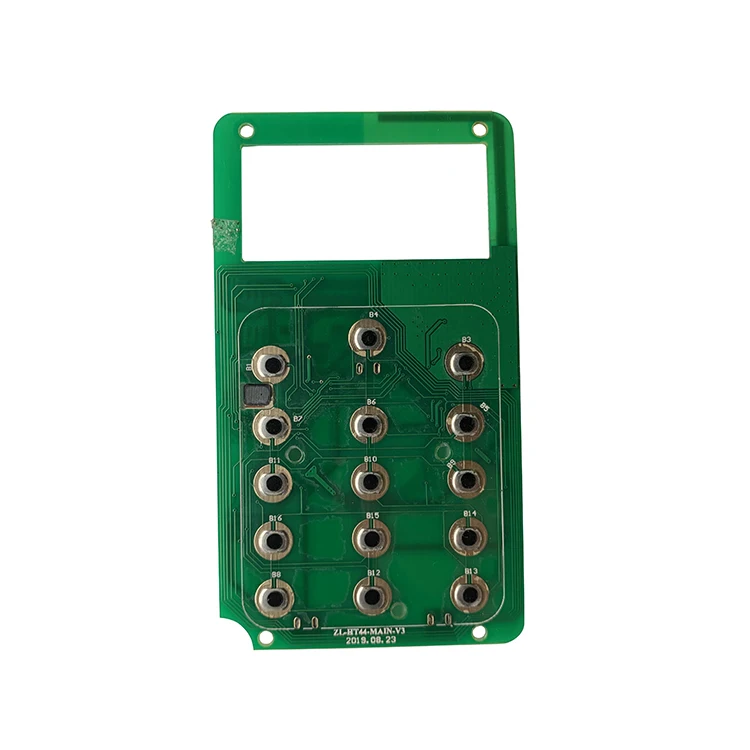

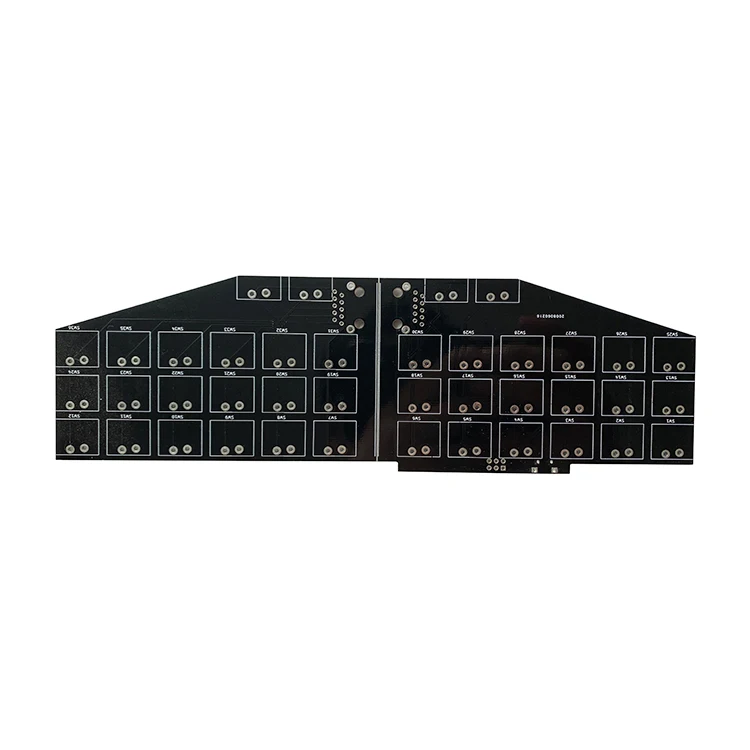

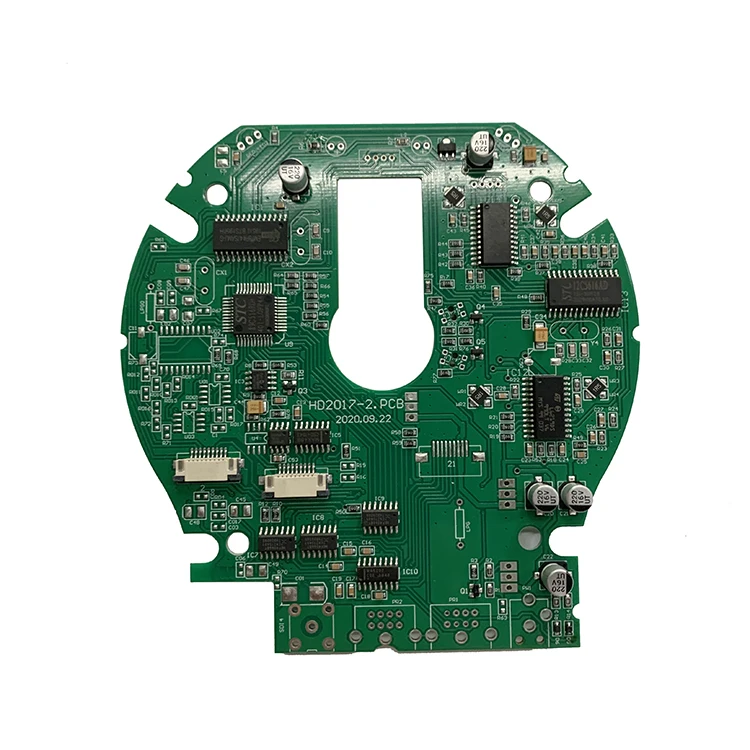

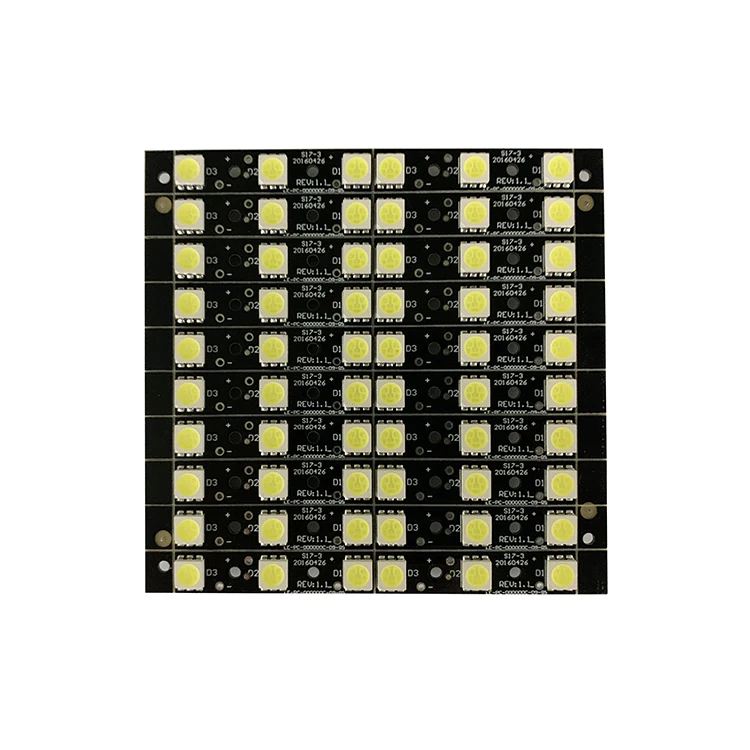

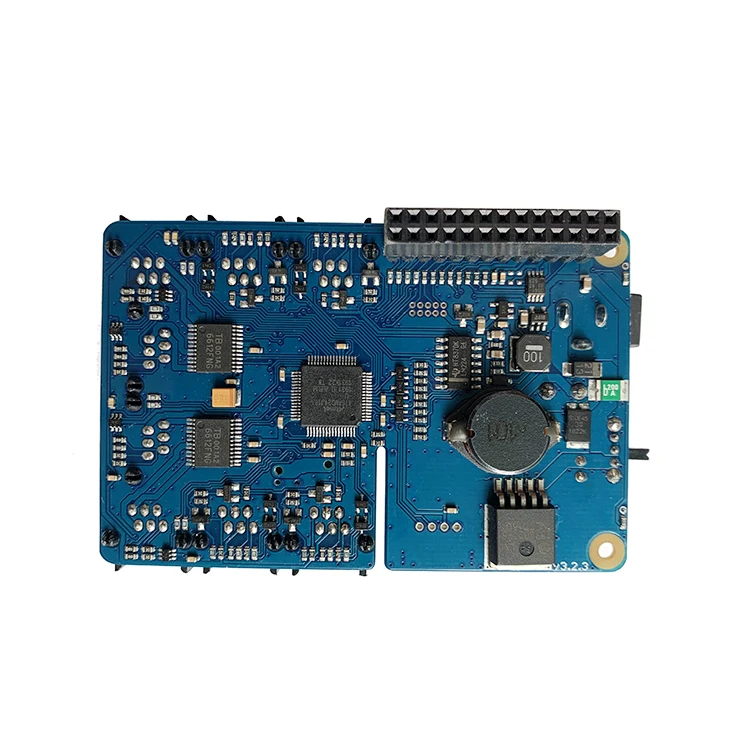

PRODUCT DISPLAY
Our PCB manufacturing capability
PCB Layers | 1-24 Layers | Min Soldermask bridge | 0.076mm |
Max Panel Size | 600mmx600mm | Insulating resistance | 1E+12Ω（general） |
Min Board Thickness | 4 Layers 0.40mm, 6 Layers 0.80mm, 8 Layers 1.00mm, 10 Layers 1.20mm | Board Thick : hole size | 0.209027778 |
Min Trace Width | 0.075mm | Shock heating | (3 times/10 second) |
Min Trace Space | 0.075mm | Wrap & twist | ≤0.7% |
Min Hole Size | 0.20mm | Electric strength | ＞1.3KV/mm |
Hole wall thickness | 0.025mm | Peel strength | 1.4N/mm |
Tolerance For PTH hole | ±0.076mm | solder mask hardness | ≥6H |
Tolerance For NPTH hole | ±0.05mm | Flammability | 94V-0 |
Hole position tolerance | ±0.05mm | Impedance control | ±5% |
Tolerance for outline | ±0.15mm | Surface treatment | OSP, HASL, ENIG, Immersion tin, Immersion silver |
Our PCB Assembly capability
Board Size | Board machine SMT size 40*50 mm |
SMT+DIP | Machine SMT and through-hole assembly |
BGA part | Able to process 0.35 pitch micro BGA, AQFN, QFP, QFN, & AQFN (advanced quad flat no-leads) |
Quantity | Up to 100,000 pieces quick SMT machine per day |
Quality check | AIO and X-RAY automatic check |
Clean requirement | Clean or not-clean process |
ROHS requirement | RoHS / Non-RoHS compliant assembly |
Components | 100% Material procurement, 100% consigned material management or hybrid |
Testing | Flying Probe Testing 100%, Voltage test, Test fixture, Function test, Software test etc |
Lead time | Sample order ~2wks, small batch production ~3wk, mass production ~4wks |
ASSOCIATED PRODUCTS
COMPANY PROFILE
Shenzhen Ronghuahong Electronic Co., Ltd. （MakerPCB） provides advanced manufacturing services that benefit the customer's products and business successfully. We have over 12years of manufacturing experience, focus on the electronic SMT, DIP, testing, and product final assembly one-stop services.
From 1 unit to 100K units level, we would stand by to support you through the manufacturing field. We have a flexible production process that enables the quick turnkey solution to the personal makers or small startup companies with small production orders. By the standard manufacturing solutions, our customers obtain the benefits of supply chain consolidation, consistent manufacturing efficiency, and lower costs.
From 1 unit to 100K units level, we would stand by to support you through the manufacturing field. We have a flexible production process that enables the quick turnkey solution to the personal makers or small startup companies with small production orders. By the standard manufacturing solutions, our customers obtain the benefits of supply chain consolidation, consistent manufacturing efficiency, and lower costs.
MakerPCB will become the premier one-stop factory for our customers manufacturing needs.
Certifications
OUR ADVANTAGES
PAYMENT & DELIVERY
FAQ
Q1. What manufacturing services do you offer?
A1: We provide a one-stop full-turnkey manufacturing solution including PCB fabrication, component sourcing & procurement, SMT, plastic injection & metal, final assembly, testing, certification supports, and the other manufacturing services.
Q2. Could we sign the NDA before sending the files?
A2: Sure, we would like to sign the NDA (Non-Disclosure Agreement) with our clients and keep the production files confidential.
Q3. What files do you need for the PCB & PCBA quotation?
A3: We need to know the Quantity inquiry, BOM, PCB Gerber, PCB specification requirement, pick and place file, Test plan (if you need). Then we will check and quote to you within 24hours, we would like to offer you the best price as we can.
Q4. What is the minimum order quantity for the PCBA order?
A4: Our PCBA MOQ is 1pcs, we could support you from the design sample verification to the mass production run. We are professional and willing to help you get all the manufacturing process fast and easily.
Q5. What is the production lead time for the PCBA order?
A5: Our PCBA production lead time is 1~2wks for sample order (1~20pcs); 3~4wks for the trial production run (100~1000pcs), 4~5wks for the mass production run (>1000pcs). We also could offer you the expedited service if you need it urgently.
Based in Shenzhen, where becomes technology heaven for the world's hardware startups. We hope to become a one-stop production factory for you.
Let us work together, cheers! Contact us!
