Гидравлический сетчатый ленточный фильтр batte для экструдера переработки пластика машина
- Категория: Запасные части для станков для резины и пластика >>>
- Поставщик: Zhengzhou,Bate,Melt,Pumps,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.27 $* | 0.84 $* |
| Aug-17-2025 | 0.68 $* | 0.53 $* |
| Jul-17-2025 | 0.72 $* | 0.33 $* |
| Jun-17-2025 | 0.73 $* | 0.65 $* |
| May-17-2025 | 0.28 $* | 0.87 $* |
| Apr-17-2025 | 0.35 $* | 0.30 $* |
| Mar-17-2025 | 0.36 $* | 0.78 $* |
| Feb-17-2025 | 0.55 $* | 0.38 $* |
| Jan-17-2025 | 0.7 $* | 0.92 $* |
Характеристики
Products Description

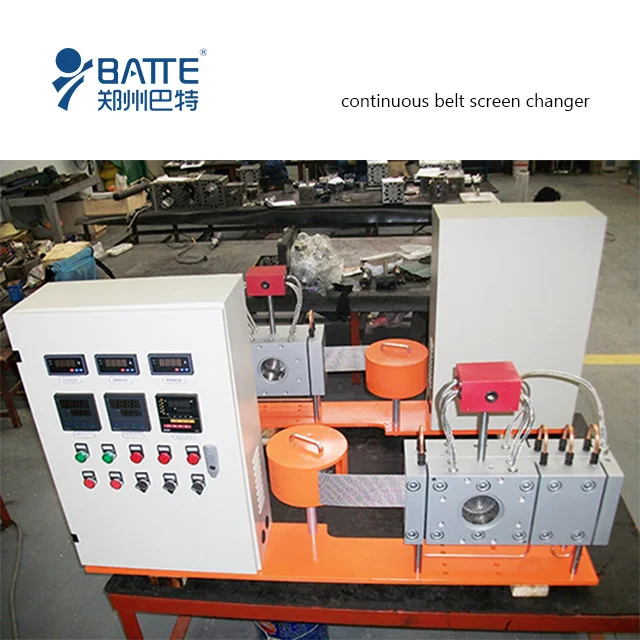

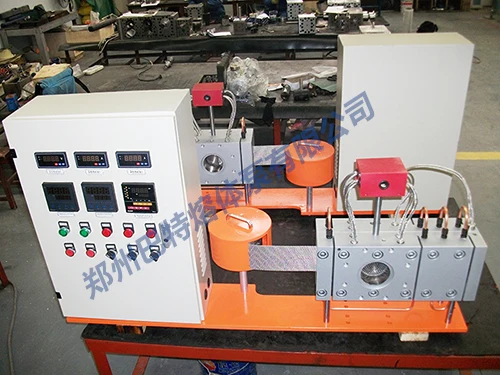

Introduction of automatic belt screen changer:
BATTE belt screen changer is designed to be used for blown & cast film extrusion, blow molding extrusion, sheet extrusion, film
extrusion, compounding extrusion, etc. Automatic belt screen changer is fully automatic screen filters for production lines.
extrusion, compounding extrusion, etc. Automatic belt screen changer is fully automatic screen filters for production lines.
Features of Automatic screen changer:
◆ Belt screen changer is consisted of screen changer body, heating/cooling system, electric control system, etc.
◆ The control system can control filtration time and speed automatically.
◆ This series screen changer is fully automatic and continuous.
◆ Excellent output stability, product has no deformation, quality stability.
◆ There is no waster or scrap during whole production, low material consumption.
◆ The filter length can be customized range from 10mm to 20mm, and can be used continuously for 2-6 months.
◆ It’s suitable for plastic polymer, such as PP, PE, ABS, PS, etc.
Applications of Continuous belt screen changer:
◆ Blown & cast film
◆ Sheet
◆ Compounding
◆ Pipe
◆ Tubing
◆ Profile
◆ Multi-layer extrusion
◆ Belt screen changer is consisted of screen changer body, heating/cooling system, electric control system, etc.
◆ The control system can control filtration time and speed automatically.
◆ This series screen changer is fully automatic and continuous.
◆ Excellent output stability, product has no deformation, quality stability.
◆ There is no waster or scrap during whole production, low material consumption.
◆ The filter length can be customized range from 10mm to 20mm, and can be used continuously for 2-6 months.
◆ It’s suitable for plastic polymer, such as PP, PE, ABS, PS, etc.
Applications of Continuous belt screen changer:
◆ Blown & cast film
◆ Sheet
◆ Compounding
◆ Pipe
◆ Tubing
◆ Profile
◆ Multi-layer extrusion
Customer Photos
What are the benifits of screen changer on extruder?
1, improve the quality of the final products
2,greatly improve the plasticizing of the raw material
3, make the product structure more homogeneous and product surface smoothness
4, protect the down stream equipments, such as Gmach melt pumps and the extrusion dies
What are the benifits of melt pump on extruder?
1, to improve the stability of the product size
2,melting quality control
3, increase output
4, reduce the raw materil consumption
5, improve the flexible of the extruder
6, protect the extrusion die ,extend the service life of the extruder
What are the benifits of installation the screen changer and melt gear pump together?
1, improve the melt plasticaction
2, improve the quality of the products
3, extend the service life of the extruder
4, greatly increase the output of the products
5, reduce the labor interference
6, reduce the unqualified products
What do we need to pay attention when using the screen changer nad melt pump?
1, we should operate the screen changer and melt gear pump as the safety manual, prevent an electrical shock
2, To prevent ourself scald
3, do not disassemble the screen changer and the melt gear pump, any questions, please contact with the supplier.
1, improve the quality of the final products
2,greatly improve the plasticizing of the raw material
3, make the product structure more homogeneous and product surface smoothness
4, protect the down stream equipments, such as Gmach melt pumps and the extrusion dies
What are the benifits of melt pump on extruder?
1, to improve the stability of the product size
2,melting quality control
3, increase output
4, reduce the raw materil consumption
5, improve the flexible of the extruder
6, protect the extrusion die ,extend the service life of the extruder
What are the benifits of installation the screen changer and melt gear pump together?
1, improve the melt plasticaction
2, improve the quality of the products
3, extend the service life of the extruder
4, greatly increase the output of the products
5, reduce the labor interference
6, reduce the unqualified products
What do we need to pay attention when using the screen changer nad melt pump?
1, we should operate the screen changer and melt gear pump as the safety manual, prevent an electrical shock
2, To prevent ourself scald
3, do not disassemble the screen changer and the melt gear pump, any questions, please contact with the supplier.
Product Paramenters
Structure of automatic Continuous belt screen changer:
Type | Capacity (kg/h) | Dimension (mm) | Screen size | Heater | ||||||||
L1 | L2 | L3 | Diameter (mm) | Area (cm2) | Voltage (v) | Power (w) | ||||||
ZB-ACB-50 | 30-85 | 150 | 165 | 540 | 50 | 20 | 230/400 | 5200 | ||||
ZB-ACB-70 | 75-200 | 160 | 170 | 560 | 70 | 38 | 230/400 | 5400 | ||||
ZB-ACB-90 | 100-290 | 170 | 185 | 580 | 90 | 64 | 230/400 | 5800 | ||||
ZB-ACB-100 | 130-350 | 180 | 215 | 605 | 100 | 78 | 230/400 | 6200 | ||||
ZB-ACB-120 | 190-500 | 185 | 230 | 645 | 120 | 113 | 230/400 | 6500 | ||||
ZB-ACB-150 | 350-800 | 200 | 265 | 700 | 150 | 176 | 230/400 | 7200 | ||||
ZB-ACB-180 | 450-1200 | 220 | 305 | 760 | 180 | 254 | 230/400 | 8200 | ||||
Notes: The capacity will be affected by the fluidity, filter fineness and purity of materials.
Certifications

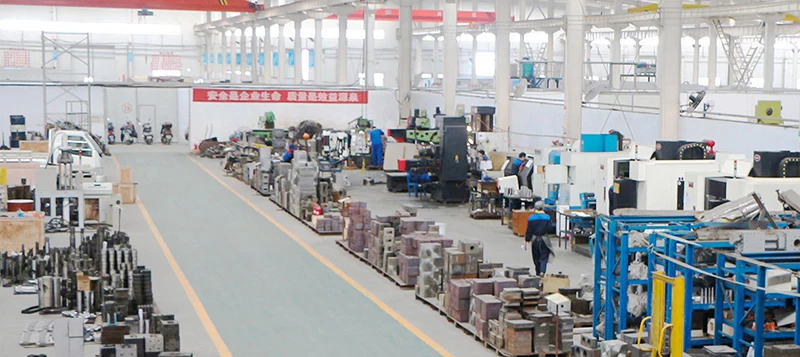

Company Profile
Batte is one of the most professional manufacturer of melt pump, loss-in-weight feeder, and screen changer. Batte has accumulated abundant experience on the application technique of these products. Recently according to the development trend of melt pumps, screen changers and loss in weight feeders application all over the world, especially in the field of precise plastic extrusion, we have done extensive research on the prpduct operation performance, practical function, equipment structure and control technology and achieved regular achievements.
BATTE screen changer can not only filter the impurities, but also can significantly improve the plasticizing and homogenization effect of the raw material. In this way, it can make the product structure more homogeneous and product surface more smooth, thus improve the quality of extruded products. In a word, BATTE screen changer can reduce the unit cost and increase hourly output.
Exhibition
shipping
Batte will choose the most reasonable packing material and packing dimensions for our product, all wooden case package is fumigated, and dimensions are designed to be economical to container shipment. For shipping, we usually work on FOB/CFR/CIF.
We will supply related report and packing pictures of products before shipment to customers.
We will supply related report and packing pictures of products before shipment to customers.
FAQ
1. Which screen changer model we should use?
Before recommending our proper screen changer model for you, we want to confirm with you the points as follows:
1.1. Do you use the extruder during production? Is it single screw extruder or twin screw one?
1.2. The materials you use, are they raw materials or recycled ones?
1.3. The hourly output;
1.4. The final products;
1.5. Do you use screen changer before? If it is, please tell us the filtration fitness and screen diameter;
1.6. How often you need to change screen;
1.7. The max. Operating pressure;
2. What is your MOQ?
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0
Before recommending our proper screen changer model for you, we want to confirm with you the points as follows:
1.1. Do you use the extruder during production? Is it single screw extruder or twin screw one?
1.2. The materials you use, are they raw materials or recycled ones?
1.3. The hourly output;
1.4. The final products;
1.5. Do you use screen changer before? If it is, please tell us the filtration fitness and screen diameter;
1.6. How often you need to change screen;
1.7. The max. Operating pressure;
2. What is your MOQ?
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0
