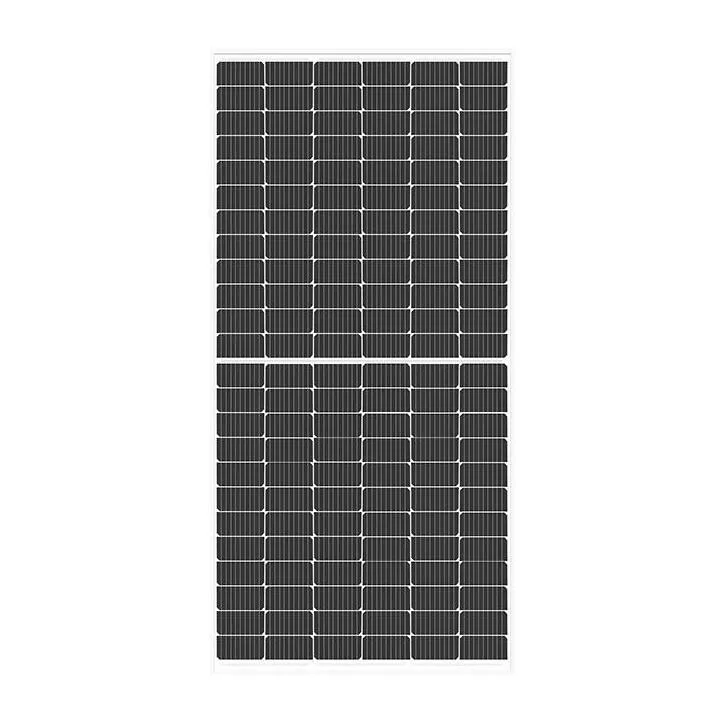

Новейшая технология полумонокристаллическая солнечная панель Perc 450
- Категория: Solar Cells >>>
- Поставщик: Jinhua,Chasun,Solar,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.40 $* | 0.89 $* |
| Aug-17-2025 | 0.58 $* | 0.37 $* |
| Jul-17-2025 | 0.64 $* | 0.61 $* |
| Jun-17-2025 | 0.25 $* | 0.57 $* |
| May-17-2025 | 0.82 $* | 0.82 $* |
| Apr-17-2025 | 0.56 $* | 0.43 $* |
| Mar-17-2025 | 0.68 $* | 0.50 $* |
| Feb-17-2025 | 0.12 $* | 0.39 $* |
| Jan-17-2025 | 0.55 $* | 0.71 $* |
Характеристики
Products Description
Electrical Characteristics | ||||||||||||||
Model Number | CS425M-72HC | CS430M-72HC | CS435M-72HC | CS440M-72HC | CS445M-72HC | CS450M-72HC | CS455M-72HC | |||||||
Maximum Power (Pmax/W) | 425 | 430 | 435 | 440 | 445 | 450 | 455 | |||||||
Open Circuit Voltage (Voc/V) | 48.7 | 48.9 | 49.1 | 49.2 | 49.4 | 49.6 | 49.8 | |||||||
Short Circuit Current (Isc/A) | 11.22 | 11.3 | 11.36 | 11.45 | 11.52 | 11.58 | 11.65 | |||||||
Voltage at Maximum Power (Vmp/V) | 40.4 | 40.6 | 40.8 | 41 | 41.2 | 41.4 | 41.6 | |||||||
Current at Maximum Power (Imp/A) | 10.52 | 10.6 | 10.66 | 10.73 | 10.8 | 10.87 | 10.93 | |||||||
Module Efficiency(%) | 19.6 | 19.8 | 20 | 20.2 | 20.5 | 20.7 | 20.9 | |||||||
Power Tolerance | 0~+5W | |||||||||||||
Maximum System Voltage | 1000V / 1500V DC(IEC) | |||||||||||||
Maximum Series Fuse Rating | 15A | |||||||||||||
Operating Temperature | -40 ℃ to +85 ℃ | |||||||||||||
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5 | ||||||||||||||
NOCT (Nominal Operating Cell Temperature): Irradiance 800W/m², Ambient Temperature20℃, Spectra at AM1.5, Wind at 1m/S | ||||||||||||||
A Grade Materials
Solar Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength

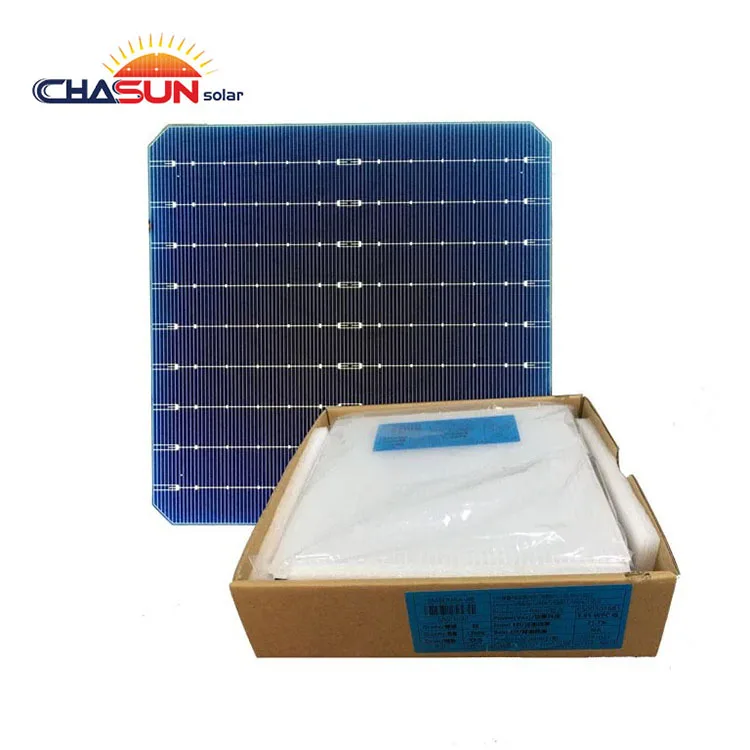

Solar Cells
* A Grade top brand Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency

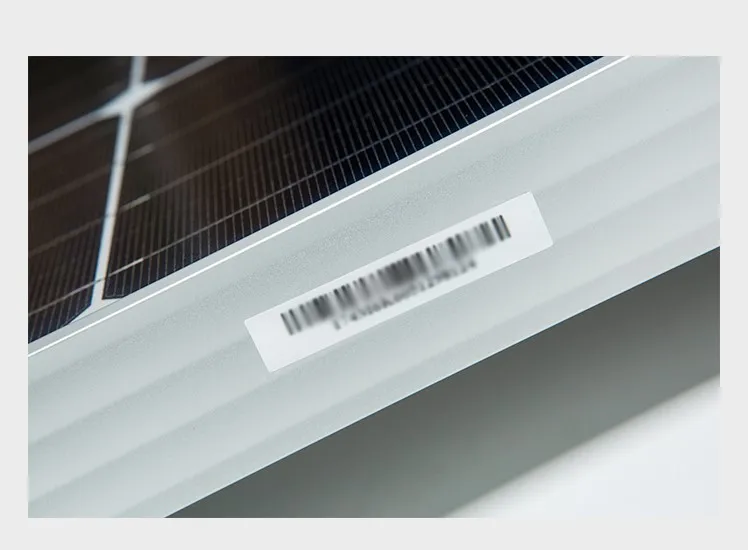

Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Silver/ Black Color are optional

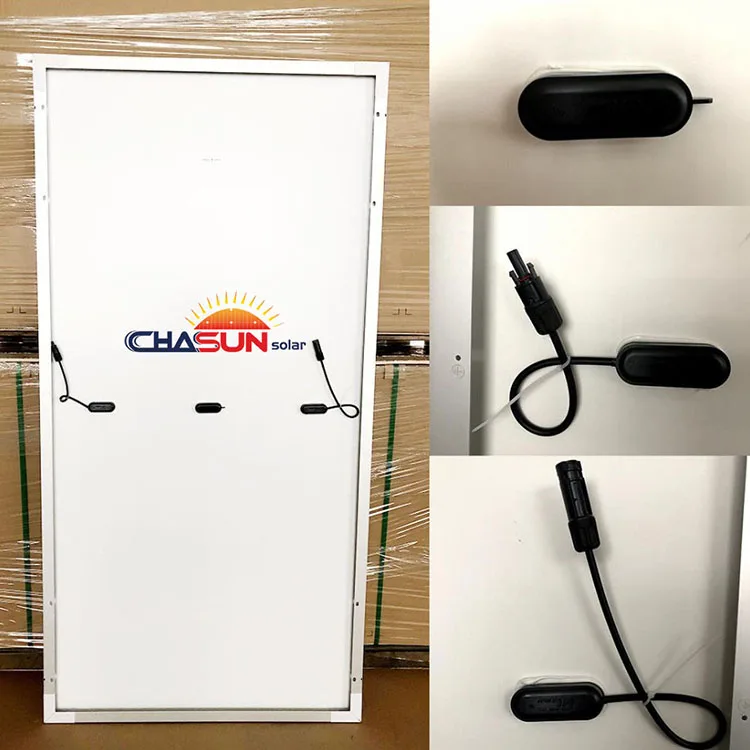

Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
TPT Backsheet
21kV High-Voltage Breakdown Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer
Structure.
Structure.
Company Profile
Jinhua Chasun Solar Technology Co.,Ltd is the subsidiary corporationan of Chasun Group Co.,Ltd. Which are an international high-tech and growing group company, specializing in the design, manufacture, sales, installation and maintenance of solar power products. Chasun solar has a powerful team of specialists in photovoltaic, inverter, battery,Controller and solar generator technology, product development, and project management. Every one of them is an authority in its field and has more than a decade of experience.
Chasun insist on the objective of “green energy for our lives”, continuously innovating, forging ahead, willing to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green pollution-free environment for human society.
Make a contribution to the green world, starting with the choice of Chasun solar. Chase Sun Energy, Enjoy New Live!
We aiming at becoming “The expert of solar power generation”.
Chasun insist on the objective of “green energy for our lives”, continuously innovating, forging ahead, willing to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green pollution-free environment for human society.
Make a contribution to the green world, starting with the choice of Chasun solar. Chase Sun Energy, Enjoy New Live!
Manufacturing Technique
soldering
Automatic machine move the glass
Lay up
Fully automatic assembly line
Detection of appearance
panels ready to package
* Workshop overview
package without carton
package with carton and pallet
Customer Photos
Our Projects
2MW in Zhejiang Province
500KW in Anhui Province
1 MW in Croatia
45kw in Chad
200kw in Papua New Guinea
200kw off grid in the Philippines 3.5kw on grid system in Vietnam
Product packaging
FAQ
Q1: Do your company a trading company or manufacturer?
A1: Chasun is a Group Company which have solar panel factory, Inverter factory. We also do Construction Engineering. Whatproofing Engineering. Mould Making. Solar industry is our main products for exporting.
Q2: How long can you delivery my order?
A2: Usually we need 15 days to prepare your order after receiving the deposit..
Q3: Can you do OEM for me?
A3: Yes, We can accept OEM, If the quantity is small, Carton factory don't accept to OEM the carton, if quantity not so big, We can make sticker OEM, if you need one full container, Both Carton and sticker we can OEM for you.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: What is your factory capacity ?
A5: Our factory capacity is 400MW Per year, We also do OEM for Jinko Yingli, GCL, Trina and so on.
A1: Chasun is a Group Company which have solar panel factory, Inverter factory. We also do Construction Engineering. Whatproofing Engineering. Mould Making. Solar industry is our main products for exporting.
Q2: How long can you delivery my order?
A2: Usually we need 15 days to prepare your order after receiving the deposit..
Q3: Can you do OEM for me?
A3: Yes, We can accept OEM, If the quantity is small, Carton factory don't accept to OEM the carton, if quantity not so big, We can make sticker OEM, if you need one full container, Both Carton and sticker we can OEM for you.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: What is your factory capacity ?
A5: Our factory capacity is 400MW Per year, We also do OEM for Jinko Yingli, GCL, Trina and so on.
Q6: What is solar panel warranty ?
A6: 10 years 90% output efficiency, 30 years 80%
A6: 10 years 90% output efficiency, 30 years 80%
Q7: When we install the solar projects, Can we step on the panels?
A7:Please handle with care when installing, and don't step on the panels, It will cracked inside the panels. You can't see it by your eyes, But it will effect the life of solar panel.
