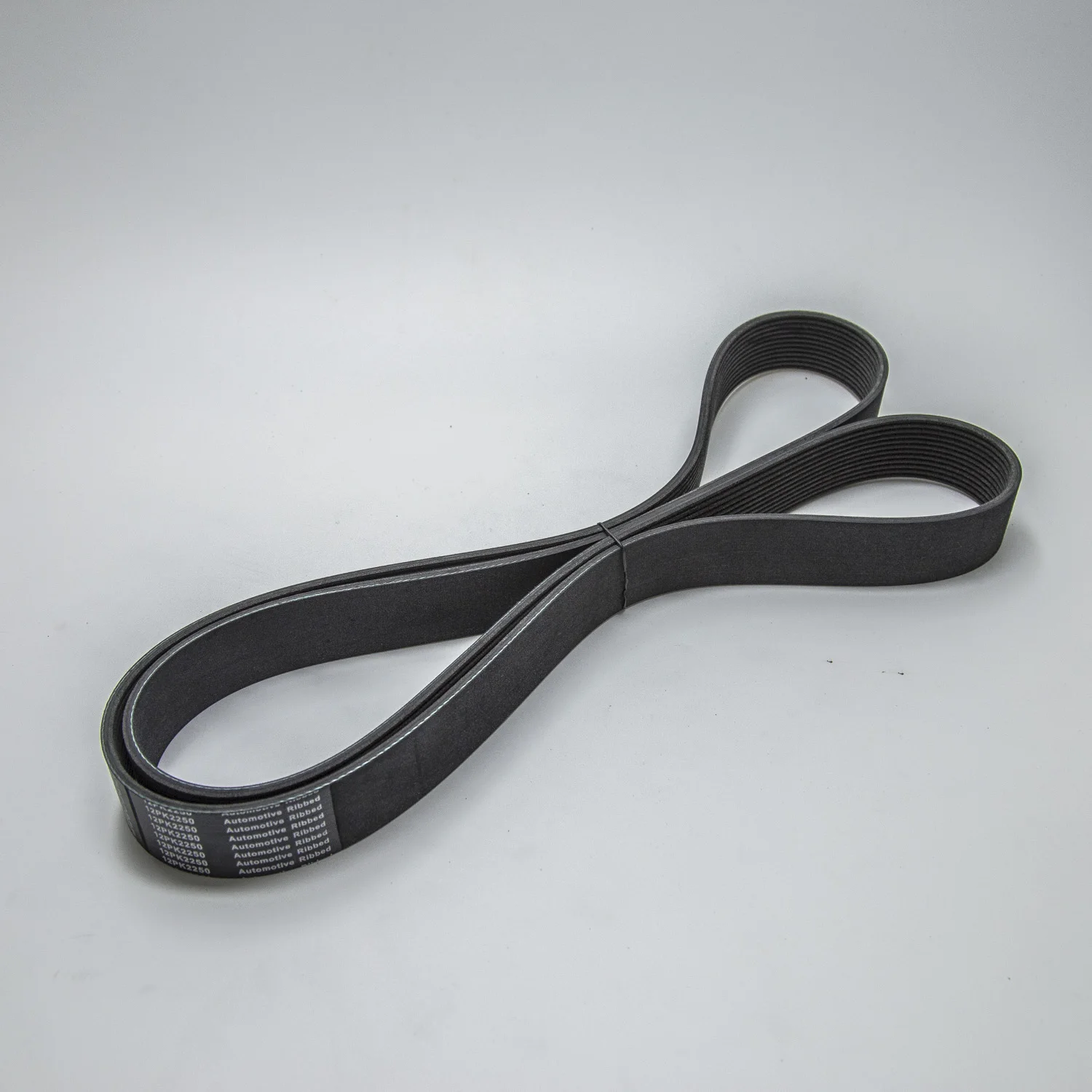

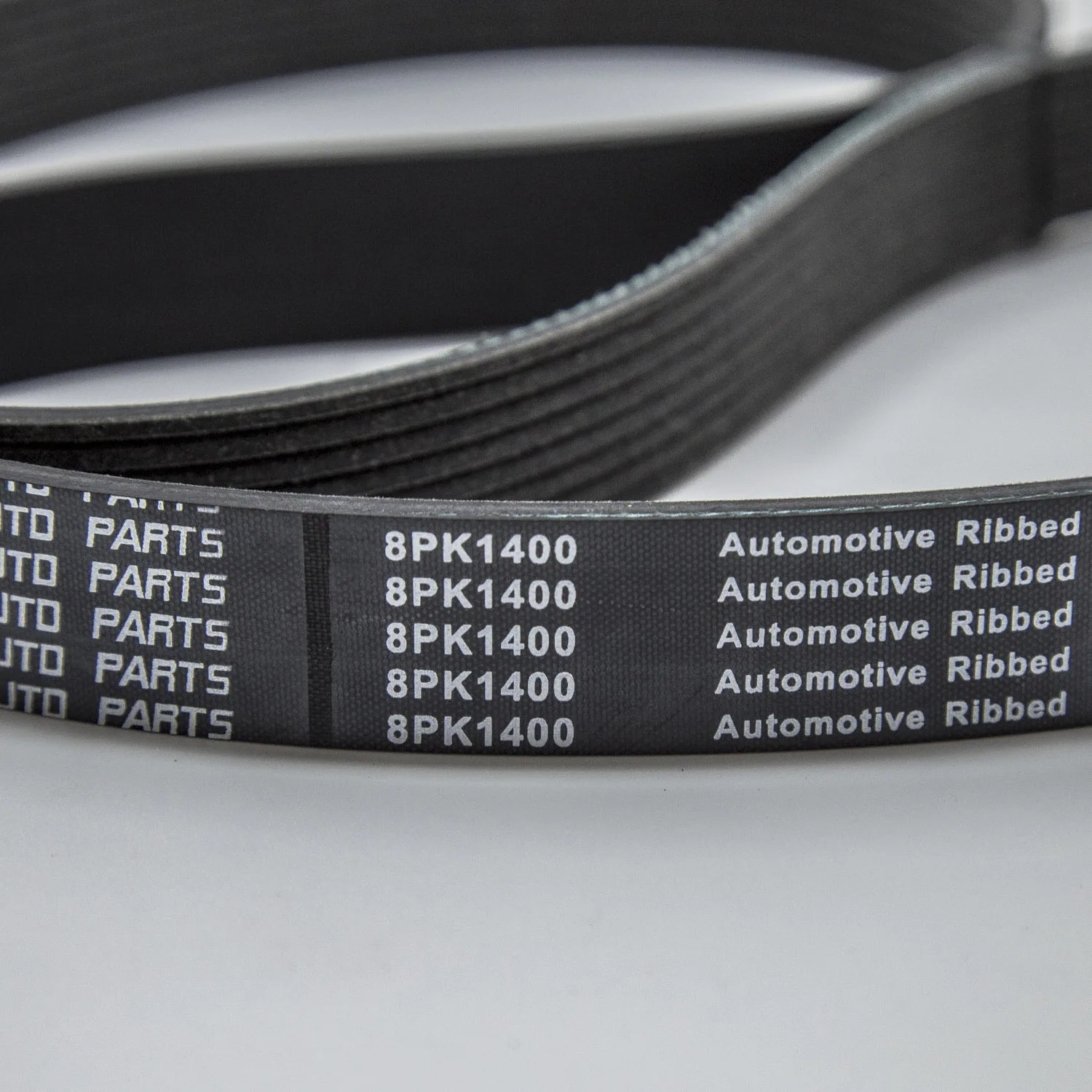

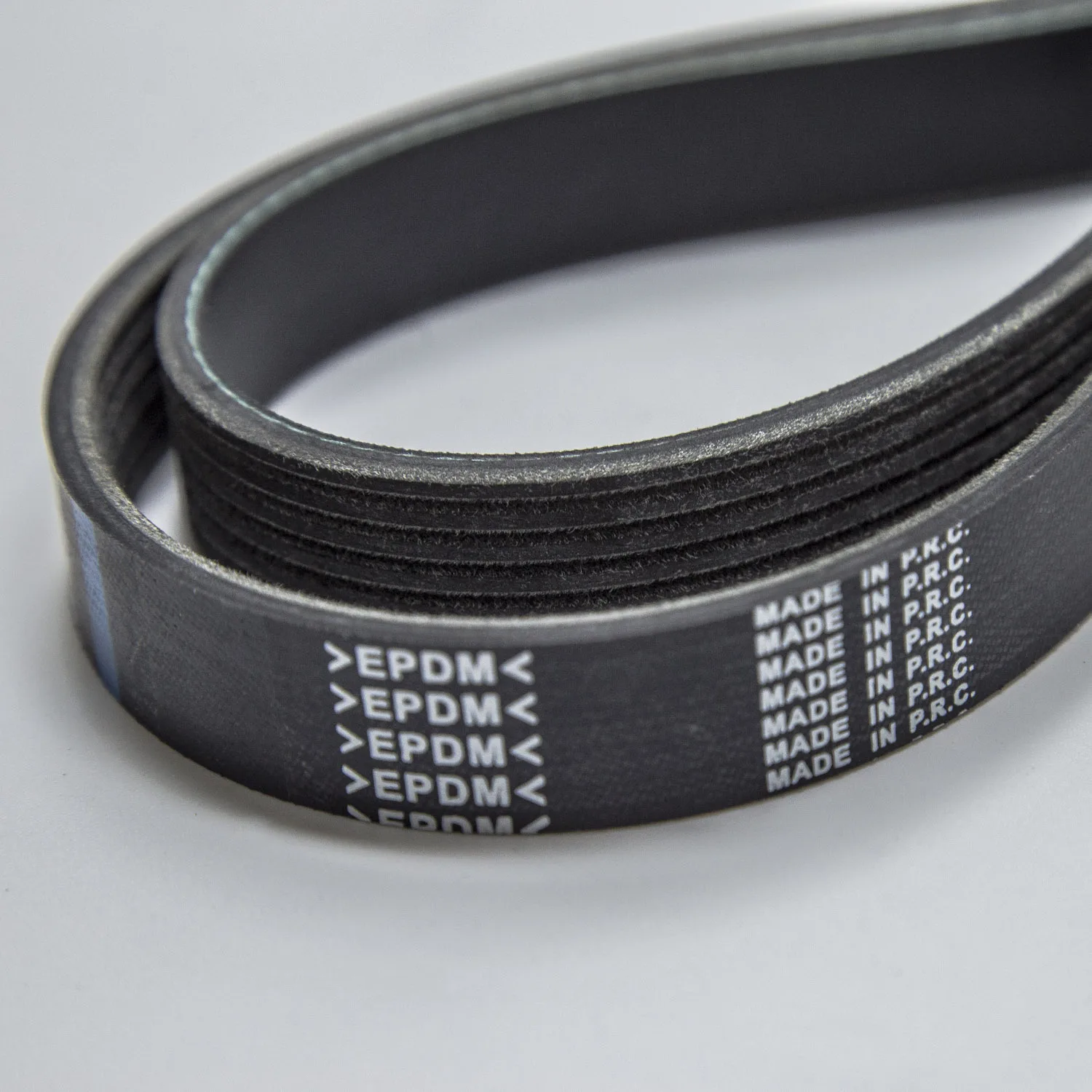

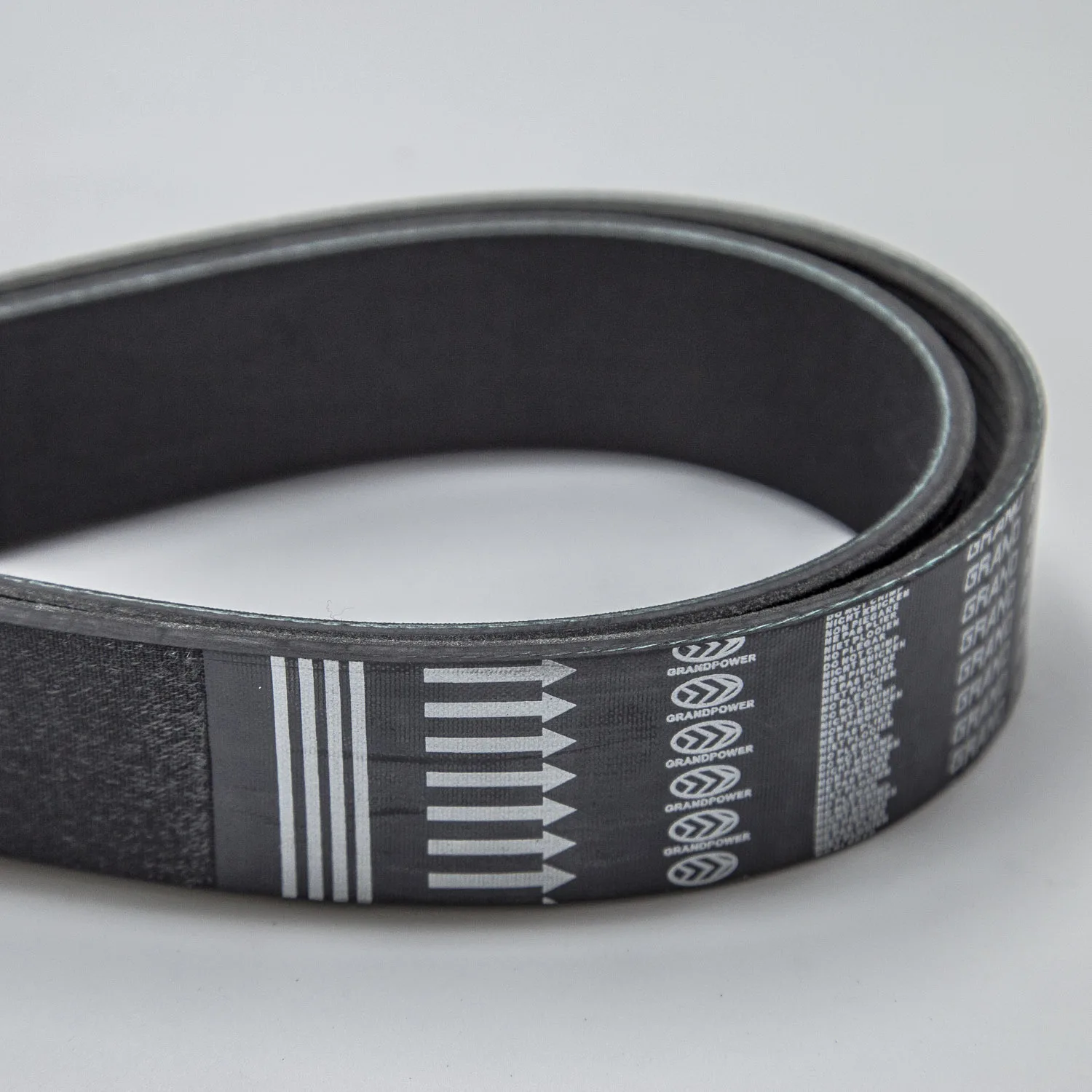

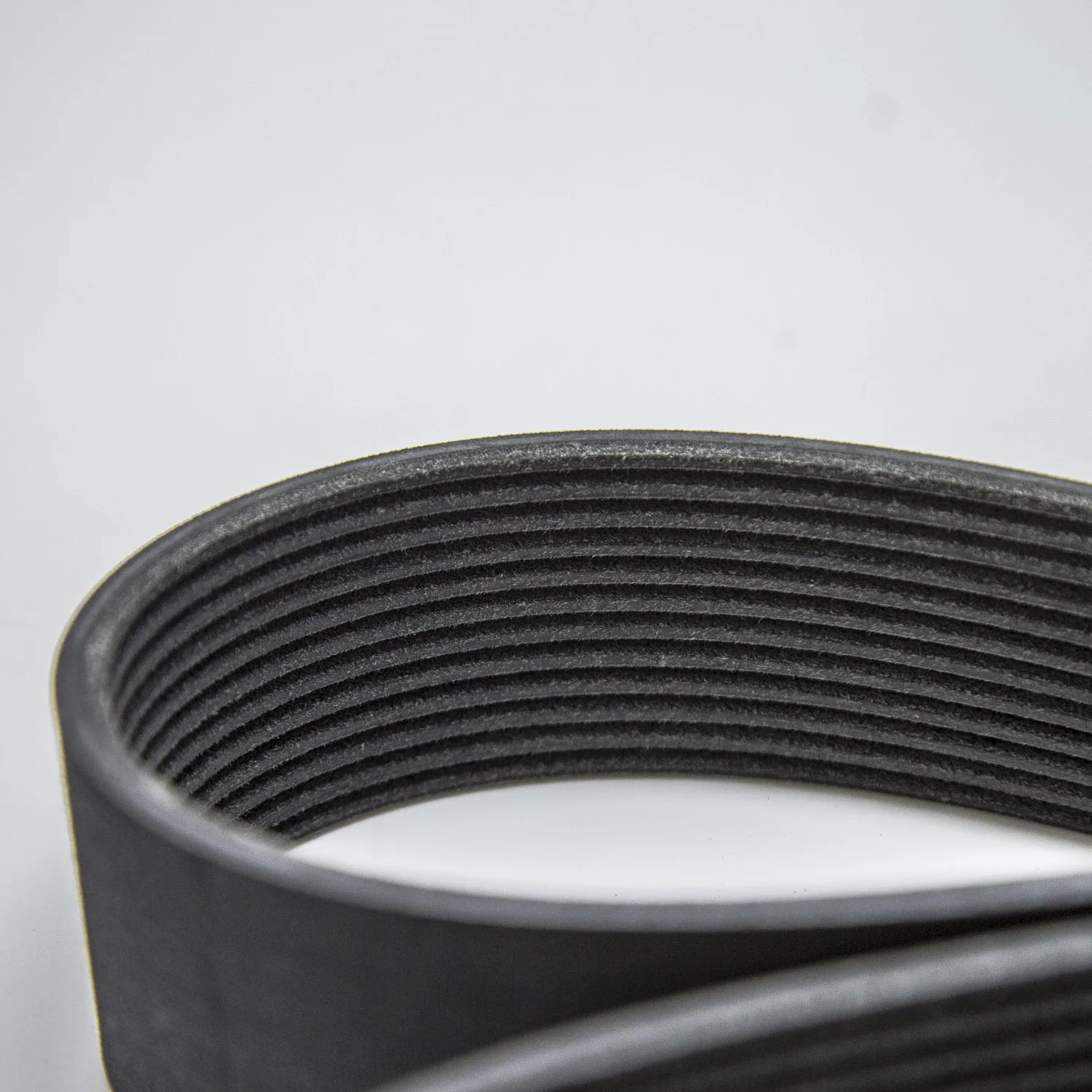

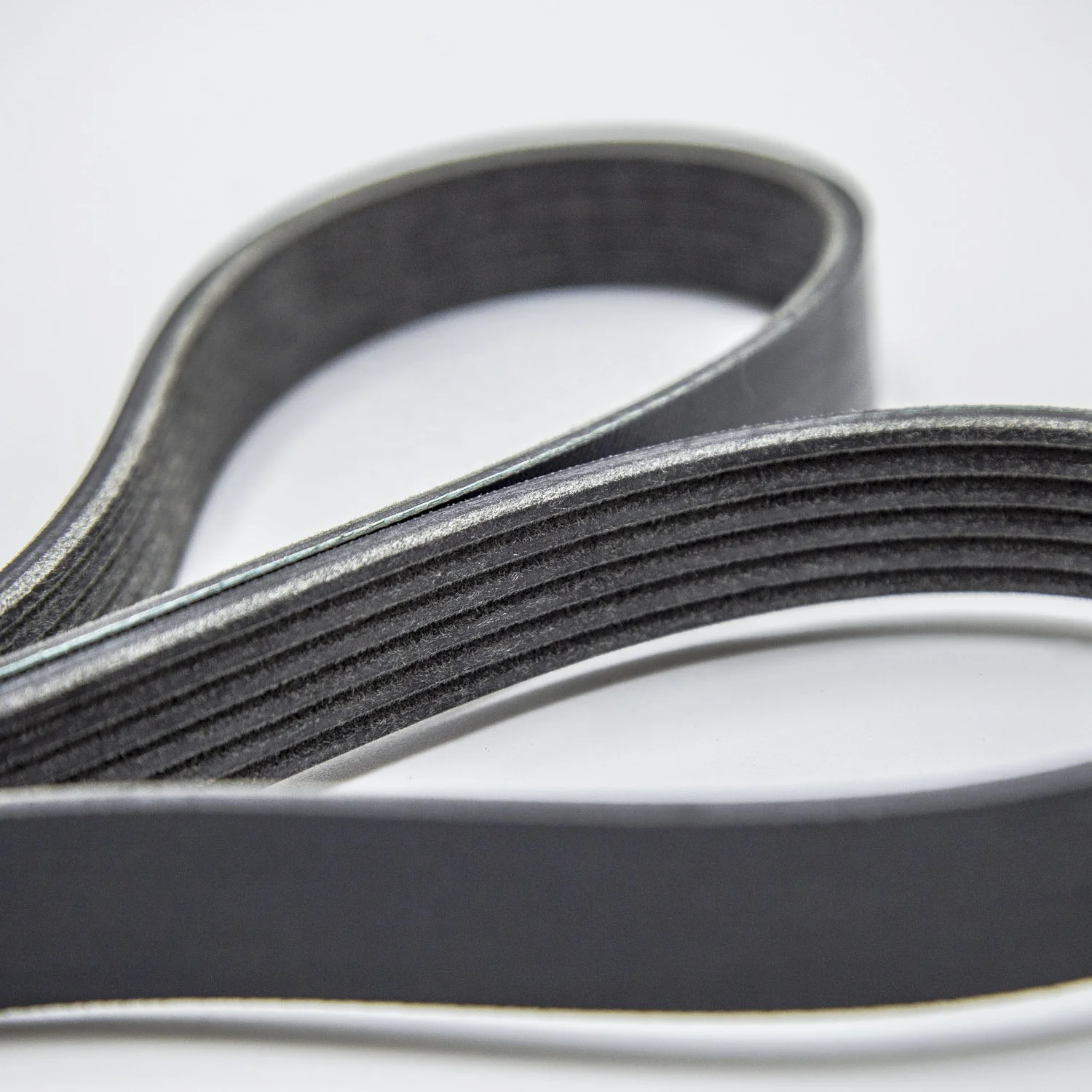

Промышленный ребристый Pk тягодутьевым устройством 6pk 8pk 10pk
- Категория: Transmission Belts >>>
- Поставщик: Yiwu,Grand,Auto,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.92 $* | 0.1 $* |
| Aug-15-2025 | 0.87 $* | 0.60 $* |
| Jul-15-2025 | 0.44 $* | 0.95 $* |
| Jun-15-2025 | 0.79 $* | 0.32 $* |
| May-15-2025 | 0.86 $* | 0.90 $* |
| Apr-15-2025 | 0.14 $* | 0.46 $* |
| Mar-15-2025 | 0.10 $* | 0.45 $* |
| Feb-15-2025 | 0.79 $* | 0.8 $* |
| Jan-15-2025 | 0.94 $* | 0.97 $* |
Характеристики
Product Description
Rubber V-ribbed belt is the combination of merits of both V belt and flat belt. It got not only the soft and tenacious features of flat belt but also has compact and high efficient merits of V belt.
No. | Name | Function | Material |
1 | Top Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
2 | Buffer Rubber | Suport adn protect the adhesive force of the tensile member | CR, EPDM |
3 | Tensile Member | Critical material to pass the dynamic force | Polyester, Nylon |
4 | Bottom Rubber | Maintain the shape of the rubber and improve its side compression performance | CR, EPDM |
| Feature |
|
 |
| Size of Section |
Type | Ribsection(mm) | Angle of rib(o) | Belt Thickness(mm) | Rib Numbers | Length range |
PH | 1.6 | 40 | 3 | 3-54 | 540-1270 |
PJ | 2.34 | 40 | 4 | 3-36 | 540-18880 |
PK | 3.56 | 40 | 4-6 | 3-23 | 600-2400 |
PL | 4.7 | 40 | 10 | 3-16 | 900-3000 |
PM | 9.4 | 40 | 17 | 3-8 | 1500-3000 |
Company Information
Material
Timing belt: CR,HNBR;
PK belt:CR/EPDM;
V belt:CR/EPDM;
We importer the raw material directly.It will control the cost exactly.
Inspection & Testing
Each orders must be inspected before packing and delivery.
It inculding to the random insprection or inspect one by one.
Trade Shows
Payment terms
1- 30% in advance as deposit,the balance be paid by T/T before delivery;
2- 30% in advance as deposit,the balance base on L/C Irrevocable;
3- 30% in advance as deposit,the balance base on copy of B/L;
4- 30% in advance as deposit,the balance according to our disucss together;
5- 30% in advance as deposit,xx% be paid by T/T before delivery,the balance as debt after xx days after the documents send to customer;
6- xx% in advance as deposit according to our discussing,xx% as balance according to our discussing;
Our Services
We will tracking the quality and feedback of our goods.
It will improve our quality in future.
Why Choose GrandAuto
Quality Assurance:
We can supply SGS, BV test to assure the quality of our products.
Price advantage:
We have our own factory, you can get a competitive and reasonable price with high quality.
Professional advantage:
More than 15 years’ professional producing experience.
Service advantage:
We can reply your Enquiry timely and effective.All of our products can send the samples as your requirement.
Delivery time:
Once our customers release their orders, we will arrange the production and shipping in time in order to save our customers time.
