WB-120WZ Hot selling machine Packing Horizontal Box Cartoning Machine with high quality

Samples:

Features:

1. Automatic horizontal cartoning machine is a high-tech product, which is a integration of light, electricity, gas and machine.

2. It's suitable for eliquid bottles, eye drops bottle, ear drops bottle, toothpast, medicine bottles,  blister forming capsule and tablet,

aluminum-plastic packed blister board and similar items into cartons automatically.

3. Working process: medicine plate or other items transmission ( adjustable if more than one plate)

-- drugs manual transmission (to automatically finish 1-4 folding) -- carton automatic distraction and delivery--plate joint folded manual into carton -- automatic batch number printing, paper tongues sealing on both ends, etc.

4. Machine use high quality stainless steel casing shape, working faces are closed by organic glass door and windows. It's innovatively designed,

strictly in accordance with  requirements of pharmaceutical industry "GMP" standard.

5. Product height is not standard, auto rejecting when no instruction book.

6. Auto stopping machine when product does not enter carton completely.

7. Auto stopping machine when no carton, no continuous instruction book or no product.

8. Convenient to change products with different specification.

9. Main drive is equipped with overload protection device.

10. PLC automatic display failure, box packing speed and finished counting

11. Machine can automatic detect and sort out the boxes without leafleats.

Techinical parameters:

Model	wB-120WZ
Capacity	100-150 boxes/min
Power supply	3ph. 380V, 50/60Hz
Main motor power	2.5 KW
Gas consumption	5-20L/min (/Pressure 0.6Mpa)
Suitable box Packing material	Carton specification  250-300g/square meter (Depends on carton size)
	pecification	L(45-85)mm x W(28-53)mm x H(28-53)mm
Instruction book requirements	Paper specification	60-70g/square meter
	Unfolding size	L(80-250)mm x W(90-170)mm
	Folding range	Customized
	The number of folding	1-4
Net weight	About 1000kg
Overall Dimension	L2600 x W1100 x H1500mm

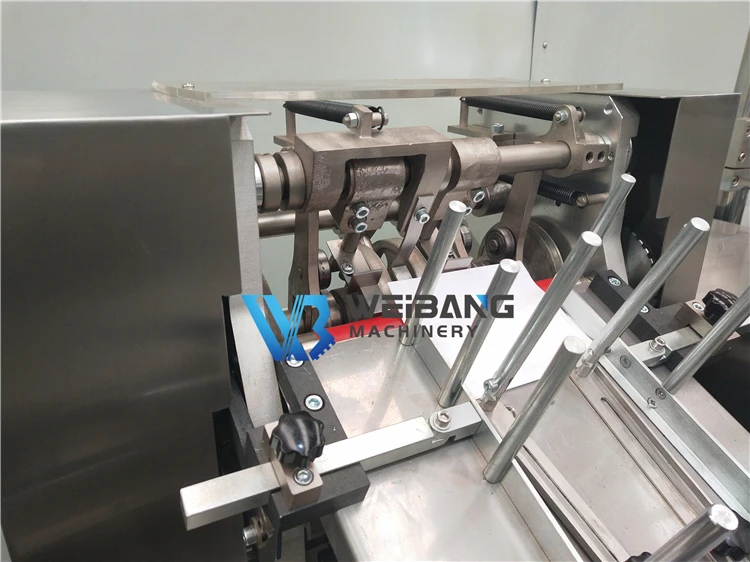

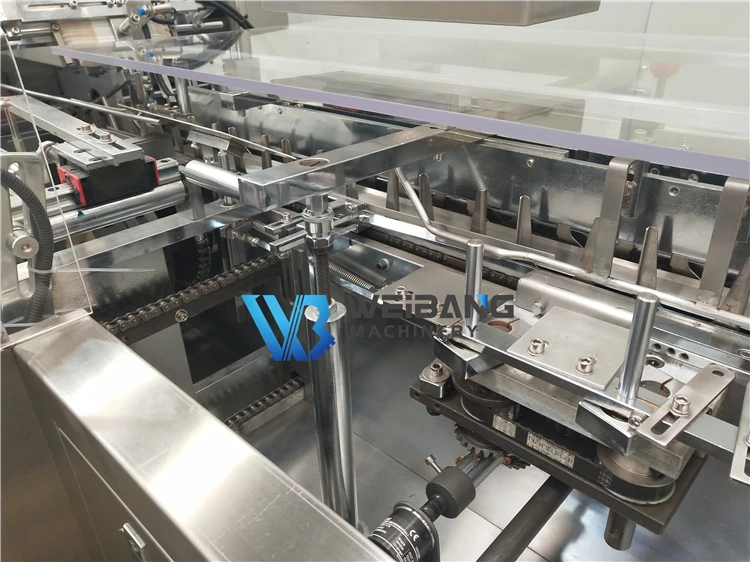

Machine details:

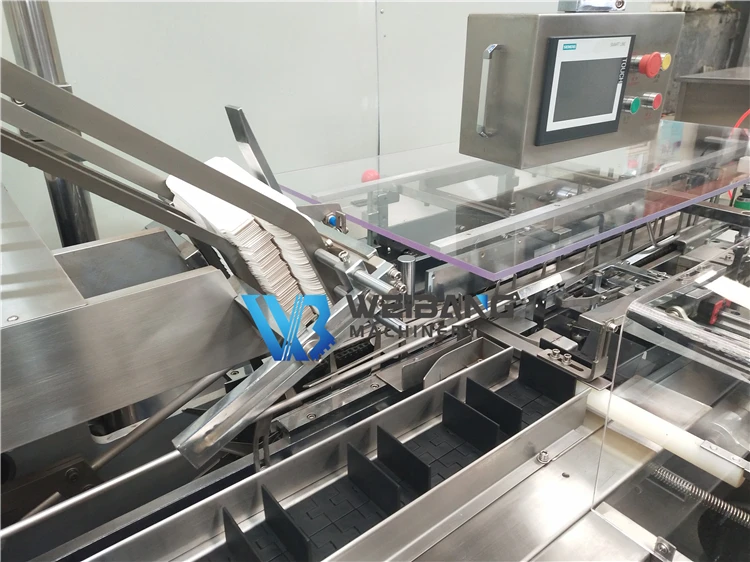

Touch screen

Collecting table

Conveyer belt

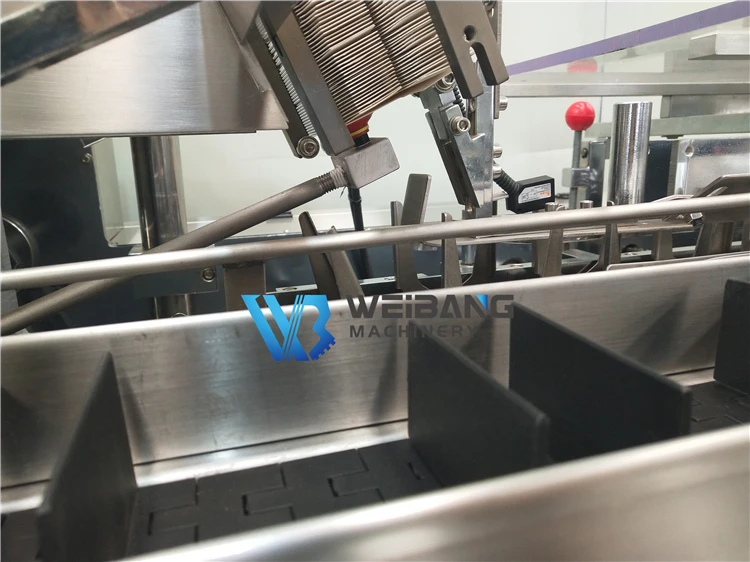

Carton

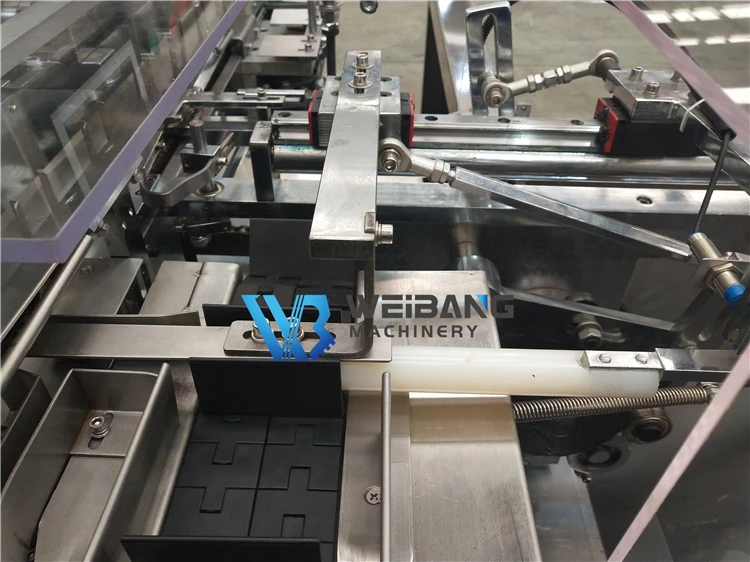

Sensor

Finished product

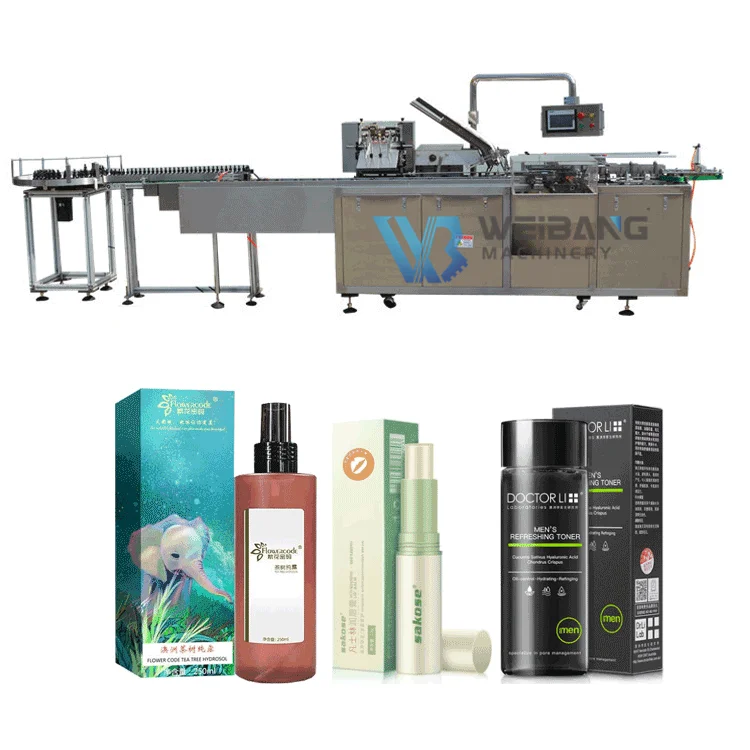

The whole machine

We also have many other machines for you to choose!

Vertical round bottle labeling machine

Horizontal labeling machine
