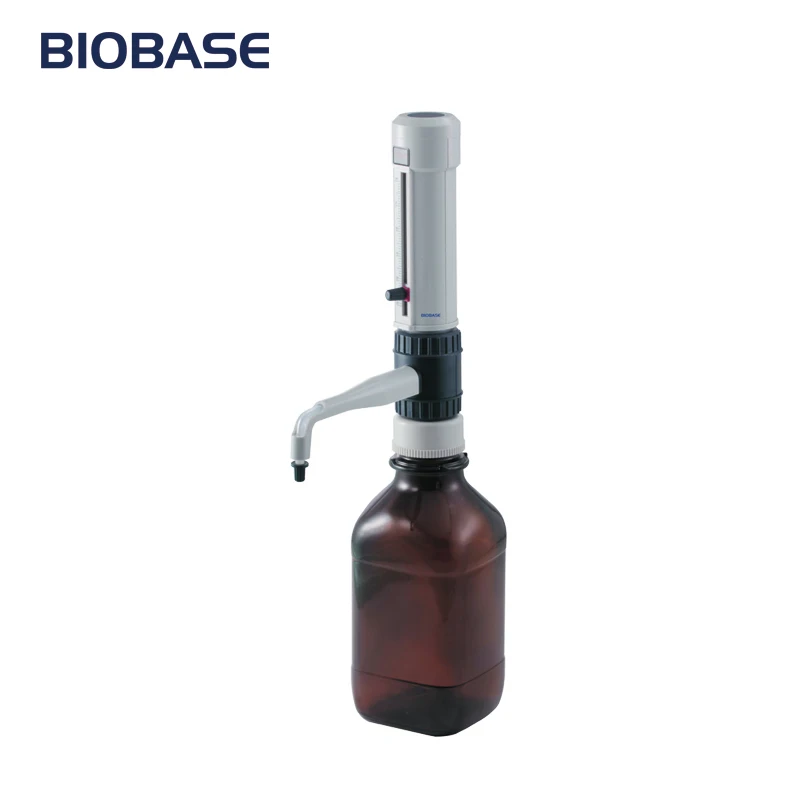

Features: * Excellent chemical resistance * Fully autoclavable at 121℃ * Four ranges of bottle-top dispenser cover a volume range from 0.5ml to 50ml * Easy to clean and maintain * The optional flexible discharge tube with safety handle permits fast and precise dispensing * Made of PTFE、FEP、BSG、PP * Vapor pressure Max. 500mbar, viscosity max. 500mm2/s,temperature max. 40℃, density max. 2.2g/cm3 * DispensMate plus is supplied with S40, GL32, GL38, GL25, GL28 sized adapters
Specification
Volume Range （ml）
Graduation （ml）
A≤±
CV≤
%
μl
%
μl
0.5-5
0.1
0.5
25
0.1
5
1.0-10
0.2
0.5
50
0.1
10
2.5-25
0.5
0.5
125
0.1
25
5.0-50
1.0
0.5
250
0.1
50
Ordering information
Cat. No.
Range Volume
7032100001
0.5-5ml
7032100002
1-10ml
7032100003
2.5-25ml
7032100004
5-50ml
Cat. No.
Volume Range
Standard Accessories
17000069
S40,Adapter,45/40mm
17400017
GL32,Adapter,45/32mm
17400018
GL38,Adapter,45/38mm
17400019
GL25,Adapter,32/25mm
17400020
GL28,Adapter,32/28mm
17400021
Filling tube (m)
17400073
Discharge tube (m)
Optional Accessories
17400037
Reagent Bottle (Brown, 1L)
Attachment: DispensMate Bottle-top Dispenser Chemical Compatibility at 20℃ The devices of DispensMate plus which contact with dispensed liquid consist of BSG, PTEF, FEP, and closure cap of outlet is PP;non contact liquids parts consist of PC and other materials. Please note that these tables are just a directional guide not the manufacturer's commitment. Please read the user manual carefully before use and to do related experiments necessarily, which can be used to determine whether should be used. Good laboratory practice would be to rinse out the liquid handing unit at the end of each day with distilled water to prevent corrosive liquids being left in contact with the parts for too long. We referred to the general technical data and public information from related companies. The table below is not our proprietary data, for user's reference only.
Chemical
BSG
PTFE
FEP
PC
PP
Acids
Acetic, Glacial
R
NR
R
Acetic, 25%
R
R

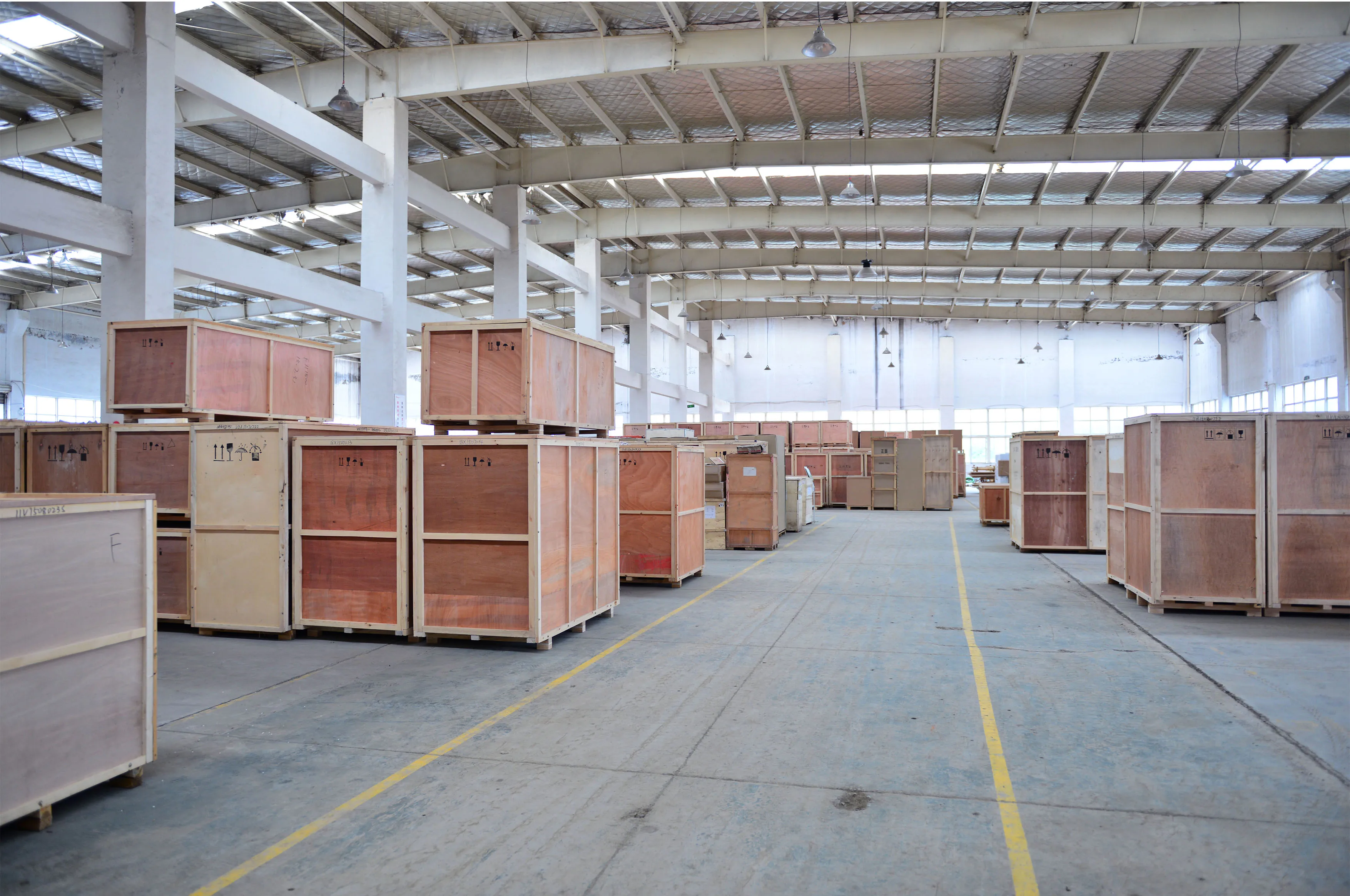

Packing&Transport
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

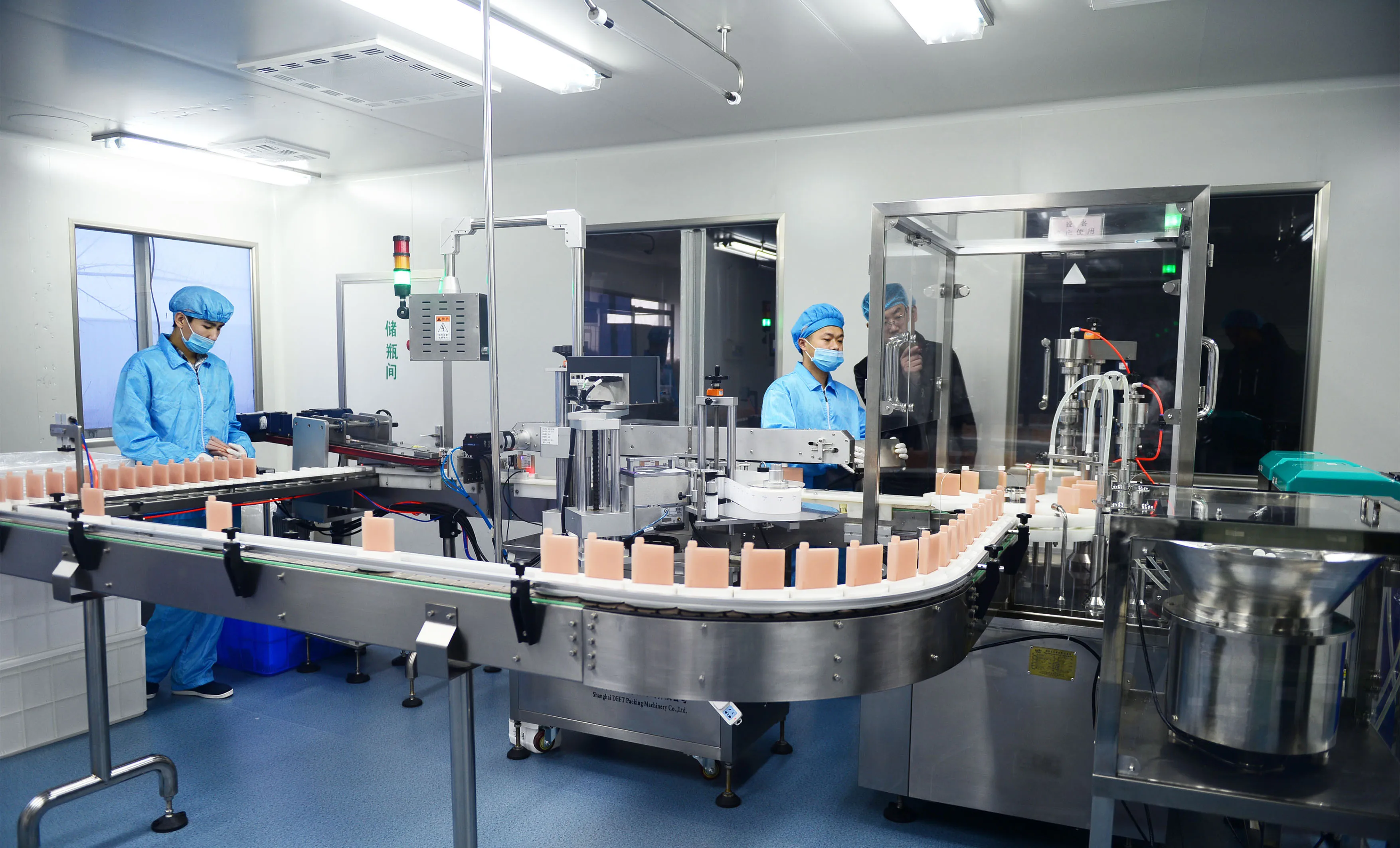

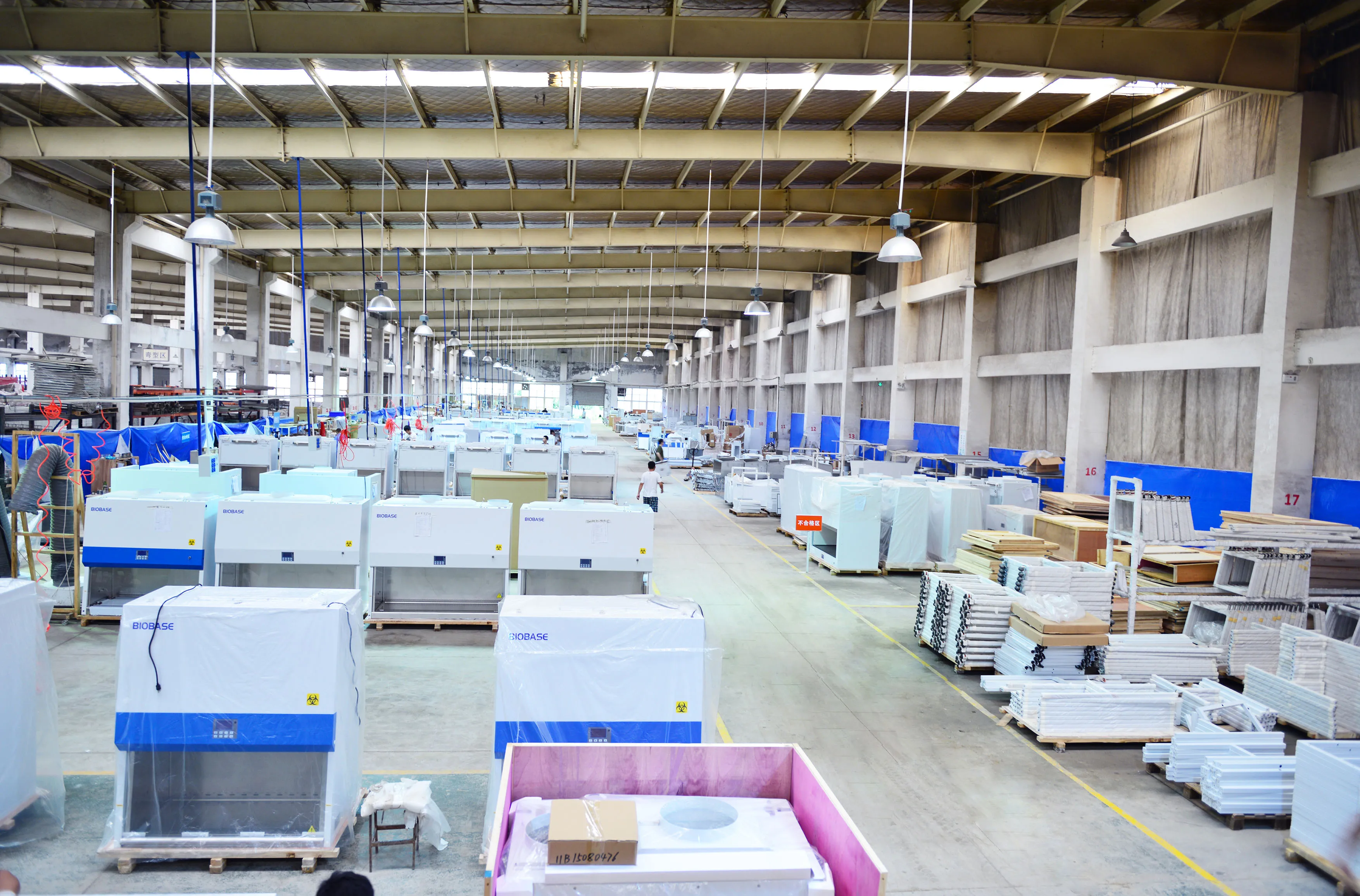

Company Profile
BIOBASE Group is a professional manufacturer of laboratory products since 1999.Our main products are Biosafety Cabinet(ClassI/II/III),Laminar Flow Cabinet,Fume Hood,Biochemistry Analyzer,Reagent,Autoclave and Incubator.We have more than 2000 employees and 20000 square meters production base.Our output per year reaches 10000 units.Pursuing the highest quality is the tenet of BIOBASE.
