Harmonic reducers can be divided into component type and combined type according to its structure.
This product is a component harmonic driver reducer, which can be directly installed and applied inside the device for secondary development and utilization, which improves the freedom of design.
This product is composed of three basic components, belonging to the type of direct combination of machinery and device, so that customers can choose the best model according to their own situation, improve the freedom of design, and then enrich the product lineup.
Product Description
Adopt international latest technology, under innovative tech, strict QC, our independent R& D team synchronously adopt international craft and cast great quality harmonic gear reducer. With s-shaped teeth, our harmonic reducer with high precision, low noise and long life.
Product Features
Four advantages of our Harmonic Reducer
1.S-shaped tooth
2.Long life
3.High precision
4.Low noise
Product Parameter

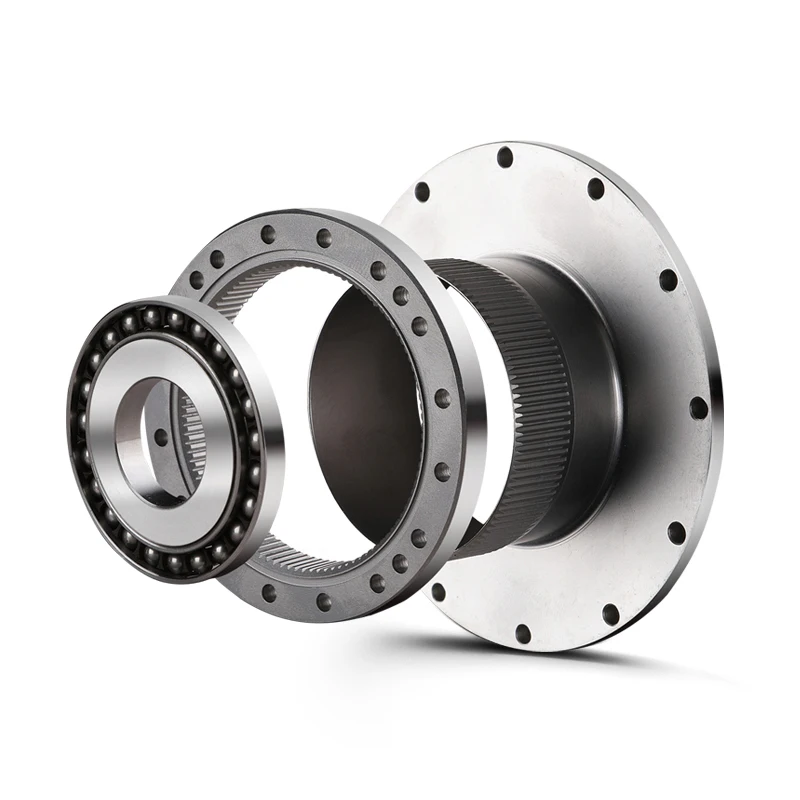

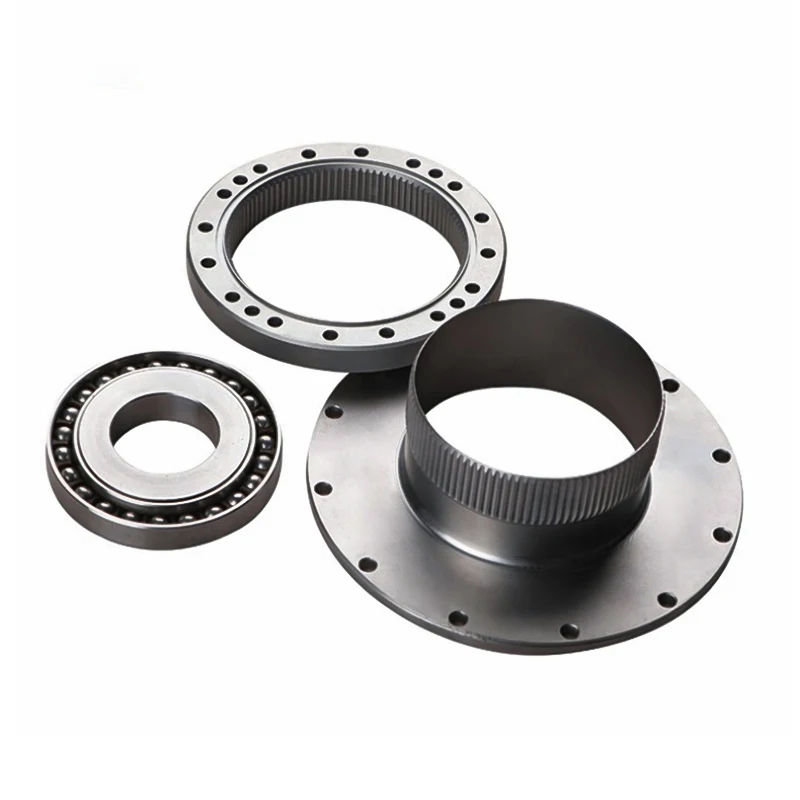

The component type harmonic reducers consist of only three basic parts. It belongs to the type of direct combination to machinery and devices, so that customers can choose the best model according to their own situation, enhance the freedom of design, and then enrich the lineup of various products. The product structure is as follows.
Technical Parameter of LSG-ZJ Harmonic Drive Reducers
Model
Reduction ratio
Rated speed when input 2000r/min
Allowable peak torque at start stop
Maximum allowable load torque on average
Maximum allowable moment torque
Nm
kgfm
Nm
kgfm
Nm
kgfm
Nm
kgfm
14
50
7.0
0.7
23
2.3
9.0
0.9
46
4.7
80
10
1.0
30
3.1
14
1.4
61
6.2
100
10
1.0
36
3.7
14
1.4
70
7.2
Model
Reduction ratio
Allowable maximum input speed r/min
Allowable average input speed r/min
Rotational inertia
Back clerance
Angular transmission accuracy
Lubricating oil
Grease lubrication
Lubricating oil
Grease lubrication
I *10-4kgm²
J *10-5kgfms²
arcsec
arcmin
14
50
14000
8500
6500
3500
0.033
0.034
36
1.5
80
23
100
18
Application
This model harmonic gear reducer could be used in spraying equipment, CNC machine, printing equipment, packaging machinery and etc.

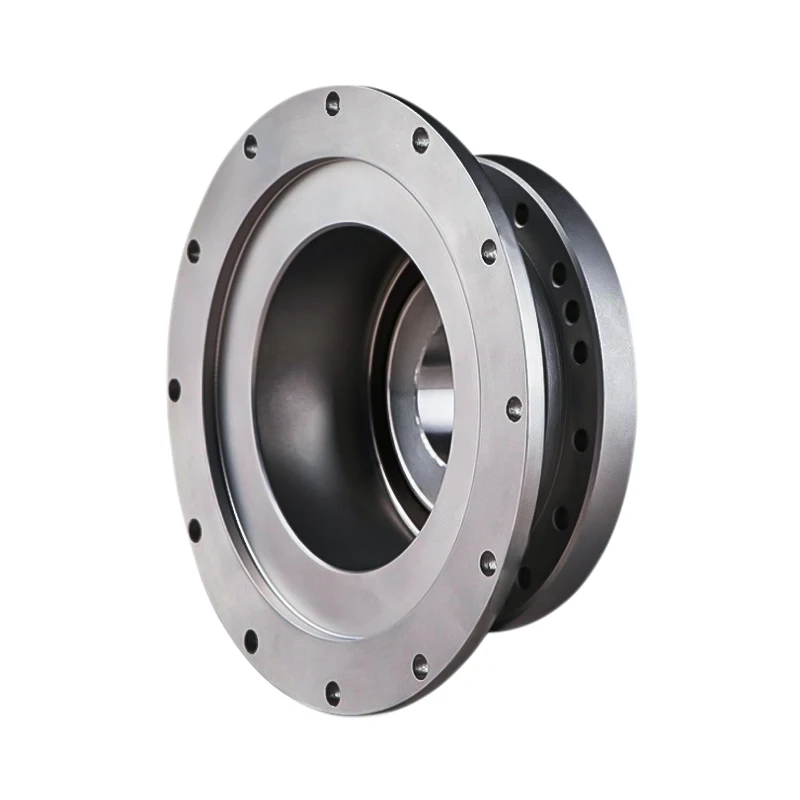

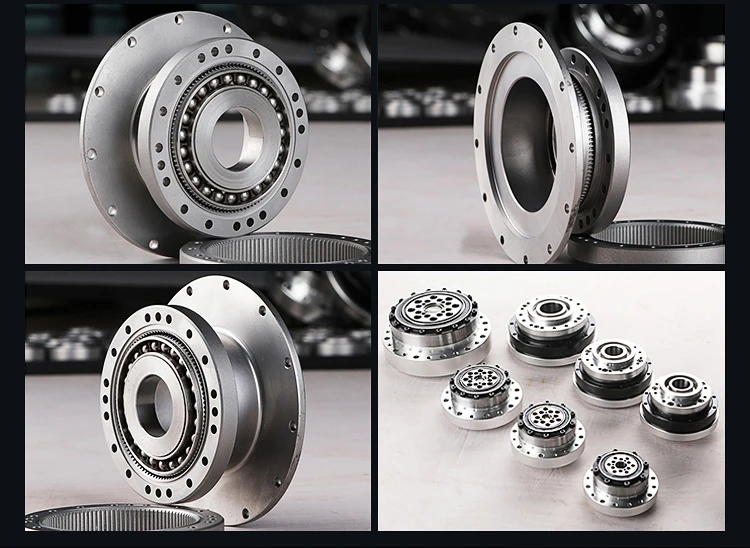

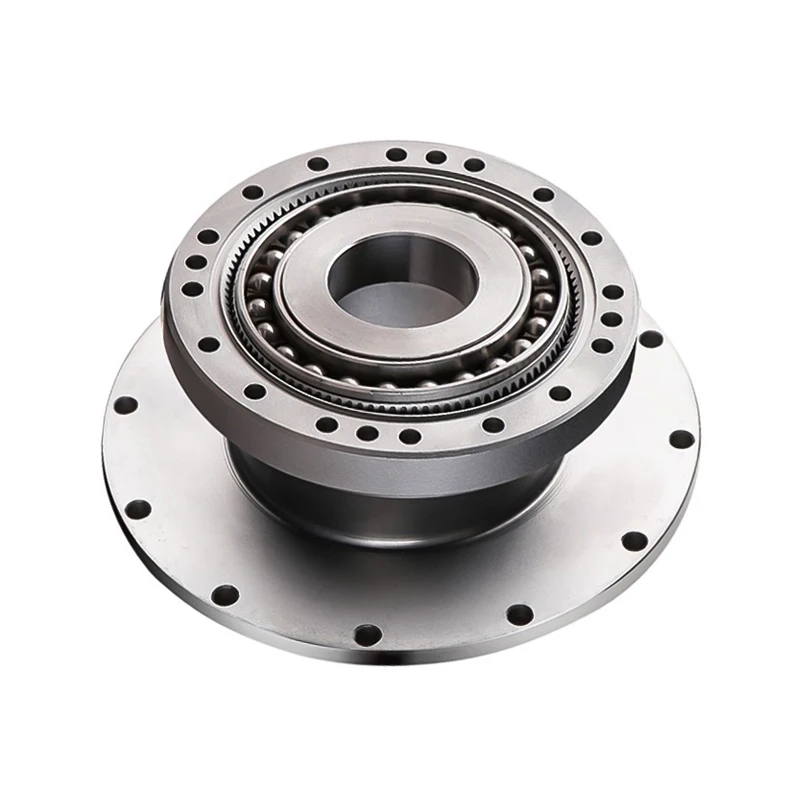

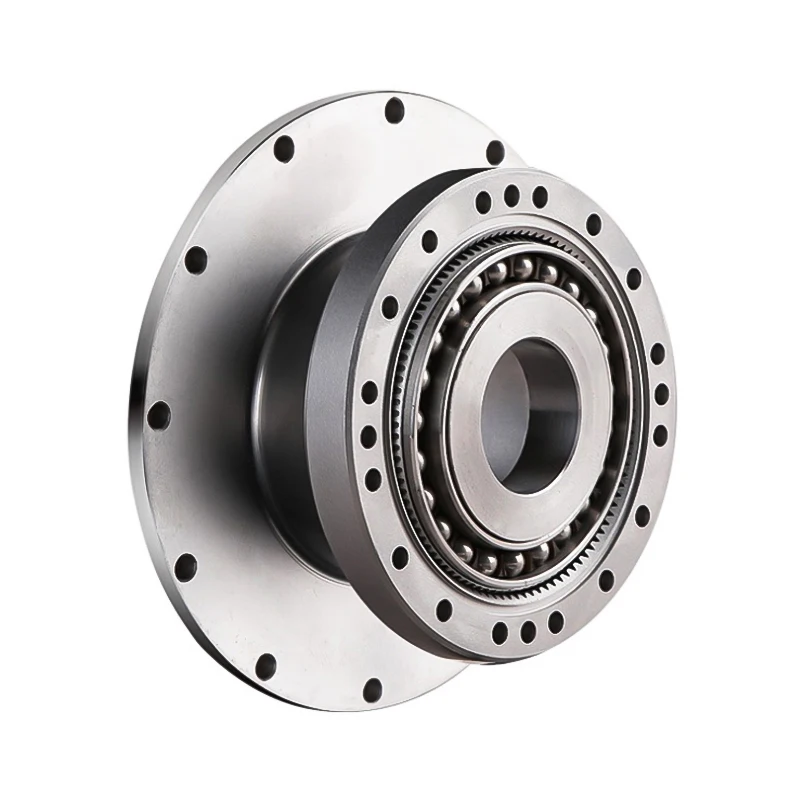

Product details
Related Products
Company Information
Zhengzhou Defy Mechanical&Electrical Equipment Co., Ltd. Is a leading manufacturer of electric motors and drivers. Our core products include stepper motor, dc brushless motors, closed-loop hybrid stepper motors and drivers. The products are mainly used in laboratory equipment, medical instruments, advertising equipment, subway equipment, surveillance products, textile industry and other automation equipment.
Our Services
1. We accept small order of harmonic reducer;
2. Sample order of harmonic gear speed reducer delivery time is in 9 days, mass quantity order lead time is 7-15 days;
3. We can accept payment via paypal, T/T and L/C;
4.Quality assurance of our harmonic reducer is 1 year, and we can provide you professional technical support;
5. We provide free software wand training how to use the products. Engineers are available for technical support.
FAQ
Q: Are you trading company or manufacturer ? A: We are manufacturer and trading company.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: How long is your delivery time? A: Due to the complex process, production takes 8-10 working days. For customized goods, please check with us before order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Usually by express, like DHL, UPS, FedEx, EMS or TNT; By air and sea are also available.
Express takes 3-15 days to arrive.
Q: What is your terms of payment ? A: We accept Trade Assurance Order, TT, Paypal, West Union and L/C.
