Характеристики
Product Overview

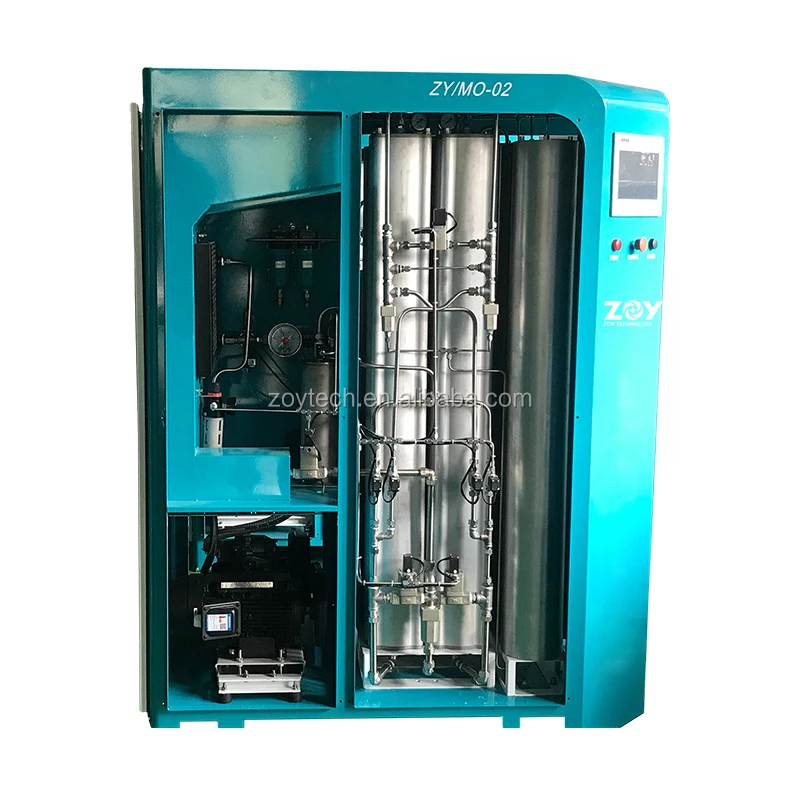

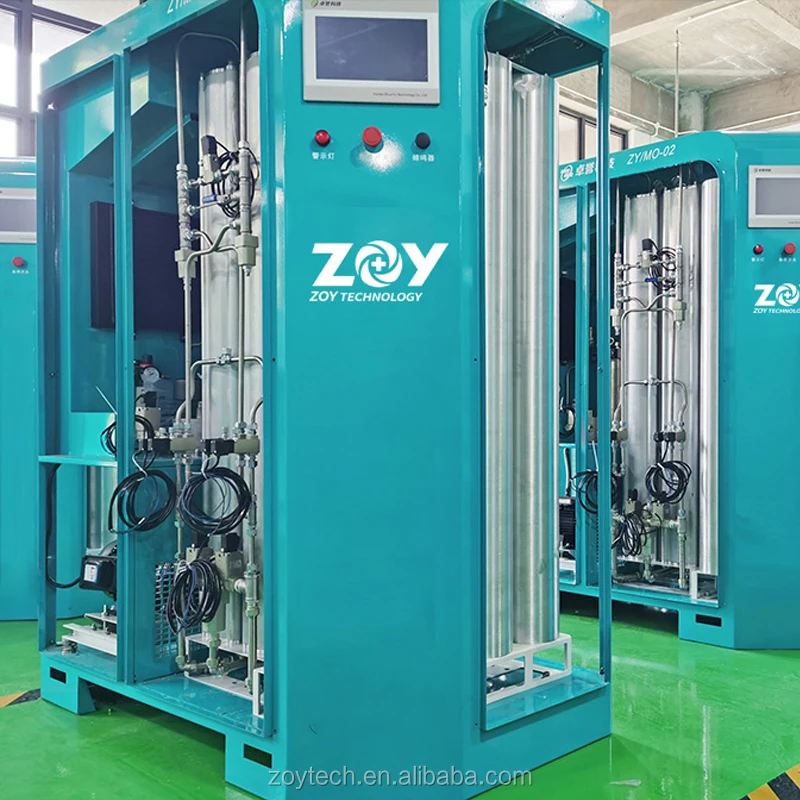

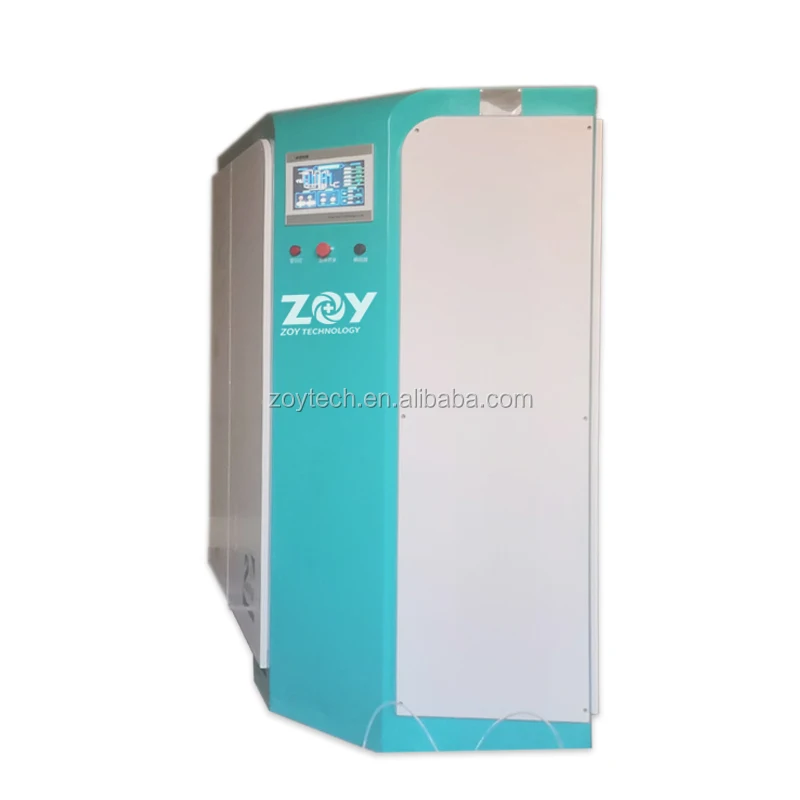

ZY-02 PSA Oxygen Generating System
Integrated PSA Oxygen Generating System,Equipped with Zeolite molecular sieve as the adsorbent, PSA Oxygen Generator can separate oxygen from the surrounding air by adsorption and release of nitrogen. Oxygen concentrations can be 93%(±3%).
FEATURES AT A GLANCE
• Integrated Design
• Produce Oxygen From Surrounding Air
• Physical Separation No Chemical Process
• With Noise Eliminator
• Intelligent Control System
• Low Operation Cost
• Extremely Safe and Environment Friendly
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Oxygen Output | 2 Nm3/h |
2 | Oxygen Concentration | 90~96% |
3 | Pressure | 0.2~0.5 Mpa (adjustable) |
4 | Power | 4Kw |
5 | Size | 1470*850*1800mm |
6 | Noise Level | 60dB |
7 | Weight | 630Kgs |
Zeolite is with three-dimensional structure which forms uniformly sized pores. As the pores preferentially absorb small molecules and exclude large molecules, Zeolite acts as molecular sieves. Zeolite molecular sieve will absorb nitrogen and separate high purity oxygen under high pressure; it will release nitrogen at low pressure. Two adsorption towers process nitrogen adsorption and release. Once Zeolite molecular sieve in tower A absorbs enough nitrogen, tower A will stop the separation process and begin to release nitrogen into the nitrogen storage tank. Tower B will begin to separate the oxygen. Two towers separate oxygen alternately.
PRODUCT CONFIGURATION
Oil-free Iwata air compressor, 200℃ high temperature sterilizing process kills most germs in the air.
The system equipped with 4-stage filtration, which filtered water, oil,dust particle in the air.
Bee series oxygen analyzer adopts the European-imported ion flow oxygen sensor which could accurately analyze oxygen concentration.
Zeolite molecular sieve work as the adsorbent in PSA process to separate oxygen from the air.
Remote Intelligent Control System in Real time: Simple operation or monitoring on app.
PLC control system realized function of plug and play, one-button to start and stop.
Why Choose Us
Strong Supply Chain
Core Components from well-known brands all over the world, Strong supply chain system ensures stable and reliable quality and after-sales service support.
Traditional Oxygen Supply
Expensive maintenance and transport cost, unstable and unsafe, strict storage requirement and lots of waste caused.
Oxygen is everywhere in the surrounding air, now with our ZOY Integrated PSA Oxygen Generator System, you can get 93±3% purity oxygen 24*7 hours.
With our Zoelite molecular sieve in PSA process, oxygen produced with physical process doesn't contain any chemicals.
Our PSA control system makes operation extremely easy. App operate and monitor on mobile or laptop, automatic design makes operate cost and maintenance cost low.
Successful Project
COMPANY PICTURES
Hunan ZOY Medical Technology Co., Ltd. is located in Changsha Economic Technological Development Zone (Hunan, China). Our company is professionally engaged in researching, developing and manufacturing medical oxygen generating equipment. As a high-tech enterprise, we can provide customers with medical PSA Oxygen Generator, integrated PSA Oxygen Generating System, PSA Oxygen Generating System, Hyperbaric Oxygen Chamber and Nitrogen Reuse System, etc. We can provide a variety of gas supply solutions according to customer requirements, and provide users with repair and maintenance, technical training and technical supports in respect of nitrogen, oxygen generating equipment and related equipment.
As the market leader of PSA Oxygen Generating System, ZOY obtains a variety of certificates, including CE certificate, ISO9001 Quality Management System Certificate, ISO13485 Medical Device Quality Management System Certificate, AAA Credit Rating certificate. And ZOY holds two nationally authorized invention patents and nine innovation patents. ZOY exports products to Southeast Asia, Africa, the Middle East and other overseas markets. The after-sales offices cover more than 20 countries and regions. Premium quality is the mission of ZOY. We are committed to producing high-quality medical PSA Oxygen Generating Systems and be a trusted business partner for customers.
FAQ
Q1. Are you manufacturer or trading company?
We are the manufacturer of Integrated oxygen generator system, we have our own factory,research Lab, showroom,sales center in Changsha,Hunan province.
Q2. What's the system installation environment requirement?
The system requires a dry ventilated environment.
Q3. What terms of payment you use?
T/T, L/C etc.
Q4. Do you offer customized services?
Yes, We offer customized products according to different oxygen demand.
Q5. Before get a prompt quotation,which technical information is required?
For hospital use:
A.Need to provide the Hospital oxygen servey, we would send the required information data table.
B.For other application:
1)O2 flow rate: _____Nm3/hr
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
Q6.What about your after-sale services?
We provide a variety of gas supply solutions according to customer requirements, and also provide users with repair andmaintenance, technical training and technical advice in respect of nitrogen, oxygen generating equipment and related equipment.
