Brand Name | SINOPES |
Model Number | TDP 5 |
Shaping Mode | Blowing Mould |
Product Material | Aluminium |
Product | tablet press machine mould |
Application | Tablet Pressing |
Product Name | tdp tablet press machine |
Tablet shape | Round Tablet And Irregular Tablet |
Keyword | automatic tablet press machine |
Usage | Cube Making Machine |
Warranty | 12months |
Material | 304 Stainless Steel |
Name | Tablet Press Punch |
Model | Tdp1.5/5/6t |
Shape | irregular |
Model | TDP-1.5 | TDP-5 | TDP-6 |
Max.Pressure (kn) | 15 | 50 | 60 |
Max.Diameter of Tablet (mm) | 12 | 16 | 25 |
Max.Depth of Tablet (mm) | 11 | 12 | 16 |
Max.Thickness of Tablet (mm) | 6 | 6 | 10 |
Production Capacity(pc/h) | 6000 | 6000 | 6000 |
Motor (w) | 250w 1400r/min | 750w 1400r/min | 1.1kw 1400r/min |
Overall Size(mm) | 580*450*625 | 580*500*700 | 650*600*700 |
Net Weight(kg) | 70kgs | 125kgs | 160kgs |

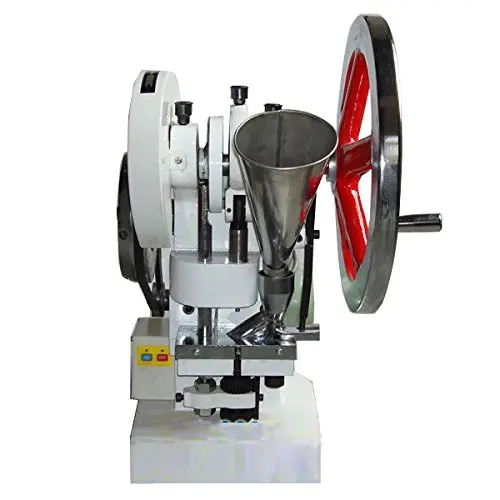

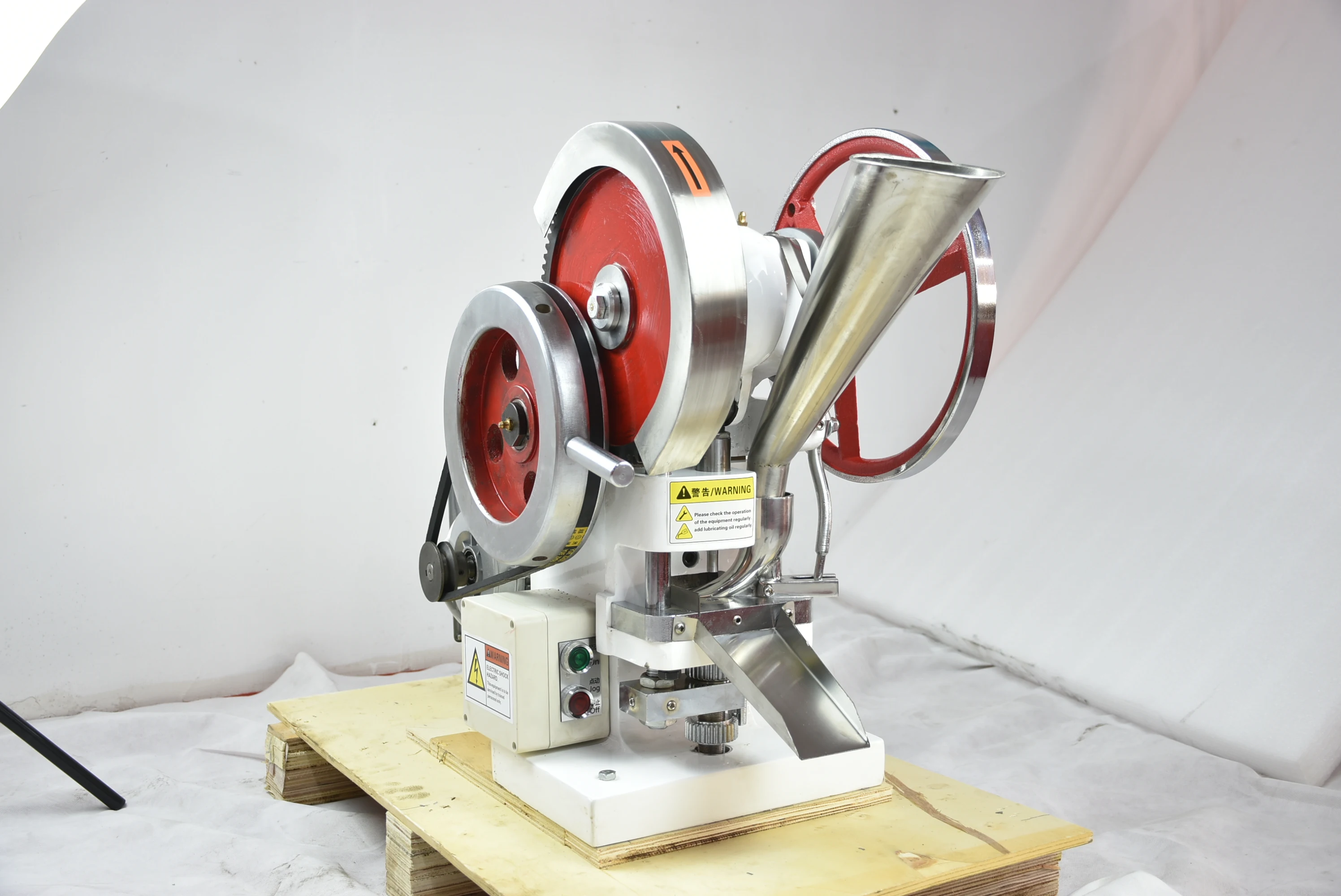

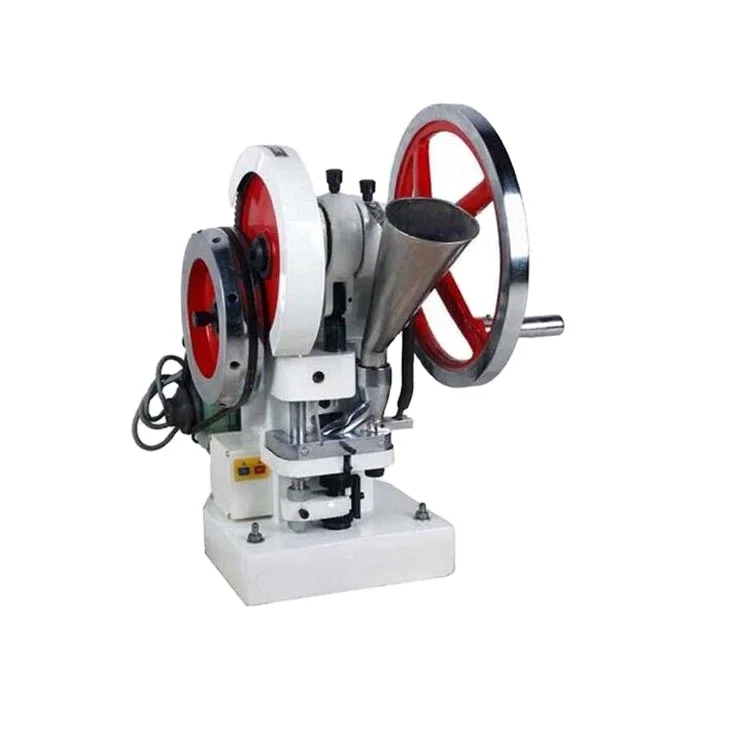

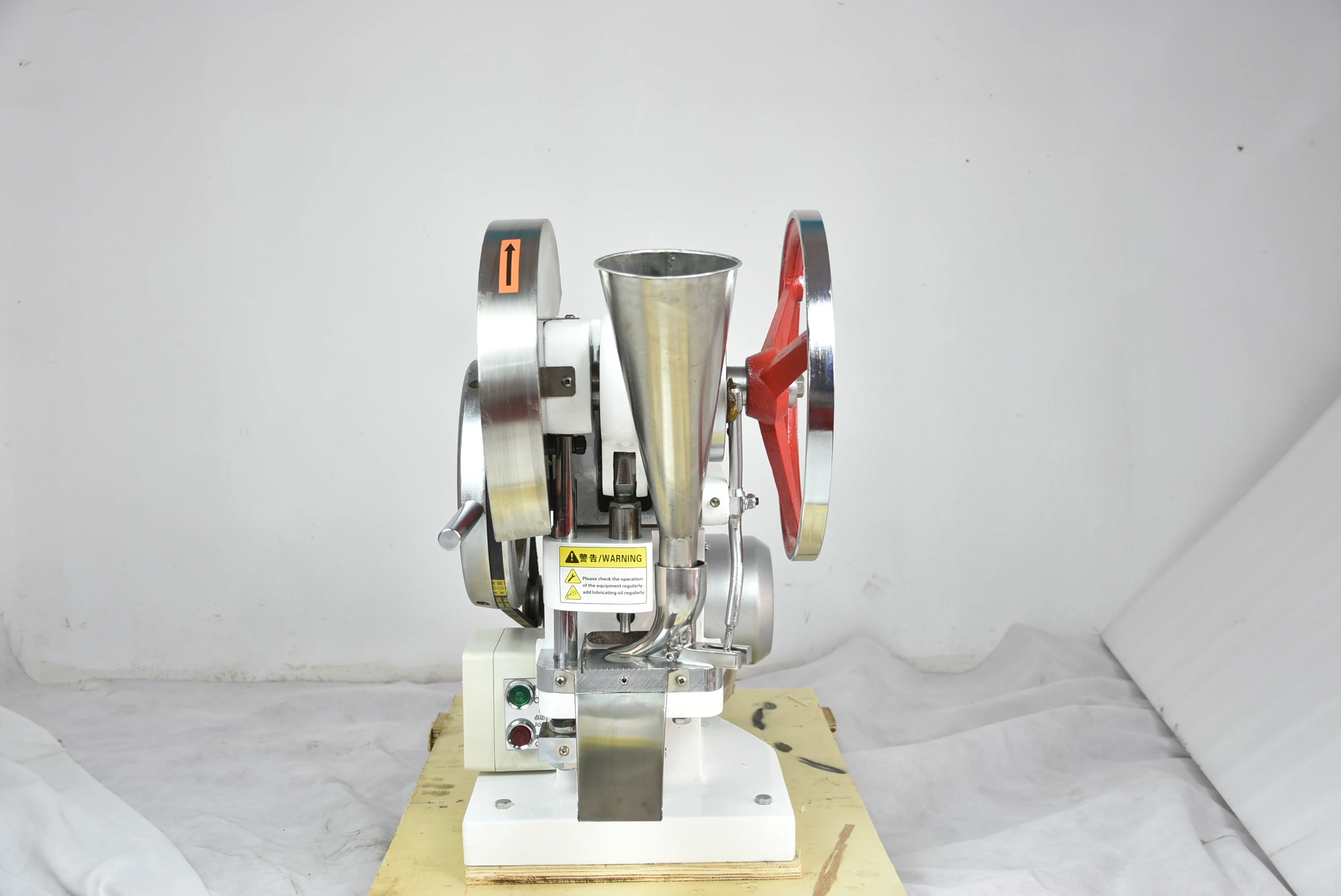

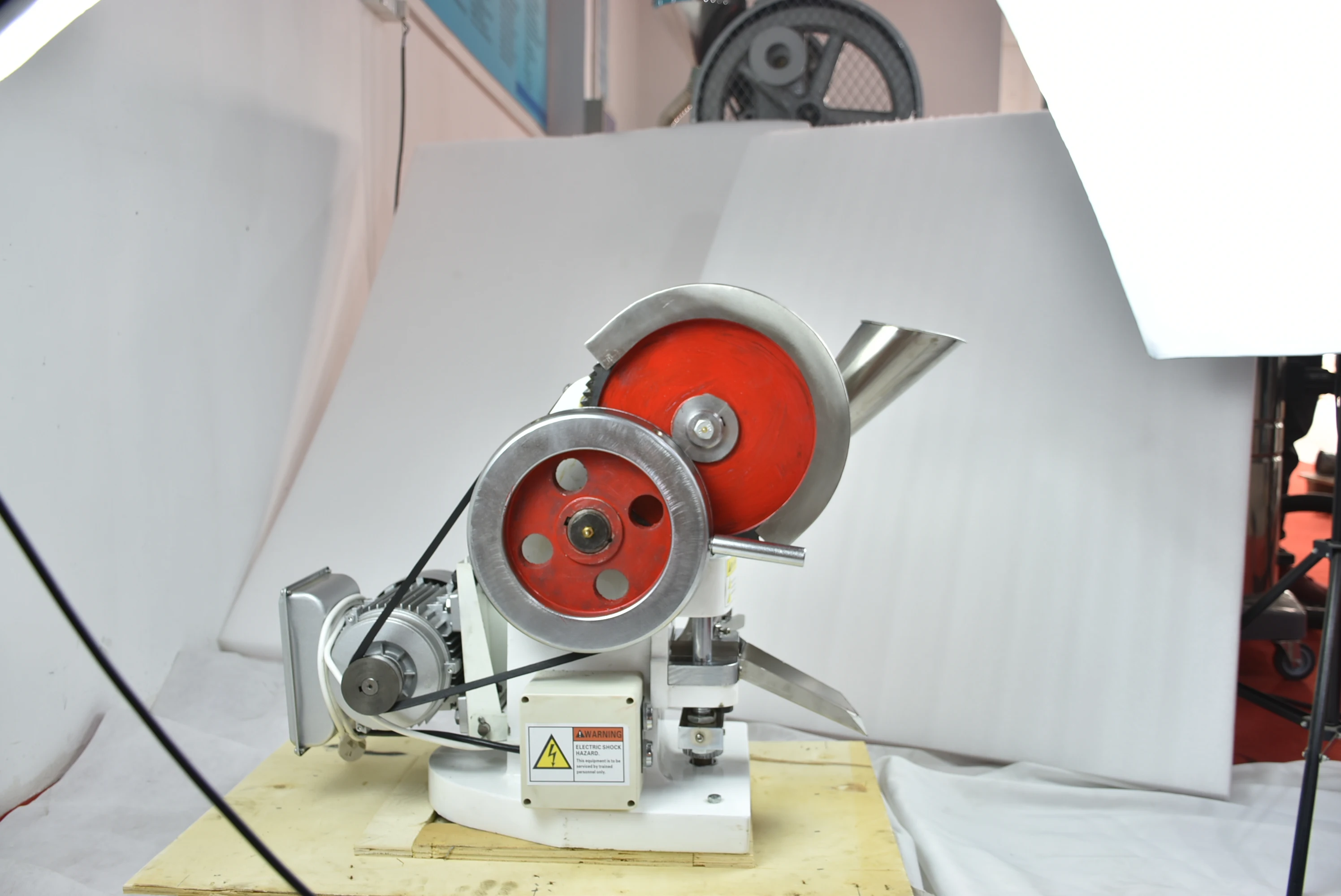

Single Punch Tablet Press Machine
Single Punch Tablet Press Machine for sale
Desktop pill press machine for sale
The single stamping machine is suitable for the suppression of Chinese medicine tablets, western medicine tablets, chewing tablets, calcium tablets, mouth buccal tablets, spirulina slices, milk slices, candy slices, effervescent tablets, camphor pill (sanitary ball), aromatic slices, flavor blocks, disinfectant tablets, catalyst, chemical fertilizer tablets, pesticide tablets, button batteries, electric components, metallurgical powder ceramics particles, etc. It's a small desktop electric (manual) continuous press machine.

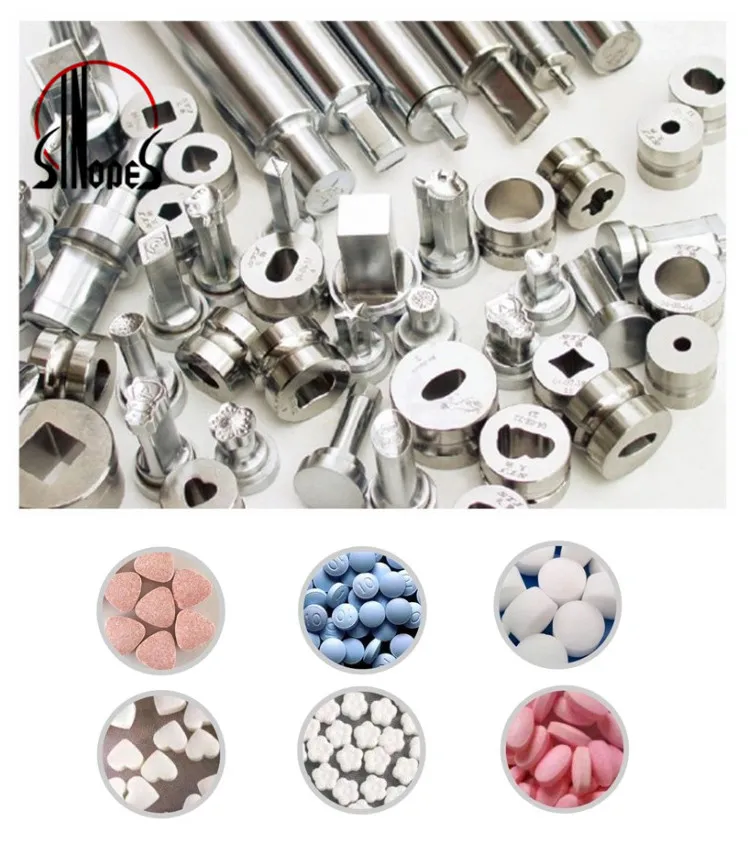

The machine is equipped with a punch die, the material's filling depth and the thickness of the press can be adjusted. Various shapes of molds can be provided according to customer requirements. The single stamping machine can be used in pharmaceutical factory, chemical plant, hospital, scientific research unit, laboratory trial production and small batch production. This machine has excellent performance, strong adaptability, easy to use, easy to maintain, small volume and light weight, and can also be used for hand-held tablets when there is no electricity. This machine only has one charge die, the filling depth and the thickness of the press can be adjusted. It can adapt to the requirements of the pharmaceutical industry to suppress various Chinese and Western medicine and other industries to suppress a variety of similar products. It is well received by the broad users of various industries
