Необработанный медицинский кабель holter monitor

Необработанный медицинский кабель holter monitor

Категория: >>>
Поставщик: Dongguan,Tolos,Wire,&,Cable,Co.,Ltd.

Цена:0,80 $ - 0,85 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.6 $*	0.19 $*
Aug-18-2025	0.15 $*	0.36 $*
Jul-18-2025	0.19 $*	0.37 $*
Jun-18-2025	0.76 $*	0.0 $*
May-18-2025	0.59 $*	0.13 $*
Apr-18-2025	0.28 $*	0.22 $*
Mar-18-2025	0.65 $*	0.49 $*
Feb-18-2025	0.28 $*	0.89 $*
Jan-18-2025	0.38 $*	0.49 $*

Характеристики

Product Description

Holter monitor ecg holter cable raw medical wire

5 wires ecg cable
Model:	101-0235811-419
Color:	gray
Certificate:	ISO 13485
Conductor:	19/0.10TC
Insulation:	HDPE
Inner shield:	Tinned copper spiral
Filler:	nylon
Out shield:	Tinned copper spiral
Jacket:	TPU
OD:	5.0 MM

Main technical parameters:

Main technical parameters
Conductor Resistance:	0.5 Ω /M/3m Min
Dielectric Strength:	AC1000V,Leakage Currence less than 0.25MA(3m)
Insulation Resistance:	DC 500V 100MΩ /3M MIN
Flex test:	300G,90° degree each side,6cycles/min,more than 3000 cycles
Adhesion Test:	Insulation adhesion during 1.15-2.5 LBS,Jack adhesion during 2-8LBS
Relative humidity:	≤80%
Atmospheric pressure:	700hPa~1060hPa

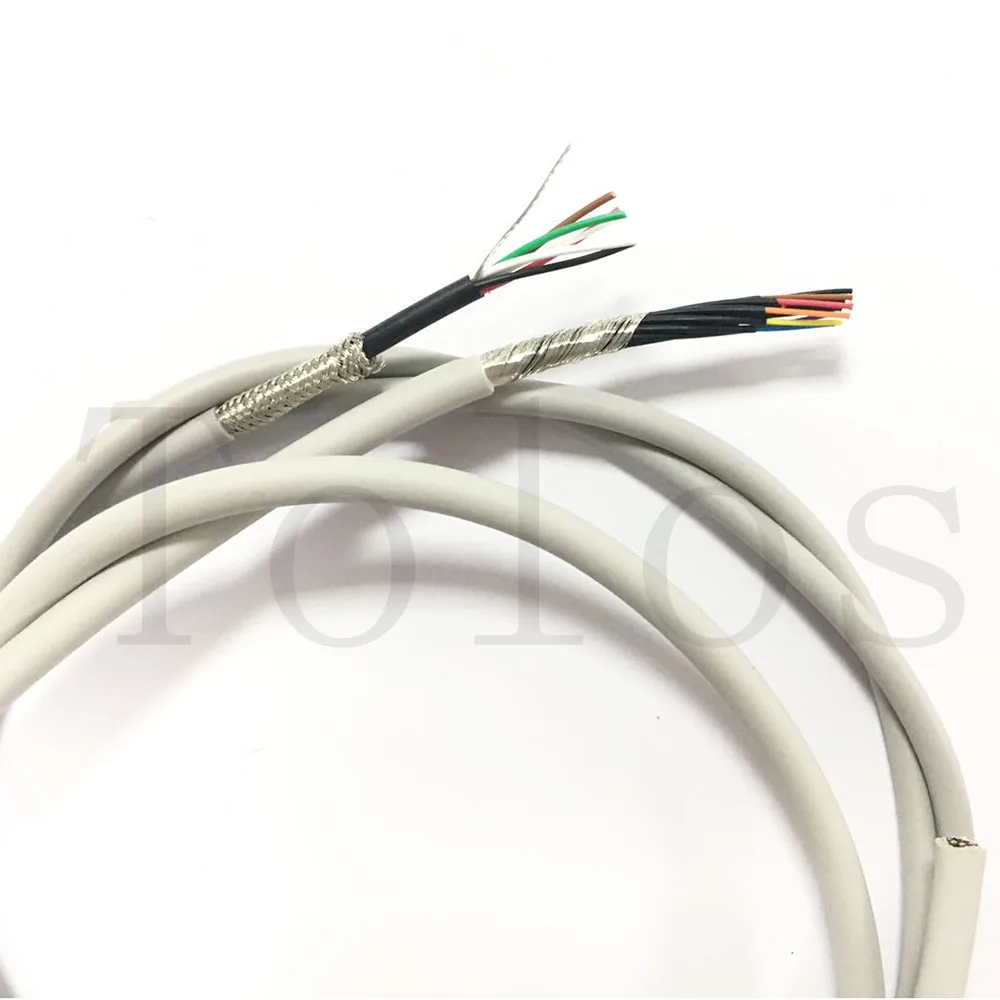

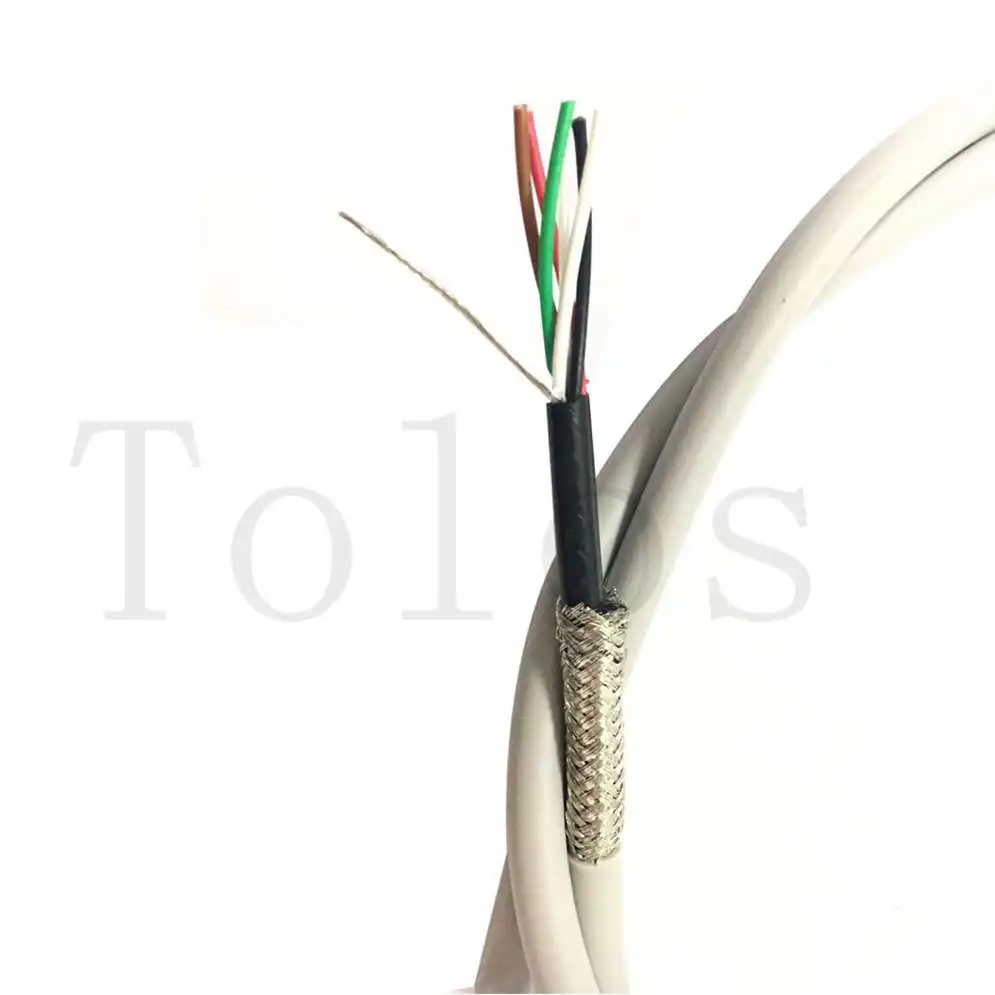

More picturers for holter monitor ecg holter cable raw medical wire

.jpg

Advantage>>>>

* use for ecg trunk cable , ecg patient cable

* Double shielding structure design to ensure the stability of signal trassmission

* Shielding cover rate more than 90% , good anti-interference effect , to ensure the accurance

* Filler material use cotton resistance to tensile and bending strength guarantted .

* According to bio-compatibility

Packaging & Shipping

>> Package

We care of every product ,to prevent damaged during transportation , all products are carefull package before shipment .

package cable

>> shipment

1. Ship by express ( frieght collect ) , just inform us your express account , like DHL , Fedex , TNT , UPS .....

2. If you have your own forwarder , just inform us their contact information , we will contact with them about the shipment before goods ready .

3. If no express account and forwarder , we can help arrange the shipment with our trusty forward .

Company Information

About tolos wire & cable co ltd>>>>

Specalized in manufacturing medical endoscope mdoule comsumables , providing a complet set of services for medical endoscope enterprises , including ;

** Design of medical endoscope wire

** Module welding processing

** Module package

** Assembly of the whole machine

** Image processing schme

** All kinds of medical wire processing , spo2 cable , ecg cable , temp cable ......

** Produce and process awg 36-46 ultra fine coaixal........

Our Services

>> Why choose tolos wire & cable co ltd ?

Looking forward to cooperating with you,please contact us and give us the opportunity to serve you.

We provide OEM/ODM customized service, support sample services, factory direct sales prices, low MOQ, mass production, on-time delivery and provide perfect after-sales service.

WHY CHOOSE US :

1. We are factory suppliers, not trading companies.10+ Years OEM and ODM Experiences.

2. 7*24 hours services.

3. Fast delivery : 3-7 sample days ; 15-30 days order delivery.

4. We have the ROHS , SGS , ISO 13485 , Bio-compatibility Certifications.

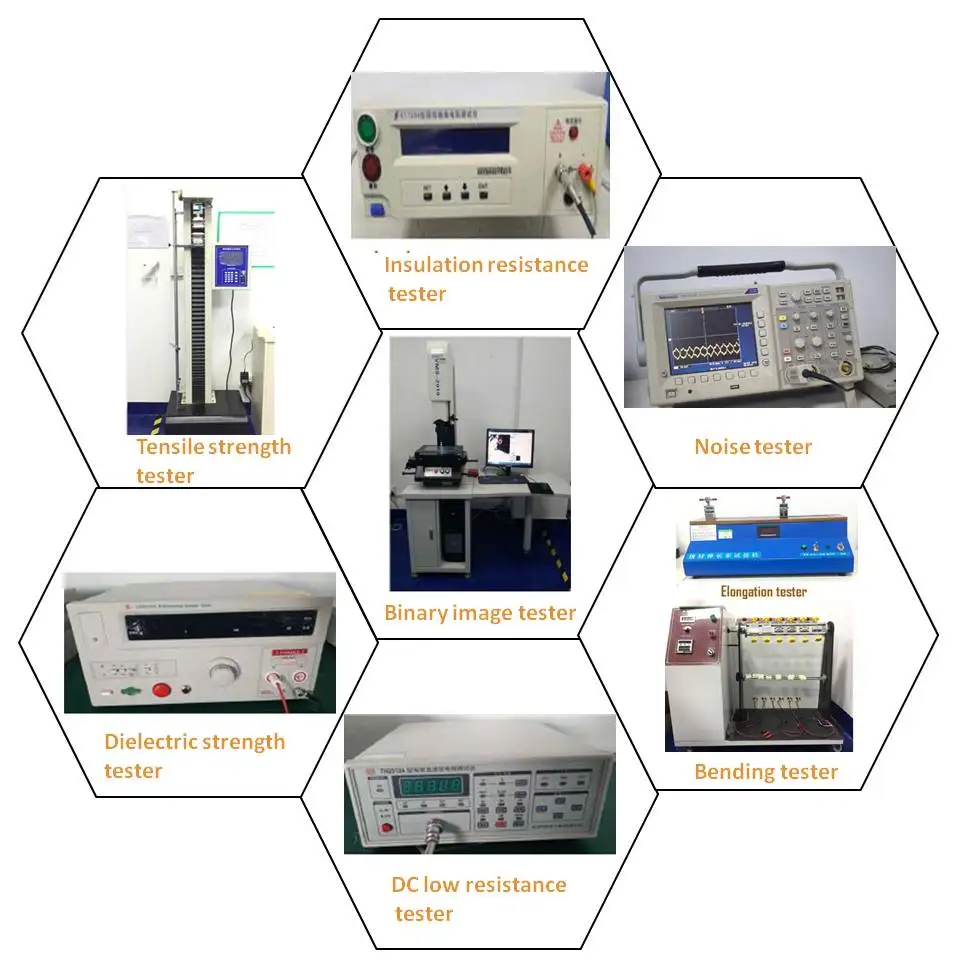

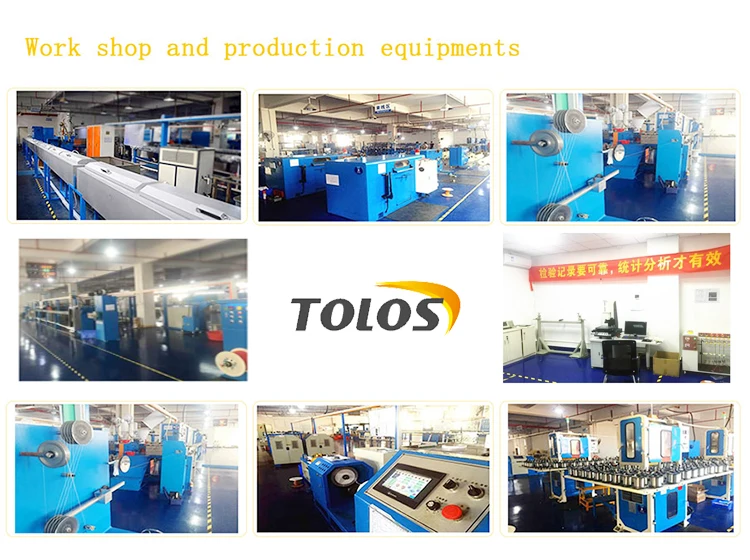

5. We have the most perfect production and testing equipments, the best medical cable research and development team, provide a full range of customized services to help your products to obtain better sales.

6 High reputation from customers .
