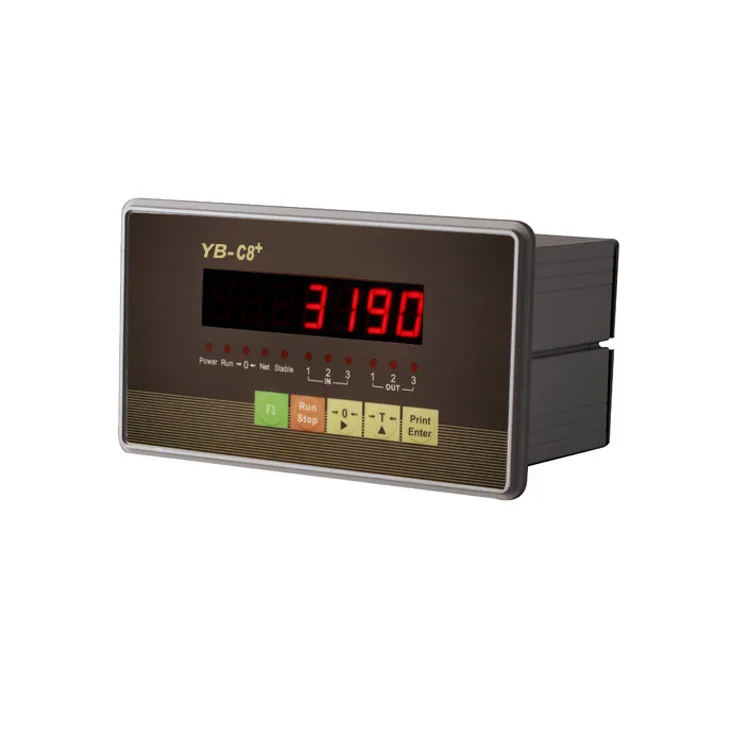

Контроллер взвешивания Датчик сжатия с дисплеем датчик нагрузки
- Категория: Instrument Parts & Accessories >>>
- Поставщик: Ningbo,Majia,Electromechanical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 107.82 $* | 112.38 $* |
| Aug-18-2025 | 106.52 $* | 111.71 $* |
| Jul-18-2025 | 89.85 $* | 93.38 $* |
| Jun-18-2025 | 104.69 $* | 109.84 $* |
| May-18-2025 | 91.30 $* | 96.41 $* |
| Apr-18-2025 | 103.81 $* | 108.25 $* |
| Mar-18-2025 | 102.30 $* | 107.59 $* |
| Feb-18-2025 | 101.79 $* | 106.95 $* |
| Jan-18-2025 | 100.15 $* | 105.43 $* |
Характеристики
Features
3 inputs, 3 outputs (3 output relays inside) control
High precision A/D conversion with readability 1/30000
With 5 points nonlinearity amend
If change the former indicator, no need to re-calibrate, only to input parameter of former indicator
Embodies with automatic grarimetric filling instruments, catchweigher, alarm for max and min limitation and peak value preserving functions
Able to set fixed-value, pre-act value, Max-min limitation, and delay time freely based on different applications
1-2 materials available for plus/minus scale; external, self-testing, and free max and min modes are available for catchweigher
Standard RS-232/422/485 communication interface, baud rate and way of communication is optional
Standard scoreboard interface serial sending signal by 20mA current loop (constant current)
Precise simulate signal output with mode of 4-20mA/0-20mA/0-5V/0-10V optional, adjustable
Accumulative weight and times is able to be stored, check, delete, and with date-protection when power cut off
Able to connect with serial printer to print weighing record, accumulative amount or combined information, kg, t, g, lb is an optional print unit
Zero tracking, range for zero (automatic and manual) is free to be set
Strong anti-jamming and reliability
ESD protection performance: touch 6KV, air 8KV.
Able to recover from factory setting
High precision A/D conversion with readability 1/30000
With 5 points nonlinearity amend
If change the former indicator, no need to re-calibrate, only to input parameter of former indicator
Embodies with automatic grarimetric filling instruments, catchweigher, alarm for max and min limitation and peak value preserving functions
Able to set fixed-value, pre-act value, Max-min limitation, and delay time freely based on different applications
1-2 materials available for plus/minus scale; external, self-testing, and free max and min modes are available for catchweigher
Standard RS-232/422/485 communication interface, baud rate and way of communication is optional
Standard scoreboard interface serial sending signal by 20mA current loop (constant current)
Precise simulate signal output with mode of 4-20mA/0-20mA/0-5V/0-10V optional, adjustable
Accumulative weight and times is able to be stored, check, delete, and with date-protection when power cut off
Able to connect with serial printer to print weighing record, accumulative amount or combined information, kg, t, g, lb is an optional print unit
Zero tracking, range for zero (automatic and manual) is free to be set
Strong anti-jamming and reliability
ESD protection performance: touch 6KV, air 8KV.
Able to recover from factory setting
Specification
Company Profile
NingBo Maken Electric company which focus on designing, producing and selling load cells and auto control system. We Maken have the plant cover 12,000 square meters, equipped with state of art devices for production, testing & calibration. Its working condition is very nice and R&D ability is strong, we Maken with the annual producing capacity more than 500,000 pieces or sets of load cells, and more than 55% are sold abroad.
We Maken has already passed the approval of ISO9001, OIML R60 C3, CE and Anti-explosion, and obtained many patents and certificates on weighing field. Meantime we Maken established the management system like OA and ERP, sales net almost covered all of China and most of major countries in the world.
We Maken has already passed the approval of ISO9001, OIML R60 C3, CE and Anti-explosion, and obtained many patents and certificates on weighing field. Meantime we Maken established the management system like OA and ERP, sales net almost covered all of China and most of major countries in the world.
We Maken is not only producing but also focus on supplying for technical solution and superior service. We Maken steps forward through improve existed old items, develop new products and focus on superior advance products into Modular, digital, intelligent. Especially, we successfully develop first weighing system or load cells connected to mobile phone with functions like remote wireless control, management and updates etc. We strong believe this kind of system and load cells will be become the most popular new generation intelligent product with the development of the mobile phones and applying of 5G service in the near future.
Every features of Maken is the point why you chose our products & service！
Every features of Maken is the point why you chose our products & service！
Certifications
Exhibition
Production Flow Chart
Sample Room
Our Advantages
Payment & Delivery
