Для автоматического пластинчатого оборот луч ротатор Поворотная машина для
- Категория: Другое грузоподъемное оборудование >>>
- Поставщик: Shandong,Yomi,Intelligent,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.57 $* | 0.55 $* |
| Aug-18-2025 | 0.39 $* | 0.91 $* |
| Jul-18-2025 | 0.68 $* | 0.44 $* |
| Jun-18-2025 | 0.73 $* | 0.41 $* |
| May-18-2025 | 0.61 $* | 0.47 $* |
| Apr-18-2025 | 0.46 $* | 0.69 $* |
| Mar-18-2025 | 0.59 $* | 0.49 $* |
| Feb-18-2025 | 0.45 $* | 0.38 $* |
| Jan-18-2025 | 0.70 $* | 0.79 $* |
Характеристики
Product Description

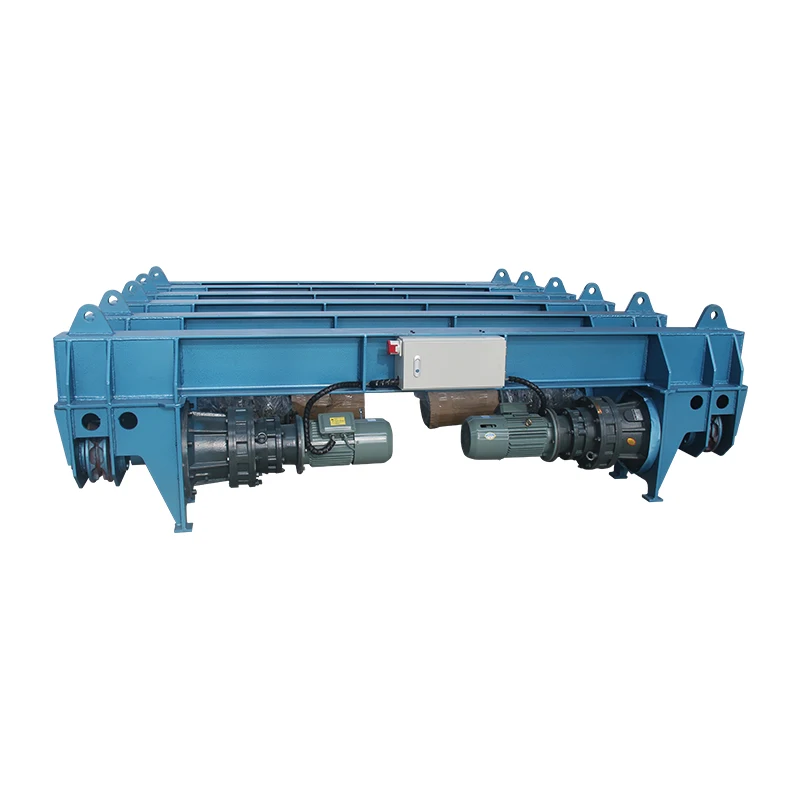

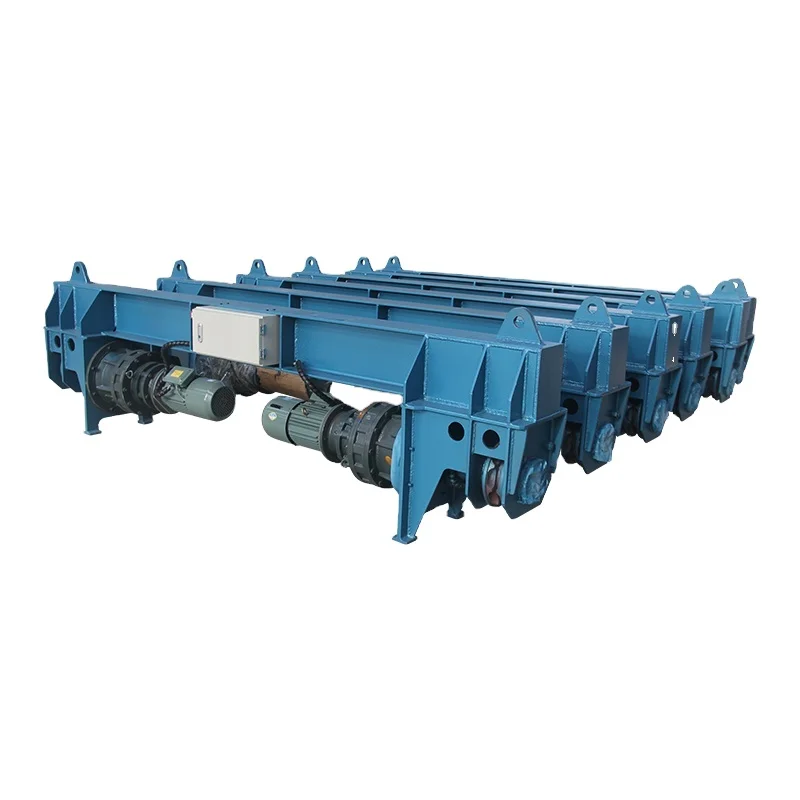

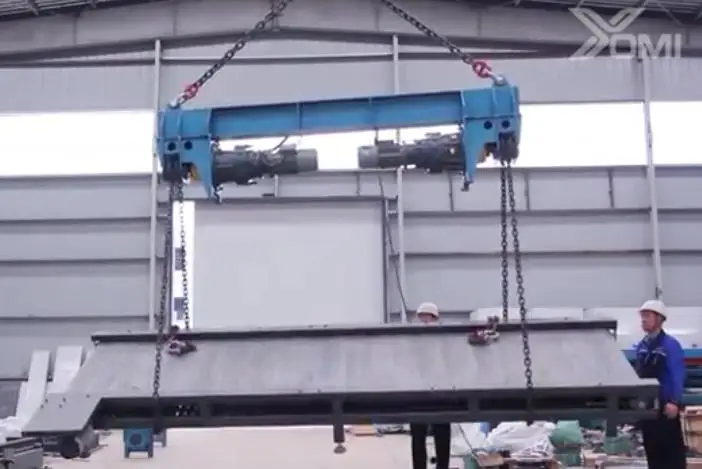

Automatic plate turnover beam rotator turnover machine
When manufacturing heavy or complex components, steel structure enterprises often face problems like low rotating efficiency, high risk and surface damage of components. Our company’s chain rotator machine can solve the above problems well.
When manufacturing heavy or complex components, steel structure enterprises often face problems like low rotating efficiency, high risk and surface damage of components. Our company’s chain rotator machine can solve the above problems well.
Remote control operation (easy to learn)
Stable operation, no slippage or overturn when turning large components
Adjustable flip angle, 360 flip
High security
Adjustable flip angle, 360 flip
High security
Equipment features
1) The equipment is operated by remote control, and has the characteristics of flipping large-sized objects without slipping, not backspinping, etc.
2) With 360° rotation function for objects, it can be flipped to any angle as required, easy to operate, flexible and reliable.
3) The device adopts remote control, the operator can stay away from the characteristics of the operation of flipping items, and has the characteristics of being light and light and flipping freely.
4) The device has a moving function, no need to move large workpieces, and the device can be flipped when it is moved to the hanging flip.
2) With 360° rotation function for objects, it can be flipped to any angle as required, easy to operate, flexible and reliable.
3) The device adopts remote control, the operator can stay away from the characteristics of the operation of flipping items, and has the characteristics of being light and light and flipping freely.
4) The device has a moving function, no need to move large workpieces, and the device can be flipped when it is moved to the hanging flip.
5)The equipment adopts the back-suspension chain to fix the suspended objects, and the auxiliary chain or the sling can also be replaced according to the irregular shape and size of the inverted items.
6) For the special items, the auxiliary grooved wheel and the sling can be replaced, so that there is no hoisting mark on the flipped item.
7)The use of this device can improve the turning efficiency and greatly reduce the cost for the user.
8) The hanging type flip machine can be used for driving, and the crane can be flipped in the field. As long as the equipment can be lifted, it can be flipped freely and conveniently.
9) The device can be flipped without being limited by the length, width and size of the object.
6) For the special items, the auxiliary grooved wheel and the sling can be replaced, so that there is no hoisting mark on the flipped item.
7)The use of this device can improve the turning efficiency and greatly reduce the cost for the user.
8) The hanging type flip machine can be used for driving, and the crane can be flipped in the field. As long as the equipment can be lifted, it can be flipped freely and conveniently.
9) The device can be flipped without being limited by the length, width and size of the object.
Application
Applicable industry:
The rotator has wide application and can be applied to the lifting and unloading of electric power, ship, dock, machinery manufacturing, steel structure production, stone processing, electric vehicle and other production industries.
Compare traditional rotating , advantage
No. | Items | Traditional rotating | Our chain rotator |
1 | Rotating method | Use hooks, wire ropes, chains, etc. | Use a rotator machine |
2 | Productivity | Low Productivity | High Productivity |
3 | Impact on quality | Damage to component surface; often bump during rotating, resulting in deformation of the profile. | Rotating process is stable and runs with special protective tooling. Component surface is not damaged. |
4 | Operability | Complex operation(requires many people to cooperate) | Remote control operation, simple & easy to use (single person can do it) |
5 | Safety | High risks | low risk |
6 | Price | large consumption of sling | low cost |
Technical Parameters
Name | Model | unit | Remark |
Machine dimensions | 2730*330*1300 | mm | Can be customized |
Motor Power | 2.2*2 | kw | |
Electric power source | 380 | v | |
Lifting strap length | 8m*2 | m | Can be customized |
Insurance factor | 1.2 | times | |
Remote control battery | 7#*2 | knot | |
Flip angle | 360° | degree | Can be customized |
Detailed Images
•Unique chain design withstands heavy and complex profiles
•durable chains and strap allow for ultimate safety during turning processes
•durable chains and strap allow for ultimate safety during turning processes
•Steel platform built to withstand punishing shop environments
•Robust build quality ensures accurate operations and device longevity
•Ergonomic structural design created to save shop space
•Robust build quality ensures accurate operations and device longevity
•Ergonomic structural design created to save shop space
•Dynamic electric motors ensure optimal speed and strength during rotations of steel profiles
•Designed for complete 360 degree turning of structural profiles for welding
•Welding, fit-up and painting operations are easily achieved in every position of the profile
•Welding, fit-up and painting operations are easily achieved in every position of the profile
•Convenient Remote control, provides multiple functions for easy operator usage
•Control turning speed and direction with the push of a button
•Control turning speed and direction with the push of a button
Packing&Shipping
Packaging Details：Standard shipping package
After Sales Service
1. One year warranty for whole machine
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.
2. We have experienced after-sales service team,we can send installation video or file to customers and guid installation for easy operated machines and we can also arrange our engineers to visit customer's site for installation and training for complicated machines.
3. Full stock of spare parts and comsumbles are at competitive price.ottles in all shapes.
Company Introduction
YOMI is professional on CNC cutting machine powered by plasma and oxy-fuel. From basic plate cutting machine, Gantry cnc plasma cutting machine, table cnc plasma cutting machine and portable cnc plasma cutting machine, YOMI is also Leading manufacturer in pipe and profile cutting machine, from pipe cutting and beveling, tube cutting and beveling, beam/angle steel/ channel steel/flat buld processing. By developing our own system and software in 3D profiling, YOMI become the top brand in metal cutting with competitive price and professional products.
Related Products
FAQ
1. What kinds of after-sales service can your company supply?
One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service.
2. Can you supply OEM Service?
Yes, we can supply OEM service.
3. What is deliver time?
One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can supply life long service.
2. Can you supply OEM Service?
Yes, we can supply OEM service.
3. What is deliver time?
We will delivery the goods within 15-20 work days after received payment.
4. What is your payment term?
We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
4. What is your payment term?
We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
