 SINOTRUK HOWO 4x2 Roll Off Garbage Truck

 (There is also 6x4 Roll Off Garbage Truck etc)





HOWO Roll Off Garbage truck highlights :



1. Swing arm garbage truck is characterized by separated trash bin and truck chassis, realizing the combination use of one truck with multiple trash bins, circular transport.

2. The cargo hopper has square-shape and ship-shape, the square-shape is used for the pit type, and the ship-shape is placed on the ground, fully improves the transport capacity, especially suitable for short-distance transport, such as the sanitation department to clean up the urban garbage, transport and so on.

3. The truck can be designed to be fully enclosed in order to prevent light cargo from falling in transit.The garbage bucket can be hoisted up and down, and the working cycle time of swing arm is 60S.

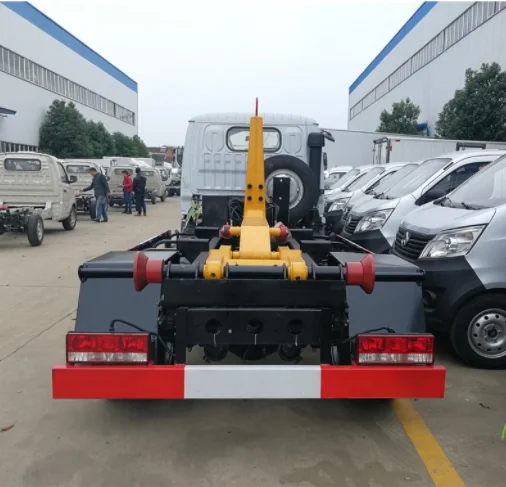

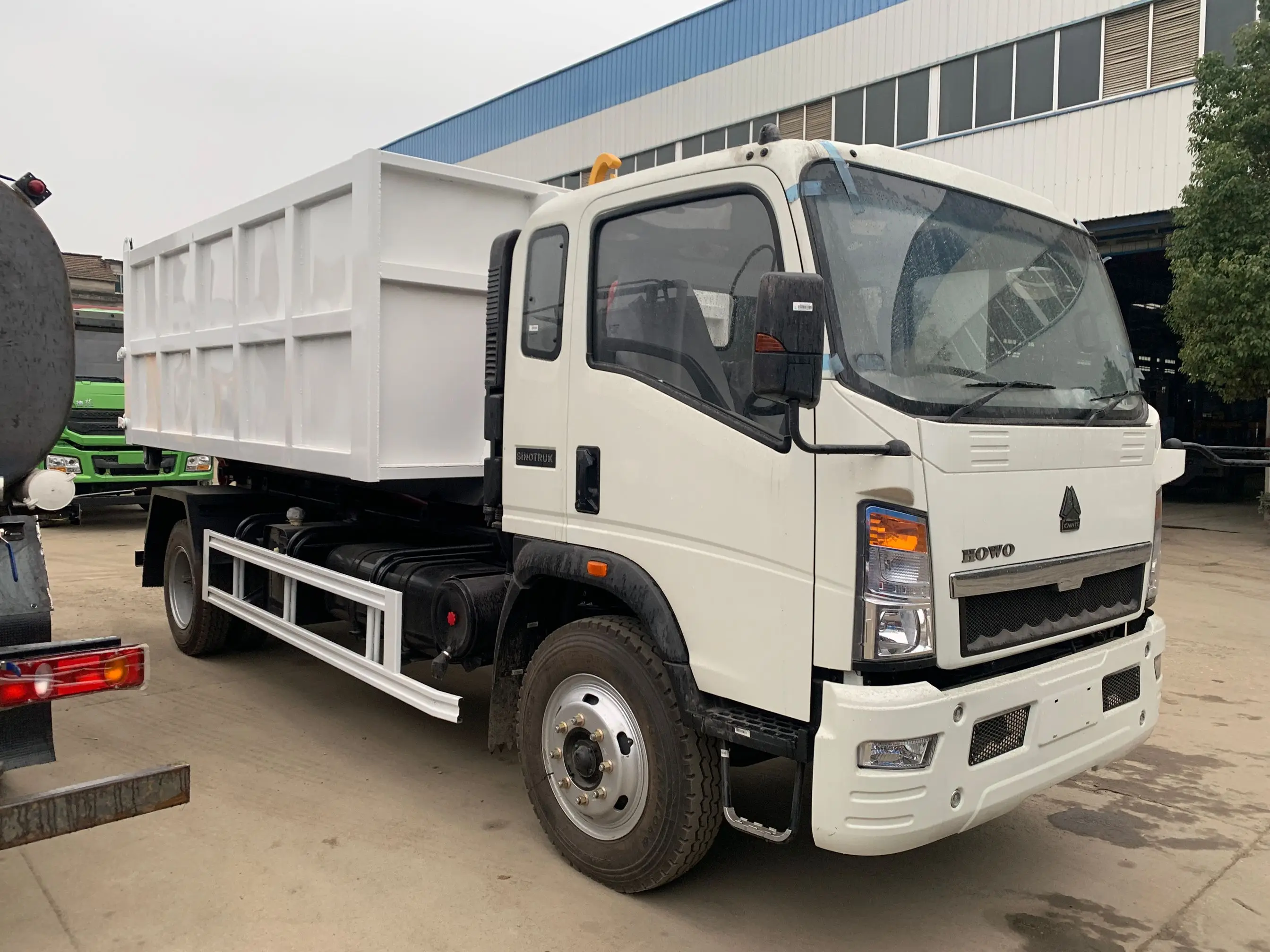

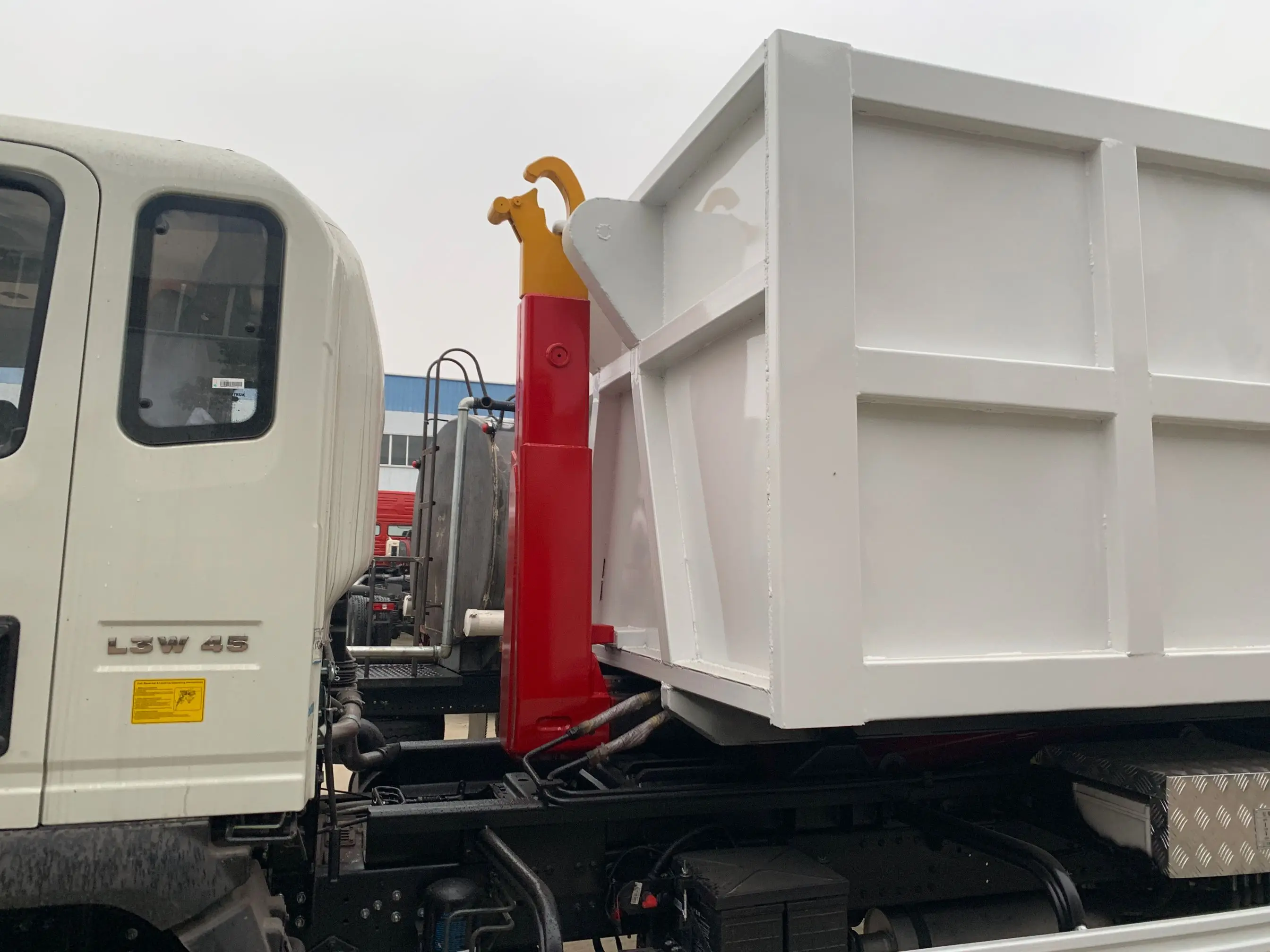

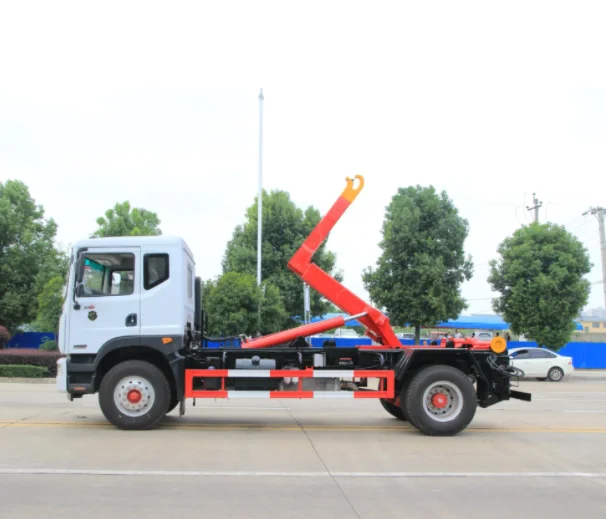

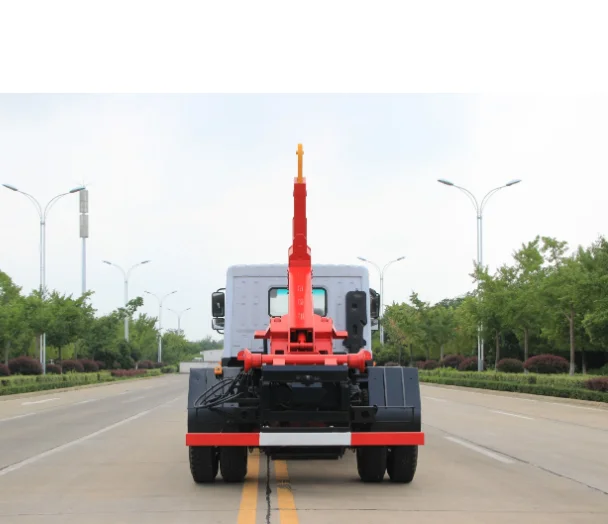

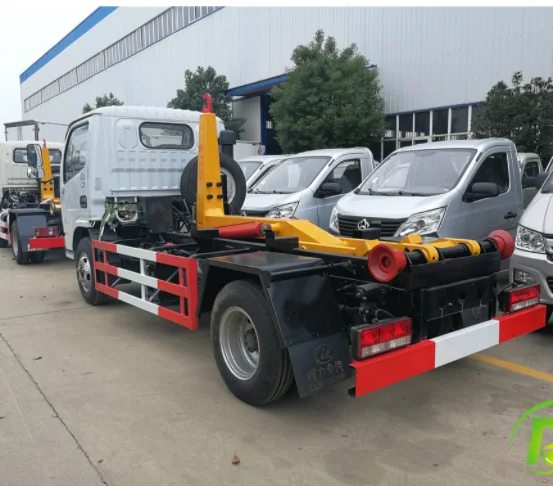

Details photos for reference















 Specifications

Cabin	Driving type 4X2 Right hand drive
	1880 cabin with A/C, 2 seats and one sleeper Pics for reference
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6050*2350*2450
	Wheel base  (mm)	3360
Weight in KGS	Tare Weight	3300
	Front axles loading capacity	1x2400
	Rear axles loading capacity	1x5000
Max. driving speed(km/h)		95
Engine	Brand	CHAICHAI
	Model	CY4100ZLQ
	Type	4-stroke direct injection, 4-cylinder in-line
	Horse Power(HP)	95HP
	Emission standard	Euro II
Gearbox	WLY535,5-Forward & 1-reverse gear manual transmission
PTO	With PTO
Tire	7.50R16 tyre with one spare,totally 6+1 pcs
Garbage Body	l  Hook loader capacity : 4T l  Hook max.height:1570mm l  Hydraulic system adopted for lifting and putting down garbage body

Shipment by different vessels









Our Advantages

Company brief introduction:

SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the No. 1 for exporting, specialized in the researching, developing and manufacturing of heavy trucks and related key parts.



Now SINOTRUK has 6 truck production factories, 2 engine factories, 2 gearbox factories, 1 axle factory, and cooperated with other international company (STEYR, Germany MAN). MAN introduce its all series products and core technology through SINOTRUK.



WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles, with annual capacity is over 20 000units of all kinds special trucks.

SINOTRUK includes: cargo truck, tractor truck, dump truck, concrete mixer, tanker truck, special purpose truck, garbage truck, tank truck, crane truck, flat bed semi trailer etc.





  Warmly Welcome to China and visit our factory !
