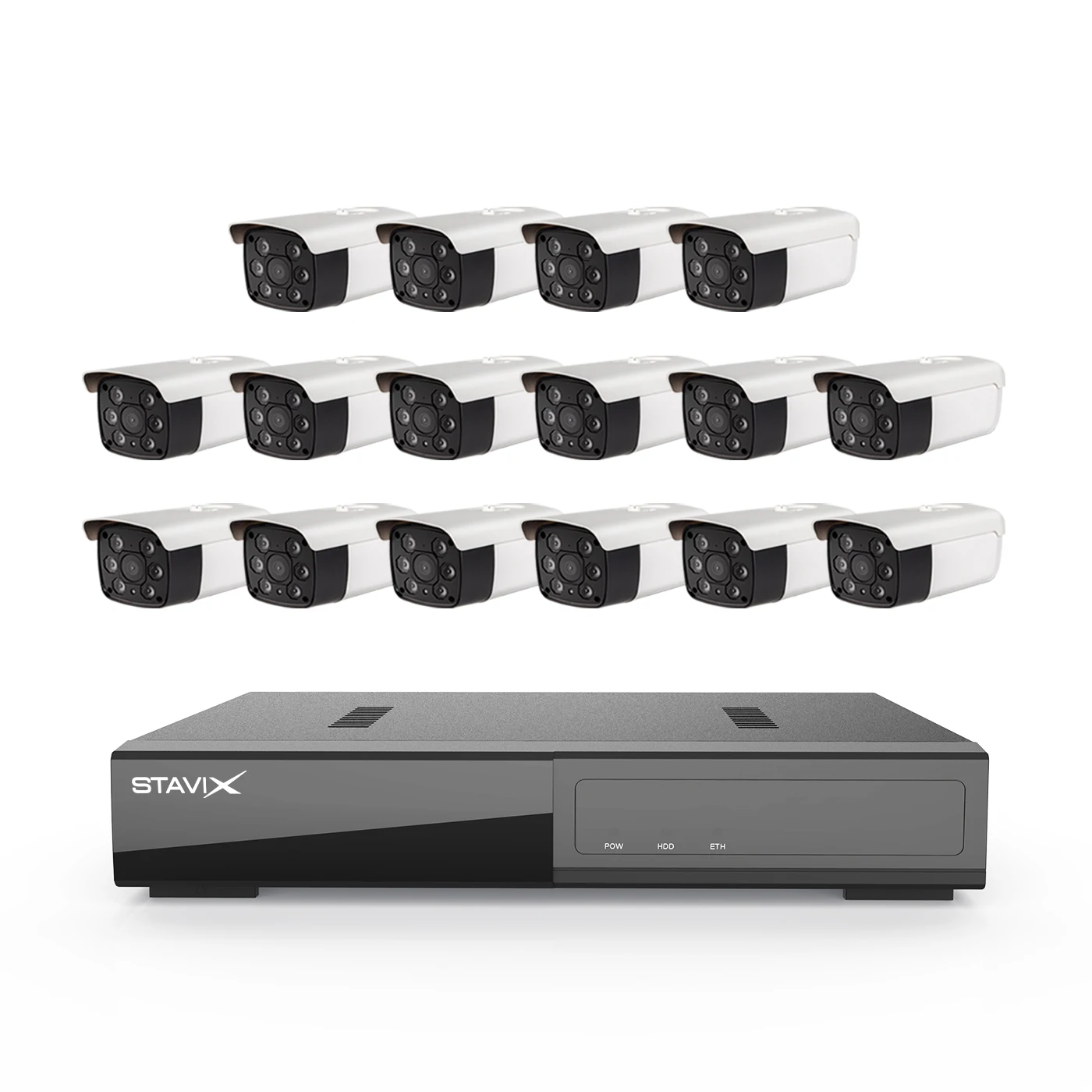

Инфракрасная сетевая IP-камера комплект камер безопасности 16 каналов сетевого видеорегистратора для

Network Video Recorder

RECORDING

Compression

H.265/ H.264

Resolution

720P/960P/1080P

Recording Mode

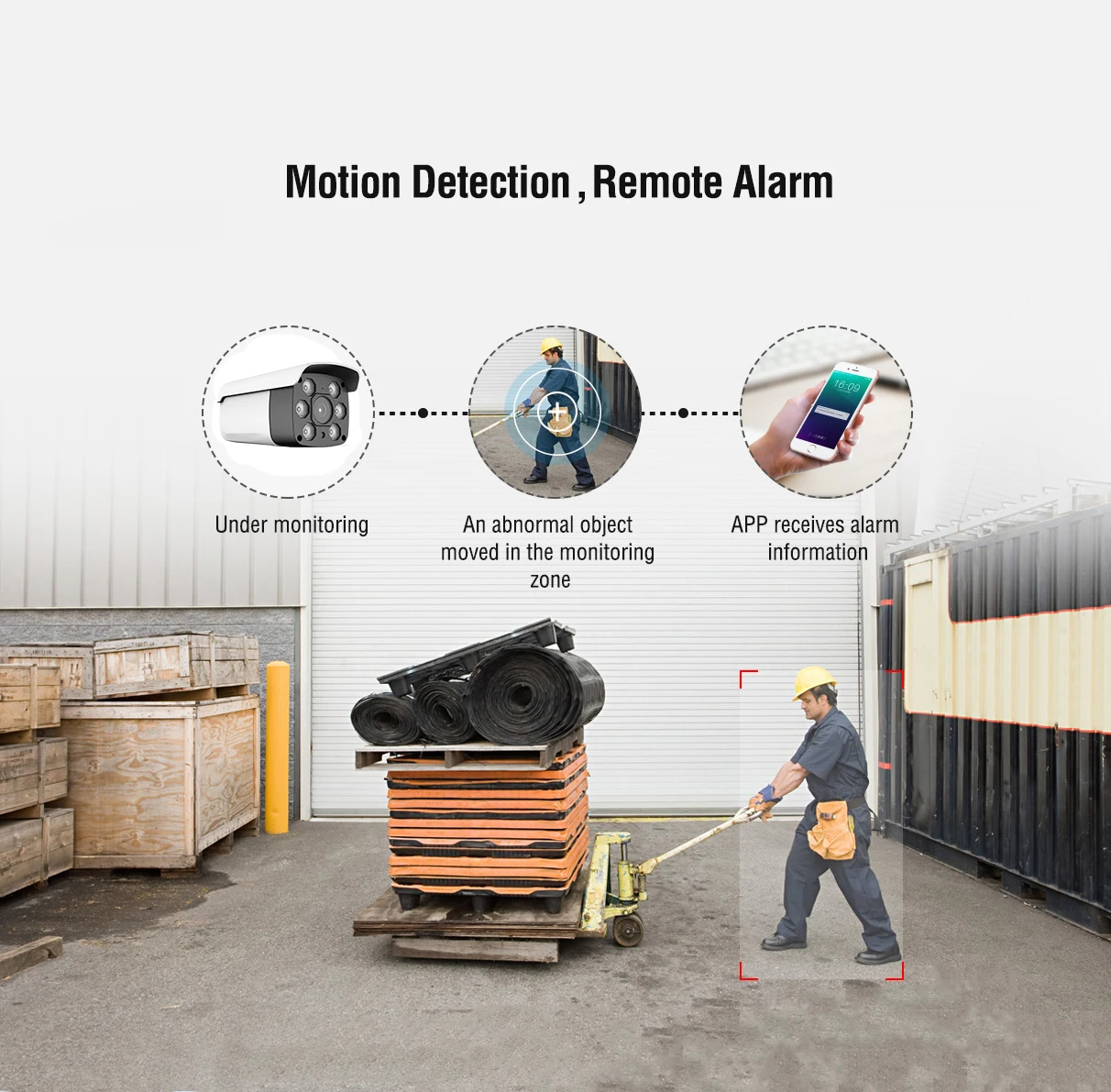

Exact Search, Time/Date, Motion Detection, Alarm

Search Mode

All, Channel, Time/Date,Motion Detection

Playback Function

Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screenm, Backup

Backup Mode Compatibility

USB Device; Network

EXTENSION

Port Type

*1 SATA port

Internal Storage Extension
(optional)

up to 8TB HDD (3.5 inch)

OTHERS

Operating Temperature

-10℃~+50℃

Working Humidity

10%~90%

Power

DC 12V 2A external adaptor

Comsumption (excl. HDD)

≤24W

Dimensions

260*224*48mm

Weight

720g (without HDD)

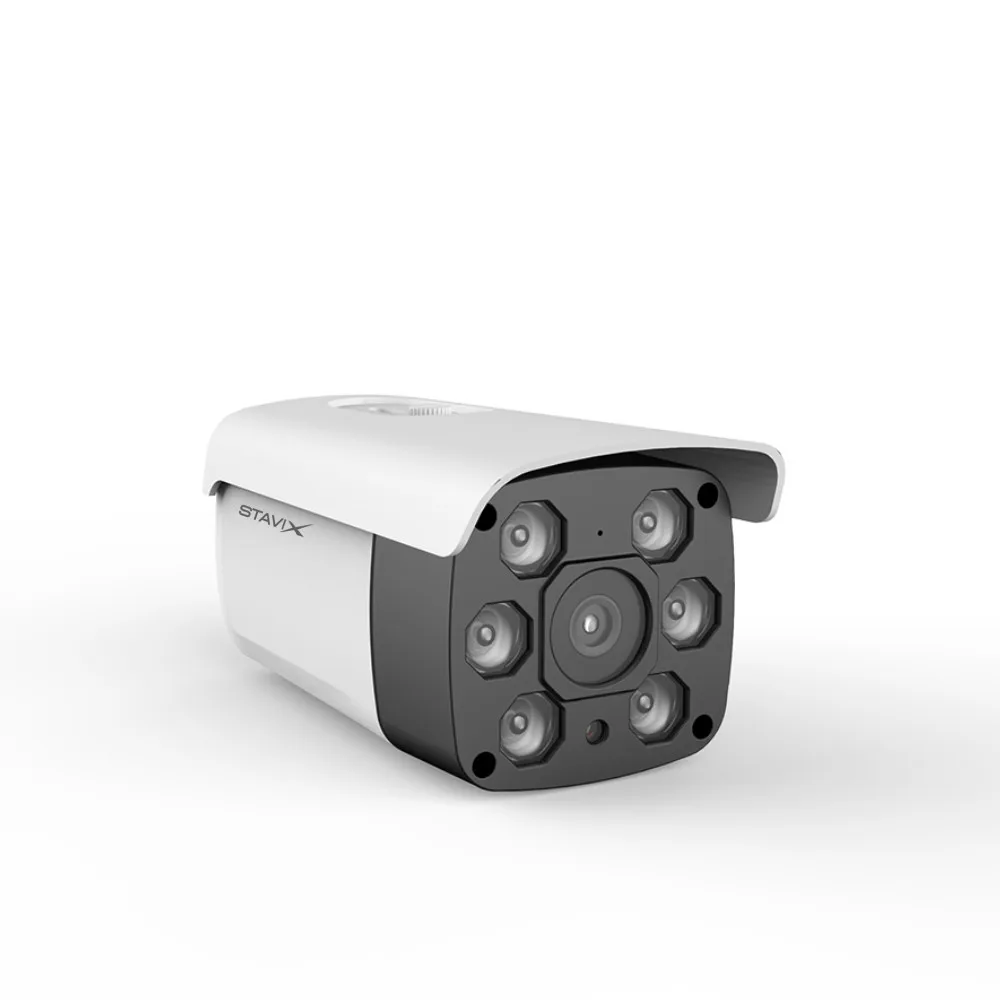

IP Camera

CAMERA CONFIG

Image Sensor Config

2MP 1/2.9" CMOS

Shutter

Auto

Lens

4mm,6mm,8mm

Lens Mount

M12

Day&Night

Automatic IR cut filter

Noise Reduction (DNR)

3D Noise Reduction

Dynamic Range

Digital Wide Dynamic


Resolution

1920*1080 pixel

Frame

30 FPS, Support 5~30 FPS adjustable

COMPRESSION

Video Compression

H.265

H.265 Encoding

H.265 main profile

Video Compression Rate

Main stream:1920 × 1080, 1280×960, 1280×720;

Substream:720×576, 640×480, 640×360, 352×288;

INTERFACES

Adaptor Socket

*1/ 12V Power Supply

LAN/PoE

*1/ RJ45,10/100M self-adaption

PoE Standard,IEEE802.3af,44V~57V INPUT(Optional)

OTHERS

Operating Condition

Temperature: -10 °C to +50 °C
Humidity:< 95%

Power Supply

DC 12V±5% 1A

Power Consumption

Max 12W

Size

82*94*186mm

Weight

414g (excluding package)
