30 кВт DC & AC Chademo CCS настенный EV зарядное
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Guangzhou,Max,Power,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4260.28 $* | 4473.14 $* |
| Aug-18-2025 | 4224.93 $* | 4435.11 $* |
| Jul-18-2025 | 3544.38 $* | 3721.59 $* |
| Jun-18-2025 | 4153.32 $* | 4361.46 $* |
| May-18-2025 | 3616.24 $* | 3797.34 $* |
| Apr-18-2025 | 4081.41 $* | 4285.59 $* |
| Mar-18-2025 | 4045.41 $* | 4247.52 $* |
| Feb-18-2025 | 4010.63 $* | 4211.39 $* |
| Jan-18-2025 | 3974.84 $* | 4173.27 $* |
Характеристики
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description

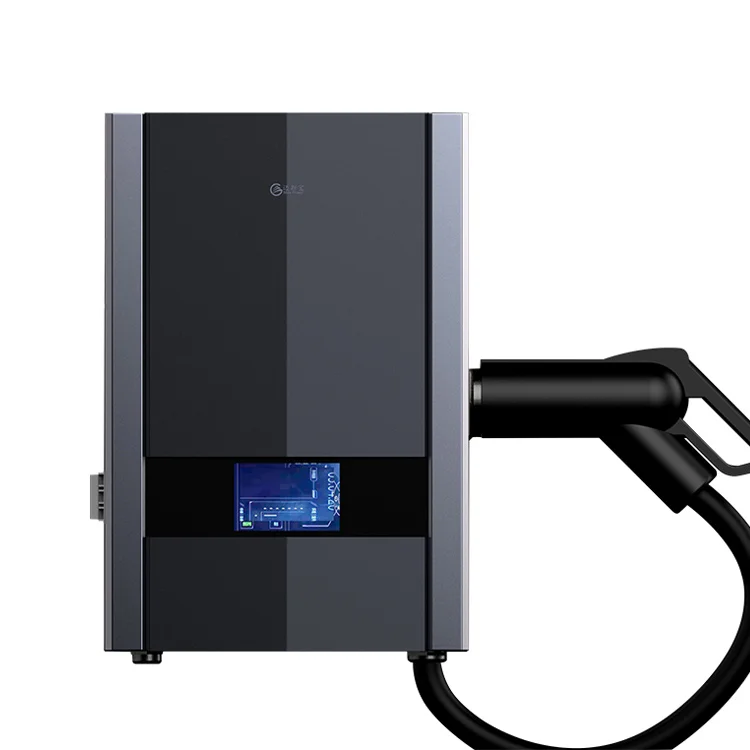

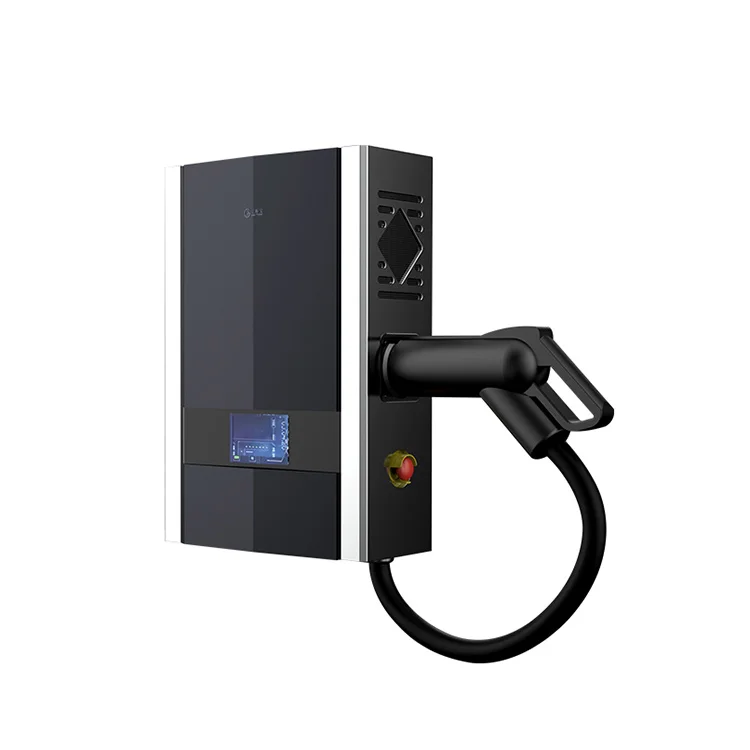

Intelligent wallbox 30KW vehicle gb t credit card payment ocpp ev charger station
30KW PORTABLE CHARGER:
♦ The 30KW portable charger produced by our company, with input voltage of 380V, voice navigation, easy to use, rated output power of 30KW, waterproof and dustproof function, multiple safety protection.
♦ By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
♦ High performance charging module, super wide charging range, high efficiency.
♦ Small size, light weight, convenient and efficient service.
♦ Can also be customized production according to vehicle BMS parameters.
♦ High efficiency:≥95%
OVERVIEW:
This portable charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicle at maximum speed as well as many EV cars. take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up you or your customers charging.
FEATURES:
♦ Features Small size and light weight.
♦ 4.3-inch touchscreen display.
♦ Scan or swipe the card to charge.
♦ Support remote charging monitoring and control of mobile phones.
♦ IP54 protection level.
♦ Fashion and high-end modeling.
PRODUCT PARAMETER:
Model | 30KW / MPSC30750 | |
AC Input | Input Rating | 380Vac±10% |
AC Input Connection | 3P + N +PE, Wye connection | |
Max. Input Current | 50A | |
Frequency | 50 /60 Hz | |
Power Factor | >0.99@full load | |
Efficiency | 95% | |
DC Output | Output Voltage Range | 200-750Vdc |
Max. Output Power | 30KW | |
Max. Output Current | 50A | |
User Interface | TFT-LCD Touch Panel | Yes(swiping card without TFT-LCD Touch Panel) |
Push Buttons | Yes | |
Interface | Yes | |
Packing | Dimension(mm) | W:548×378× 250 U:1500×520× 250 |
Weight | Wall:45KG Upright:50KG | |
Environmental | Operating Temperature | -40~85℃,25℃(TYPE) |
Humidity | 5%-90% RH, non-condensing | |
Altitude | 2000m | |
IP Level | IP54 | |
Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable |
Regulation | Regulation | EN61851-1 |
Certification | CE , ROHS | |
Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
SUPPORT CAR:
MORE CHOICE
Company Information
Packaging & Shipping
1. During the transportation process, the charger body package should be firmly sealed and the loading and unloading direction should be identified by a solid wooden packing box. The charger should not be stored upside down. Corresponding tightening measures should be taken during transportation to avoid strong vibration and bumps that damage the outer packaging of the equipment.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to+40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
