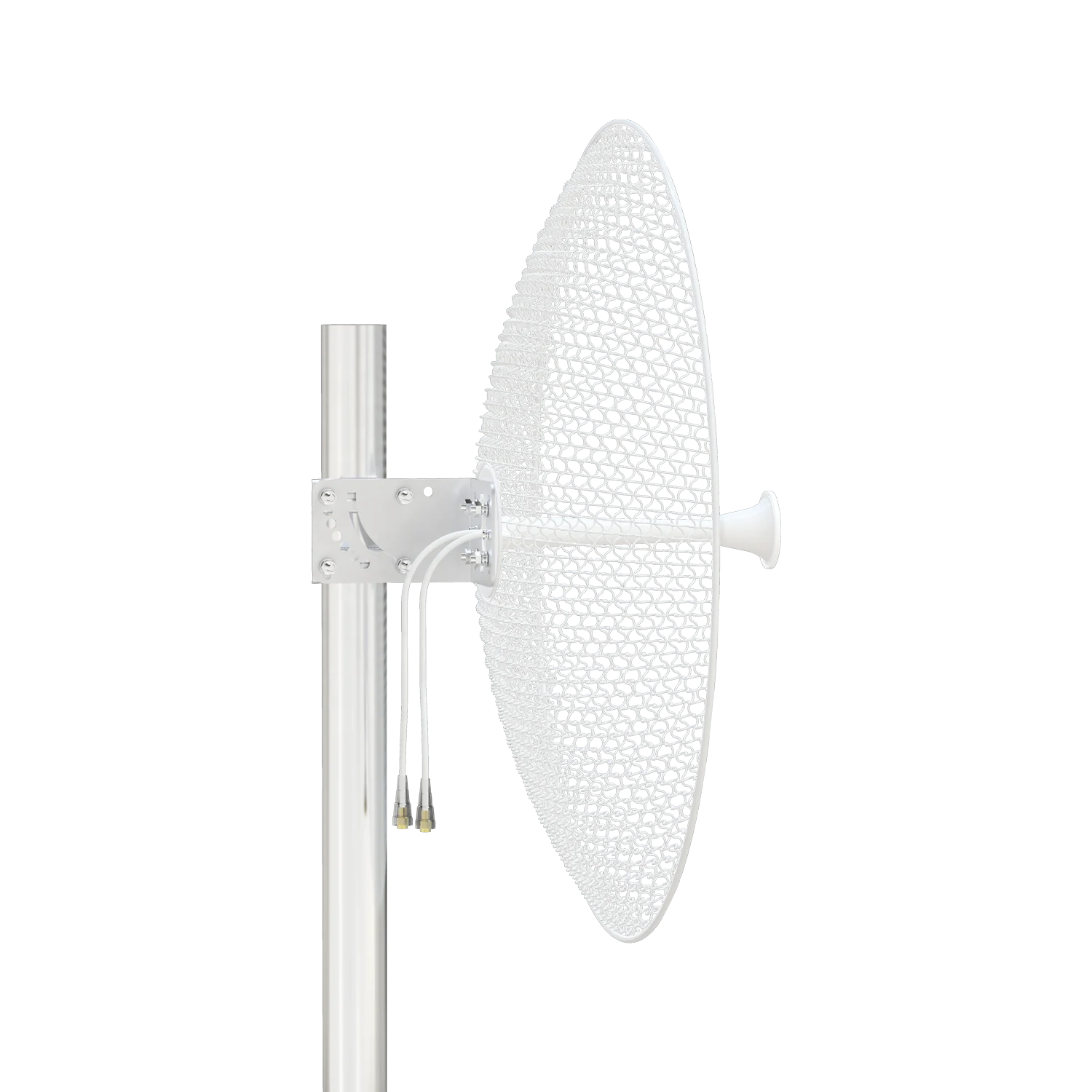

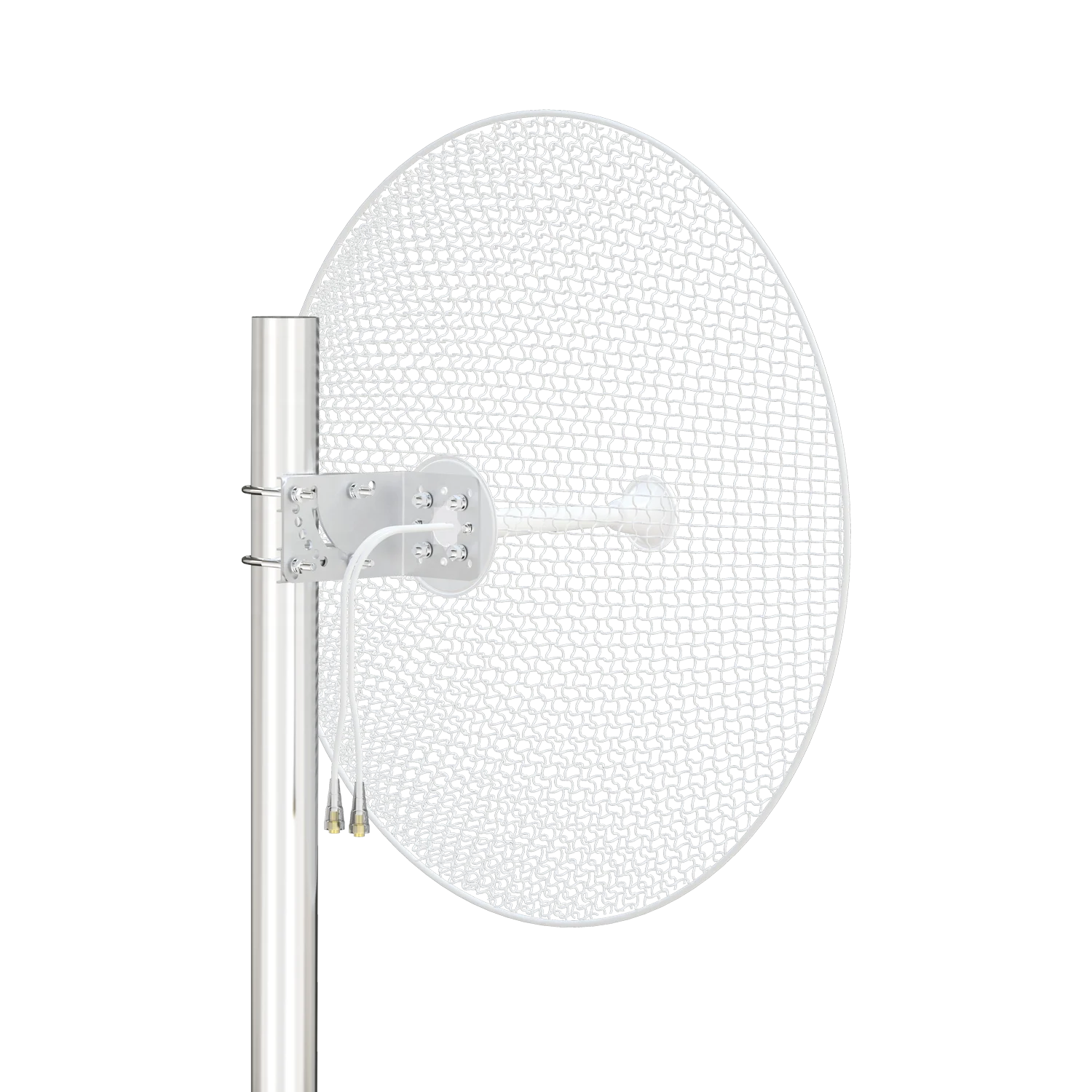

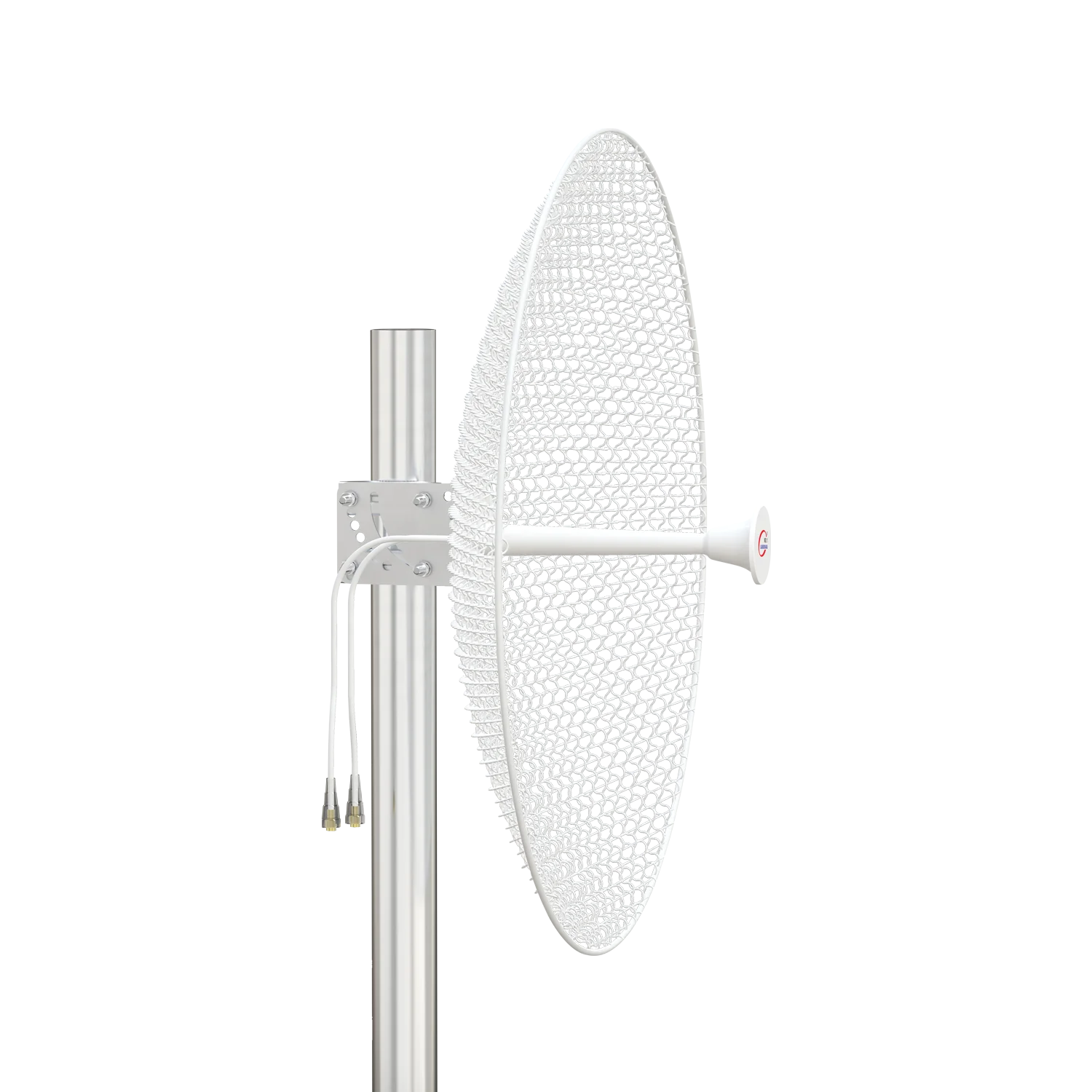

4 8-6 5 GHz 0 6 m 28dBi mimo Grid антенна для mimisa A5c radio Lanbowan

4 8-6 5 GHz 0 6 m 28dBi mimo Grid антенна для mimisa A5c radio Lanbowan

Категория: Communication Antenna >>>
Поставщик: Lanbowan,Communication,Ltd.

Цена:49,00 $ - 69,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	62.69 $*	63.44 $*
Jul-18-2025	50.24 $*	51.3 $*
Jun-18-2025	61.48 $*	62.20 $*
May-18-2025	61.42 $*	62.55 $*
Apr-18-2025	49.30 $*	50.23 $*
Mar-18-2025	60.38 $*	61.14 $*
Feb-18-2025	59.21 $*	60.59 $*
Jan-18-2025	59.81 $*	60.72 $*

Характеристики

Product Description

Features

• 4.8-6.5GHz Frequency
• 28dBi High Gain
• MIMO
• Dual Slant (V/H or ±45°）
• 2 feet Dish

Application

• 4.8/5.1/5.3/5.4/5.8/6.4 GHz ISM and UNII Band
• MIMO and 802.11n Applications
• 802.11AX Applications
• Long Distance Backhaul and Point to Point Data Links

Product Paramenters

Model	ANT4865D28PG-MIMO			ANT4865D28PG-MIMO
Frequency range	4.8-5.1GHz	5.1-5.9GHz	5.9-6.5GHz
Gain	26±1.5 dBi	28±1.5 dBi	28.5±1.5 dBi
VSWR	<2.8	<2.0	<2.0
Polarization	Dual Slant (V/H or ±45°)			Dual Slant (V/H or ±45°)
Isolation	>28dB			>30dB
Front to Back Ratio	>20dB			>30dB
Azimuth Beam Width	7°			7°
Elevation Beam Width	7°			7°
Maximum Power	50W			50W
Impedance	50Ω			50Ω
Lighting protection	DC Ground			DC Ground
Connector	2-RPSMA/N Male/N Female			2-RPSMA/N Male/N Female
Antenna Size	φ0.6 m			φ0.6m
Antenna Weight	2.5kg			1.5kg
Antenna color	white			white
Diameter of the Pole	Φ30 to φ50 mm			Φ30mm to φ50mm
Operational Temperature	-40°C to +70°C (-32°F to +158°F)			-40°C to +70°C (-32°F to +158°F)


Antenna Patterns
