Hydraulic double screen cavities screen changer for ldpe granules

Introduction of ZB-DP-2R-195 screen changer for ldpe granules

• As dual-channel double screen cavities screen changer, this series screen changer can provide uninterrupted operation.


• Exhaust structure can fully exhaust the gas in material and the other screen cavities, which can prevent gas coming into being during production, improve the product quality.


• Dual-channel double screen cavities increase the filter area, which can improve the output and quality.


• Larger filter area is suitable for various different material and extrusion.


• Well sealed, rigid sealing, long service life.


• Exhaust and blowdown structure, ensures its continuous and safe performance.


• Customization, according to the customer special request to design and process.


• Reasonable structure, easy to operate, high quality.


• Diverse shaped screen cavities: rounded, curved, oval, columnar, etc.


• Safety hood is equipped.


• This series screen changer is mainly suitable for chemical fiber, blown film, flat, cast film, production, pipe, sheet, wire rod, fiber, pelletizing line,etc.

Parameters of ZB-DP-2R-195 screen changer for ldpe granules

Type	Capacity  (kg/h)	Dimension (mm)			Screen size		Heater
		L1	L2	L3	Diameter  (mm)	Area  (cm2)	Quantity	Voltage  (v)	Power  (w)
ZB-DP-2R-80	30-180	100	800	170	60	28*2	6	230/400	500/700
ZB-DP-2R-100	80-280	110	830	200	80	50*2	6	230/400	800/1100
ZB-DP-2R-120	130-380	125	850	220	100	78*2	6	230/400	900/1200
ZB-DP-2R-145	300-700	165	1020	270	125	123*2	6	230/400	1400/1800
ZB-DP-2R-170	400-1100	195	1120	310	150	177*2	6	230/400	1600/2200
ZB-DP-2R-195	650-1500	220	1270	380	175	240*2	6	230/400	2500/3500
ZB-DP-2R-220	850-1900	245	1350	410	200	314*2	10	230/400	2300/2800
ZB-DP-2R-250	1100-2600	280	1500	460	230	415*2	12	230/400	2500/3200

Notes: The capacity will be affected by the fluidity, filter fineness and purity of materials.



Parameters of E series screen changer for ldpe granules

Type	Capacity  (kg/h)	Dimension (mm)			Screen size		Heater
		L1	L2	L3	Dimension  (mm)L*W	Area  (cm2)	Quantity	Voltage  (v)	Power  (w)
ZB-DP-2E-120	200-800	150	850	220	100*145	124*2	6	230/400	800/1200
ZB-DP-2E-145	400-1100	165	1020	270	125*170	179*2	6	230/400	1400/2000
ZB-DP-2E-170	680-1500	220	1300	310	150*230	296*2	6	230/400	1600/2200
ZB-DP-2E-195	1000-2600	240	1420	380	175*270	406*2	6	230/400	2500/3500
ZB-DP-2E-220	2300-4400	280	1665	410	200*300	514*2	10	230/400	2500/3200
ZB-DP-2E-250	2900-6000	310	1720	460	230*310	600*2	12	230/400	2800/3500
ZB-DP-2E-270	2900-6000	350	1900	500	250*345	737*2	12	230/400	3200/4000

Notes: The capacity will be affected by the fluidity, filter fineness and purity of materials.



Parameters of L series screen changer for ldpe granules

Type	Capacity  (kg/h)	Dimension (mm)			Screen size		Heater
		L1	L2	L3	Dimension  (mm)L*W	Area  (cm2)	Quantity	Voltage  (v)	Power  (w)
ZB-DP-2L-100	450-1200	110	700	200	251*80	200*2	6	230/400	800/1100
ZB-DP-2L-120	800-1800	125	845	220	314*100	314*2	6	230/400	900/1200
ZB-DP-2L-155	1000-2600	160	9400	270	408*130	530*2	6	230/400	1400/1800
ZB-DP-2L-175	2300-4400	185	1135	310	471*180	846*2	6	230/400	1600/2200
ZB-DP-2L-195	2900-6000	200	1270	380	533*190	1012*2	6	230/400	2000/2400
ZB-DP-2L-220	3900-10000	220	1400	410	595*200	1192*2	10	230/400	2300/2800

Notes: The capacity will be affected by the fluidity, filter fineness and purity of materials.

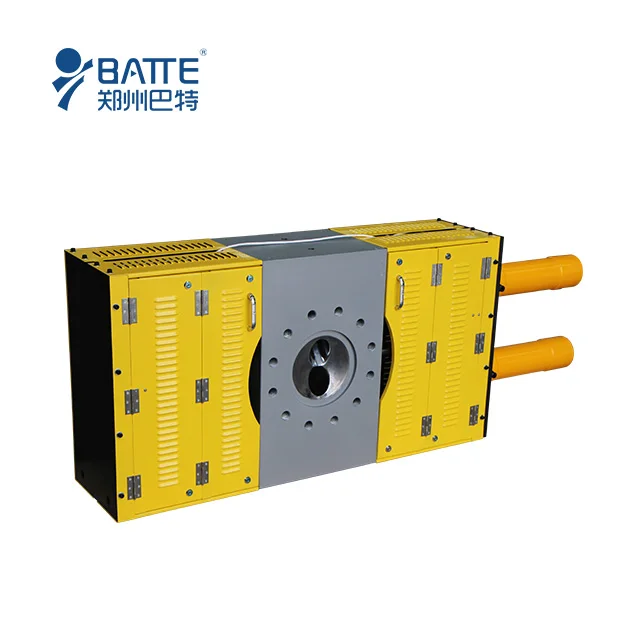

R series screen changer

E series screen changer



L series screen changer
