Hanyoung цифровой регулятор температуры DX9-KCWNR
US $80.00-$85.00
Лучший продукт meatrol ME237 Многофункциональный MODBUS amp Вольт частоты коэффициента мощности кВтч метр щитовой измерительный
- Категория: Electrical Instruments >>>
- Поставщик: Shanghai,Pinyan,M&C,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.26 $* | 0.63 $* |
| Aug-15-2025 | 0.68 $* | 0.48 $* |
| Jul-15-2025 | 0.36 $* | 0.84 $* |
| Jun-15-2025 | 0.58 $* | 0.83 $* |
| May-15-2025 | 0.12 $* | 0.60 $* |
| Apr-15-2025 | 0.39 $* | 0.69 $* |
| Mar-15-2025 | 0.54 $* | 0.17 $* |
| Feb-15-2025 | 0.25 $* | 0.75 $* |
| Jan-15-2025 | 0.45 $* | 0.60 $* |
Характеристики
Product Description

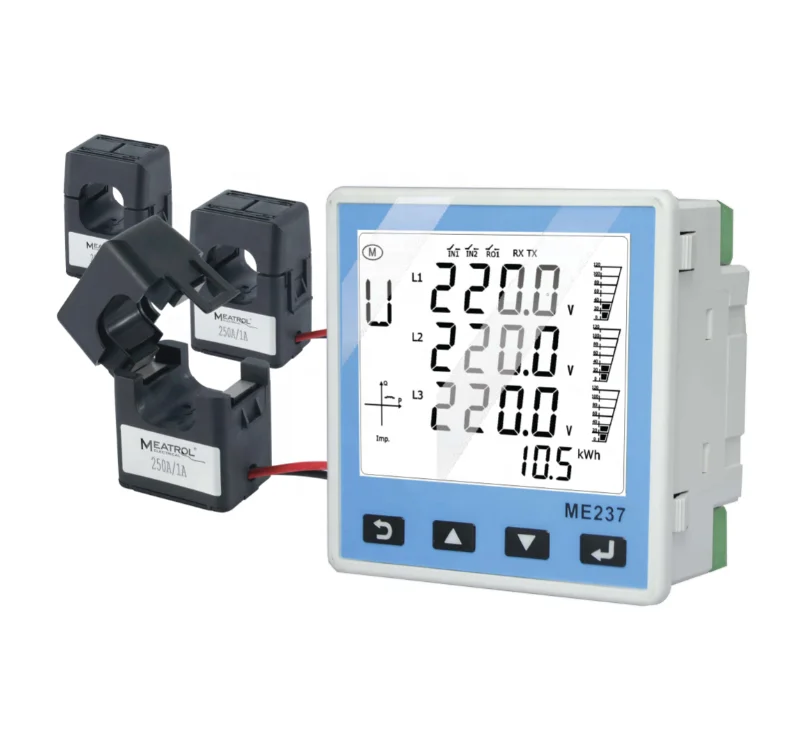

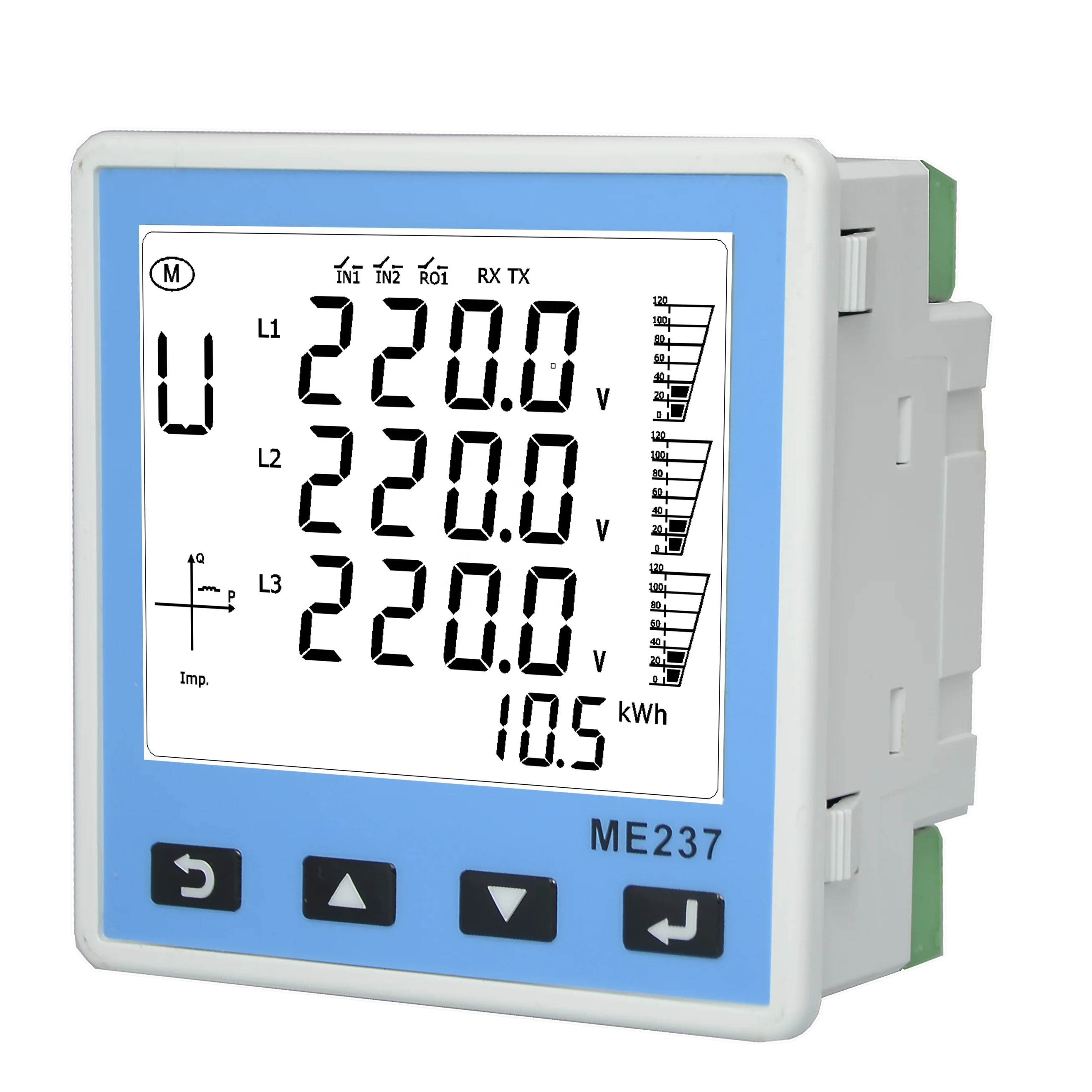

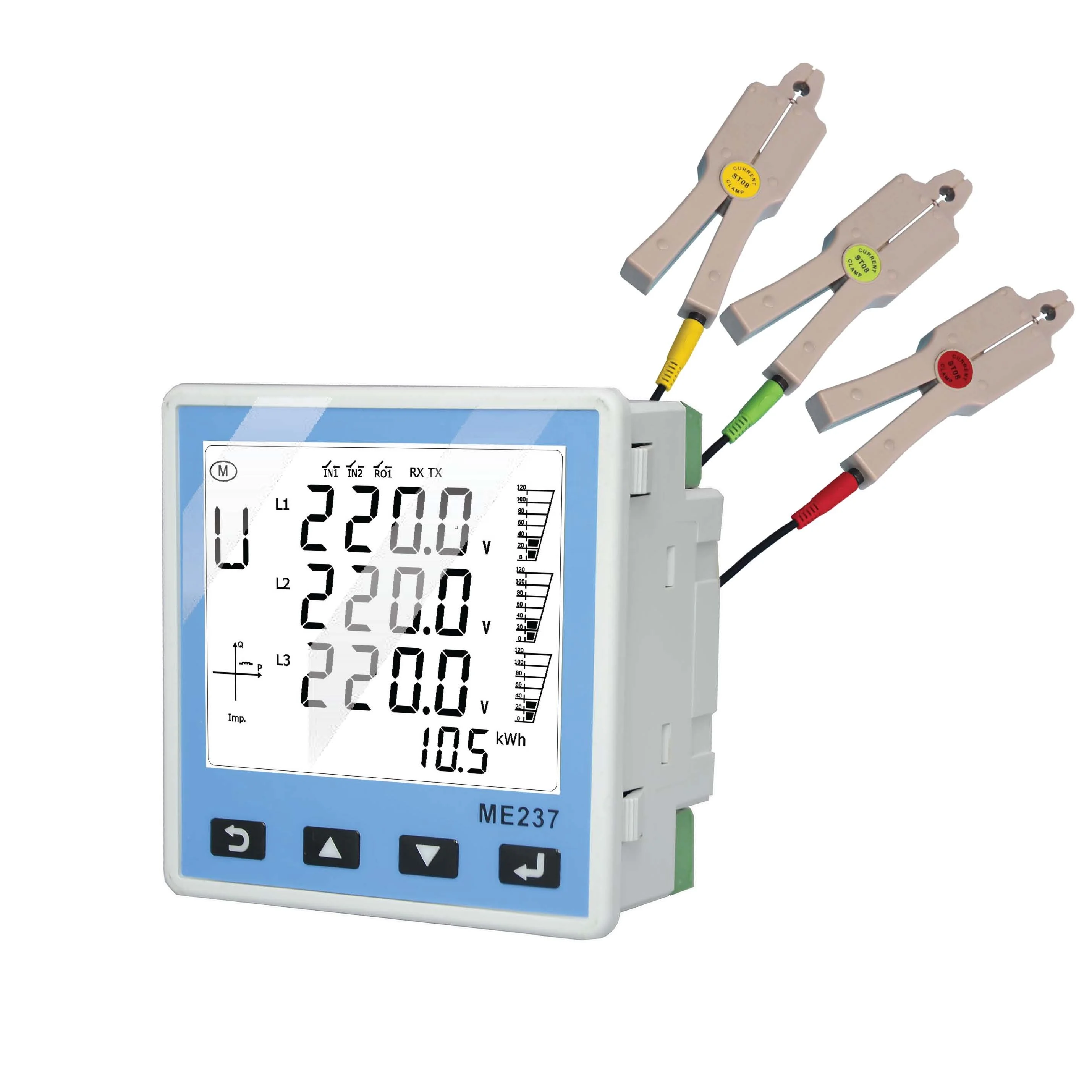

ME237 Electric Power Meter
ME237 panel type three-phase multi-functional power meter supports direct current input or external open-ended Rogowski coil orvoltage type CT, which can realize wire free test, simplify test steps and save construction cost. ME237 supports three-phase three wire and three-phase four wire system; it can measure current, voltage, power factor, harmonic, power, energy and other electrical parameters of A, B, C phase network. The standard RS485 communication interface can be compatible with various configuration systems through the standard Modbus RTU protocol. The electrical parameters collected by the front end can be transmitted to the system data center in real time.
ME237 panel type three-phase multi-functional power meter supports direct current input or external open-ended Rogowski coil orvoltage type CT, which can realize wire free test, simplify test steps and save construction cost. ME237 supports three-phase three wire and three-phase four wire system; it can measure current, voltage, power factor, harmonic, power, energy and other electrical parameters of A, B, C phase network. The standard RS485 communication interface can be compatible with various configuration systems through the standard Modbus RTU protocol. The electrical parameters collected by the front end can be transmitted to the system data center in real time.
Conditions of use:
1. RS485, Modbus-RTU.
2. 2 Digital input.
3. Pulse input.
4.RJ45.
5.Voltage input.
6.Current input.
7. Relay input.
Size Information
Specification
Connectivity advantages: | Rated current | Rated output | Diameter | Cable length | |||||
MODEL | ME237C | 333mV/1A/ 5A | 10 mm | 1meters | |||||
Support Extra sensor | Direct current input | 333mV/1A/ 5A | 16 mm | 1meters | |||||
Characteristic | Support maximum 5A current direct input | ||||||||
Advantage | It can replace traditional electric meter directly | ||||||||
MODEL | ME237V | ||||||||
Support Extra sensor | Voltage output current transformer | ||||||||
Characteristic | Support open type voltage type CT | ||||||||
Advantage | It is suitable for small current measurement without taking out wires | ||||||||

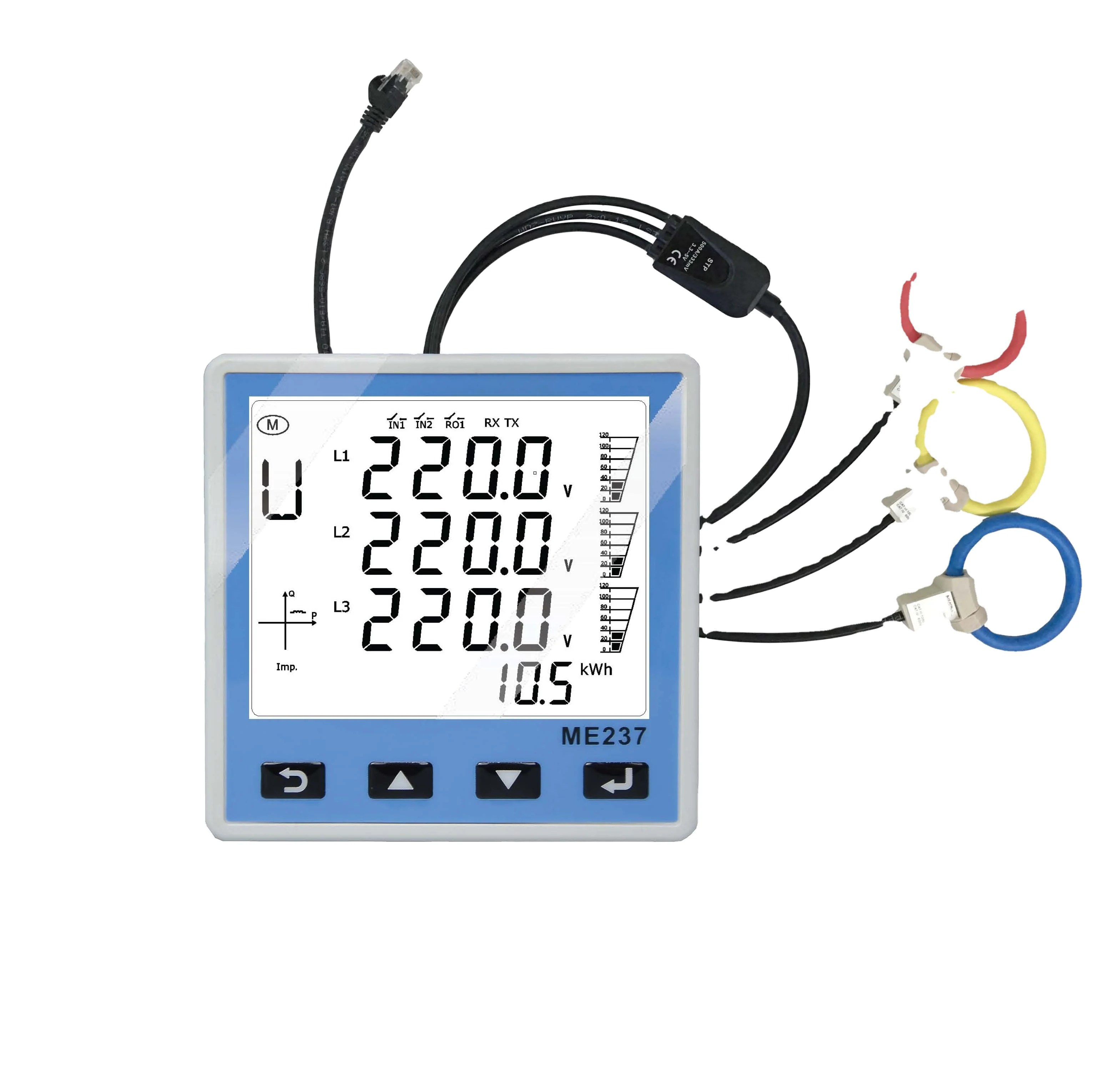

MODEL | ME237S | ||||||||
Support Extra sensor | STP integrator | ||||||||
Characteristic | RJ45 interface | ||||||||
Advantage | Analog integral input | ||||||||

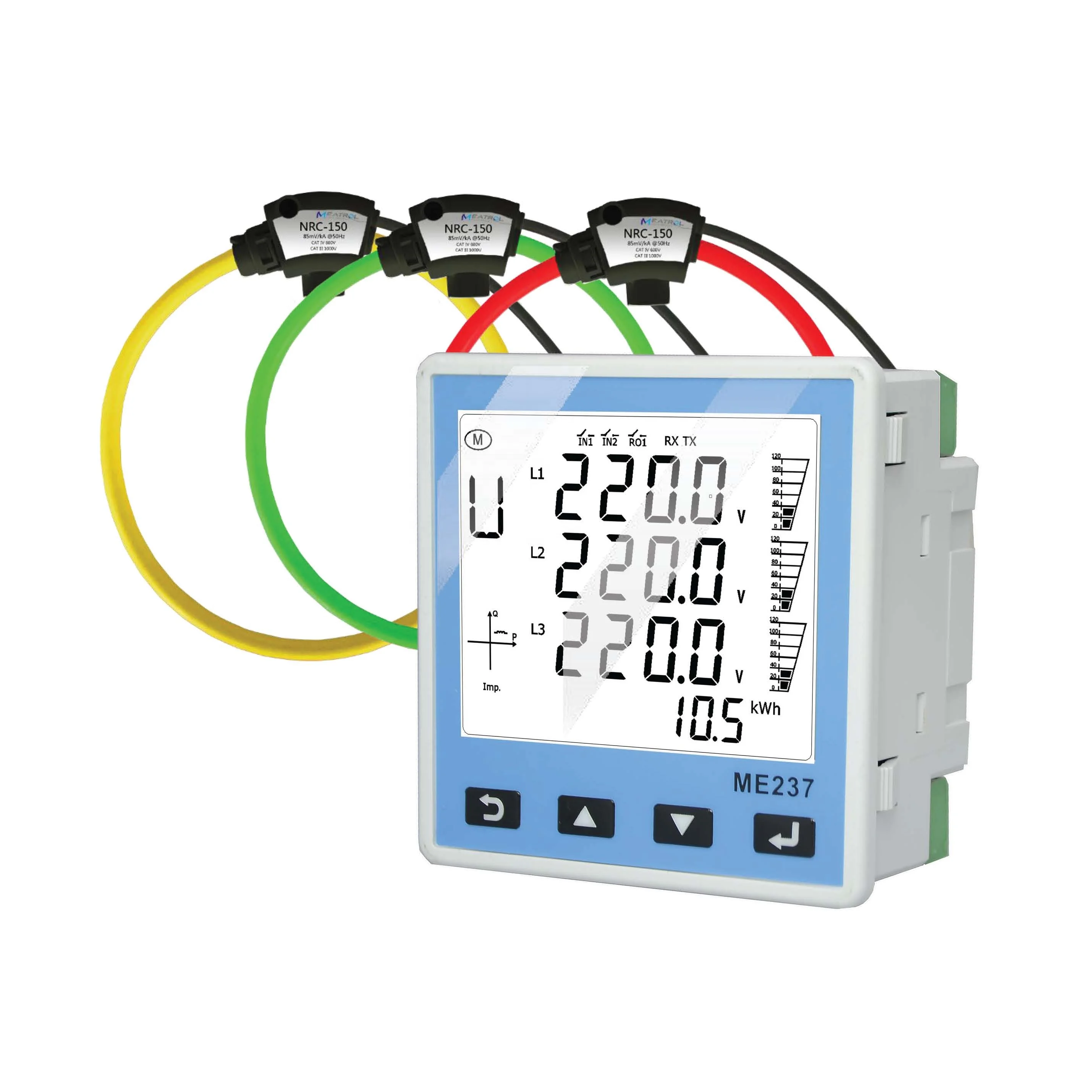

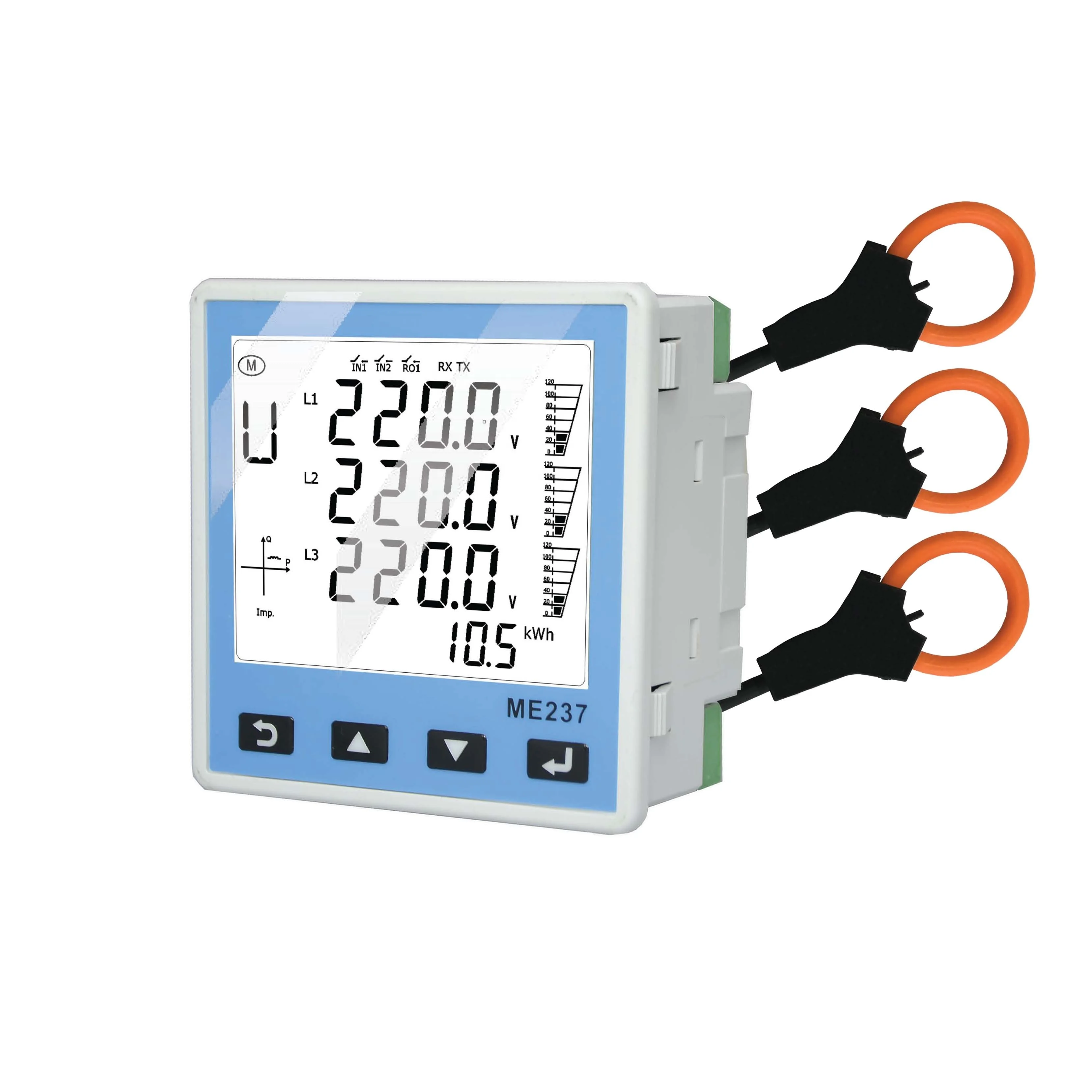

MODEL | ME237R | ||||||||
Support Extra sensor | Rogowski coil | ||||||||
Characteristic | Support direct access of Rogowski coil | ||||||||
Advantage | It is suitable for large current measurement without taking out wires | ||||||||
Programmable digital output | Relay input | 333mV/1A/ 5A | 24 mm | 1meters | |||||
I/O function | 2*digital output | 333mV/1A/ 5A | 36 mm | 1meters | |||||
Power | 85~265V AC/DC | 333mV/1A/ 5A | 50 mm | 1meters | |||||
Specification: | |||||||||
Poles description | 3PH4W 3PH3W 1PH2W (L-N); 1PH2W(L-L);1PH3W(L-L-N) | ||||||||
Device application | Power analysis Energy meter | ||||||||
Display | LCD segment code display screen. | ||||||||
Mounting mode | Panel mounting | ||||||||
Harmonic | 52th Max | ||||||||
Weight | 350g | ||||||||
Dimension | L*W*D：8.1*8.1*3CM | ||||||||
Support OEM. Please contact us | |||||||||
Packing&Shipping
Delivery time: 7-10days
Shipping:Express, Sea, Land, Air , as customers' needs.
Low cost, cooperate with DHL and UPS over years.
ME237 Electric Power Meter
After Sales Service
Safety and warning notes
Safe operation can only be guaranteed if the transducer is used for the purpose.
it has been designed for and within the limits of the technical specifications.
Ensure you get up-to-date technical information that can be found in the latest associated datasheet under www.rogowski.cn
Company Introduction
SHANGHAI PINYAN M&C TECHNOLOGY CO., LTD.
Founded in 2009. Brand name MEATROL ELECTRICAL, located in the High Technoloy zoon of Minghang district, Shanghai.
We are good at all kinds of application for current measurement like power meter,power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection,electric furnace etc.
FAQ
Q:What's MEATROL?
A:We are the No.1 manufacturer of rogowski coil with meters in China over 12 years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q:Do you support OEM?
A:Any R&D requirement relate to Rogowski could be realized.
A:We are the No.1 manufacturer of rogowski coil with meters in China over 12 years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q:Do you support OEM?
A:Any R&D requirement relate to Rogowski could be realized.
