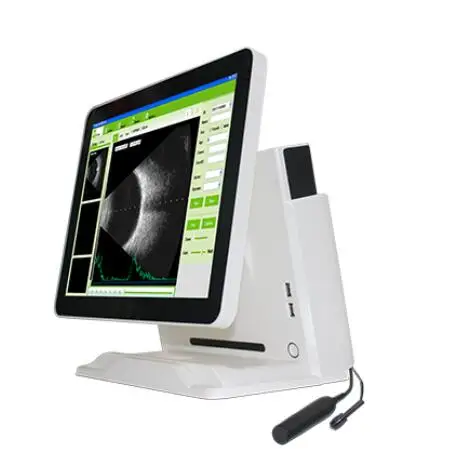

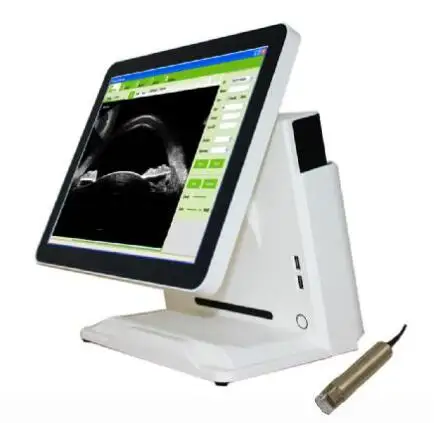

UBM-100 ультразвуковой биомикроскопии микроскоп офтальмологический диагностический прибор A-Scan/пахиметр
- Категория: Медицинские ультразвуковые инструменты >>>
- Поставщик: Nanjing,AMIS,Medical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.84 $* | 0.41 $* |
| Aug-17-2025 | 0.57 $* | 0.34 $* |
| Jul-17-2025 | 0.95 $* | 0.97 $* |
| Jun-17-2025 | 0.97 $* | 0.47 $* |
| May-17-2025 | 0.23 $* | 0.48 $* |
| Apr-17-2025 | 0.50 $* | 0.38 $* |
| Mar-17-2025 | 0.20 $* | 0.94 $* |
| Feb-17-2025 | 0.7 $* | 0.82 $* |
| Jan-17-2025 | 0.93 $* | 0.92 $* |
Характеристики
Product Description
SPA-100 Ophthalmic A-Scan/Pachymeter with macular recognition function, can accurately measure axial length, anterior chamber
depth, lens thickness, as well as intra-ocular lens calculation.
And also with the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central
and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive
surgery.

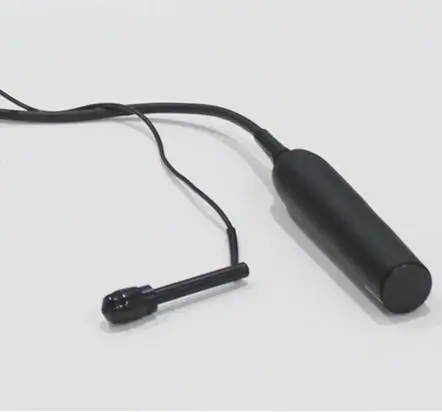

A scan probe: 10MHz import small size probe, built-in luminotron
Measuring range: 15mm-40mm
Measurement precision: ±0. 05mm; with macula lutea trace function
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Method of measurement: immersion and contact
Eye mode: Phakic/ Aphakic/Dense/ various IOL
IOL formula:SRK-II,SRK-T,BINKHORST- Ⅱ,HOLLADAY,HOFFER-Q,
HAIGIS
Enter the name & ID; easy to check archive
Storage: 10 cases, 5 readings each case
Output: A scan waveform and IOL calculation sheet
P scan probe: 20MHZ, angle of 45 degrees makes easier operation
Resolution: 5um
Measuring range: 150um~1500um
Display: SINGLE mode and MAP mode
Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch between IOP measured value and actual value
Can input name, ID and operator’s name
Others:
Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer
depth, lens thickness, as well as intra-ocular lens calculation.
And also with the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central
and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive
surgery.
A scan probe: 10MHz import small size probe, built-in luminotron
Measuring range: 15mm-40mm
Measurement precision: ±0. 05mm; with macula lutea trace function
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Method of measurement: immersion and contact
Eye mode: Phakic/ Aphakic/Dense/ various IOL
IOL formula:SRK-II,SRK-T,BINKHORST- Ⅱ,HOLLADAY,HOFFER-Q,
HAIGIS
Enter the name & ID; easy to check archive
Storage: 10 cases, 5 readings each case
Output: A scan waveform and IOL calculation sheet
P scan probe: 20MHZ, angle of 45 degrees makes easier operation
Resolution: 5um
Measuring range: 150um~1500um
Display: SINGLE mode and MAP mode
Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch between IOP measured value and actual value
Can input name, ID and operator’s name
Others:
Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer
Standard Configuration | Probe Type Ultrasound Scanner x 1 unit, USB Connect and Charging Cable x 1pc | ||
Optional | Carrying Bag or Aluminium Suitcase(options), Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Windows PC, Tablet Bracket, Trolley | ||
Company Profile
Founded in 2003, AMIS is a professional supplier of medical devices in China. It has been focusing on the development, manufacture and sale of various medical equipment, surgical products and disposables. With one-stop medical equipment procurement services, mature production technology and professional team.
AMIS is responsible for every life and all products are guaranteed by ISO and CE. As a leader in the healthcare industry, AMIS is committed to improving technology and helping customers find the right products.
Office Area
Test Area
Maintenance Area
Packaging Workshop
Partners & Exhibition
Certificate
Our Sales Service
1. Pre-sale: make detailed plans, recommend various types of products according to the local hospitals' different scope, level, budget and requirements. Then, supply corresponding technical parameters and quotation to customers.
2. In-Sale: According to the market conditions of different countries, put forward reasonable suggestions to help guests select the most suitable models and corresponding accessory products.
3. After-sale:
* On-line guide for installation and commissioning.
* Video installation and maintenance, help customer train the local engineers.
* Invite guests to our company for training if necessary.
Packing & Shipping
Packing details:
Elegant suitcase, Carton, also we can pack as customers requests.
FAQ
Q1: What is your minimum order quantity?
A: Our MOQ is based on the product you choose.
Q2: Can I place my company logo on your product?
A: Yes, except for a few exceptions. Please consult our sales team before applying.
Q3: What is your shipping and delivery time?
A: Once we confirm your order and payment, we usually ship within 5 working days.
Q4: What product guarantees do you offer?
A: All of our products are Alibaba Trade Guarantee, which means your order will be fully protected. Therefore, if we fail to deliver on time or fail to fulfill our product quality obligations, Alibaba will refund your payment.
Q5: How long is the warranty period?
A: We usually provide a 12-month warranty for all products, but some accessories may have a shorter warranty. For specific warranty periods for your product, please consult our sales manager.
