Датчик давления диафрагмы сантехника защита от засорения высокоточный передатчик 4-20 мА с цифровым дисплеем зажим в
Датчик давления диафрагмы сантехника защита от засорения высокоточный передатчик 4-20 мА с цифровым дисплеем зажим в
Датчик давления диафрагмы сантехника защита от засорения высокоточный передатчик 4-20 мА с цифровым дисплеем зажим в
Датчик давления диафрагмы сантехника защита от засорения высокоточный передатчик 4-20 мА с цифровым дисплеем зажим в

Датчик давления диафрагмы сантехника защита от засорения высокоточный передатчик 4-20 мА с цифровым дисплеем зажим в


Поделиться:


Цена:55,00 $ - 85,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-17-2025 70.60 $* 71.60 $*
Jul-17-2025 57.88 $* 58.23 $*
Jun-17-2025 69.0 $* 70.83 $*
May-17-2025 68.72 $* 69.82 $*
Apr-17-2025 54.27 $* 55.32 $*
Mar-17-2025 67.99 $* 68.65 $*
Feb-17-2025 67.12 $* 68.12 $*
Jan-17-2025 66.2 $* 67.46 $*

Характеристики



Product Overview




The QXMC series is a hydrostatic pressure level transmitter for measuring the level of liquids in various tanks and other types of vessels. The EC hydrostatic pressure level transmitter consists of a piezo resistive sensor and Wheatstone bridge to directly measure head pressure exerted on the diaphragm of the EC level transmitter. When the pressure is exerted on the diaphragm, as a result of the liquid level, the pressure is transferred to the Wheatstone bridge electrical circuit through silicon oil contained in the EC sensing unit. This creates a differential voltage, which is then amplified to create a variable 4-20mA output that varies as a result of the changing liquid level. In addition, a pressure transducer is available for measuring pressure in tanks or pipes and producing a variable 4-20mA output.

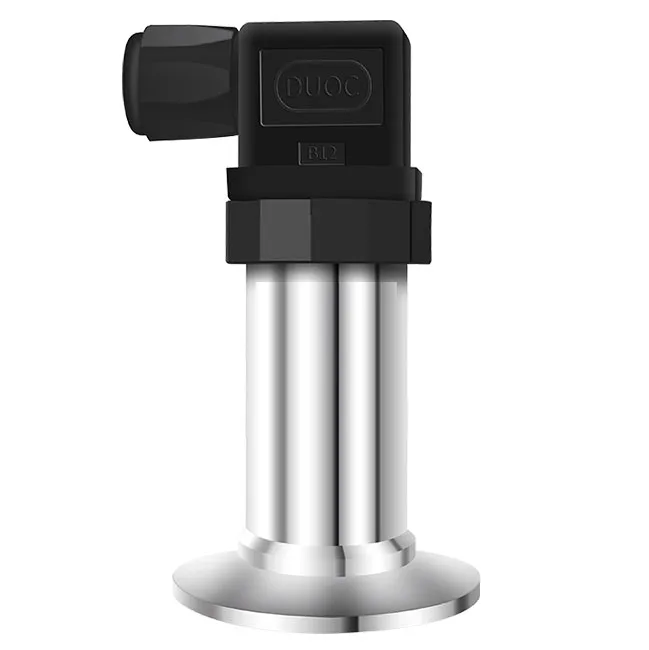

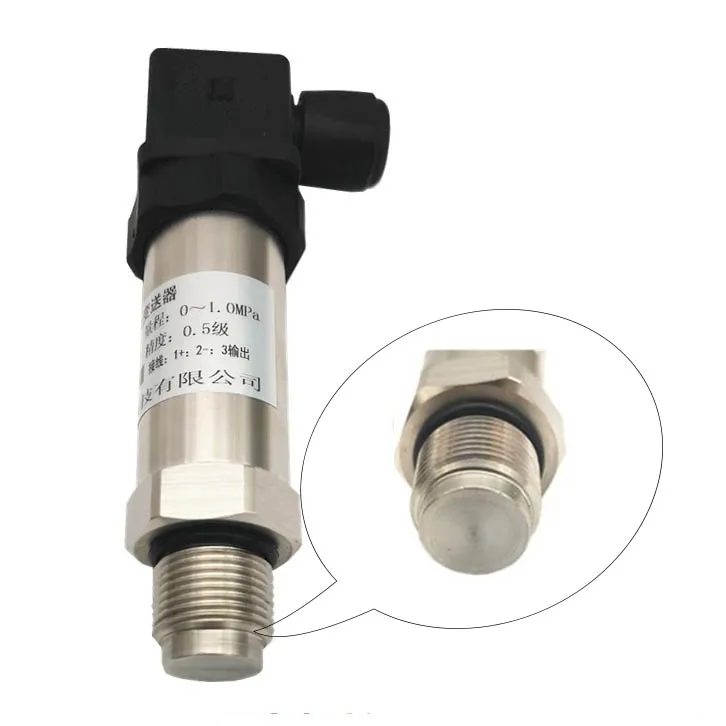

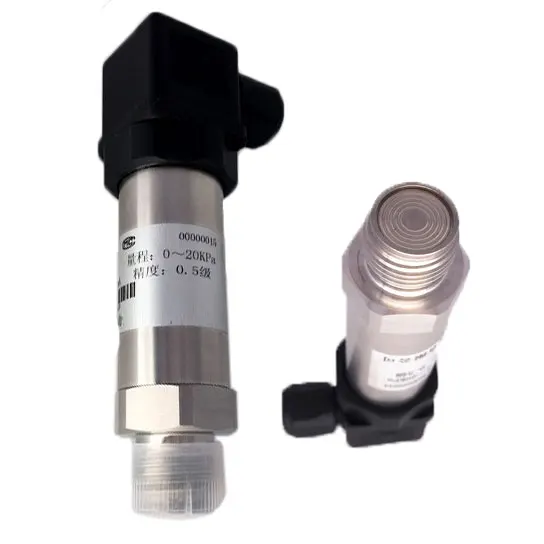

Diaphragm pressure sensor sanitary anti-clogging high precision 4-20mA transmitter with digital display clamp in mud

Features:
Completely submersible liquid level transmitter
Wide variety of sensors, e.g. extension tube or flexible cable, standard or high temperature
Measuring range up to 328ft (100m)
4-20mA output, 2-wire loop powered
Pressure transducer also available

Applications:
USE
Extension cable unit can measure in deep wells or reservoirs
Tank level measurement and control
PLC or DCS input for level control functions
Pressure measurement of gas or liquid (EC1500)
INDUSTRY
Water treatment and distribution
Chemical
Many others




Company Profile


Zhuhai Qixinli Technology Co., Ltd
We are dedicated in providing complete customized solutions for a wide range of industrial automation process applications – in material level, liquid flow, pressure and temperature.
We can provide you with high-precision measurement technology. We have more than 12 years of experience in industrial automation.
Our products can be used in many different industries such as food & beverage, water, energy, pharmaceutical etc. In the past 5 years, the company has undergone tremendous growth and development – flourishing internationally and providing customers worldwide with the best customized solutions for process automation
Main products include:
Level switch, Level transmitter
Components of magnetic level indicator







Sales And Service Network




Successful Project


Project in Thailand
Project in India
Project in Russia


Packaging & Shipping




FAQ


1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

2.Can I buy samples placing orders?
-Yes.Please feel free to contact us.

3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
