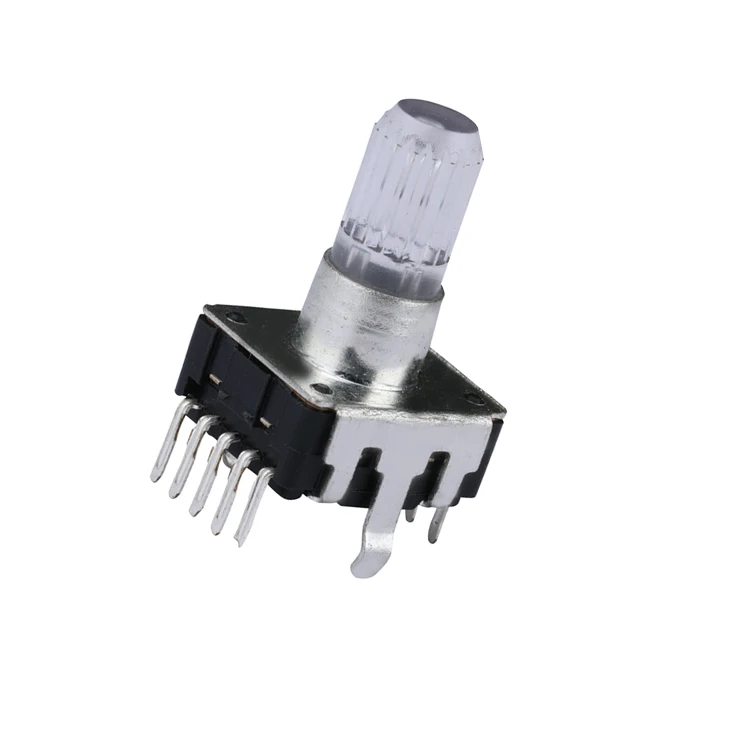

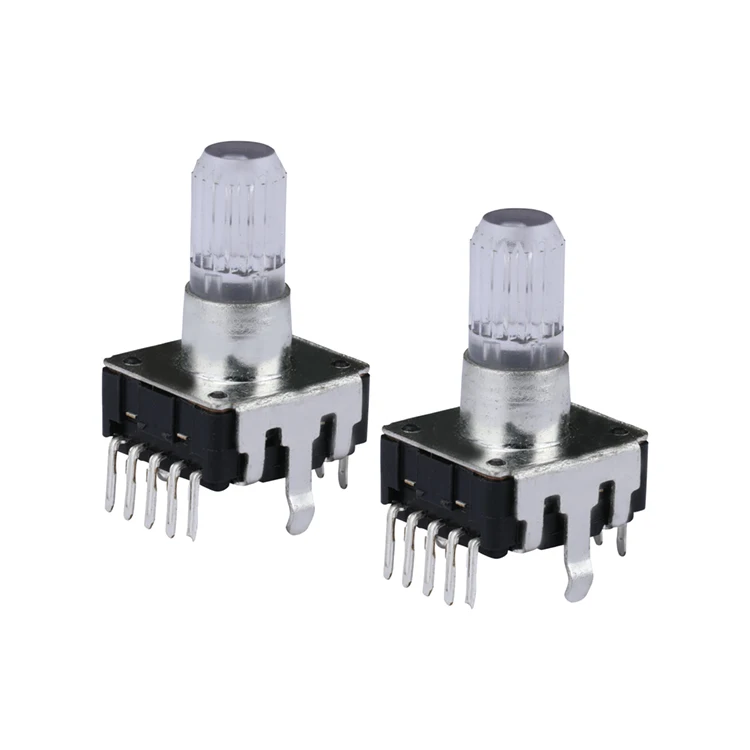

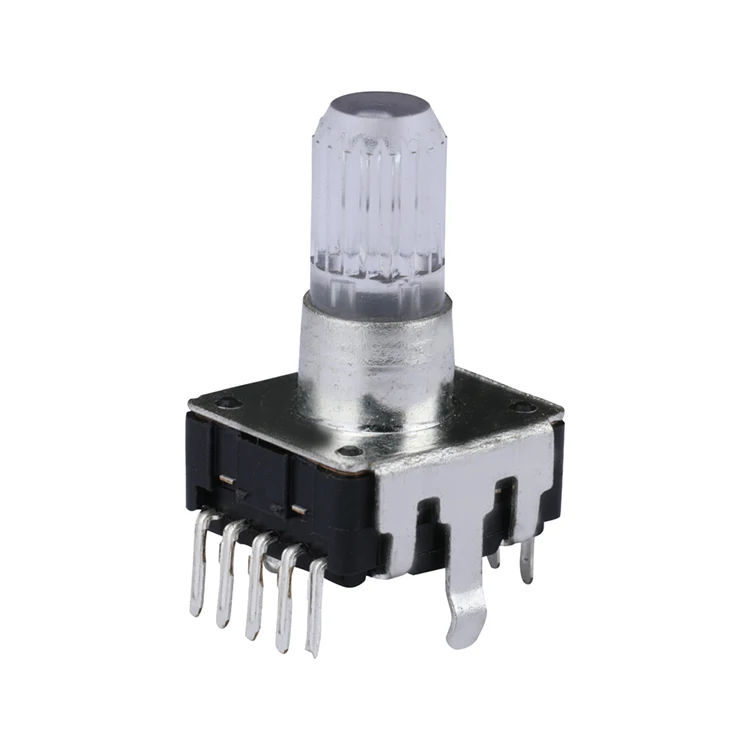

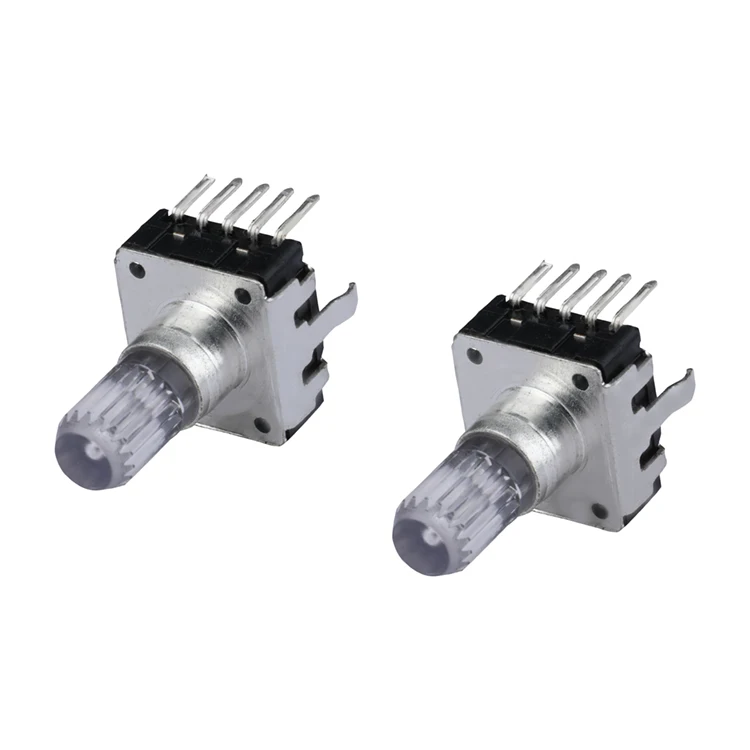

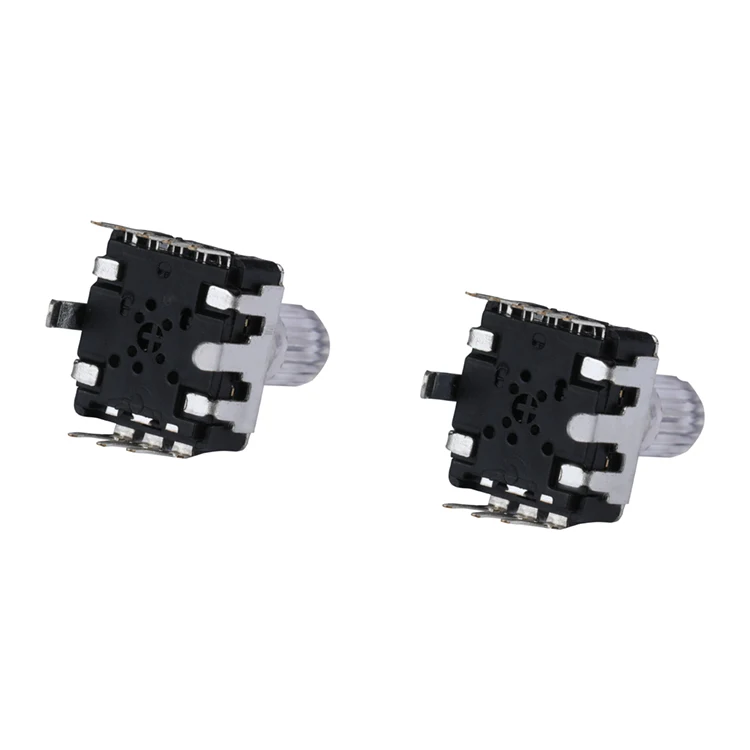

25 мм 360 градусов Поворотный кодировщик светодиодный переключатель EC12 RE12 металлическая

Описание и отзывы

Трекер стоимости

Характеристики

Product Description



Mechanical characteristics
Total rotational angle	360°
Click torque	20-100gf.cm
No. Of click	24 click step angle:15±2° 12 click step angle:30±2°
Bushing-nut tightening torque	8.0kgf.cm Min
Shaft play in rotational wobble	5°Max
Electrical characteristics
rating	DC 5V,A,B lead 5mA Max, C lead 10mA Max
resolution	24 pules/360° 12pules/360°
Insulation resistance	100MΩMin at DC50V
Dielectric	1 minute at AC 300V
Endurance characteristics
Rotational life	30000±200 cycles≤100gf.cm
Storage temperature range	-40℃≈+85℃
Operating temperature range	-30℃≈+80℃
Soldering characteristic	Dipping in soldering≤206℃±5°,within 3S Solder by hand≤300℃±5°, within 3S



Company Information

      Shenzhen Goodlink Electronics C0.,LTD. Is an enterprise specializing in the development and manufacturing of potentiometers, encoders, switches and other electronic components for over 20 years. With advanced production and inspection equipment, high quality product quality, fast service response in the domestic and foreign customers enjoy a good reputation. Products are widely used in car audio, air conditioning, DVD multimedia audio, musical instrument audio control, power converter, instruments and instruments, etc.

          The company has passed ISO9001 and ISO14001 system certification, and established a set of perfect quality management system. "To provide customers with quality products, make customers 100 percent satisfied" is the lofty goal and business philosophy the company strives to pursue.
