Высокоскоростной двухсторонний строгальный станок четырехсторонний для деревообработки строгания и формования QMB723GH 160 Макс.
- Категория: Wood Planer >>>
- Поставщик: Huzhou,Qingcheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 88060.62 $* | 92463.57 $* |
| Aug-19-2025 | 87320.16 $* | 91686.74 $* |
| Jul-19-2025 | 73260.9 $* | 76923.22 $* |
| Jun-19-2025 | 85840.34 $* | 90132.4 $* |
| May-19-2025 | 74740.67 $* | 78477.37 $* |
| Apr-19-2025 | 84360.38 $* | 88578.27 $* |
| Mar-19-2025 | 83620.24 $* | 87801.60 $* |
| Feb-19-2025 | 82880.85 $* | 87024.64 $* |
| Jan-19-2025 | 82140.10 $* | 86247.83 $* |
Характеристики

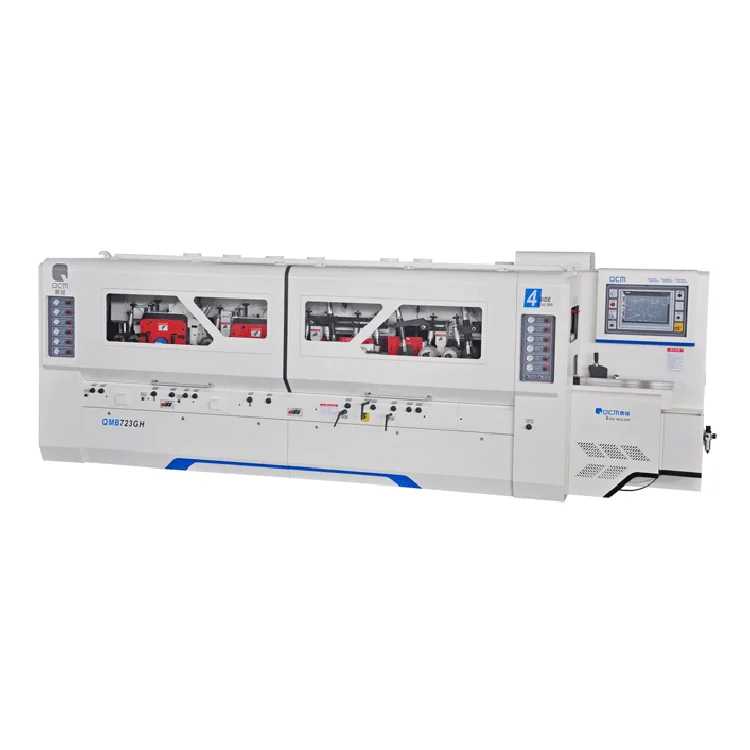

High Speed Sided Planer Four Sides Machine Four-side Moulder Woodworking Planing and Moulding QMB723GH 160 Max.planing Depth
Product Description
QCM Smart Panther Woodworking Machinery Wood Planer Machine | ||||||||
Technical Parameter | ||||||||
Specifications | Unit | QMB723GH | QMB620RL | QMB720W | ||||
Working width | mm | 20-230 | 20-230 | 50-200 | ||||
Working thickness | mm | 10-160 | 8-125 | 8-100 | ||||
Min.working length (intermittent/continuous) | mm | 720/380 | 590/250 | 630/350 | ||||
Dia of spindle | mm | Φ50 | Φ40 | Φ40 | ||||
Dia of feeding roller | mm | Φ140 | Φ140 | Φ140 | ||||
Feeding speed | m/min | 6-60 | 8-36 | 10-45 | ||||
Rotation speed of spindle | r/min | 7000 | 6800 | 6800 | ||||
Cutter dia of first bottom cutter | r/min | Φ140/Φ165 | Φ125/Φ152 | Φ125/Φ136 | ||||
Left/Right vertical cutter | mm | Φ140-Φ250 | Φ108-Φ180 | Φ108-Φ180 | ||||
The first upper cutter | mm | Φ140-Φ250 | Φ108-Φ180 | Φ108-Φ180 | ||||
The Second upper cutter | mm | Φ140-Φ250 | / | / | ||||
Back bottom cutter | mm | Φ140-Φ250 | / | Φ108-Φ200 | ||||
Universal spindle | mm | / | / | Φ100 | ||||
Total power | kW/HP | 106.22/142 | 52.25/70 | 38.65/51 | ||||
The First bottom cutter | kW/HP | 11/15 | 5.5/7.5 | 5.5/7.5 | ||||
Left vertical cutter | kW/HP | 11/15 | 7.5/10 | 5.5/7.5 | ||||
Right vertical cutter | kW/HP | 11/15 | 9/12 | 5.5/7.5 | ||||
The first upper cutter | kW/HP | 15/20 | 9/12 | 7.5/10 | ||||
The second upper /left cutter | kW/HP | 15/20 | 7.5/10 | / | ||||
The second bottom/right cutter | kW/HP | 15/20 | 5.5/7.5 | 5.5/7.5 | ||||
Universal spindle | kW/HP | / | / | 7.5/10 | ||||
Feeding motor | kW/HP | 11/15 | 7.5/10 | 4/5.5 | ||||
Beam lifting motor | kW/HP | 0.75/1 | 0.75/1 | 0.75/1 | ||||
Suction hood motor dia. | mm | 7*Φ180 | 6*Φ120 | 7*Φ120 | ||||
Overall dimensions | mm | 5660*2100*1900 | 4120*1780*1800 | 4250*1820*1750 | ||||
Weight | kg | 8800 | 4650 | 4150 | ||||
Our Advantages
Product Main Features
1. This machine adopts integral casting body with stable performance, good precision and good rigidity;
3. The spindle is precisely machined, dynamically balanced, and precisely assembled, so it runs smoothly and has good accuracy;
4. The work surface is made of special materials and special heat treatment, and is hard chrome plated for wear resistance;
5. The feeding system presses materials with three cylinders in the front, middle and back sections, with stable pressure and convenient adjustment;
6. Multiple sets of lower driving rollers are used in the front, middle and back of the worktable to ensure smooth and powerful feeding.
5. The feeding system presses materials with three cylinders in the front, middle and back sections, with stable pressure and convenient adjustment;
6. Multiple sets of lower driving rollers are used in the front, middle and back of the worktable to ensure smooth and powerful feeding.
Related Products
Company Information
Certificate & Delivery
HUZHOU QINGCHENG MACHINERY CO., LTD
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.

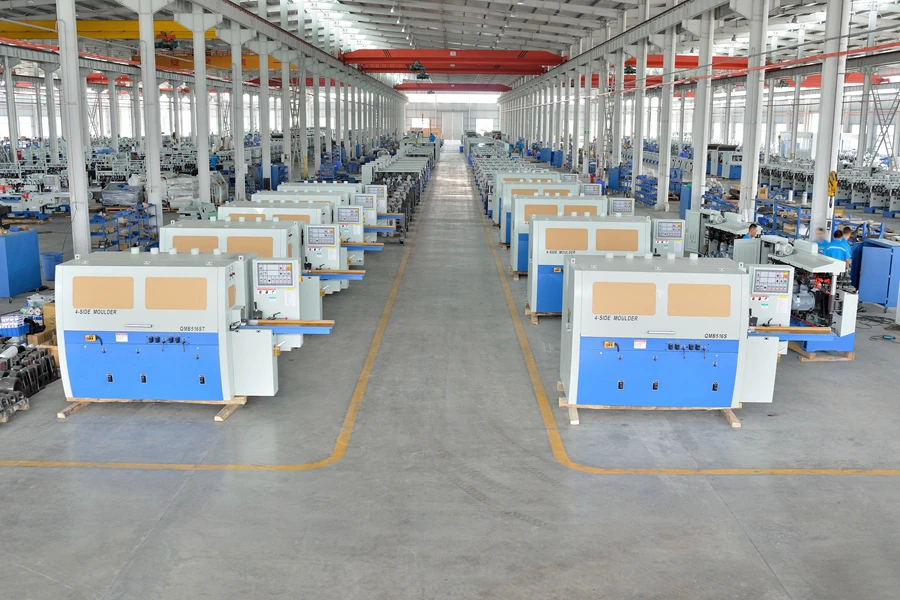

We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
FAQ
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
High Speed Sided Planer Four Sides Machine Four-side Moulder Woodworking Planing and Moulding QMB723GH 160 Max.planing Depth
