Высококачественный Солнечный водяной насос постоянного тока для сельского
- Категория: Solar Water Pump >>>
- Поставщик: Ningbo,Guanghan,Pump,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 131.84 $* | 138.45 $* |
| Aug-15-2025 | 130.50 $* | 137.20 $* |
| Jul-15-2025 | 109.12 $* | 114.22 $* |
| Jun-15-2025 | 128.41 $* | 134.6 $* |
| May-15-2025 | 111.11 $* | 117.4 $* |
| Apr-15-2025 | 125.89 $* | 131.69 $* |
| Mar-15-2025 | 124.7 $* | 130.68 $* |
| Feb-15-2025 | 123.90 $* | 129.71 $* |
| Jan-15-2025 | 122.94 $* | 128.97 $* |
Характеристики
Product Description

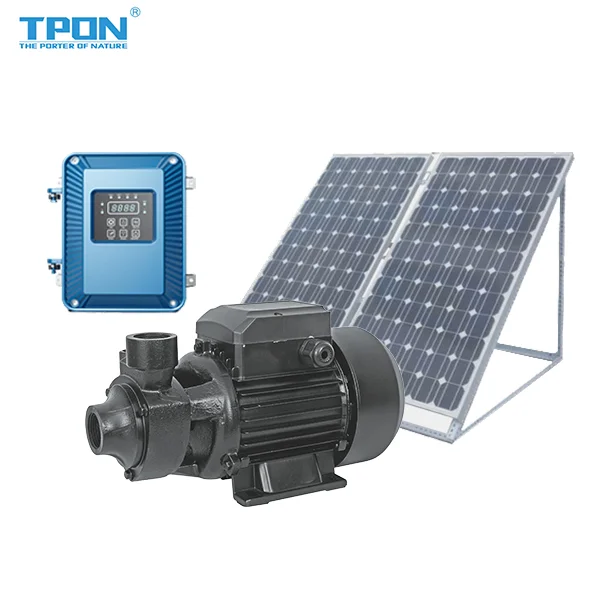

Popular Solar Surface Pump
DC Solar Pool Water Pump
(high pressure solar dc surface water pump for agriculture)
( Model :TPQB2-30-24-280)
What is the advantage of solar water pump?

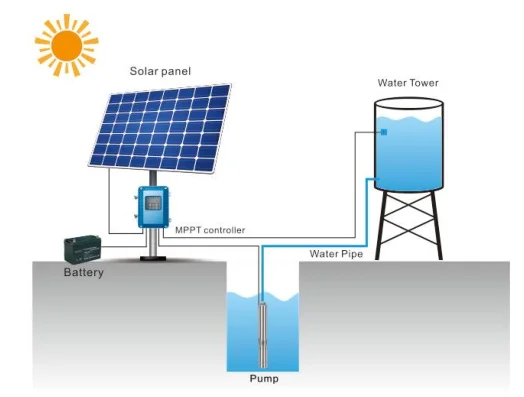

1) The whole system consists of solar panel array, controller and solar pump.
2) DC brushless motor, good quality.
3) IP65 water proof controller with MPPT, high efficiency.
4) Over voltage, over current, short circuit etc. protection.
5) water level sensors prevent dry pumping and tank full.
6) Star and stop automatically, soft start.
7) DC&AC input , (AC input optional, electricity or generator ).
8) Remote control system, (RMS optional ).
3) IP65 water proof controller with MPPT, high efficiency.
4) Over voltage, over current, short circuit etc. protection.
5) water level sensors prevent dry pumping and tank full.
6) Star and stop automatically, soft start.
7) DC&AC input , (AC input optional, electricity or generator ).
8) Remote control system, (RMS optional ).
Product Paramenters
high pressure solar dc surface water pump for agriculture
Model | Power (w) | Voltage(V) | Max flow (m3/h) | Max head (m) | Outlet (inch) |
TPQB2-25-24-210 | 210 | 24 | 2 | 25 | 1" |
TPQB2-30-24-280 | 280 | 24 | 2 | 30 | 1" |
TPQB3-50-48-550 | 550 | 48 | 3 | 50 | 1" |
TPQB3-65-72-750 | 750 | 72 | 3 | 65 | 1" |
Installation Instructions
How to connect pump：
Solar panels connect P+ P-.
Pump connect U V W
Very simple connection.
Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Pump connect U V W
Very simple connection.
Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Solar Water Pump System Complete Set:
- 1 x DC solar Pump with 2m cable

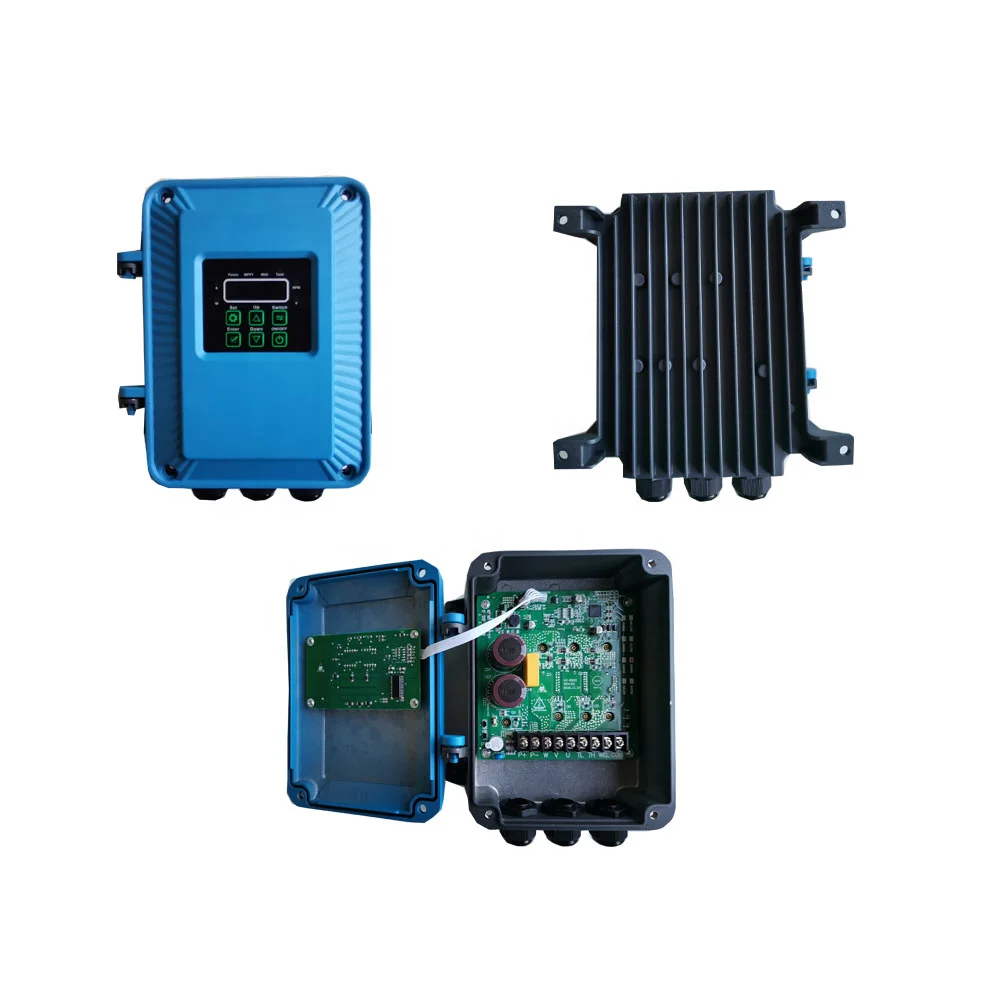

- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
- 1 x Sand fliter
HOW TO CHOOSE AND CONNECT SOLAR PANEL:
The solar panels power should be more than 1.3times for the motor power
Motor voltage (V) | Motor power (w) | Solar panel (w) | Solar panels quantity(PCS) | Connection |
48 | 500 | 300 | 2 | series |
72 | 900 | 330 | 3 | series |
110 | 1200 | 330 | 4 | parallel |
Customer feedback
Dutch customers purchased a 500W solar pool pump for river irrigation. The solar pump of this model DLP15-14-48-500 has a maximum flow of 15m³/h and a maximum lift of 14m. Two 350W solar panels can be configured to work well. The Dutch customer owns a vegetable plot by the river and he hopes to set up a solar irrigation system to pump water from the river to water his vegetable field. This solar pool pump draws water from the river and filters out the sediment and impurities in the river through the filter. The system operates fully automatically, does not require grid and fuel, and has low operating costs. The customer was very satisfied with our solar pool pump and he told us that the pump works very well.
Product packaging
Packages of solar surface pumps water pump
1. All of our solar powered water pump for swimming pool s are packed by the standards wooden box complied with the exportation requirement;
1. All of our solar powered water pump for swimming pool s are packed by the standards wooden box complied with the exportation requirement;
2. The wooden box more than 50 pcs of solar powered water pump for swimming pool can also packed by wooden pallet; We have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also cooperate with many scientific research institutions and universities to ensure the new products researchment.
Company Profile
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china we believe one daydifful pump will exist in every corner of the world by means of its reliable quality and gooreputation thank all of you for the long-term supporting and concerning of our growth.Your views are the driving forces of DIFFUL
In our company, there are large quantities of high-quality scientific research and management talents, strong technical
force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
force,advanced assembly equipment, and perfect detection devices. In addition, in order to meet the market demand, the company also provides the service of tailor-made products and develops new products on a regular basis.
FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
