Цифровой измеритель толщины покрытия ультразвуковой

Цифровой измеритель толщины покрытия ультразвуковой

Категория: Приборы >>>
Поставщик: AIK,Instruments,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.25 $*	0.24 $*
Aug-15-2025	0.74 $*	0.72 $*
Jul-15-2025	0.81 $*	0.10 $*
Jun-15-2025	0.90 $*	0.84 $*
May-15-2025	0.65 $*	0.29 $*
Apr-15-2025	0.89 $*	0.14 $*
Mar-15-2025	0.78 $*	0.80 $*
Feb-15-2025	0.21 $*	0.18 $*
Jan-15-2025	0.63 $*	0.56 $*

Характеристики

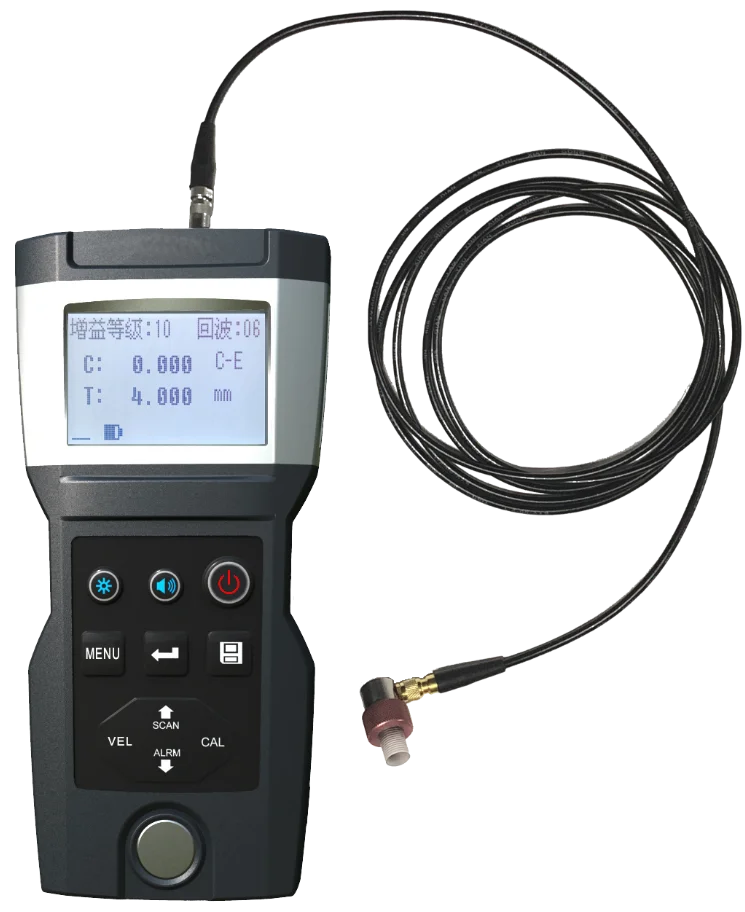

PD-T7 Series Ultrasonic Thickness Gauge

PD-T7 series high-precision digital ultrasonic thickness gauge adopts the principle of pulse reflection ultrasonic measurement, which is suitable for the measurement of the thickness of various materials with ultrasonic energy propagating in the interior at a constant speed and the reflection from its back. Up to 0.001mm. This instrument can make accurate measurements on various plates and various processed parts. It is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass, and any other good conductor of ultrasonic waves. Is widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. This product meets the following standards:
Calibration Specification for Ultrasonic Thickness Gauge JJF 1126-2004

Instrument Features: Using high-precision timing chip and V-PATH calibration model to achieve accurate measurement, display resolution up to 0.001mm, intelligent voice broadcast measurement results
 Supports both single crystal and dual crystal probes,
which can accurately measure ultra-thin workpieces while taking into account conventional large-range measurement
 Supports real-time temperature compensation, eliminating measurement errors caused by probe temperature changes. After the probe is inserted into the instrument, it only needs to be calibrated once and can be used for a long time without frequent calibration.
Can measure through coating, and measure coating and substrate thickness at the same time (advanced version) Built-in Bluetooth module, can be wired or wireless with PC or smart terminal equipment Data transmission and wireless printing
Support real-time online measurement and host computer instruction control (instruction version) The main function:

The main function:

Pulse echo (P-E), interface echo (I-E) and echo echo (E-E) multiple measurement methods can be used for
conventional measurement and through-coating measurement (some functions are only available in the advanced version)

16-level gain adjustment, which can adjust the gain according to the effective echo number and coupling status displayed during measurement, to achieve the best measurement results in different scenarios With various measurement modes such as upper and lower limit scanning, difference measurement, over-limit alarm, etc.

Known thickness can inverse sound velocity to improve measurement accuracy

Rich display information, including thickness value, speed of sound, coupling status, gain level, effective echo number, power status, time, etc.

Completely save measurement information, including measurement thickness, measurement sound velocity, measurement time, etc.

Product Description

Recommend Products

FAQ

Q1: Are you a factory or trading company?
A: We are a factory.

Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.

Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others.
Samples will be 10%-20% higher than the cargo.

Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.

Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.

Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing

Q7: Delivery date?
A: 1-3 days for sample, 15-20 days for 1000pcs, 30-35days for 40HQ.

Q8: Payment Method?
A: L/C at sight, T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.

Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)

Q10:Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
We can pick you up in the airport or train station. Hotel booking service is available
