Сварочная флюсовая пила сварочный флюс sj101 EM12 EM12K

Сварочная флюсовая пила сварочный флюс sj101 EM12 EM12K

Категория: Другие товары для сварки и пайки >>>
Поставщик: Tianjin,Bridge,Group,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.80 $*	0.85 $*
Aug-19-2025	0.35 $*	0.36 $*
Jul-19-2025	0.62 $*	0.75 $*
Jun-19-2025	0.1 $*	0.60 $*
May-19-2025	0.22 $*	0.42 $*
Apr-19-2025	0.48 $*	0.95 $*
Mar-19-2025	0.66 $*	0.22 $*
Feb-19-2025	0.55 $*	0.35 $*
Jan-19-2025	0.42 $*	0.98 $*

Характеристики

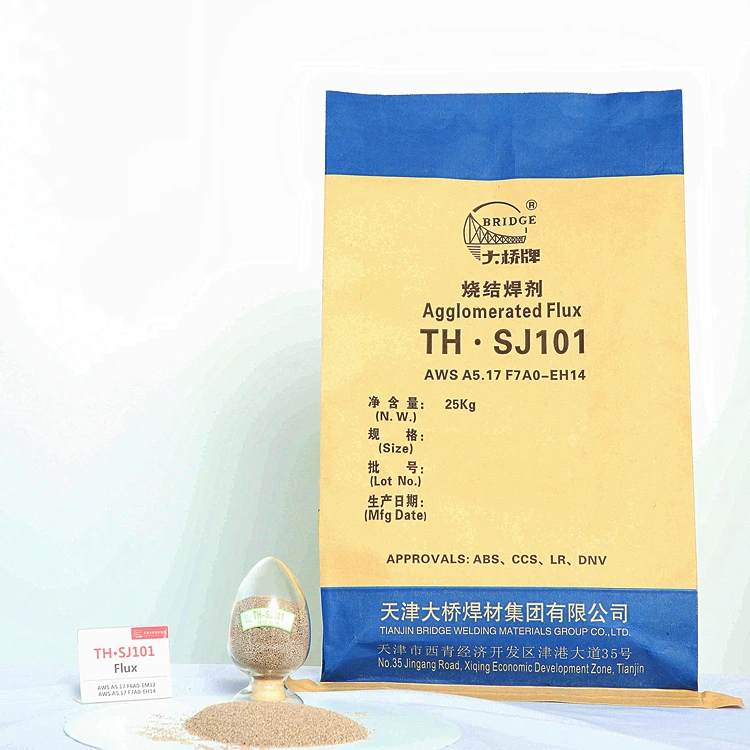

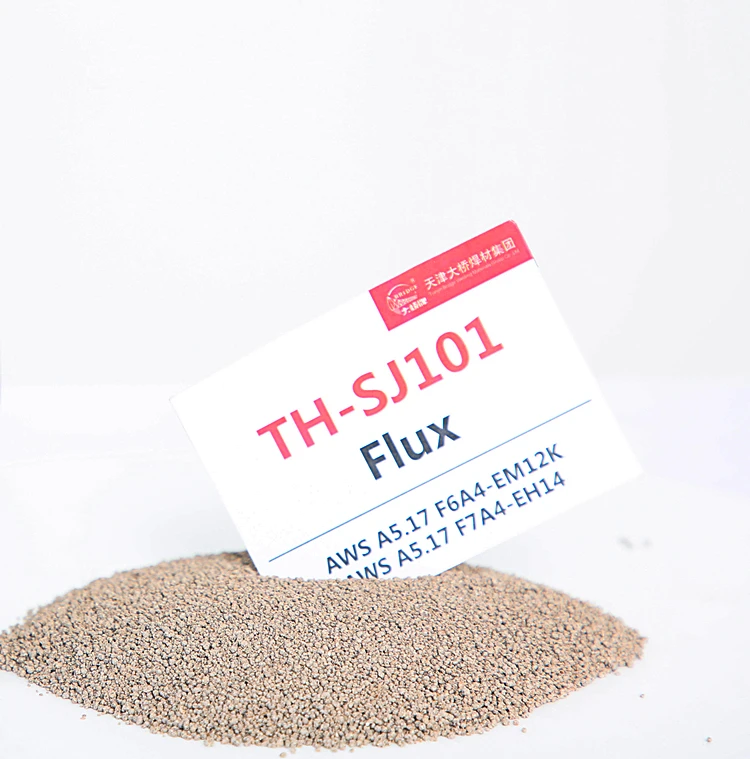

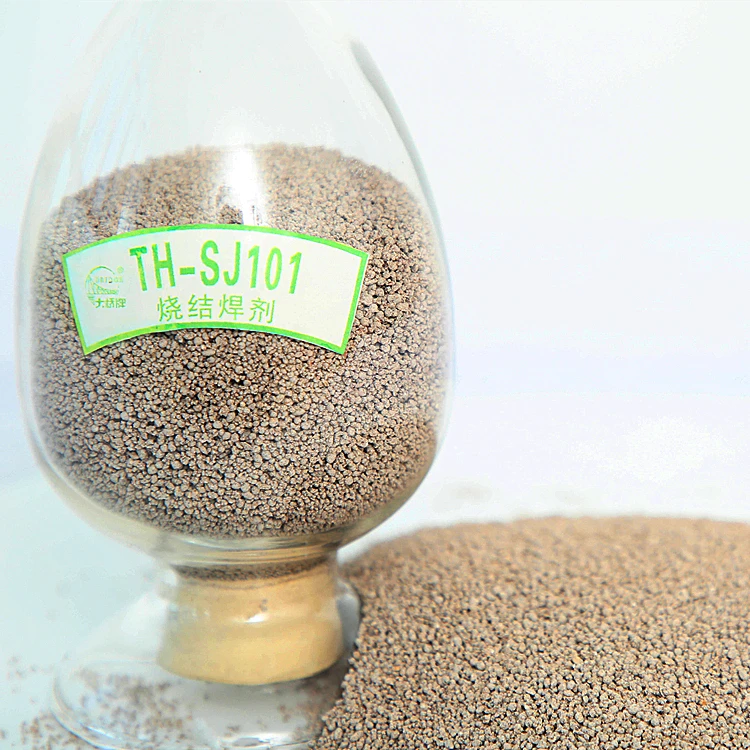

TH-SJ101

Sintered flux

GB / T 5293 F5A4-H10Mn2

GB / T 12470 F48A4-H10Mn2

AWS A5.17 F7A4-EH14

Applications:

it can be used in single-channel, multi-channel, monofilament and multifilament submerged arc welding for a variety of low-alloy structural steels with appropriate wires (such as H10Mn2).

Features:

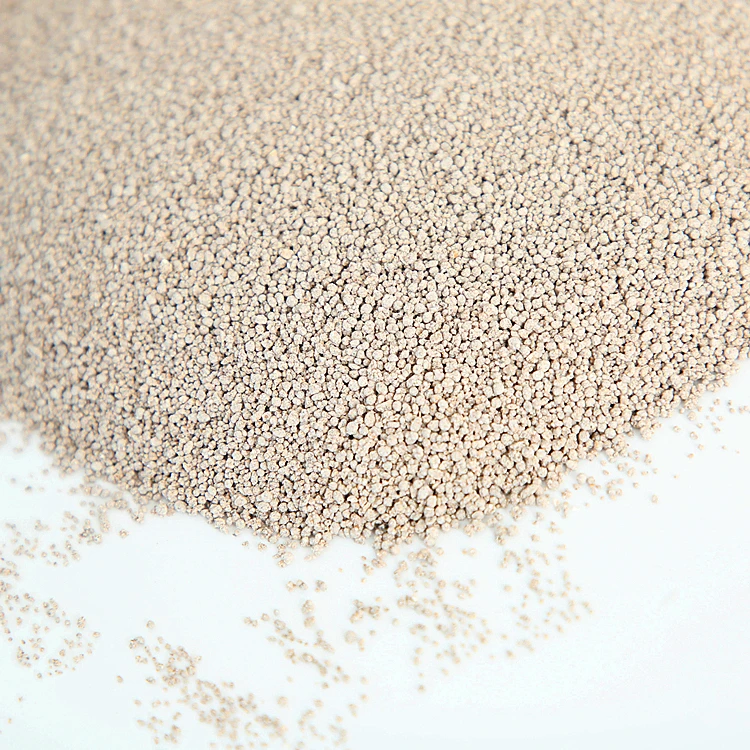

TH-SJ101 is a fluorine alkali type alkaline sintering flux with particle size of 10-60 mesh or 10-40 mesh. The alkalinity is about 1.8. It can be used in AC and DC dual purpose. The arc combustion is stable, the slag is easy to be removed, and the welding seam is formed beautifully. The weld metal has a high impact toughness at low temperature.

Attention:

1. Before using, the flux shall be baked for 2 hours at 300-350 ℃.

2.Do remove rust, oil, water and other impurities in the weld zone before welding.

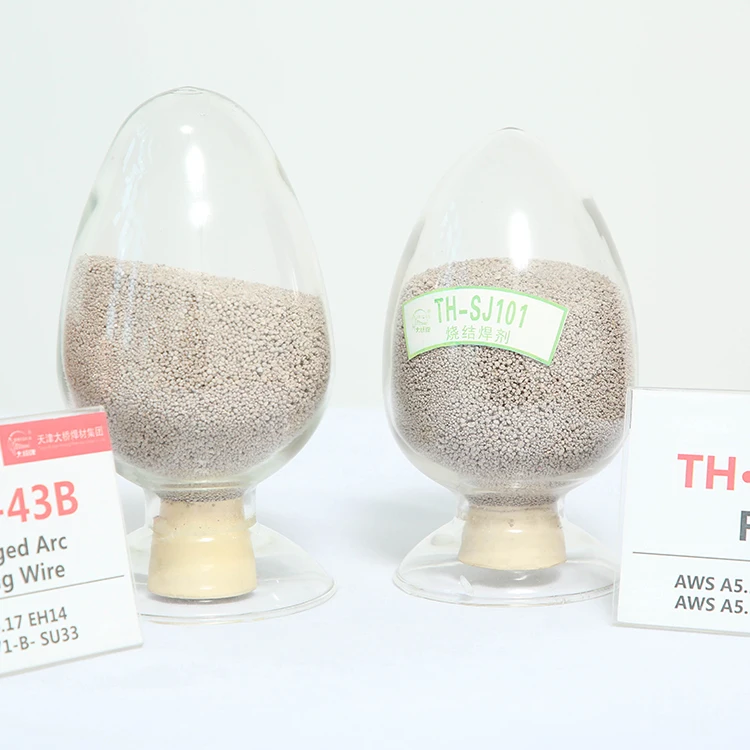

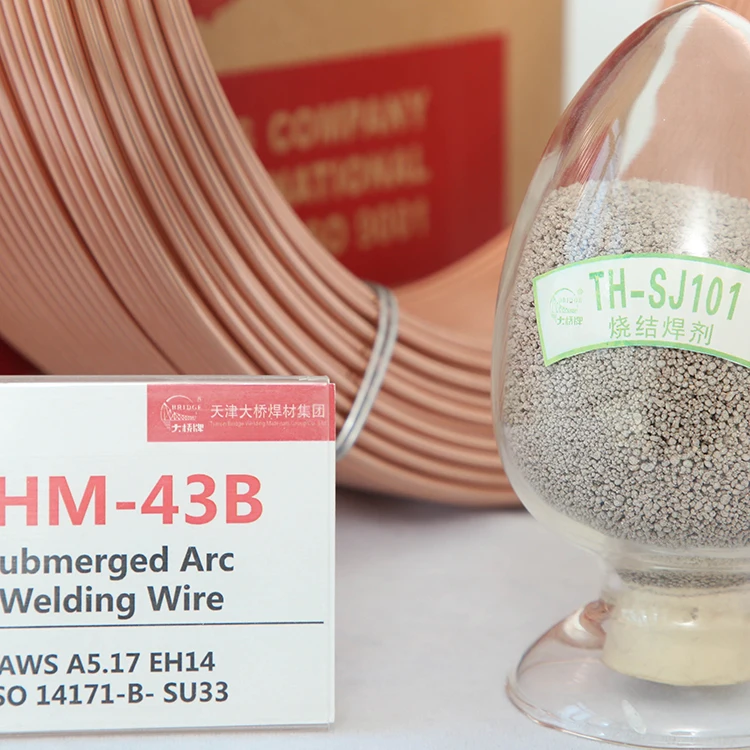

Mechanical properties of deposited metal: (TH-SJ101/THM-43B combination)

Items

Tensile strength

Rm (Mpa)

Yeild strength Rel/Rp_0.2(Mpa)

Elongation

A (%)

X ray detection

Charpy V-notch impact energy

(KV₂) (J) -40℃

Standard

value

480-650

≥400

≥22

Ⅰ

≥27

Typical value

525

440

Ⅰ

100

Physical and chemical properties of flux:

Items

S(%)

P (%)

Moisture content(%)

Mechanical inclusion(%)

Mesh

Standard

value

≤0.060

≤0.080

≤0.10

≤0.30

10-60

10-40

Typical value

0.010

0.023

0.01

0.1

This product has passed China, the United States, Britain, Japan, Italy and Norway classification society approval.

--- PRODUCT APPLICATION ---

Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade applied to hydro steel at Laos pumped storage power station E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project.
