Устройство для сушки мяса рыбы
US $6500-$7000

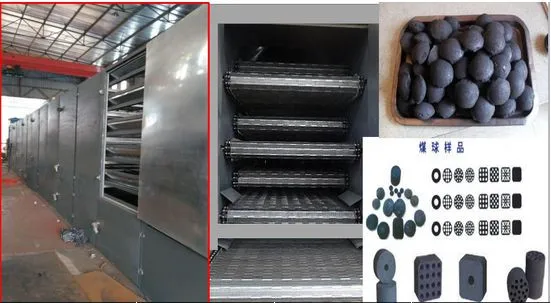

Промышленное сушильное оборудование сетчатая ленточная сушилка для брикетов
- Категория: Hot Air Furnace >>>
- Поставщик: Gongyi,Hengchang,Metallurgical,Building,Material,Equipments,Plant
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.91 $* | 0.48 $* |
| Aug-17-2025 | 0.33 $* | 0.49 $* |
| Jul-17-2025 | 0.0 $* | 0.1 $* |
| Jun-17-2025 | 0.99 $* | 0.3 $* |
| May-17-2025 | 0.60 $* | 0.95 $* |
| Apr-17-2025 | 0.85 $* | 0.31 $* |
| Mar-17-2025 | 0.3 $* | 0.93 $* |
| Feb-17-2025 | 0.20 $* | 0.45 $* |
| Jan-17-2025 | 0.1 $* | 0.26 $* |
Характеристики
Product Description
Mesh band dryer conveys raw material by steel mesh for drying, and very suitable for flow process. It is widely used in chemical ndustry, food industry, medicine industry, building materials, electronic industries, especially good at drying material in slice shape, strip particles. It has the advantages of low investment, high drying speed, high evaporation strength, high efficiency, and good quality of product.

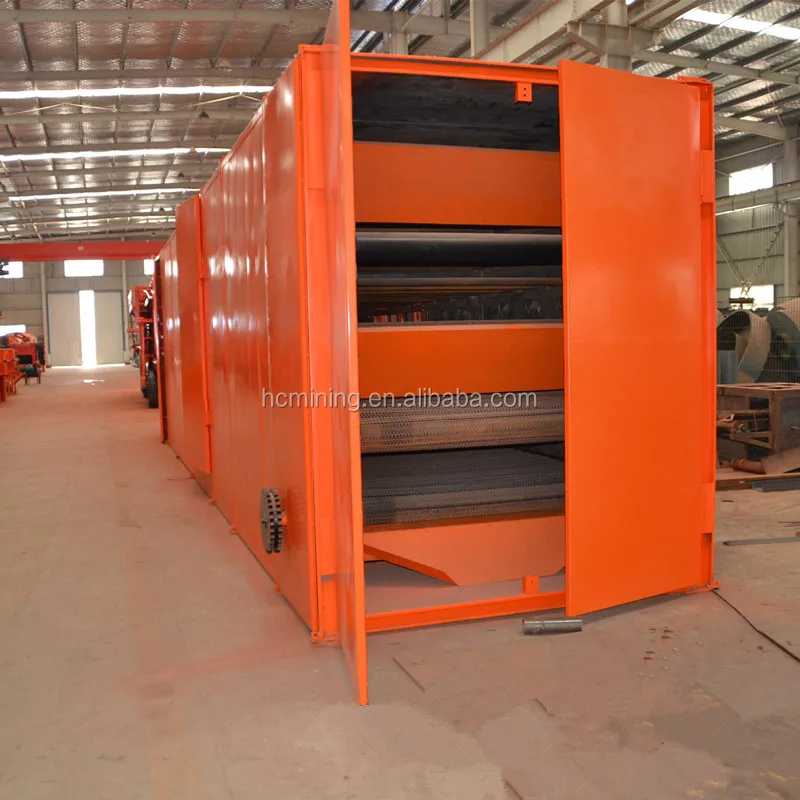

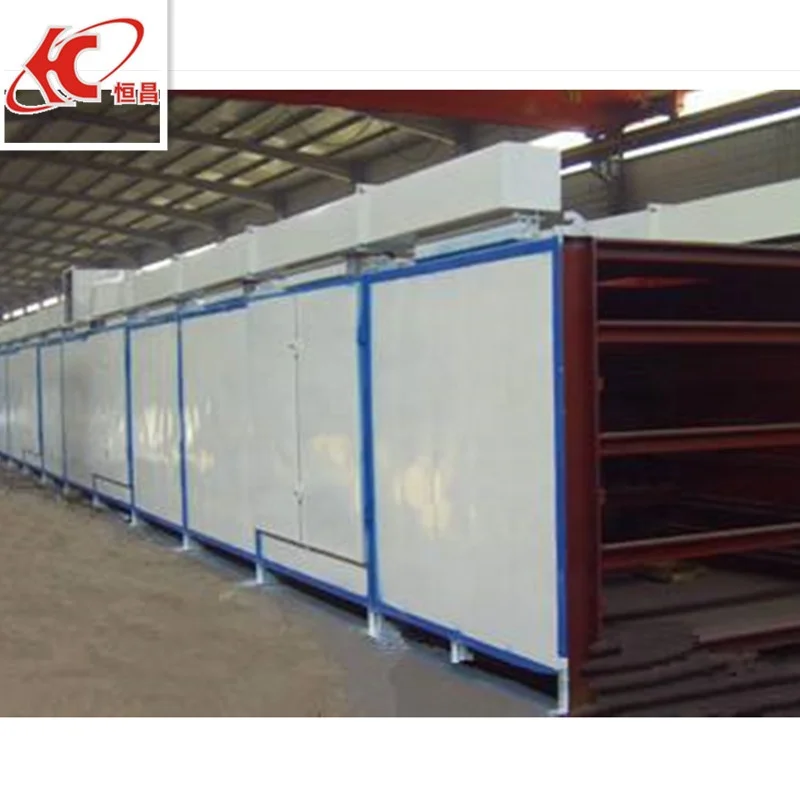

Mesh belt dryer is composed by the main frame, tail frame, the way among frame, traction chain, nets chain, guide, automatic tensioning device,automatic heating equipment components. The material is the top charging hopper dryer with upper net belt into the dryer, the net belt running smoothly to the dryer, along the chute into the lower, and then back to the machine head, and so on, and the material in the hot air under the baking, gradually dry, by the tail department is sent out.
Mesh belt dryer is composed by the main frame, tail frame, the way among frame, traction chain, nets chain, guide, automatic tensioning device,automatic heating equipment components. The material is the top charging hopper dryer with upper net belt into the dryer, the net belt running smoothly to the dryer, along the chute into the lower, and then back to the machine head, and so on, and the material in the hot air under the baking, gradually dry, by the tail department is sent out.
Product structure
Production Advantages
(1) It is widely used and has a unique advantage for the chemical industry, food industry, medicine, building materials,
electronics and so on.
(2) mesh belt dryer working process conveyor belt with a flexible, it can adjust the amount of air, material retention
time,Heating temperature, etc., in order to achieve rapid heating and drying effect.
(3) mesh belt dryer process is simple and flexible, this mesh belt dryer can be based on the actual situation of the object to
adjust the corresponding data.
(4) mesh belt dryer equipment configuration is very flexible, the use of two systems First, a network with a flushing system, the
second is the material cooling system.
(5) mesh belt dryer basically rely on the use of air recycling, to achieve drying effect, greatly saving energy.
(6) mesh belt dryer also used a sub-wind device spark machine, this device makes hot air distribution more uniform,to ensure the
consistency of the quality of processed products.
electronics and so on.
(2) mesh belt dryer working process conveyor belt with a flexible, it can adjust the amount of air, material retention
time,Heating temperature, etc., in order to achieve rapid heating and drying effect.
(3) mesh belt dryer process is simple and flexible, this mesh belt dryer can be based on the actual situation of the object to
adjust the corresponding data.
(4) mesh belt dryer equipment configuration is very flexible, the use of two systems First, a network with a flushing system, the
second is the material cooling system.
(5) mesh belt dryer basically rely on the use of air recycling, to achieve drying effect, greatly saving energy.
(6) mesh belt dryer also used a sub-wind device spark machine, this device makes hot air distribution more uniform,to ensure the
consistency of the quality of processed products.
Working principle

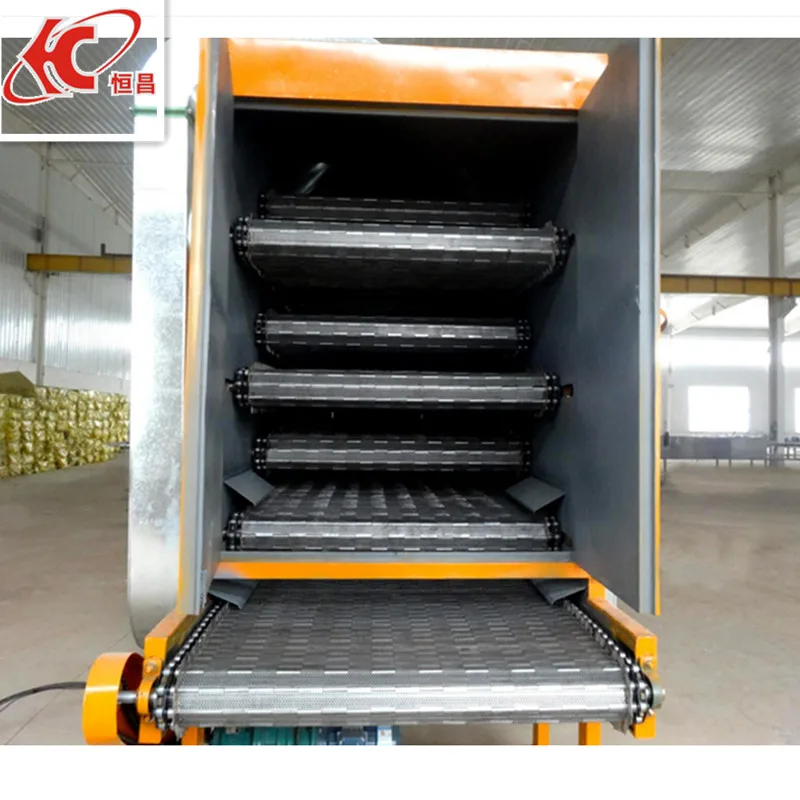

The main principle of the mesh belt dryer is to spread the material evenly on the mesh belt, the mesh belt adopts the 12-60 mesh wire mesh belt, and the mobile device is dragged and moved in the dryer, and the hot air flows through the material. , The water vapor from the drainage hole in the discharge, so as to achieve the purpose of drying, the length of the box by the combination of standard sections, in order to save the site, automatic mesh belt dryer, dryer can be made of multi-layer, common There are two rooms three, two rooms five, length 6-40m, the effective width of 0.6-3.0m.
Product Parameters
Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and
commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating
regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for
free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we
also provide you the life-long follow-up service.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
Contact us
If you want to know more details, please contact me!!
Website:http://www.hcmachinary.com
Tel/what's app: +86-15516999978
