Модуль последовательной шины

Категория: Other Telecommunications Products >>>
Поставщик: Shenzhen,Ronghuahong,Electronic,Co.,Ltd.

Цена:15,50 $ - 19,90 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	19.33 $*	19.7 $*
Jul-18-2025	15.61 $*	15.89 $*
Jun-18-2025	19.62 $*	19.43 $*
May-18-2025	19.47 $*	19.81 $*
Apr-18-2025	15.85 $*	15.59 $*
Mar-18-2025	18.11 $*	18.41 $*
Feb-18-2025	18.27 $*	18.60 $*
Jan-18-2025	18.64 $*	18.54 $*

Характеристики

Product Description

Product Details

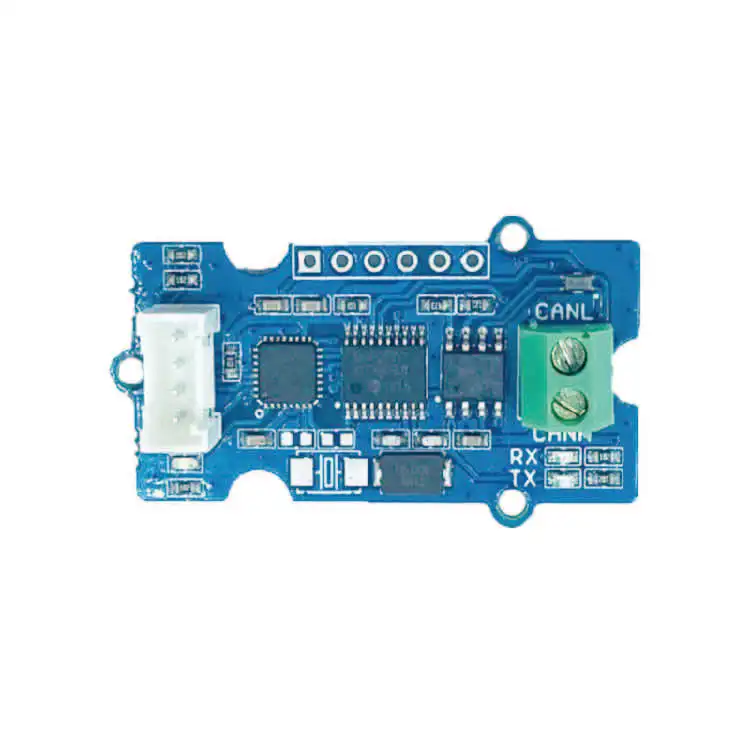

The Serial CAN Bus module provides your Arduino with CAN Bus capabilities and allows you to hack your vehicle. It lets you to read and write messages to the CAN Bus. The Serial CAN Bus module can be connected to your Arduino through the on-board Grove connector.

CAN Bus is a messaging protocol system that lets various microcontrollers and sensors within a vehicle to talk to each other. CAN provides long distance, medium communication speed, and high reliability.

The Serial CAN Bus module is based on MCP2515 CAN controller and MCP2551 CAN transceiver provides speed up to 1Mb/s. It also has a terminal block so you can connect to your vehicle’s OBD-II port with two wires.

----------------------------------------------------------------------------------------------------------------------------------

Features:
* ● UART to CAN Bus communication
* ● Works with Arduino / BeagleBone board / Raspberry Pi or any MCU that supports UART.
* ● Supports with AT commands
* ● Up to 115200 UART baud rate (default 9600)
* ● Up to 1Mb/s CAN Bus baud rate
* ● LED indicators for TX and RX, and power

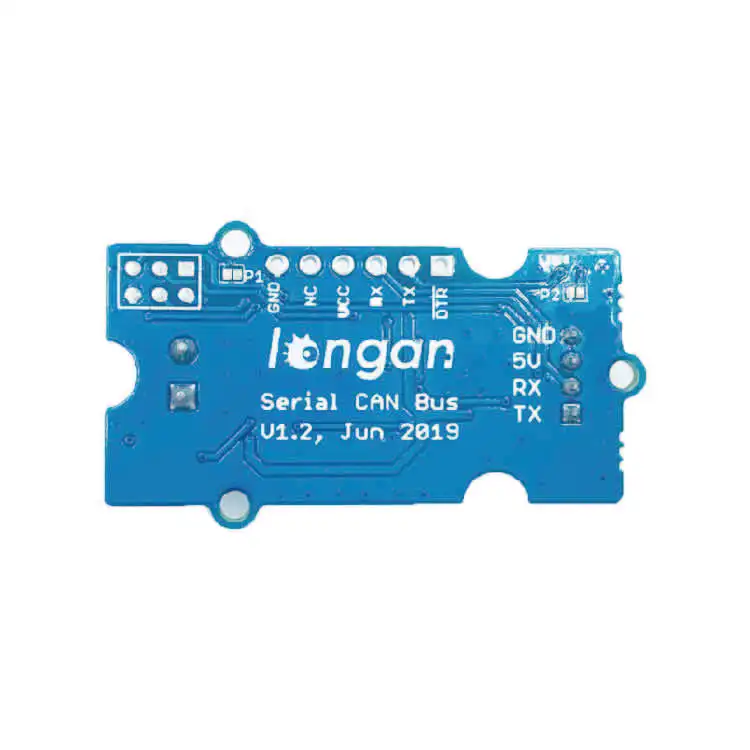

* ● 4-pin Grove connector

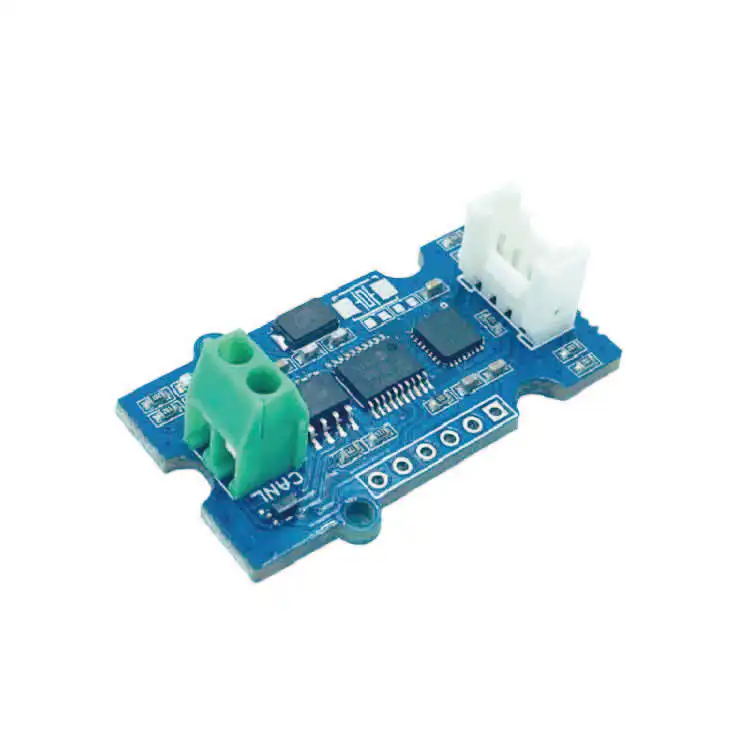

* ● 2-pin screw terminal block
* ● Operating voltage: 3.3/5V
* ● Easy-to-use Arduino library

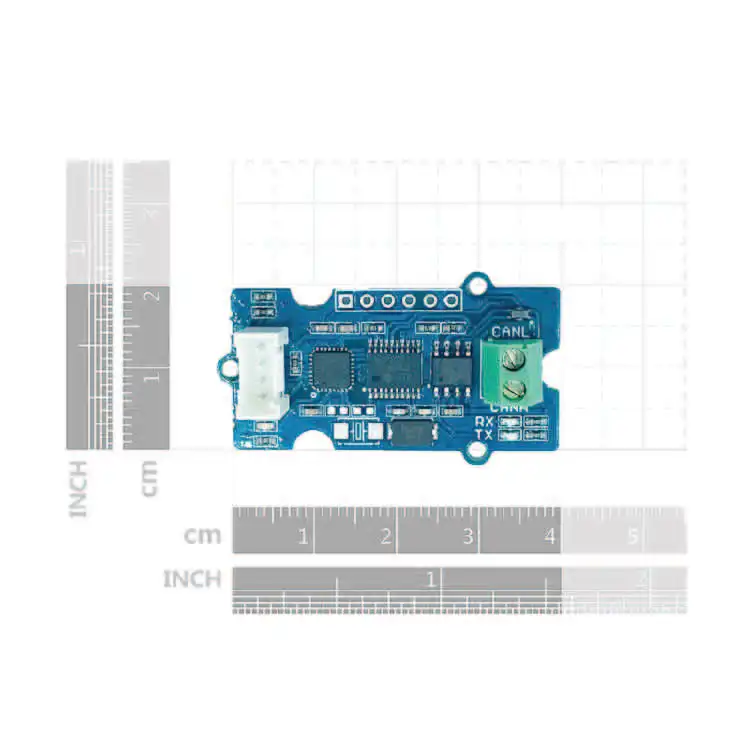

* ● Small size: 20x40 mm

----------------------------------------------------------------------------------------------------------------------------------

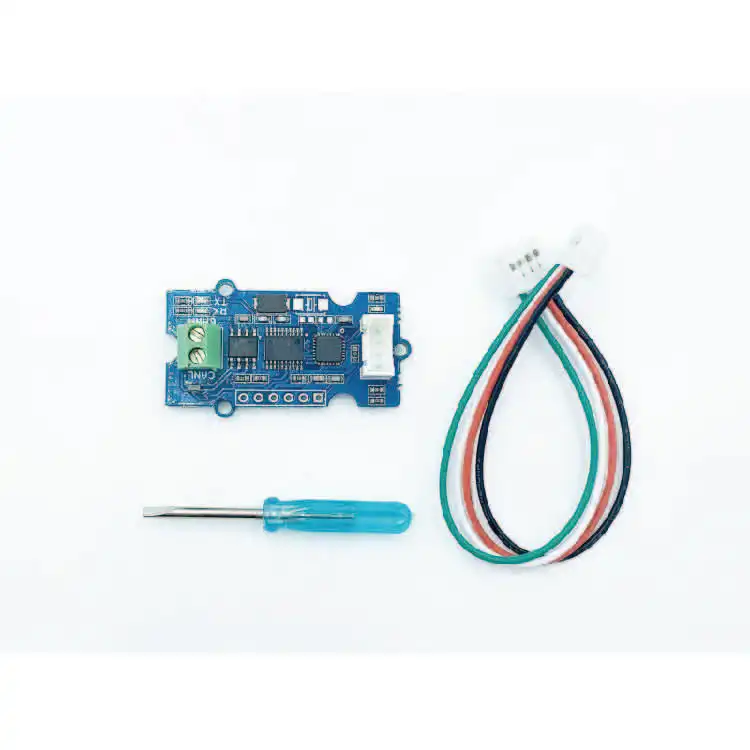

What Is Inside:
* ● Serial CAN Bus Module x1
* ● Grove Cable x1
* ● Screw Driver x1

Our PCB manufacturing capability

PCB Layers	2-18 Layers	Min Soldermask bridge	0.076mm
Max Panel Size	600mmx600mm	Insulating resistance	1E+12Ω（general）
Min Board Thickness	4 Layers 0.40mm, 6 Layers 0.80mm, 8 Layers 1.00mm, 10 Layers 1.20mm	Board Thick : hole size	0.209027778
Min Trace Width	0.075mm	Shock heating	(3 times/10 second)
Min Trace Space	0.075mm	Wrap & twist	≤0.7%
Min Hole Size	0.20mm	Electric strength	＞1.3KV/mm
Hole wall thickness	0.025mm	Peel strength	1.4N/mm
Tolerance For PTH hole	±0.076mm	solder mask hardness	≥6H
Tolerance For NPTH hole	±0.05mm	Flammability	94V-0
Hole position tolerance	±0.05mm	Impedance control	±5%
Tolerance for outline	±0.15mm	Surface treatment	OSP, HASL, ENIG, Immersion tin, Immersion silver

Our PCB Assembly capability

Board Size	Board machine SMT size 40*50 mm
SMT+DIP	Machine SMT and through-hole assembly
BGA part	Able to process 0.35 pitch micro BGA, AQFN, QFP, QFN, & AQFN (advanced quad flat no-leads)
Quantity	Up to 100,000 pieces quick SMT machine per day
Quality check	AIO and X-RAY automatic check
Clean requirement	Clean or not-clean process
ROHS requirement	RoHS / Non-RoHS compliant assembly
Components	100% Material procurement, 100% consigned material management or hybrid
Testing	Flying Probe Testing 100%, Voltage test, Test fixture, Function test, Software test etc
Lead time	Sample order ~2wks, small batch production ~3wk, mass production ~4wks

Company Profile

MakerPCB is a professional ODM/EMS manufacturer with fabrication facilities in China. We specialize in electronics manufacturing, including electronic design and engineering, PCB fabrication, SMT and PCB assembly, components sourcing, prototyping, box build, mechanical & electrical engineering, testing, low, medium, and high - volume production, and cost-effective hybrid global shipping. Our ongoing goal is to assist our customers to achieve the best possible time to market and competitive advantage by producing products in a sustainable way at the lowest total cost through our competence, delivery accuracy, and product quality. As we move into the future, we plan on continuing our cutting-edge innovations and look forward to providing our customers with exceptional products and services.

We value our customers and aim to build long-lasting relationships based on trust and communication because our customers are very important to us. MakerPCB is your pathway towards everlasting success.

FAQ

Q1. What services do you offer?
We provide a one-stop full-turnkey manufacturing solution including PCB fabrication, component sourcing & procurement, SMT, plastic injection & metal, final assembly, testing, certification supports, and the other manufacturing services.

Q2. Could we sign the NDA before sending the files?
Sure, we would like to sign the NDA with our clients and keep the production files confidential. We promised that we won't share our client projects files for any

Q3. What files do you need for the PCB & PCBA quotation?
We need to know the Quantity inquiry, BOM, PCB Gerber, PCB specification requirement, pick and place file, Test plan (if you need). Then we will check and quote to you within 24hours.

Q4. What is the minimum order quantity for the PCBA order?
Our PCBA MOQ is 1pcs, we could support you from the design sample verification to the mass production run. We are professional and willing to help you get all the manufacturing process fast and easily.

Q5. What is the production lead time for the PCBA order?
Our PCBA production lead time is 1~2wks for sample order (1~20pcs); 3~4wks for the trial production run (100~1000pcs), 4~5wks for the mass production run (>1000pcs). We also could offer you the expedited service if you need it urgently.

Based in Shenzhen, where becomes technology heaven for the world's hardware startups. We hope to become a one-stop production factory for you.

Let us work together, cheers! Contact us!
