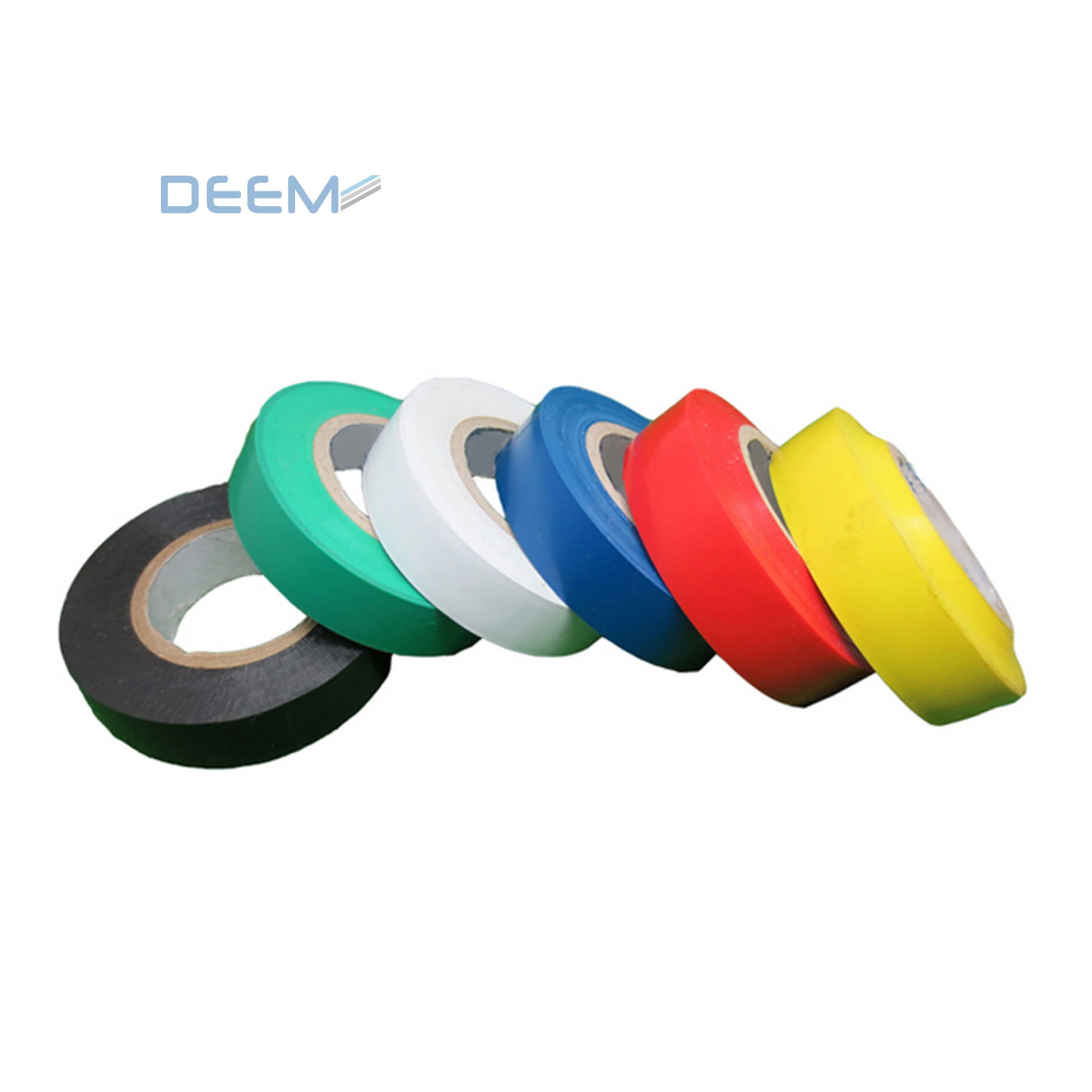

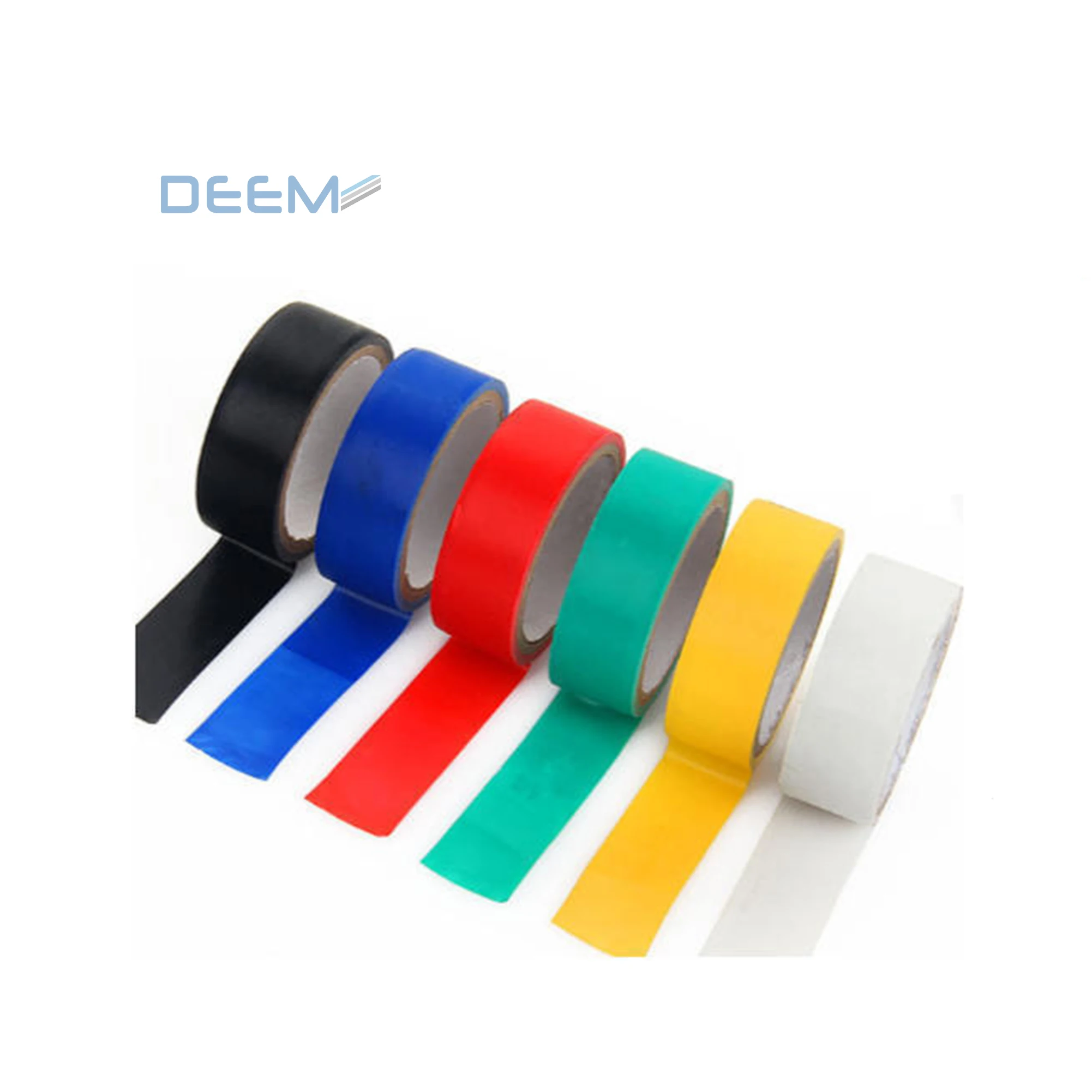

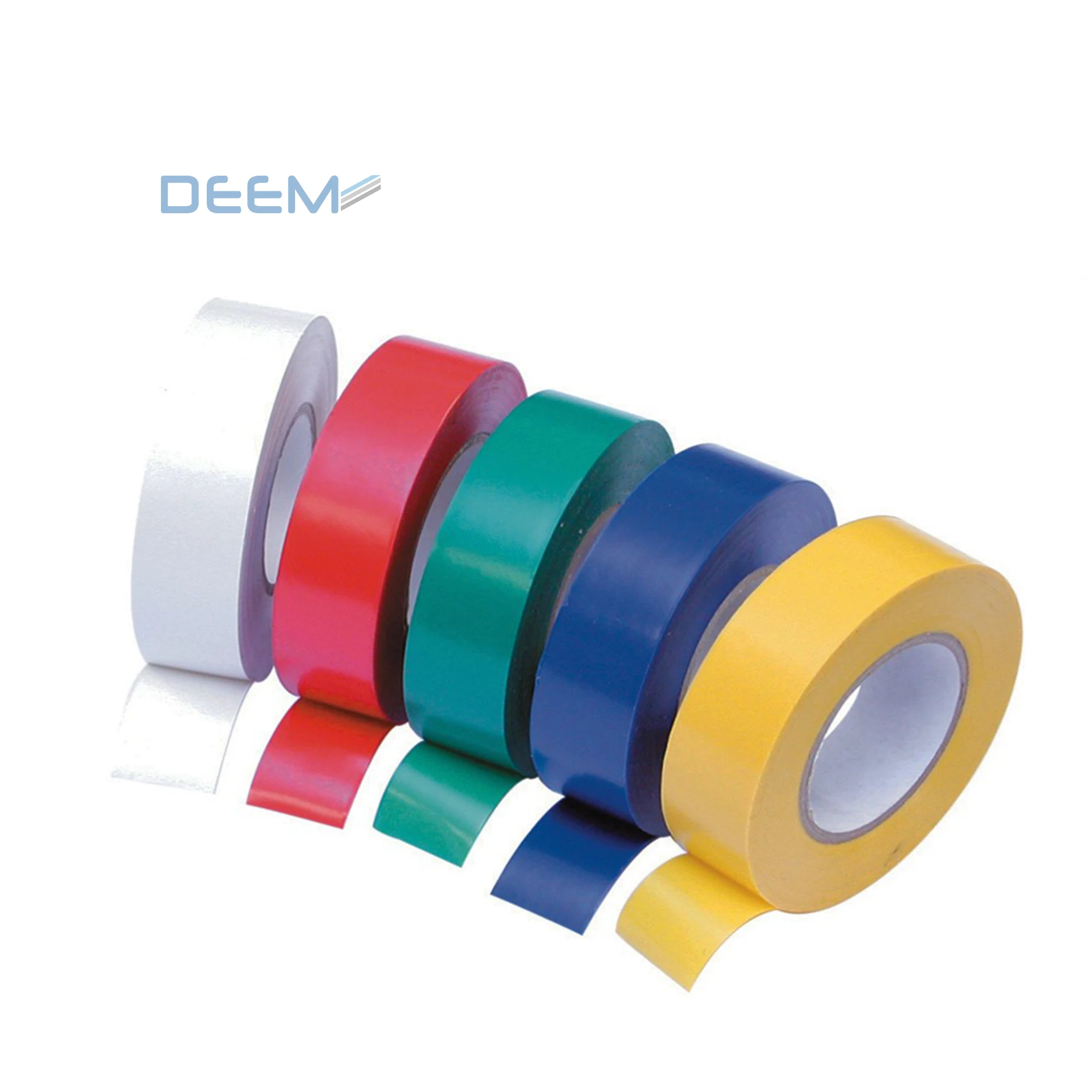

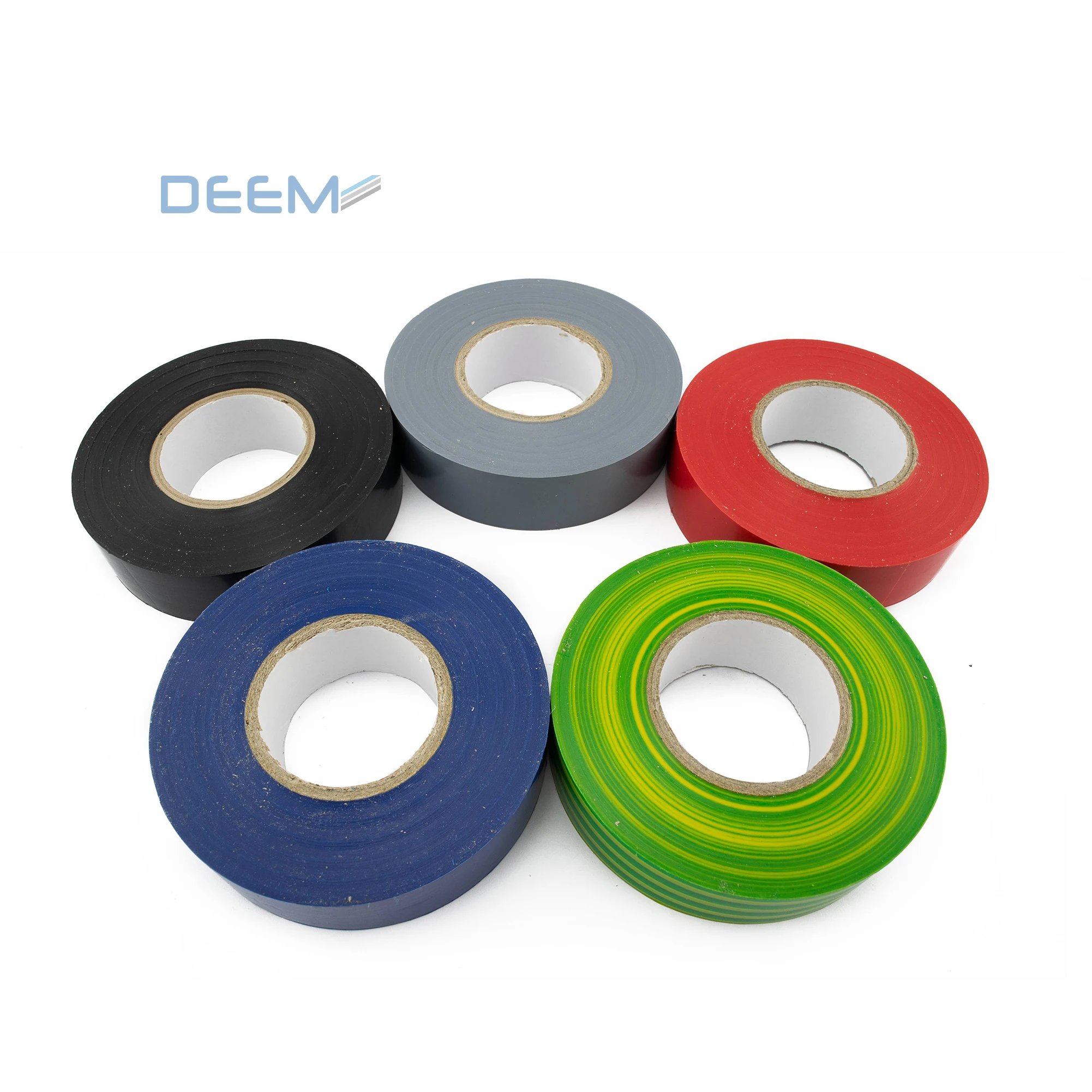

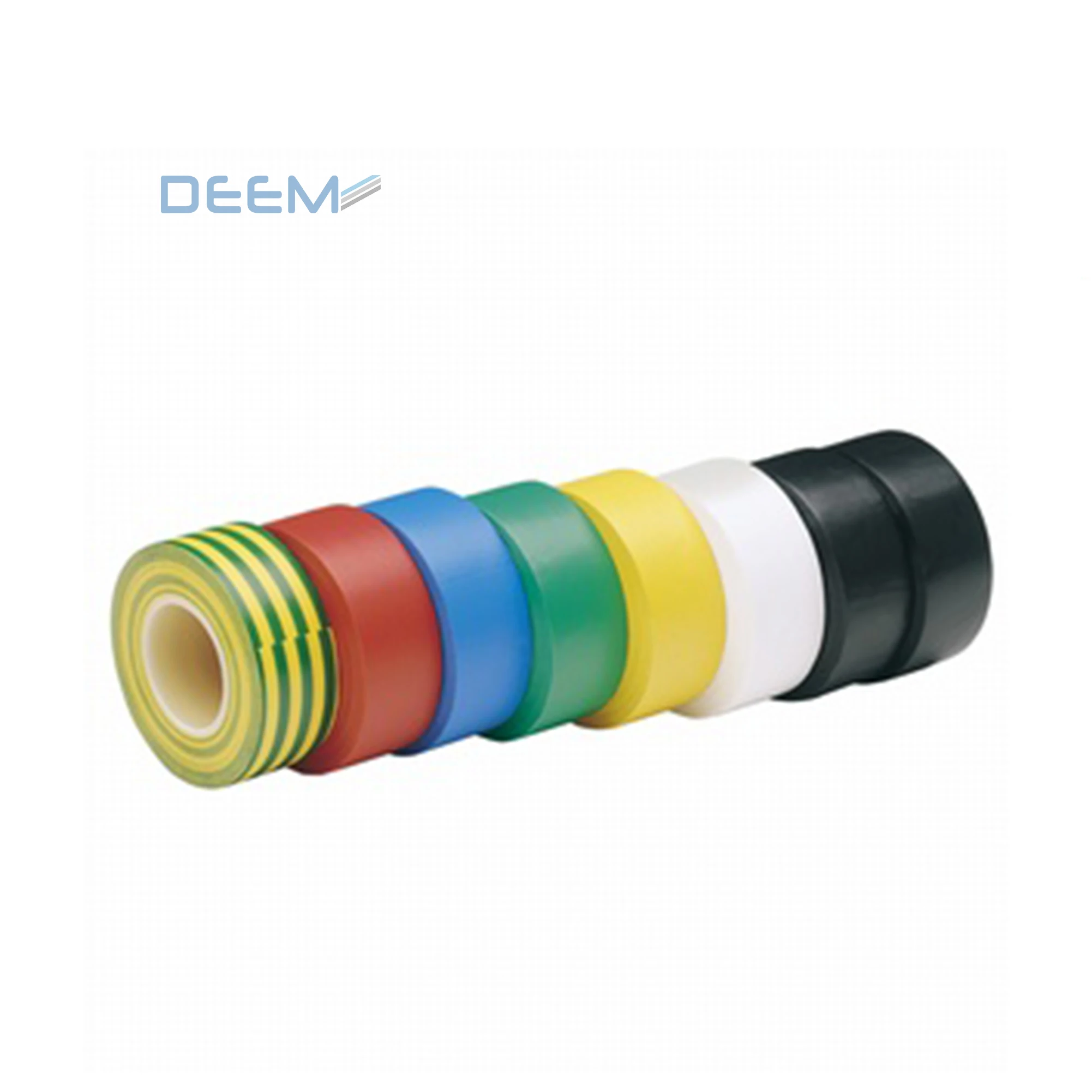

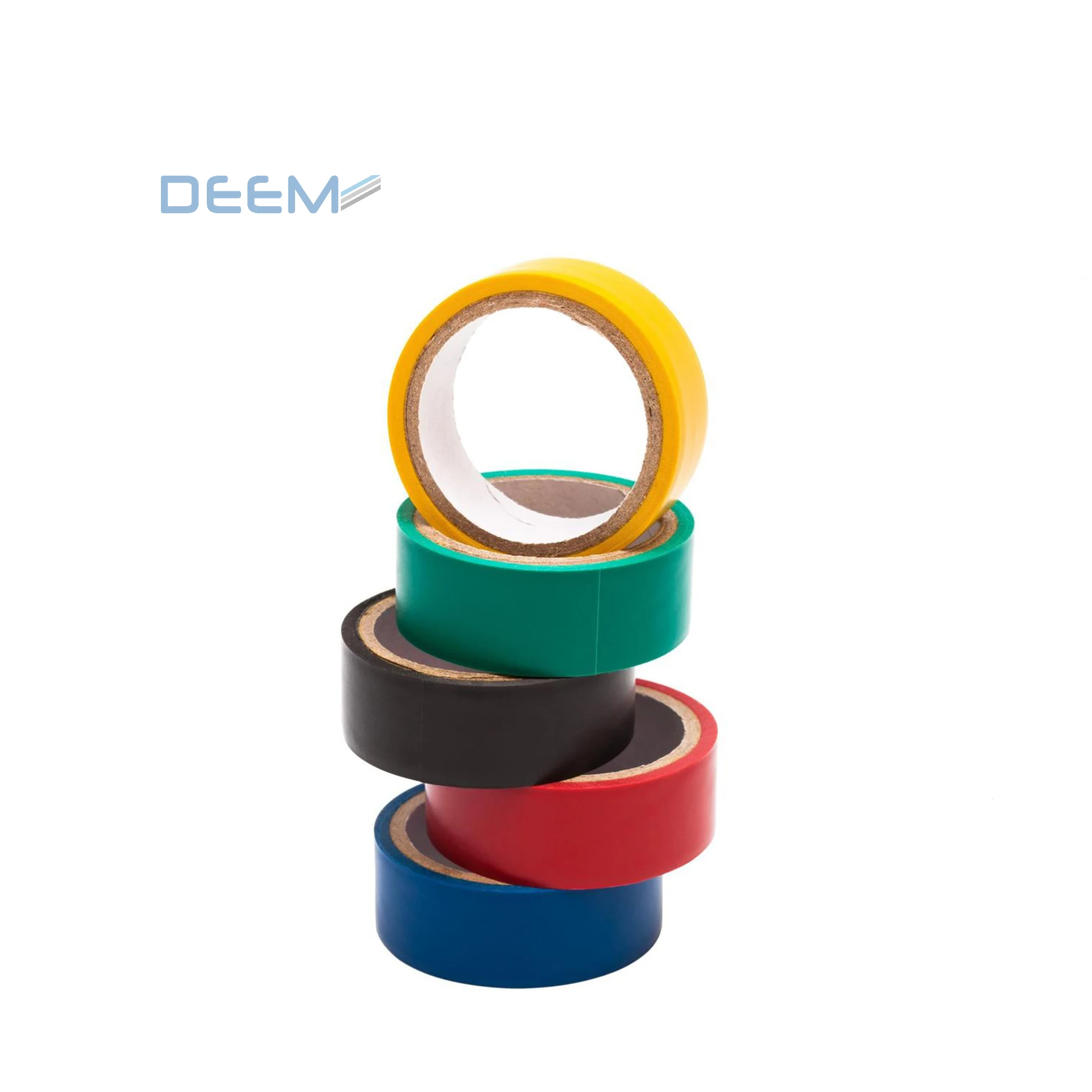

DEEM ПВХ электрическая лента Jumbo

Описание и отзывы

Трекер стоимости

Характеристики

Dimensions

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (℃)	Voltage Breakdown (KV/mm)	Features&Application
100D	PVC	rubber	0.1	1.5	14	160	80	≥40	Used for wrapping electric wires and  cables etc.    Be up to the UL standard       Flame retardant
110D	PVC	rubber	0.11	1.5	15	160	80	≥40
130D	PVC	rubber	0.13	1.5	17	160	80	≥40
150D	PVC	rubber	0.15	1.5	20	180	80	≥40
165D	PVC	rubber	0.165	1.5	22	180	80	≥40
180D	PVC	rubber	0.18	1.5	26	180	80	≥40
190D	PVC	rubber	0.19	1.5	28	200	80	≥40
200D	PVC	rubber	0.2	1.5	28	200	80	≥40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥40
110Z	PVC	rubber	0.11	1.5	15	160	80	≥40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥40
150Z	PVC	rubber	0.15	1.5	20	180	80	≥40
165Z	PVC	rubber	0.165	1.5	22	180	80	≥40
180Z	PVC	rubber	0.18	1.5	26	180	80	≥40
190Z	PVC	rubber	0.19	1.5	28	180	80	≥40
200Z	PVC	rubber	0.2	1.5	28	200	80	≥40

•Standard thickness 0.13/0.15/0.19mm

 Standard width:10/15/19/25mm

 Standard Length:5/10/20/25m

                                                       Click here to send an enquiry!



DEEM Electronic&Electric Material Co Ltd is a joint venture manufacturer between Chinese sourcing company with a professional heat shrink backgroud specialist in Europe more than 20 years.We are specialized in research,develop,manufacturer and sales of radiation cross linked heat shrinkable material in worldwide.Such as thin wall,dual wall,medium wall,heavy wall and other specialty products like PTFE,PVDF,silicon rubber,crimp seal connectors,Fiber optic protectors,Braiding Sleeve and other kits in plastic box or small mini box etc related products.Meanwhile OEM and ODM service are available

DEEM is also able to provide any kind of added value jobs.Such as what we already did for the customer packing,cutting,loading,labeling,any kinds of kitting etc.Meanwhile we are also having the capacity to do the trading work as customer request in related fields.

Delivery.Efficiency.Economic.Material.Reliable service and products are servicing the customers more than 20 countries in worldwide.Welcome to join it.
