OEM H.265 XMEYE 5MP 4K Full HD 9CH

Цена:20,00 $ - 30,00 $*

Количество:

Product Description

	Model	NBD8016S-ULA-V2
System	Main processor	Hi3536DV100
		Operating System	Embedded Linux
		System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Interface		Preview	1/4/8/9/16
Video	Video input (IP)	16*5M（Access bandwidth 72Mbps）
		Video compression	H.265AI/H.265+(compatible H.265/H.264)
		Display quality	Max:2560*1440
		Playback quality	5M/1080P
		Decode(real-time+Un real-time)	5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+2）
		VR	Unsupport
		Human shape / Face	Support(depend on camera)
Audio	Audio compression	G.711A
Audio		Intercom	unsupport
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
		Local payback(real-time+Un real-time)	5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+2）
		Search mode	Search by Time/Calendar/Event/Channel
		Record storage	HDD、Network
		Backup mode	Network backup, USB hard disk, USB burner, SATA burner

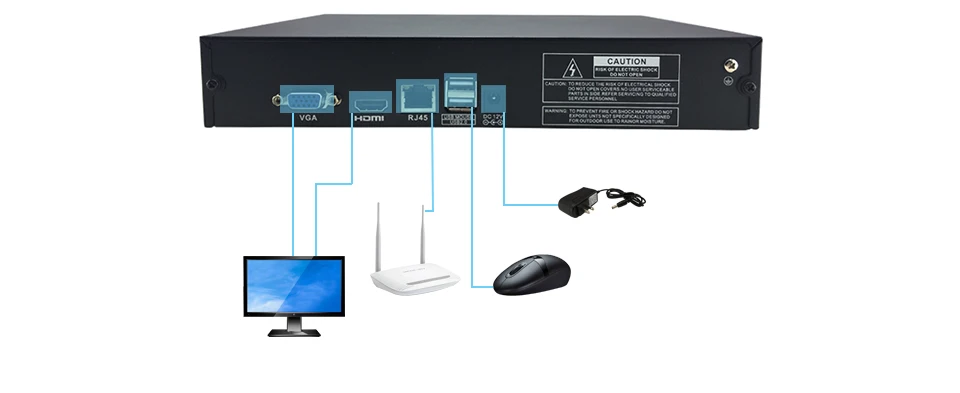

External interface	Video output	1ch VGA，1ch HDMI HD output
		Audio I/O	0/1（3.5MM audio output）
		Alarm I/O	0/0
		Network interface	1*RJ45 10M/100M Adaptive Ethernet port
		USB interface	2*USB2.0 ports(one USB extension interface is reserved)
		HDD	1 SATA(Up to 14TB for each disk)
		ESATA	No
		Serial interface	No

Features

(1)Support HDMI 1080P output VGA HD output;

(2)Support ONVIF;access third party;

(3)Support web, CMS, center platform management software MYEYE, provide SDK development;

(4)Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

(5)Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);

(6)Support GB28181 protocol access to
