Запасные части для сельскохозяйственной техники трактора сцепления Люк RE211277 RE227648 RE177574 сменные

Fit John Deere tractor 50 series : 5220D,5320D,5420D

     A tractor which you want to walk through smoothly, so you need an excellent and stable transmission system include the clutch,bearing and shaft,that is also what we work hard to deliver,a reliable matchful clutch can enchance the power of the work and make it easier and comfortable

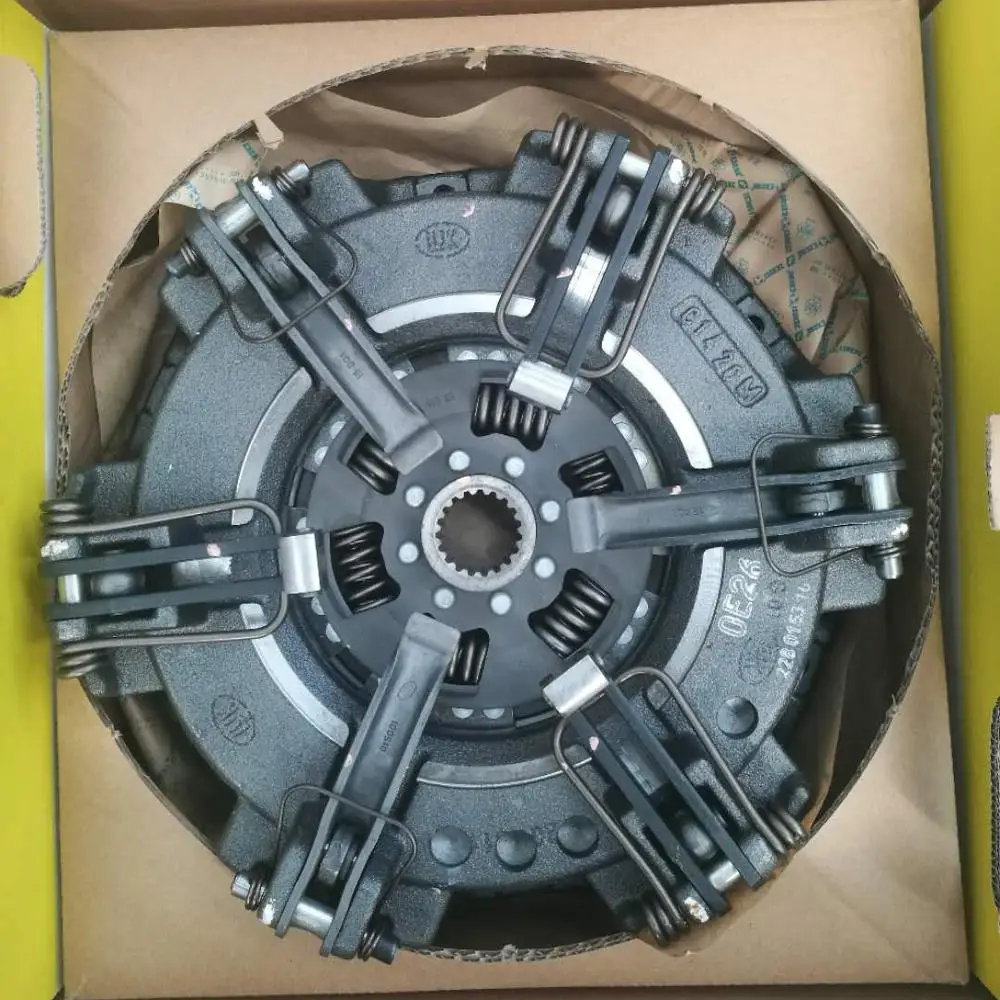

 Clutch Assembly

             The clutch transfer the power coming from the engine to the transmission system thus to drive the move of the vehicle and do the work through PTO,it was installed on the clutch housing borddered with the flywheel,as one of the key part of the tractor,it play an importation role in the work and walk of the tractor,by the levels of the clutch,the control pedal can engage and disengage the pressure plate of the assembly,when the pedal on,it will cut off the transmission,contrast on,it will get the power,some elements can influence the show of it

                                              What is the good clutch?

Well matching the transimssion system of John deere
Cerametallic pad has better resistence character
Damping spring to reduce the impact of engaging
Reliable and long cooperation supplier ensure the final assembly and nice price

1: The clutch disc

  The clutch disc comprises friction pad,base disc and spline,they were composed together by several rivets,the base disc is the craft of other parts,usually the material is the steel,the pad take the key role for taking the shaft to rotate together by pressing upon the clutch assembly through the level,usually it have 3 types: Asbestos,no asbestos or organic,Cerametallic or copper base,the first is cheap,but it is out of date for some harms to the enviroment,the second is popular and cheaper than cerametallic, the last have better resistence character but more expensive,the spline is the holder of shaft,it should be strengthen and hard,if not,some spline worn will cause the disc being twisted whereas resulting to some bad damage

Two types of the disc: Main and PTO

Main    OEM no:   RE227648 OD.: 280mm       Hub:   21.5*25 Spline: 13          Spring:  Thickness: 10.5    Weight: 1.4Kg Friction material:  Cerametallic

PTO OEM no:     RE177574 OD.: 280mm        Hub: 31.5*35 Spline: 19            Thickness: 8.5 Friction material:    Cerametallic Weight: 2.7Kg

The reason for us

The abilities of one of the top 5 manufacturer in China
Skillful worker and long experience in this field for presenting the cost-effecient and qualitified product
In North and Middle America,South-east Asia,We have set the footprint
Excellent facilities of tractor industry and transportation position
